Walk-Behind Mower

Model # 536902142 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 536902142 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
536902142 20" Rotary Lawn Mower
Lock Nut 9424215
#33

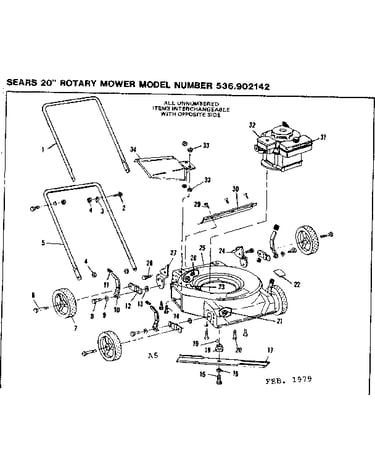

Replacement parts diagram

Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Washer 8728
#3

Replacement parts diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 274707
#29

Replacement parts diagram

Screw

Part #274707

Replaced by #12342MA

?
Manufacturer substitution
This part replaces 274707. Substitute parts can look different from the original.
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Screw 48148
#20

Replacement parts diagram

Screw

Part #48148

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 120382
#16

Replacement parts diagram

Lock washer

Part #120382

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer 32327
#9

Replacement parts diagram

Wave washer

Part #32327

The manufacturer no longer makes this part, and there's no substitute part

Blade 41198
#17

Replacement parts diagram

Blade

Part #41198

The manufacturer no longer makes this part, and there's no substitute part

Flanged Nut 995242
#26

Replacement parts diagram

Flanged nut

Part #995242

The manufacturer no longer makes this part, and there's no substitute part

Pivot Arm 36818
#12

Replacement parts diagram

Pivot arm

Part #36818

The manufacturer no longer makes this part, and there's no substitute part

Decal 67712
#22

Replacement parts diagram

Decal

Part #67712

The manufacturer no longer makes this part, and there's no substitute part
