Dacor
Countertop Microwave

Model # DMO24R Official Dacor microwave

Here are the diagrams and repair parts for Official Dacor DMO24R microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

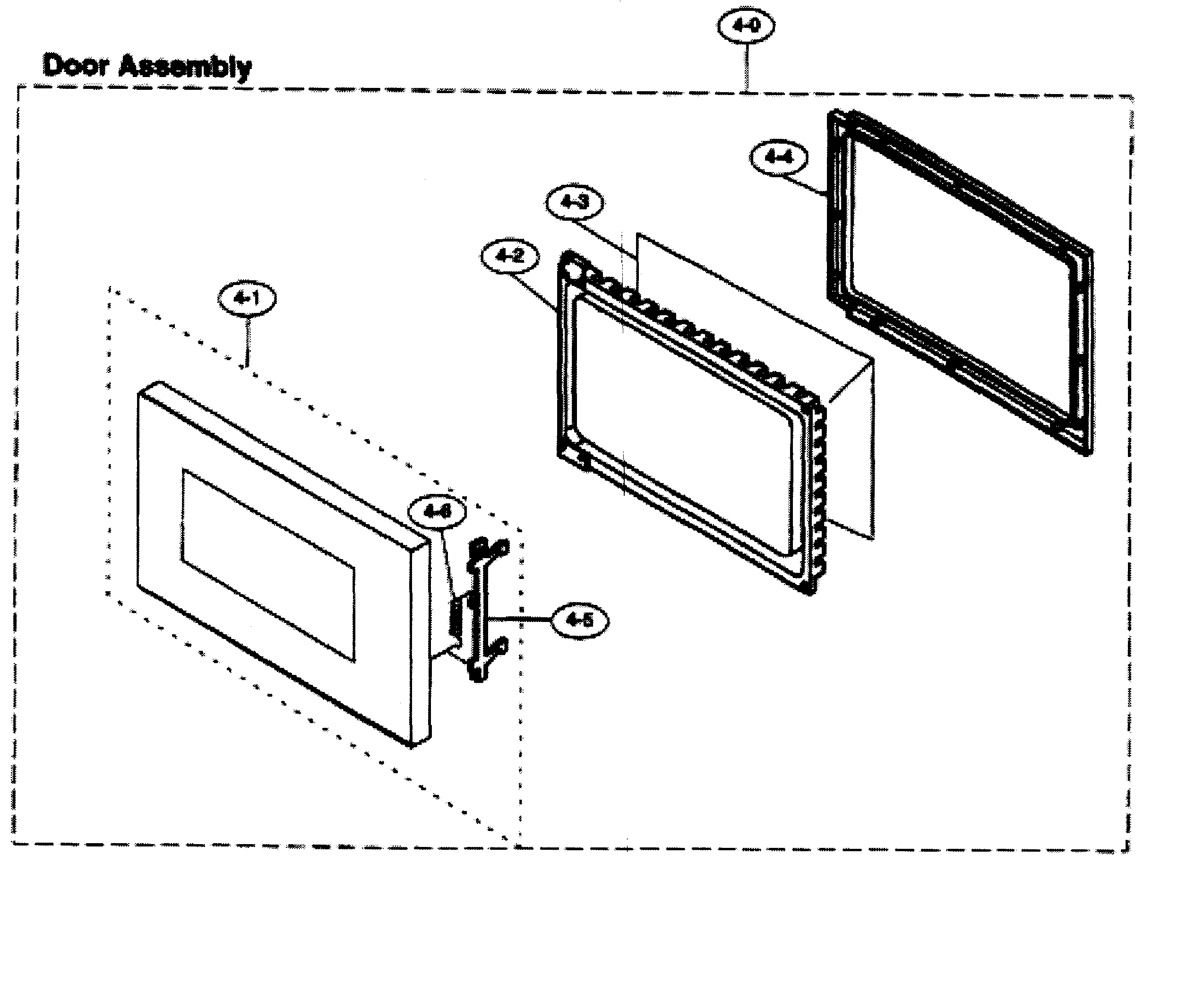

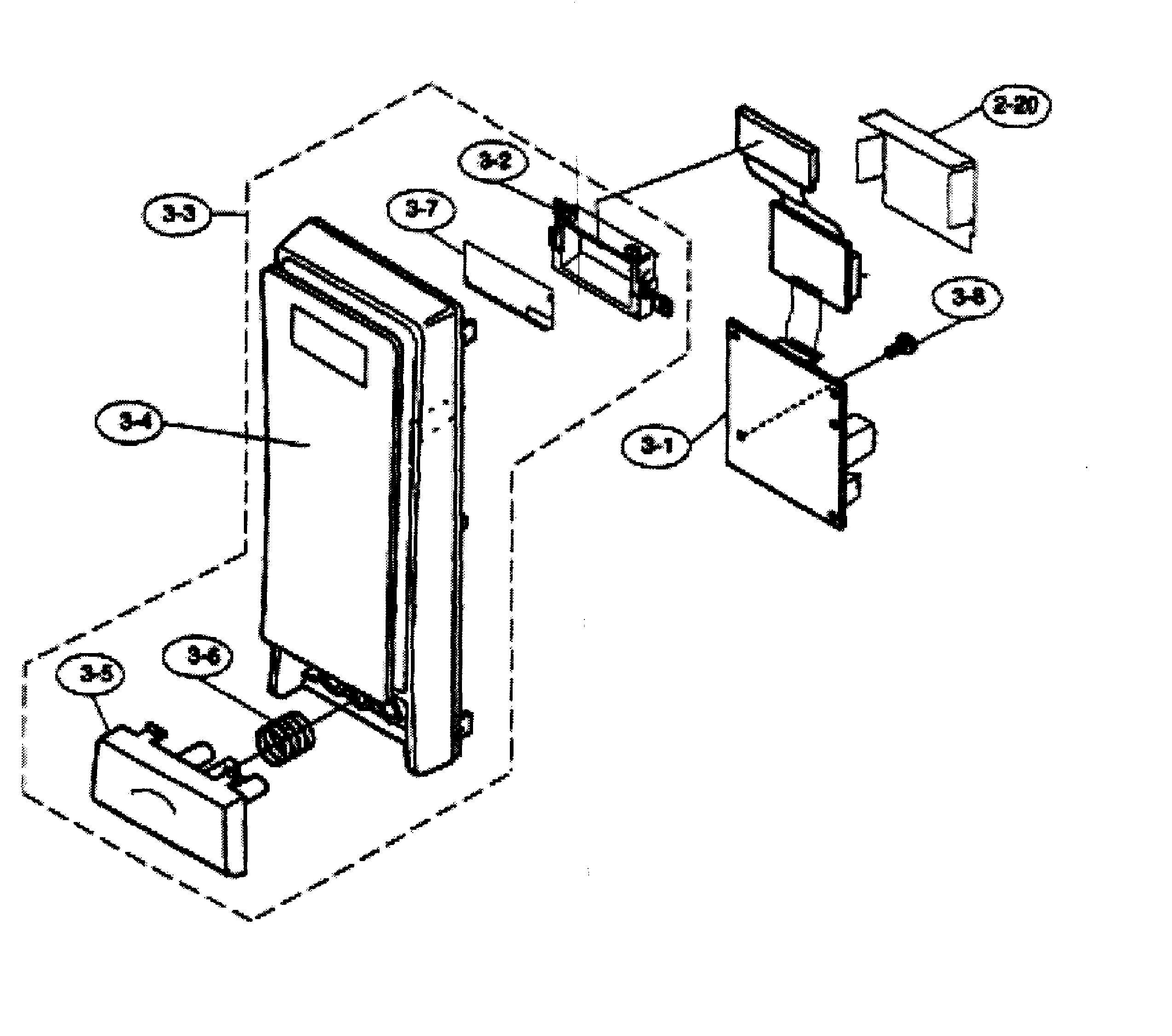

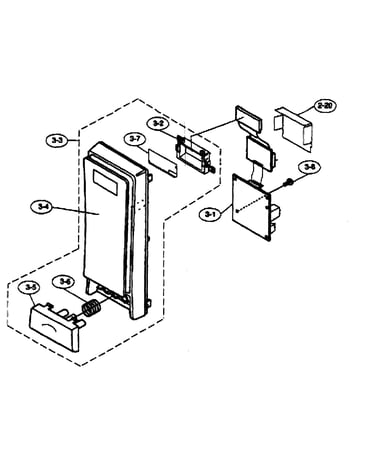

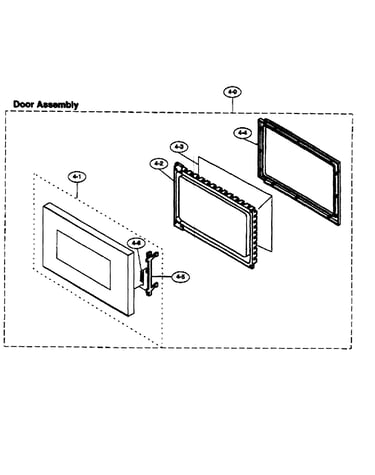

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Microwave Door Release Lever 86824
#2-6

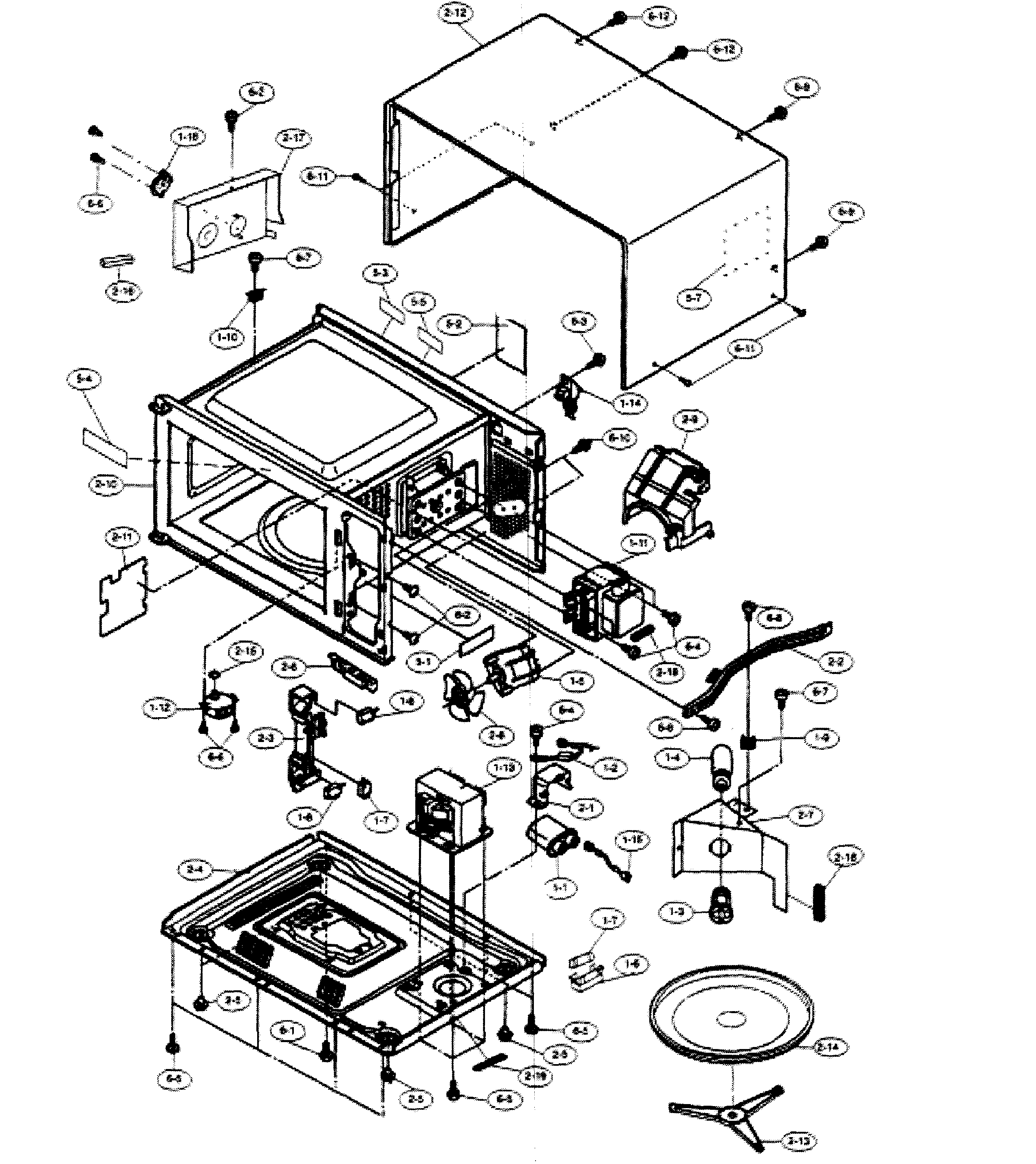

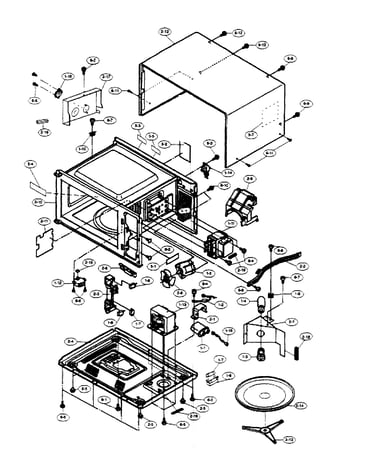

Cabinet assy diagram

Microwave door release lever

Part #86824

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring 86786
Microwave door latch spring

Part #86786

This item is not returnable
$2.16
Back Order
Latch Hook 86842
#2-3

Cabinet assy diagram

Latch hook

Part #86842

The manufacturer no longer makes this part, and there's no substitute part

Spring 86779
Spring

Part #86779

Replaced by #76170

?
Manufacturer substitution
This part replaces 86779. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
H/v Wire 86799
#1-15

Cabinet assy diagram

H/v wire

Part #86799

This item is not returnable
$2.49
In Stock
Choke Cover 86784
Choke cover

Part #86784

$9.99
In Stock
Dacor Microwave Moisture Barrier 86903
Dacor microwave moisture barrier

Part #86903

This item is not returnable
$2.58 |
28% OFF Phone Price : $3.58
In Stock
Microwave Cover 86828
#2-11

Cabinet assy diagram

Microwave cover

Part #86828

$8.49
In Stock
High-voltage Capacitor Band 86817
#2-1

Cabinet assy diagram

High-voltage capacitor band

Part #86817

This item is not returnable
$2.16
In Stock
Ac Cord 86789
#1-14

Cabinet assy diagram

Ac cord

Part #86789

$15.99
In Stock
