Jenn-Air
Countertop Microwave

Model # JMC3215BS0 Official Jenn-Air microwave

Here are the diagrams and repair parts for Official Jenn-Air JMC3215BS0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Rack W10605651
#5

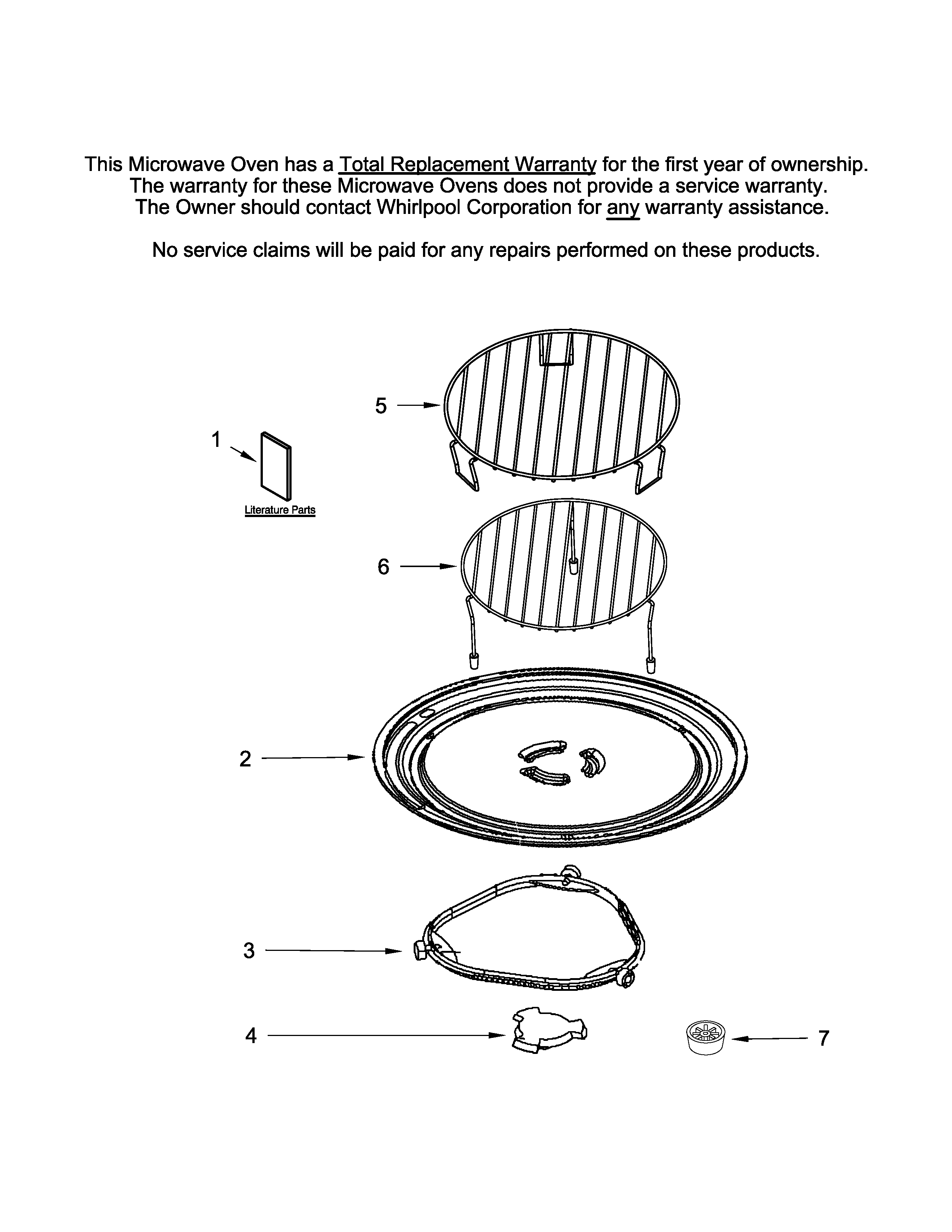

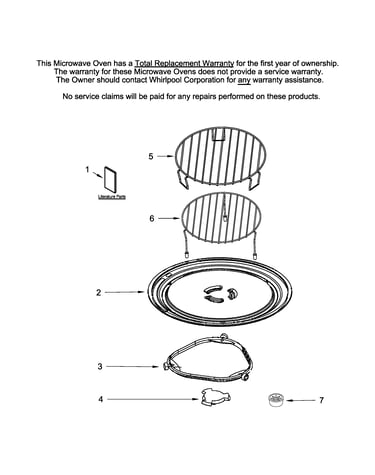

Turntable parts diagram

Rack

Part #W10605651

$26.29 |
19% OFF Phone Price : $32.29
In Stock
Shaft Turn W10605644
#4

Turntable parts diagram

Shaft turn

Part #W10605644

$9.99 |
9% OFF Phone Price : $10.99
In Stock
Microwave Foot W10644489
#7

Turntable parts diagram

Microwave foot

Part #W10644489

Replaced by #WPW10644489

?
Manufacturer substitution
This part replaces W10644489. Substitute parts can look different from the original.
This item is not returnable
$21.19 |
22% OFF Phone Price : $27.19
In Stock
Microwave Glass Tray W10451786
#2

Turntable parts diagram

Microwave glass tray

Part #W10451786

Replaced by #WPW10451786

?
Manufacturer substitution
This part replaces W10451786. Substitute parts can look different from the original.
$43.32 |
12% OFF Phone Price : $49.32
In Stock
Accessories, 30" Stainless Trim Kit MKC2150AS
#NI

Turntable parts diagram

Accessories, 30" stainless trim kit

Part #MKC2150AS

The manufacturer no longer makes this part, and there's no substitute part

Accessories, 27" Stainless Trim Kit MKC2157AS
#NI

Turntable parts diagram

Accessories, 27" stainless trim kit

Part #MKC2157AS

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide W10491278
#1

Turntable parts diagram

Use and care guide

Part #W10491278

The manufacturer no longer makes this part, and there's no substitute part

Rack W10605652
#6

Turntable parts diagram

Rack

Part #W10605652

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support W10605643
#3

Turntable parts diagram

Microwave turntable support

Part #W10605643

The manufacturer no longer makes this part, and there's no substitute part
