Model # PHO303UB/P1132513N Official Modern Maid gas range

Here are the diagrams and repair parts for Official Modern Maid PHO303UB-P1132513N gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

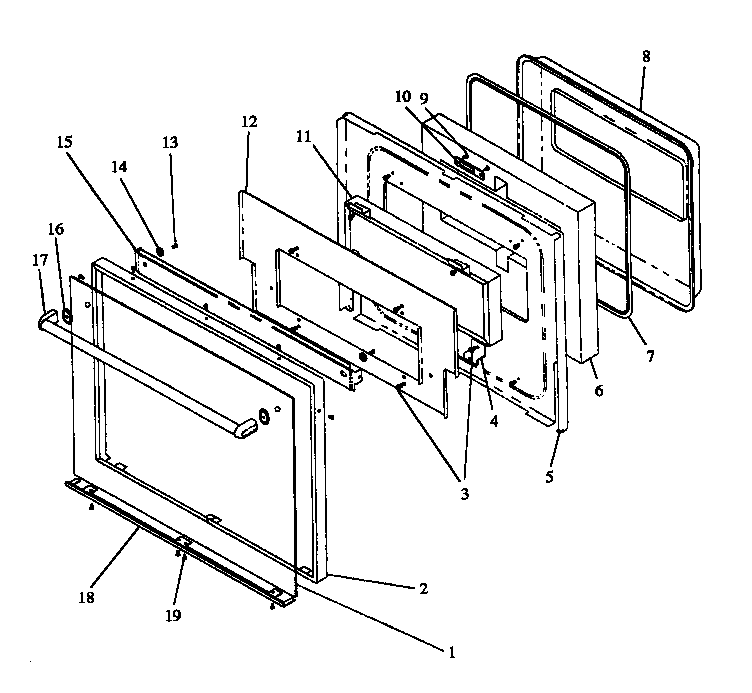

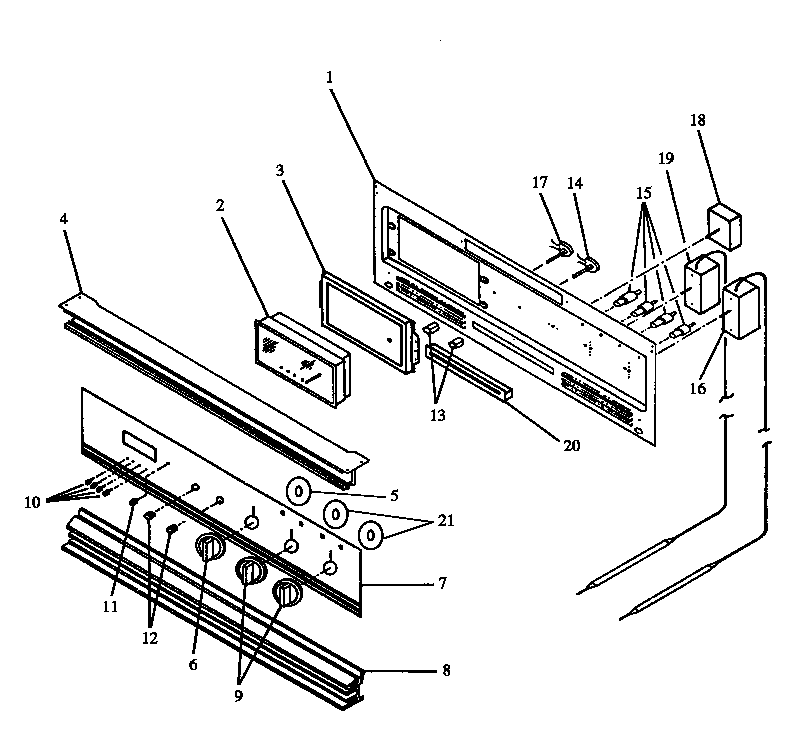

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 447 parts  |
Lamp 0042175
#53

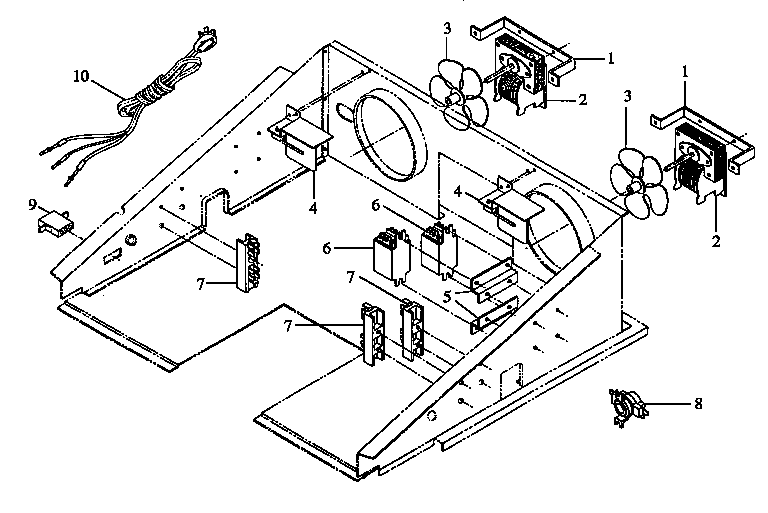

Upper cabinet diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Broiler Grid 304451E
#45

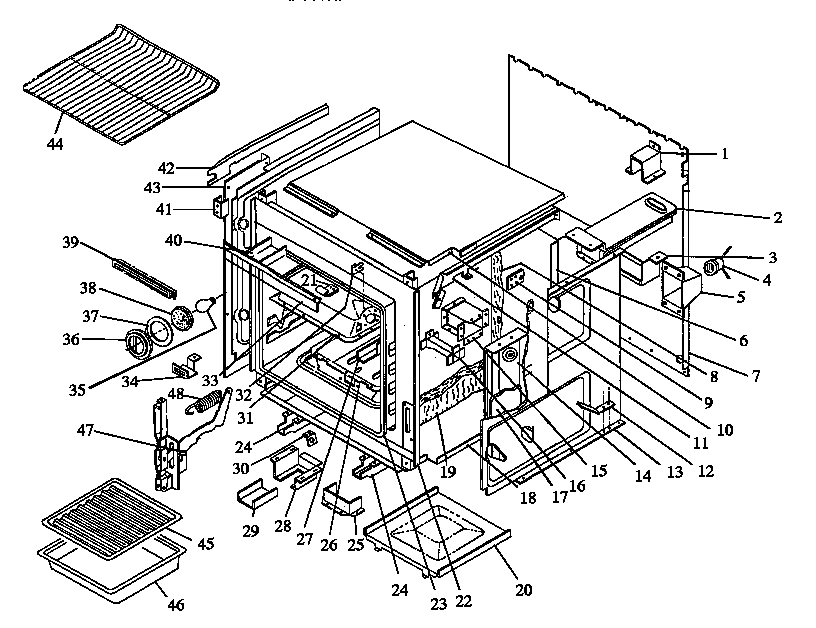

Lower cabinet diagram

Broiler grid

Part #304451E

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451E. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Lock Nut 0060922
#19

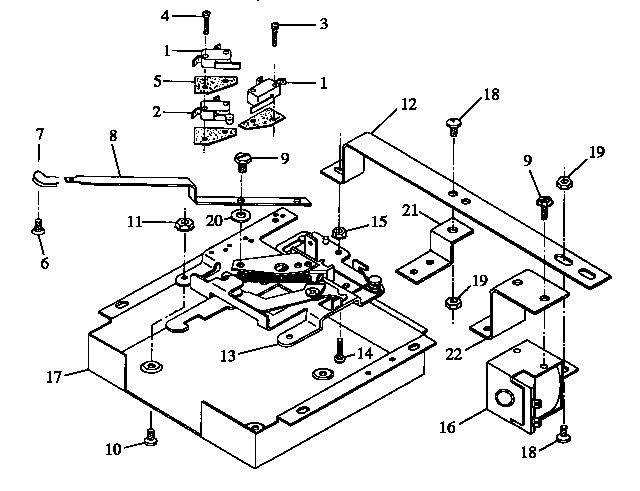

Door latch assembly diagram

Lock nut

Part #0060922

Replaced by #WP486255

?
Manufacturer substitution
This part replaces 0060922. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 0059445

#NI

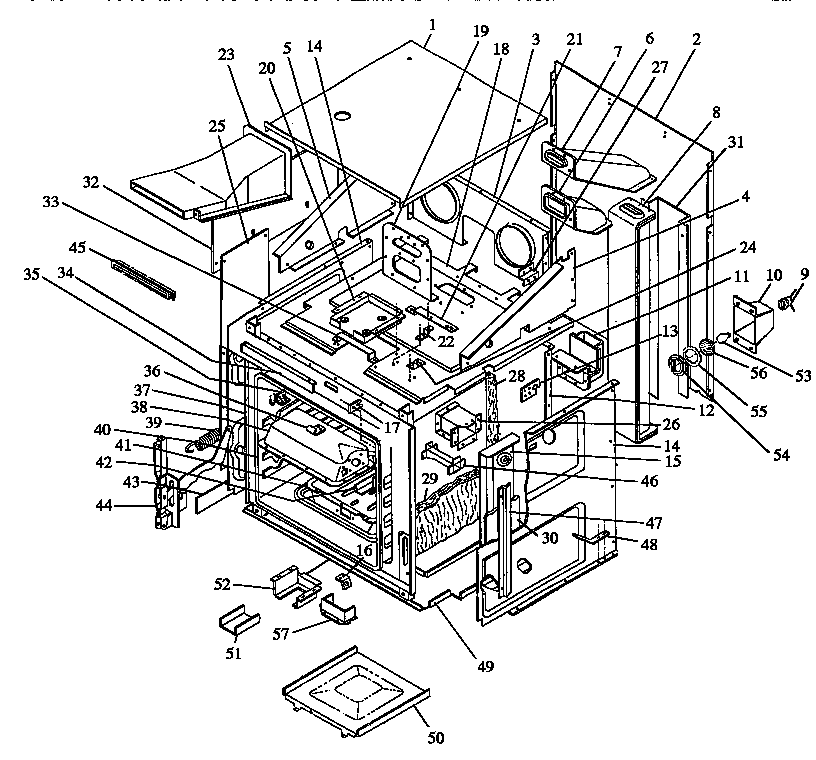

All parts diagram

Screw

Part #0059445

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0059445. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 0041809
Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Pressure Regulator 0063684
#1

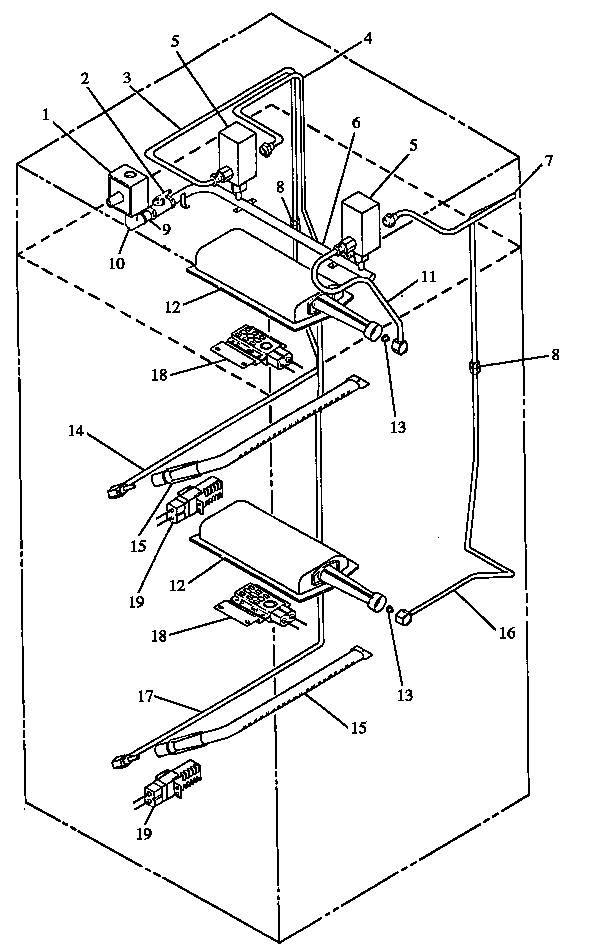

Gas components diagram

Pressure regulator

Part #0063684

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 0097885
#11

Door latch assembly diagram

Hex nut

Part #0097885

Replaced by #M0282009

?
Manufacturer substitution
This part replaces 0097885. Substitute parts can look different from the original.
$12.49
In Stock

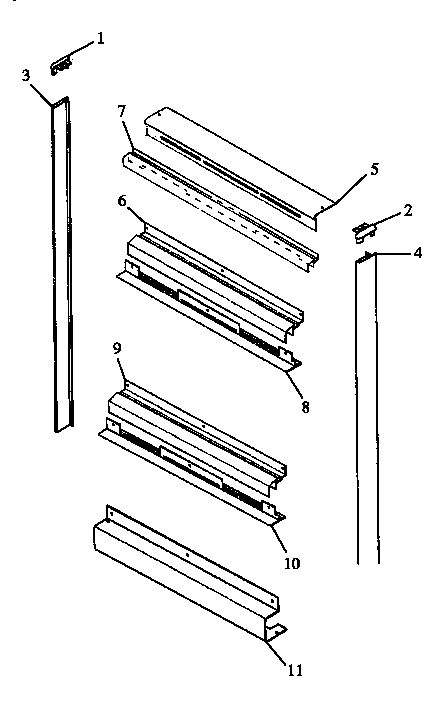

Air Channel, Left 0060834
#42

Lower cabinet diagram

Air channel, left

Part #0060834

The manufacturer no longer makes this part, and there's no substitute part

Air Channel, Upper Bake 0054274
Air channel, upper bake

Part #0054274

The manufacturer no longer makes this part, and there's no substitute part

Solenoid 0042049
#16

Door latch assembly diagram

Solenoid

Part #0042049

The manufacturer no longer makes this part, and there's no substitute part
