Model # HBN452AUC Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBN452AUC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

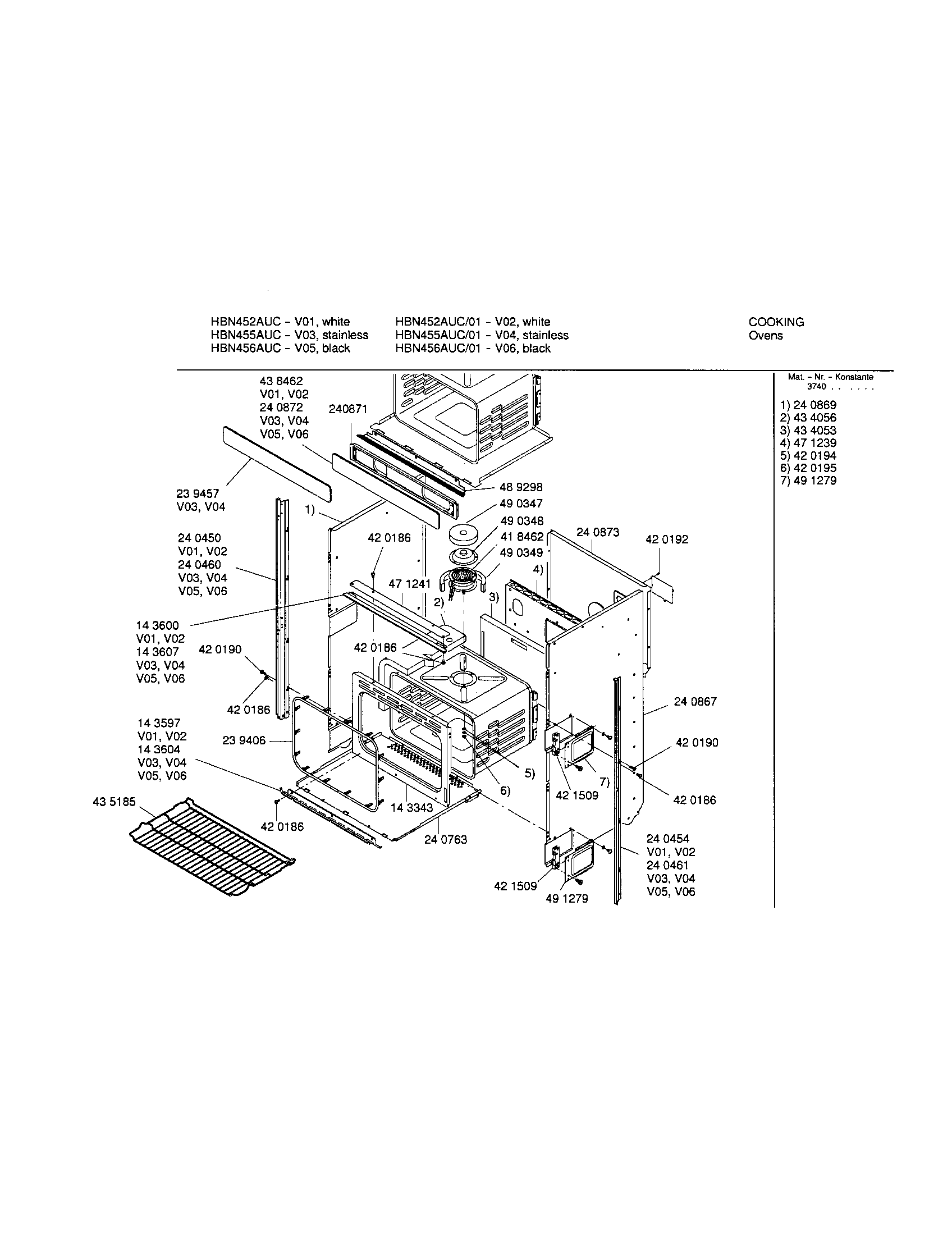

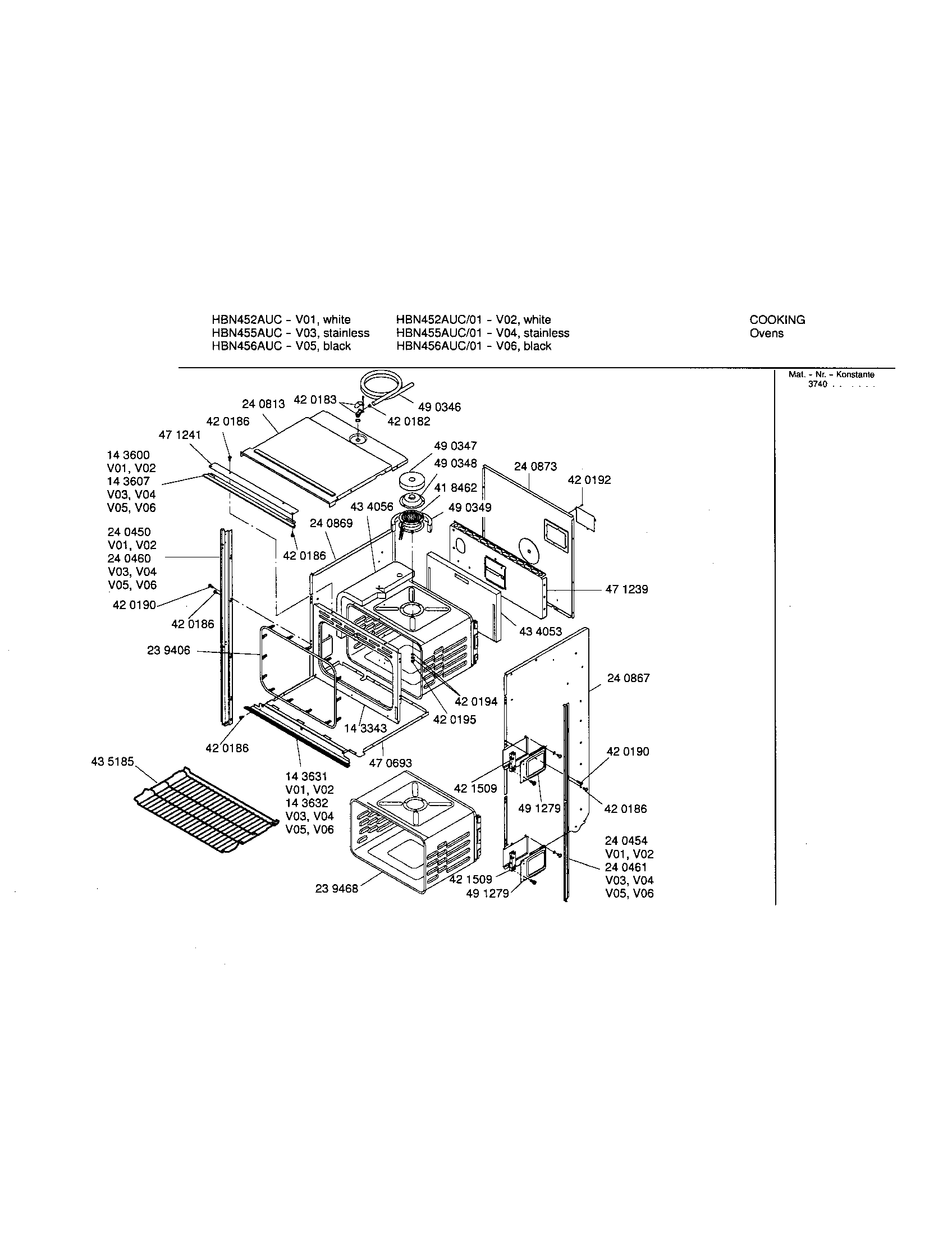

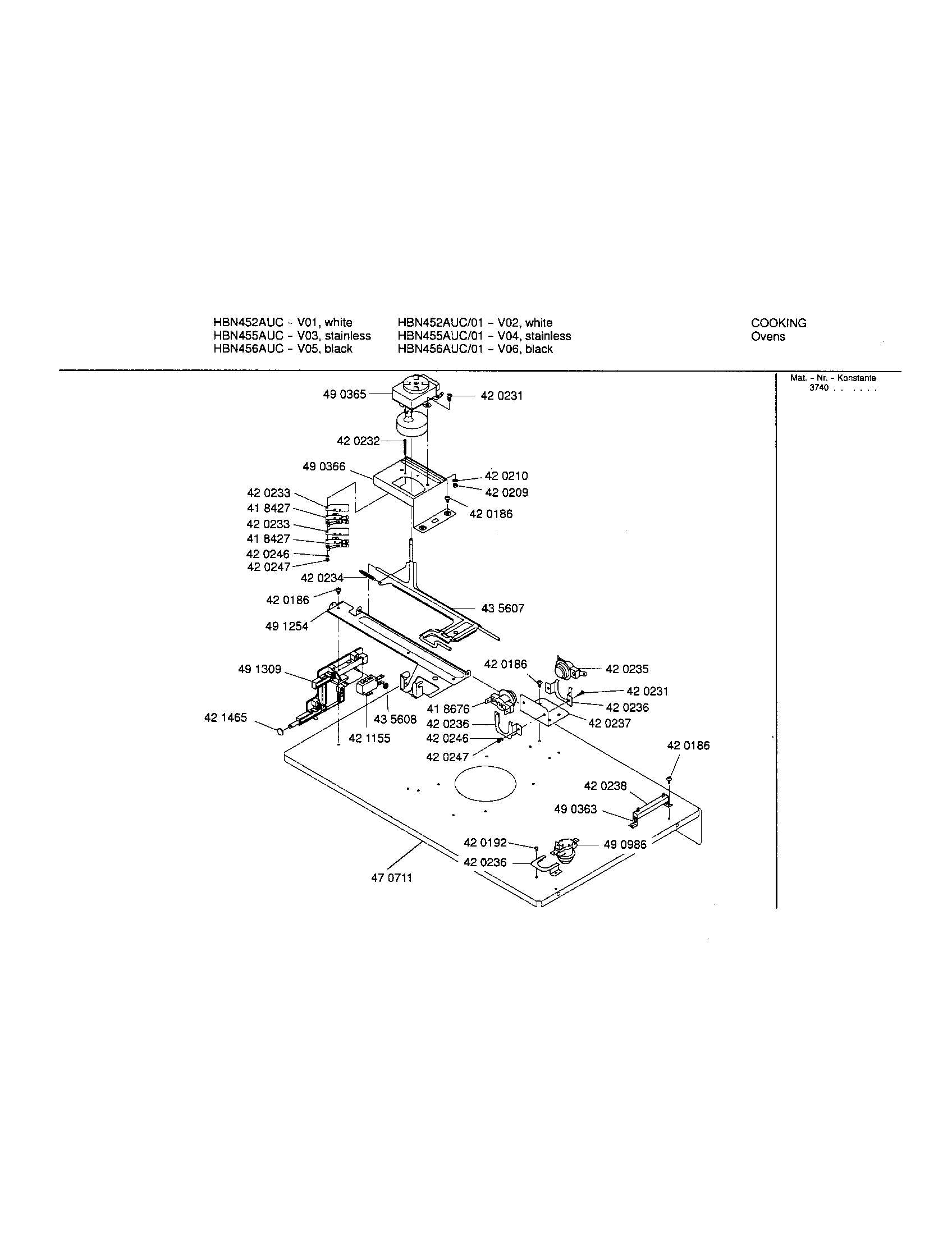

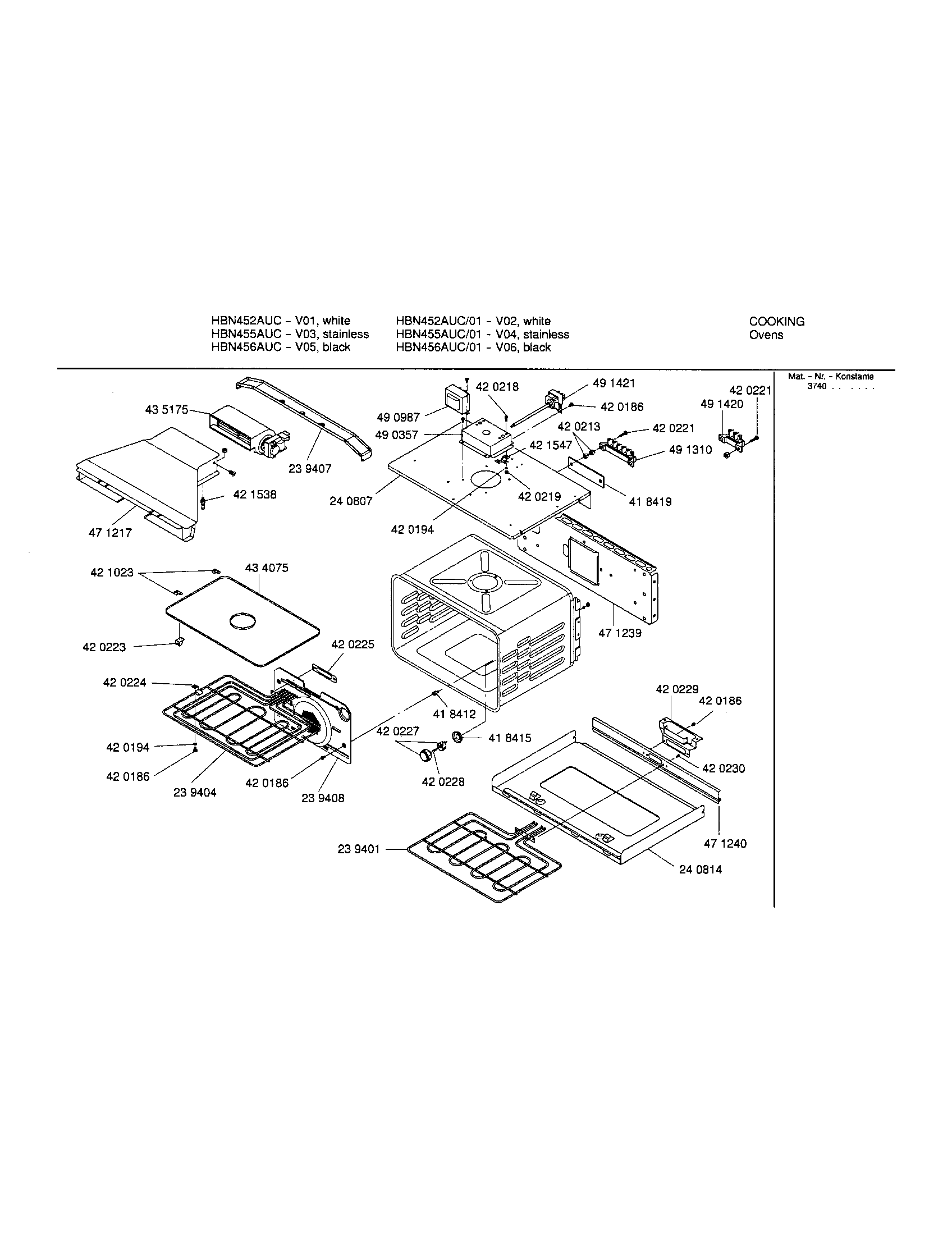

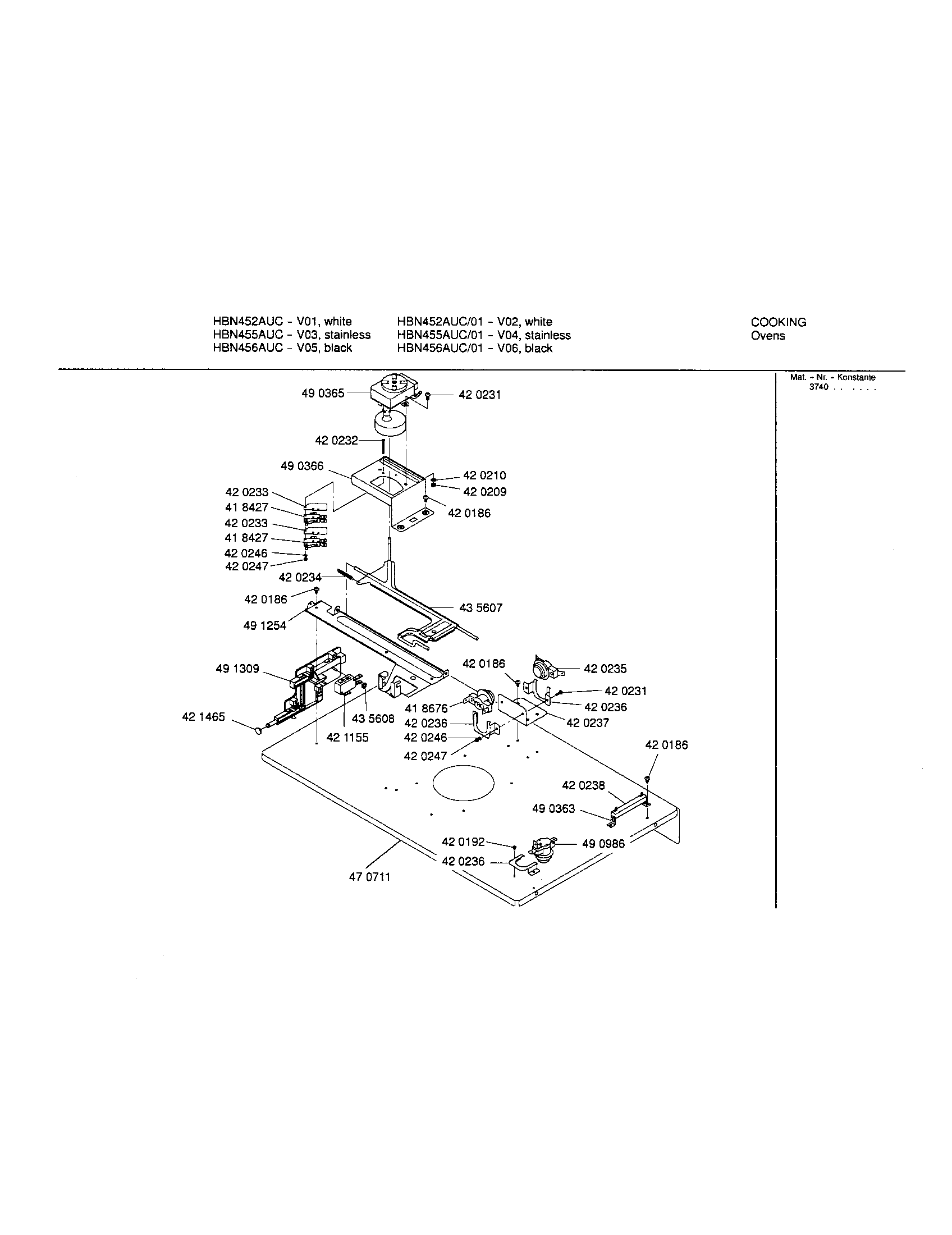

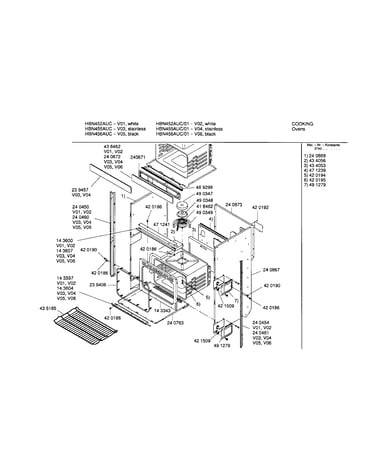

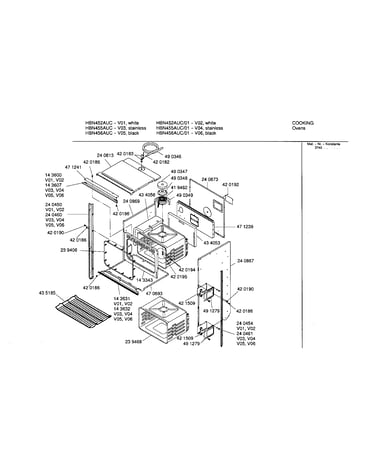

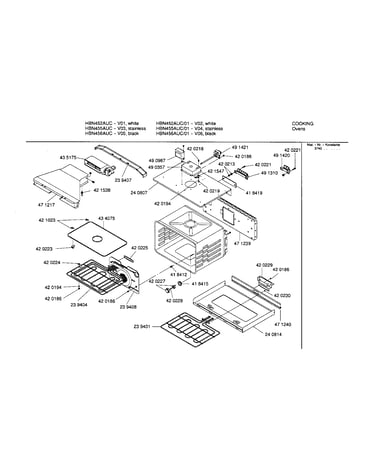

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Oven Bulb 420228
Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79
19% OFF Phone Price : $31.79
In Stock
Oven Element 420225
Oven element

Part #420225

The manufacturer no longer makes this part, and there's no substitute part

Reflector 240778
#240778

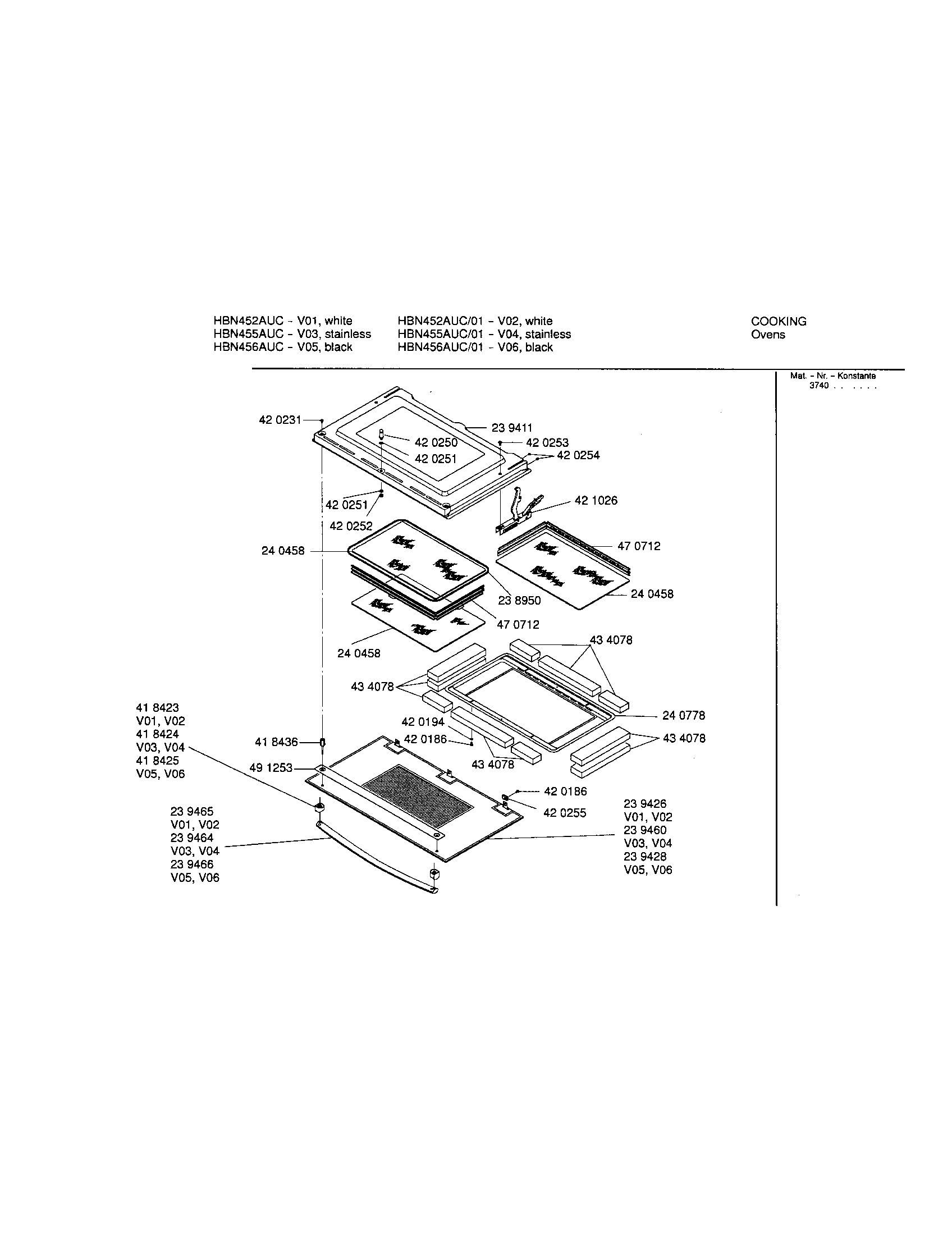

Upper lower door diagram

Reflector

Part #240778

The manufacturer no longer makes this part, and there's no substitute part

Oven Element 418462
Oven element

Part #418462

The manufacturer no longer makes this part, and there's no substitute part

Oven Thermostat 490986
Oven thermostat

Part #490986

The manufacturer no longer makes this part, and there's no substitute part

Element 239400
#239400

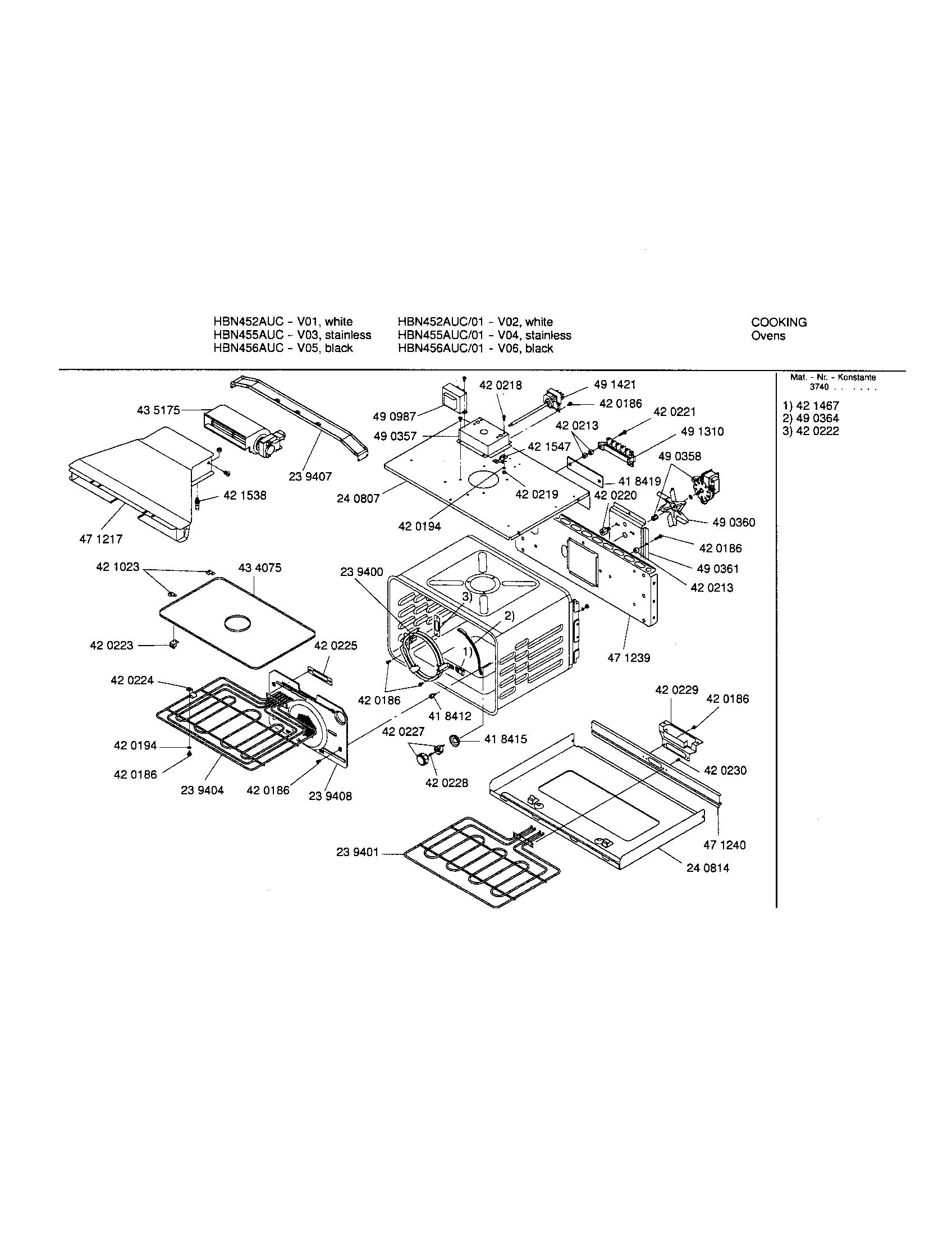

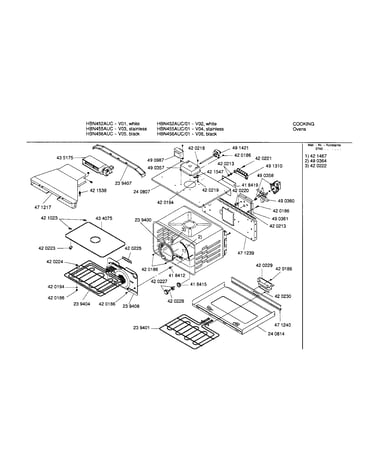

Upper cavity diagram

Element

Part #239400

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 491421
Thermostat

Part #491421

The manufacturer no longer makes this part, and there's no substitute part

Support,r 240454
Support,r

Part #240454

The manufacturer no longer makes this part, and there's no substitute part

Latch 418427
Latch

Part #418427

The manufacturer no longer makes this part, and there's no substitute part

Oven Selector Switch 490962
#490962

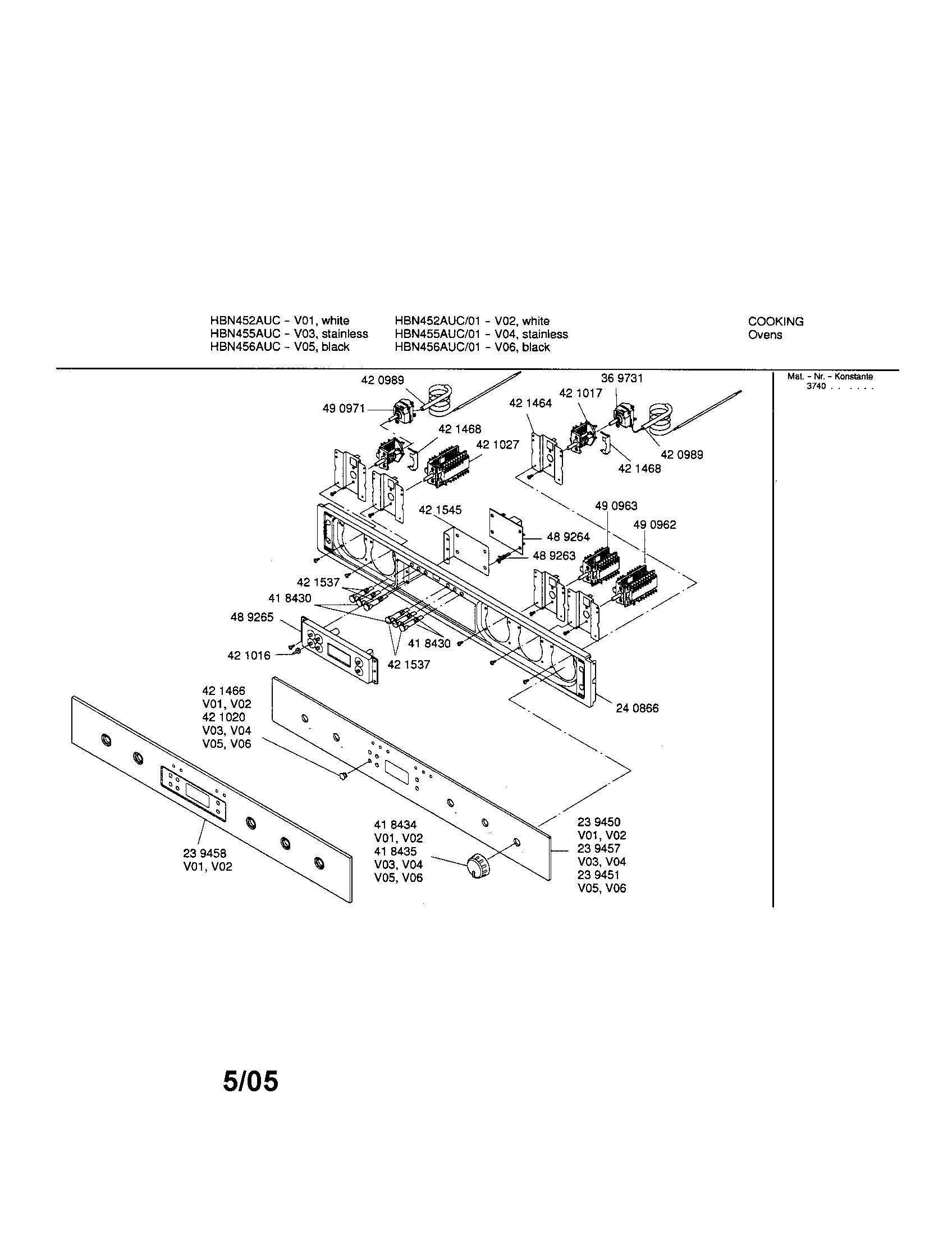

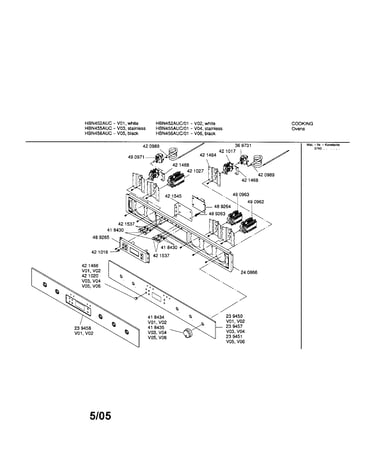

Control panel diagram

Oven selector switch

Part #490962

The manufacturer no longer makes this part, and there's no substitute part
