Model # JBP76GIV1 Official GE electric range

Here are the diagrams and repair parts for Official GE JBP76GIV1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

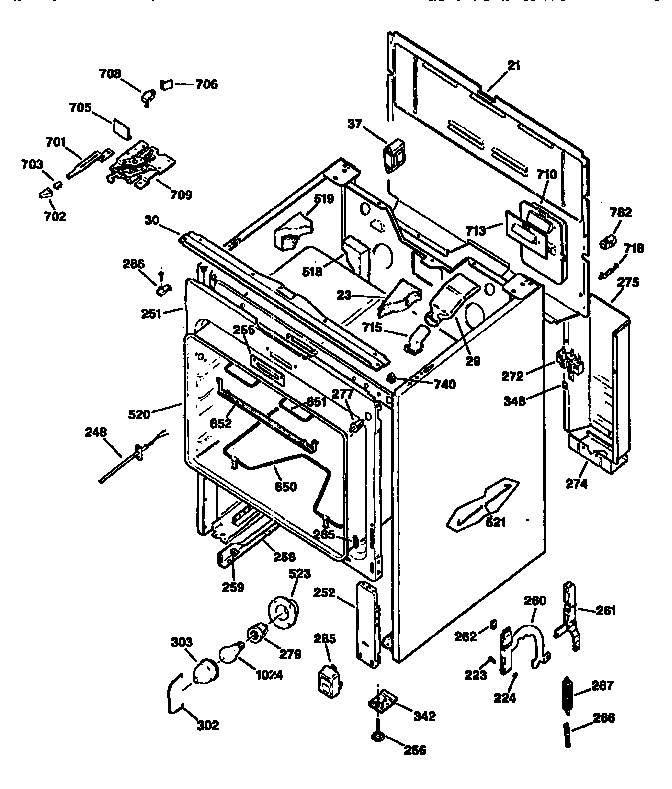

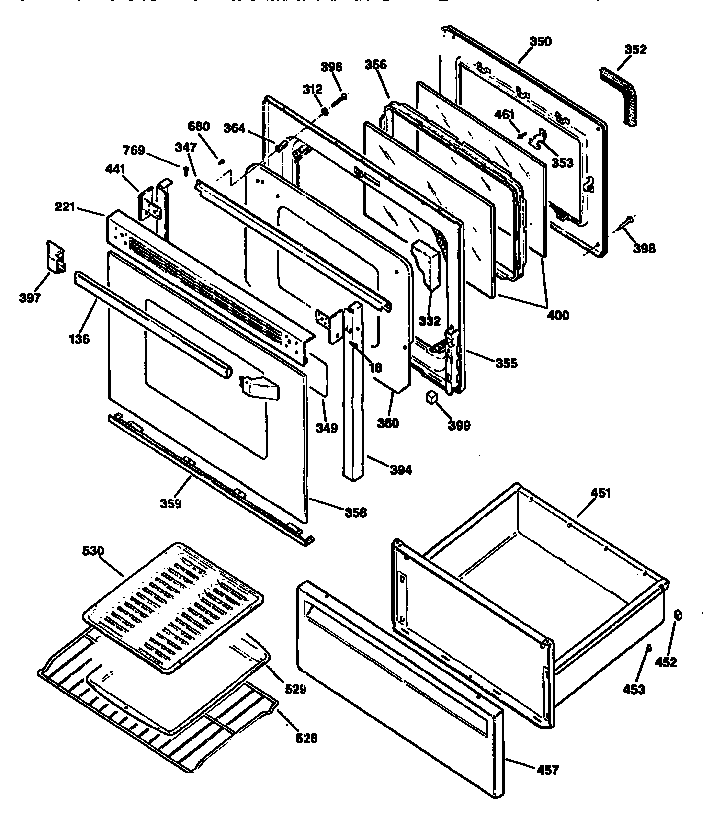

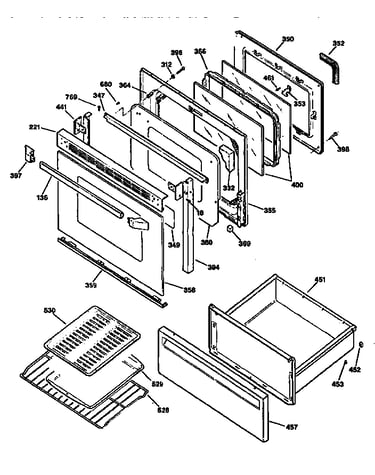

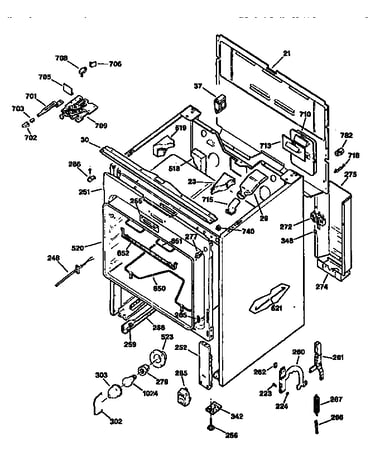

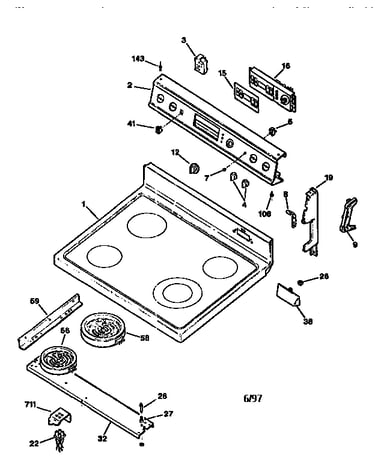

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Range Oven Light Bulb WX12X1510

#1024

All parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082

#650

All parts diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Wall Oven Temperature Sensor (replaces Wb20k5035, Wb20k5040, Wb23t10002, Wb24x5340) WB23X5340

#248

All parts diagram

Wall oven temperature sensor (replaces wb20k5035, wb20k5040, wb23t10002, wb24x5340)

Part #WB23X5340

BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Halogen Element WB30K5031

#58

All parts diagram

Halogen element

Part #WB30K5031

Replaced by #WB30T10045

?
Manufacturer substitution
This part replaces WB30K5031. Substitute parts can look different from the original.
BEST SELLER
$134.96 |
8% OFF Phone Price : $146.96
In Stock
Broil Unit F WB44X0185

#651

All parts diagram

Broil unit f

Part #WB44X0185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X0185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Wall Oven Light Lens WB36X0389

#303

All parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Terminal Block WB17X5123

#272

All parts diagram

Terminal block

Part #WB17X5123

Replaced by #WB17X5095

?
Manufacturer substitution
This part replaces WB17X5123. Substitute parts can look different from the original.
$69.94 |
8% OFF Phone Price : $75.94
In Stock
Trim WB07X7198

#359

All parts diagram

Trim

Part #WB07X7198

Replaced by #WB07K10250

?
Manufacturer substitution
This part replaces WB07X7198. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Screw WB01X0593

#461

All parts diagram

Screw

Part #WB01X0593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01X0593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer WB01X0119

#312

All parts diagram

Washer

Part #WB01X0119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB01X0119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
