Electric Walk-Behind Mower

Model # 18A-188-799 Official MTD electric lawn mower

Here are the diagrams and repair parts for Official MTD 18A-188-799 electric lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#32

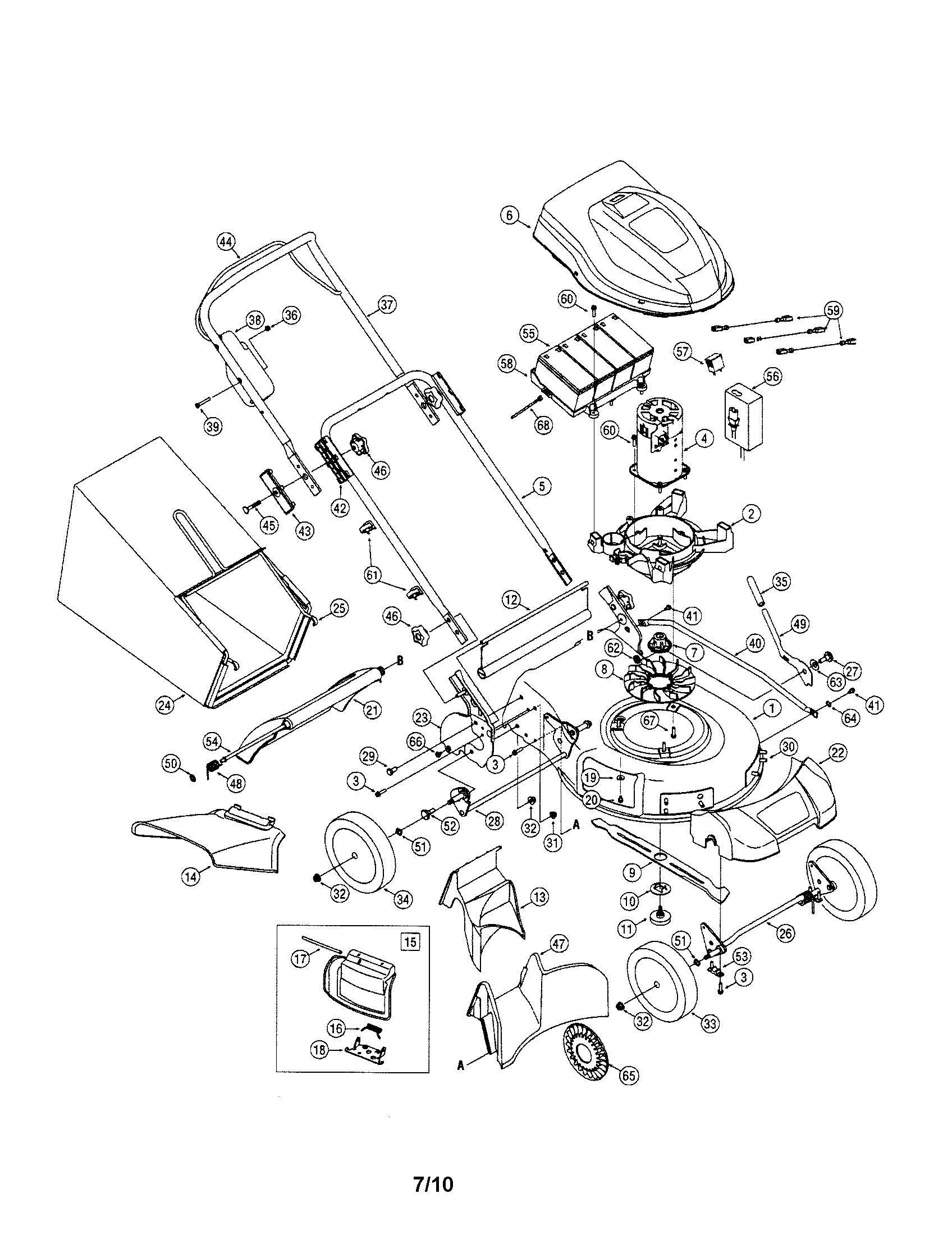

Rotary mower diagram

Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#20

Rotary mower diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Knob 720-04072
#46

Rotary mower diagram

Knob

Part #720-04072

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-04072. Substitute parts can look different from the original.
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Hinge Pin 747-0710
#17

Rotary mower diagram

Hinge pin

Part #747-0710

Replaced by #747-0710A

?
Manufacturer substitution
This part replaces 747-0710. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.76 |
17% OFF Phone Price : $5.76
In Stock
Torsion Spring 732-1014
#16

Rotary mower diagram

Torsion spring

Part #732-1014

Replaced by #732-1014C

?
Manufacturer substitution
This part replaces 732-1014. Substitute parts can look different from the original.
$9.11 |
10% OFF Phone Price : $10.11
In Stock
Lawn Mower Deflector Shield (replaces 931-04177) 731-04177
#14

Rotary mower diagram

Lawn mower deflector shield (replaces 931-04177)

Part #731-04177

This item is not returnable
$25.96 |
19% OFF Phone Price : $31.96
In Stock
Lawn Mower Hex Screw, 1/4-15 X 1-in 710-1241
#3

Rotary mower diagram

Lawn mower hex screw, 1/4-15 x 1-in

Part #710-1241

This item is not returnable
$10.14 |
16% OFF Phone Price : $12.14
In Stock
Lawn Mower Rear Skirt 731-05639A
#12

Rotary mower diagram

Lawn mower rear skirt

Part #731-05639A

This item is not returnable
$27.00 |
18% OFF Phone Price : $33.00
In Stock
Ryobi Lawn & Garden Equipment Nut 712-0324
#36

Rotary mower diagram

Ryobi lawn & garden equipment nut

Part #712-0324

This item is not returnable
$4.72 |
17% OFF Phone Price : $5.72
In Stock
Wave Washer 736-0504
#51

Rotary mower diagram

Wave washer

Part #736-0504

Replaced by #936-0504

?
Manufacturer substitution
This part replaces 736-0504. Substitute parts can look different from the original.
$7.71
In Stock
