Universal/Multiflex (Frigidaire)
Electric Range

Model # MEF302PBDK Official Universal/Multiflex (Frigidaire) electric range - 5995301867

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MEF302PBDK electric range - 5995301867, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

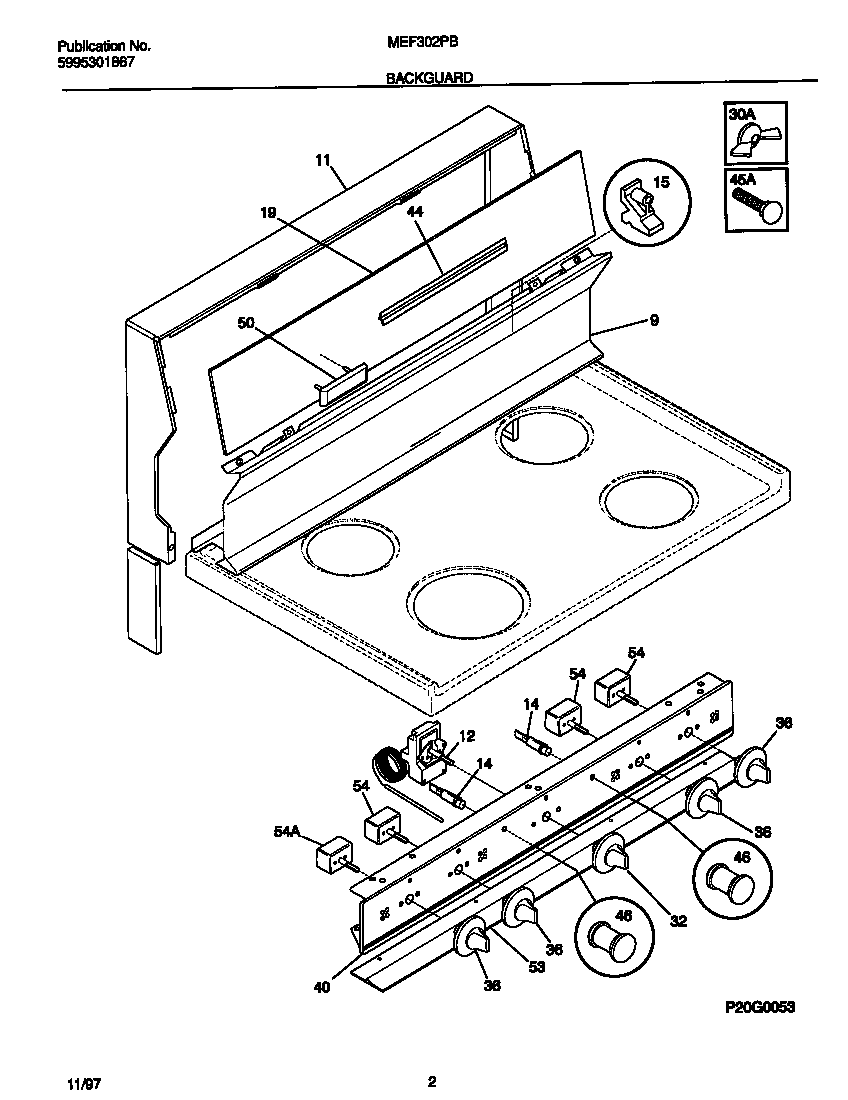

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Bake Element 316075102
#67

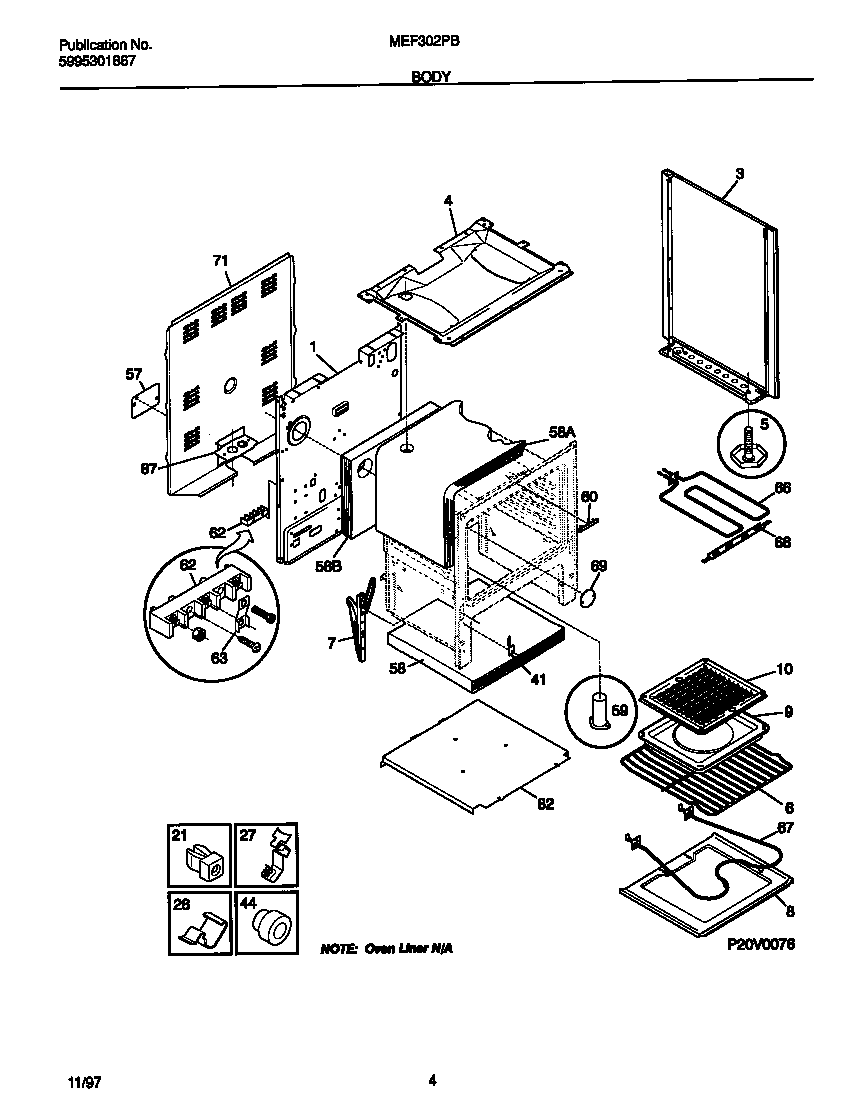

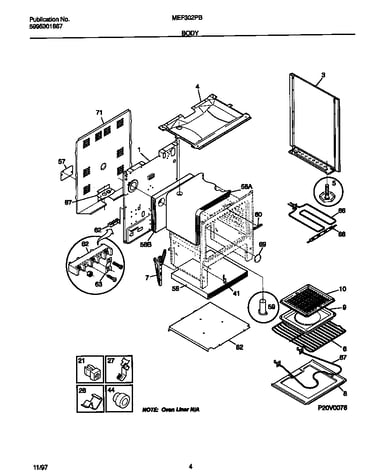

Body diagram

Bake element

Part #316075102

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316075102. Substitute parts can look different from the original.
BEST SELLER
$25.77 |
19% OFF Phone Price : $31.77
In Stock
Range Coil Surface Element, 8-in 5303015715
#15

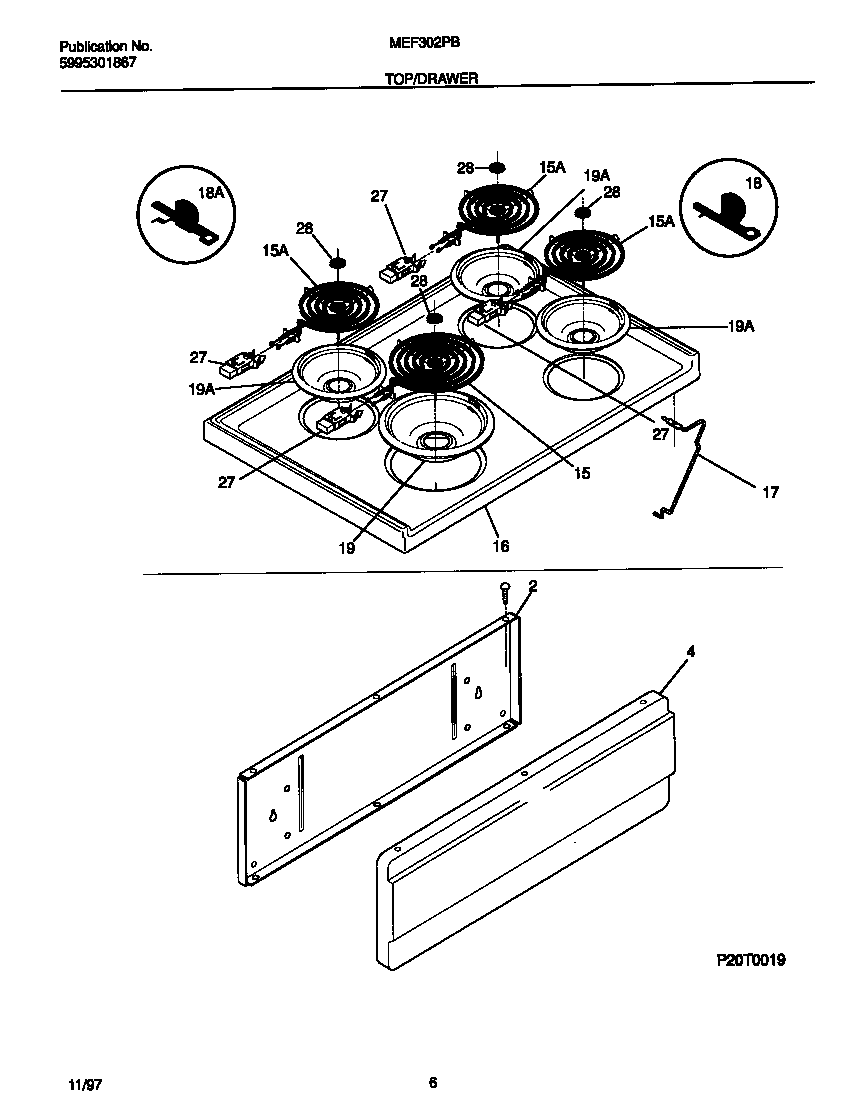

Top/drawer diagram

Range coil surface element, 8-in

Part #5303015715

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Coil Surface Element, 6-in 5303015716
#15

Top/drawer diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#39B

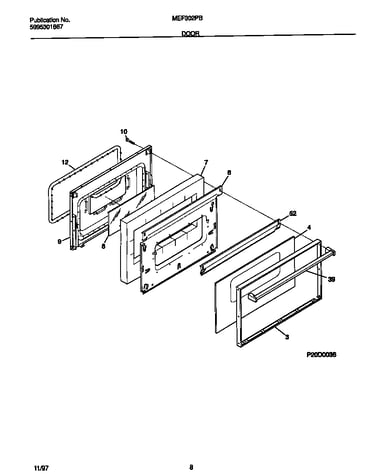

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

BEST SELLER
$78.29 |
7% OFF Phone Price : $84.29
In Stock
Range Broil Element (replaces 08067760, 3012210, 3051140) 5303051140
#66

Body diagram

Range broil element (replaces 08067760, 3012210, 3051140)

Part #5303051140

This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
Range Screw (replaces 5303270172, 636t142p01, 75303285179) 5303285179

#NI

All parts diagram

Range screw (replaces 5303270172, 636t142p01, 75303285179)

Part #5303285179

This item is not returnable
$13.29
In Stock
Range Oven Insulation, Rear 316054202
#58

Body diagram

Range oven insulation, rear

Part #316054202

$58.39 |
9% OFF Phone Price : $64.39
In Stock
Insulation 3200847
#58

Body diagram

Insulation

Part #3200847

Replaced by #316403803

?
Manufacturer substitution
This part replaces 3200847. Substitute parts can look different from the original.
This item is not returnable
$35.34 |
15% OFF Phone Price : $41.34
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#27

Body diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
