Model # DSXH47EG0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DSXH47EG0WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

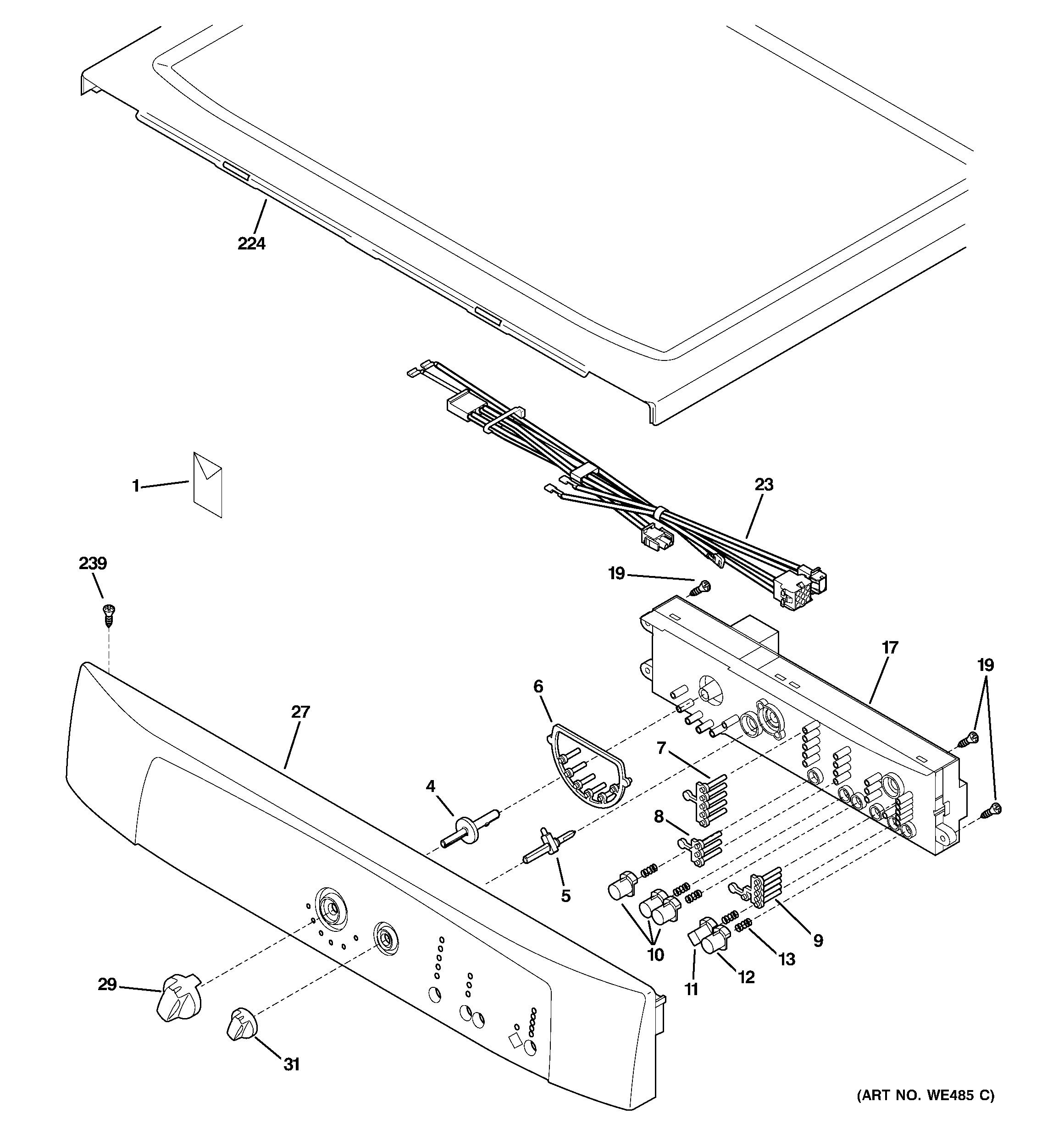

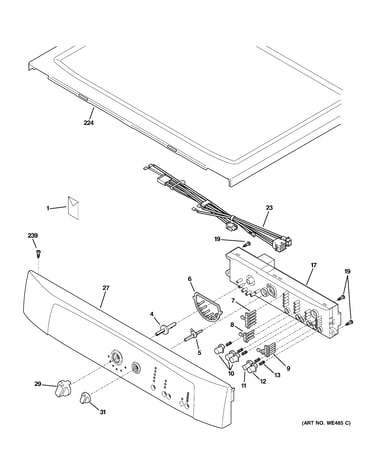

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Dryer Drum Belt (replaces We12x10001, We12x90) WE12X10009
#1325

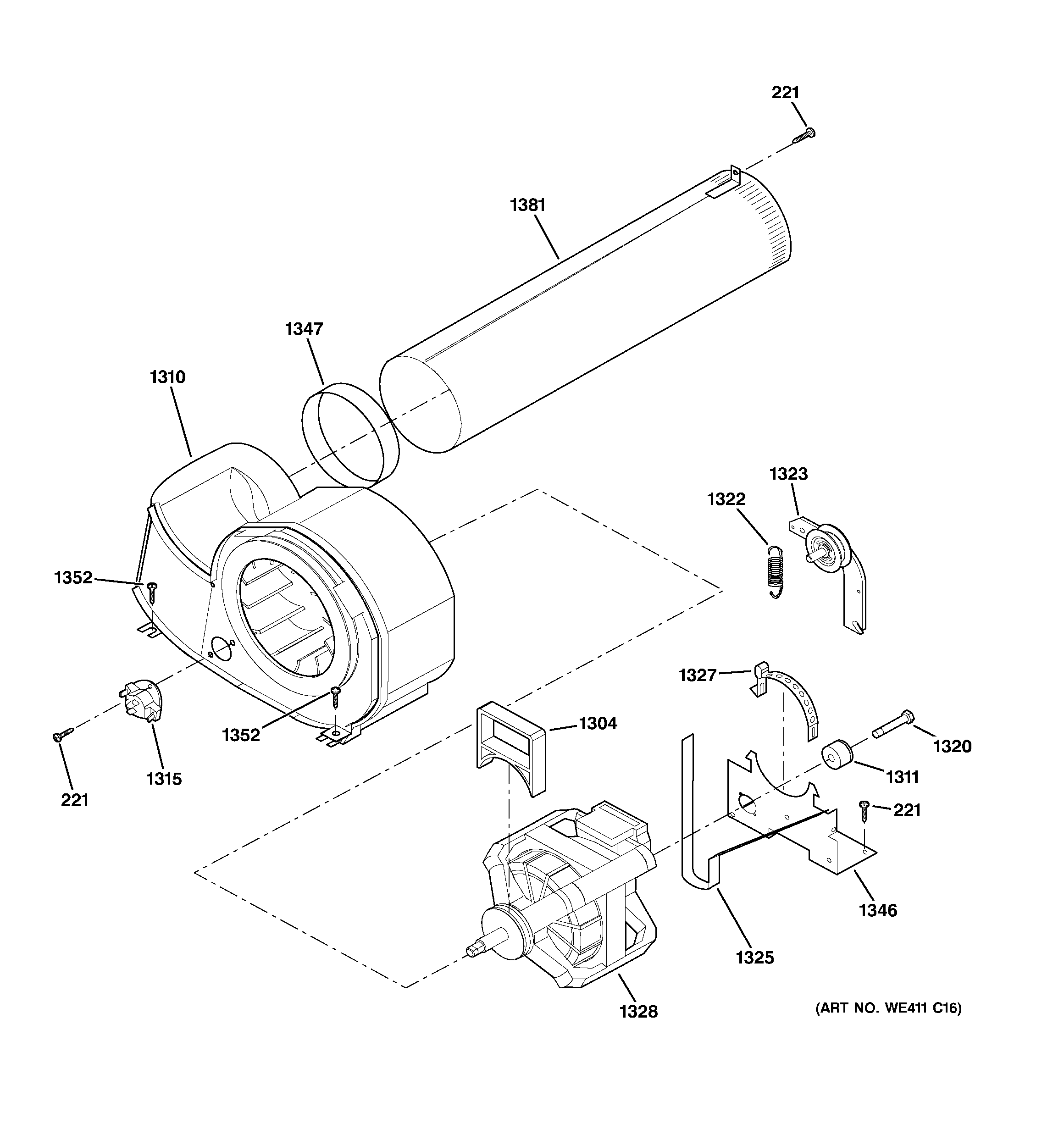

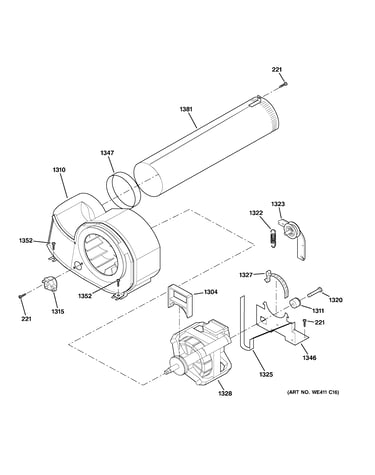

Motor diagram

Dryer drum belt (replaces we12x10001, we12x90)

Part #WE12X10009

BEST SELLER
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

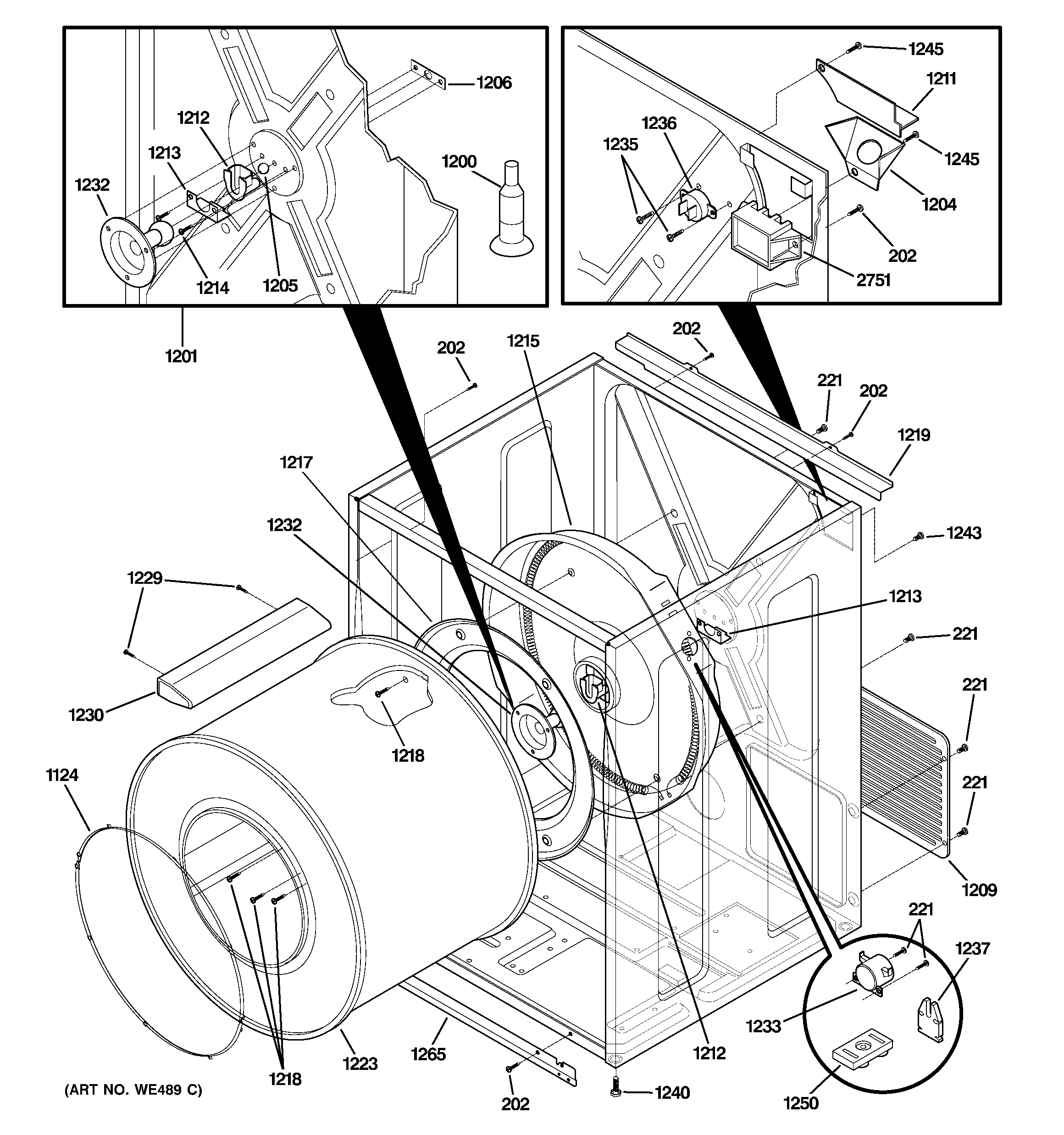

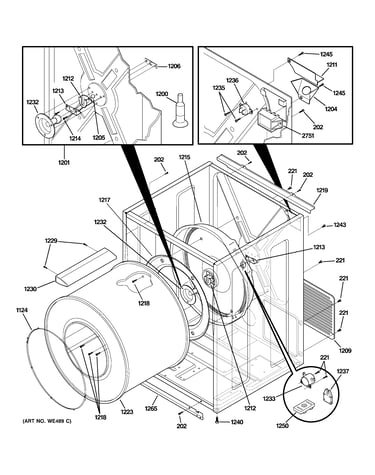

Cabinet & drum diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
Dryer Thermal Limiter WE04X10094
#1236

Cabinet & drum diagram

Dryer thermal limiter

Part #WE04X10094

$49.91 |
11% OFF Phone Price : $55.91
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Drum Front Glide WE03X10007
#1124

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Dampener,vib WH01X10325
#103

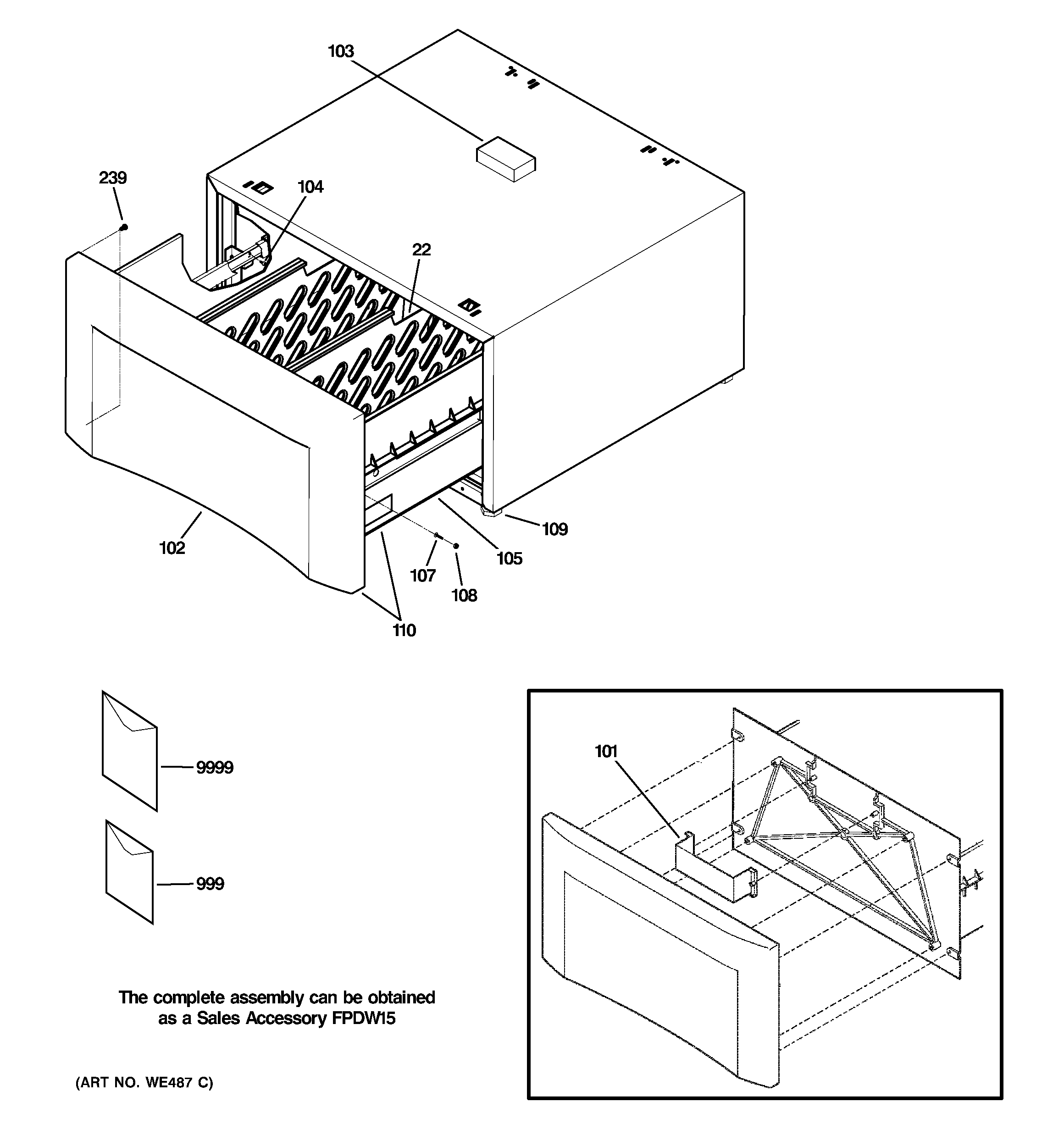

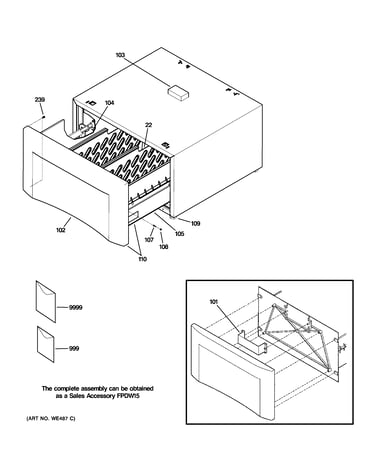

Pedestal diagram

Dampener,vib

Part #WH01X10325

$11.38
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Screw WE02X10011
#1245

Cabinet & drum diagram

Screw

Part #WE02X10011

$23.71
In Stock
Dryer Drum Felt Seal, Lower WE09X10014
#1221

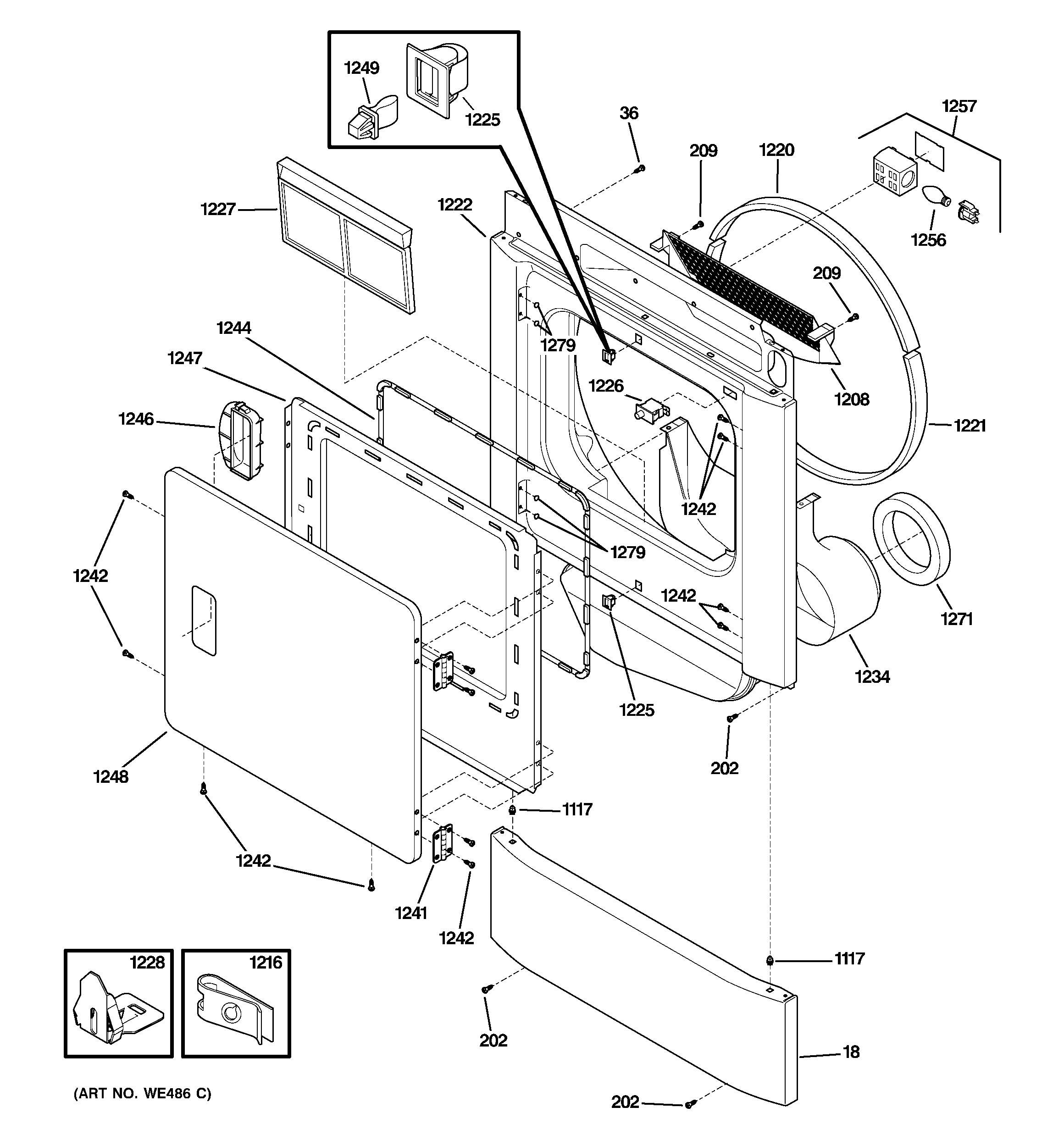

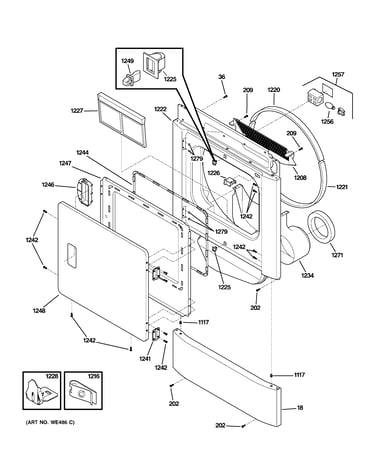

Front panel & door diagram

Dryer drum felt seal, lower

Part #WE09X10014

The manufacturer no longer makes this part, and there's no substitute part

Thermostat WE04X10002
#1233

Cabinet & drum diagram

Thermostat

Part #WE04X10002

Replaced by #WE4X757

?
Manufacturer substitution
This part replaces WE04X10002. Substitute parts can look different from the original.
$56.17 |
10% OFF Phone Price : $62.17
In Stock
