Electric Range

Model # JBP24BH3WH Official GE electric range

Here are the diagrams and repair parts for Official GE JBP24BH3WH electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

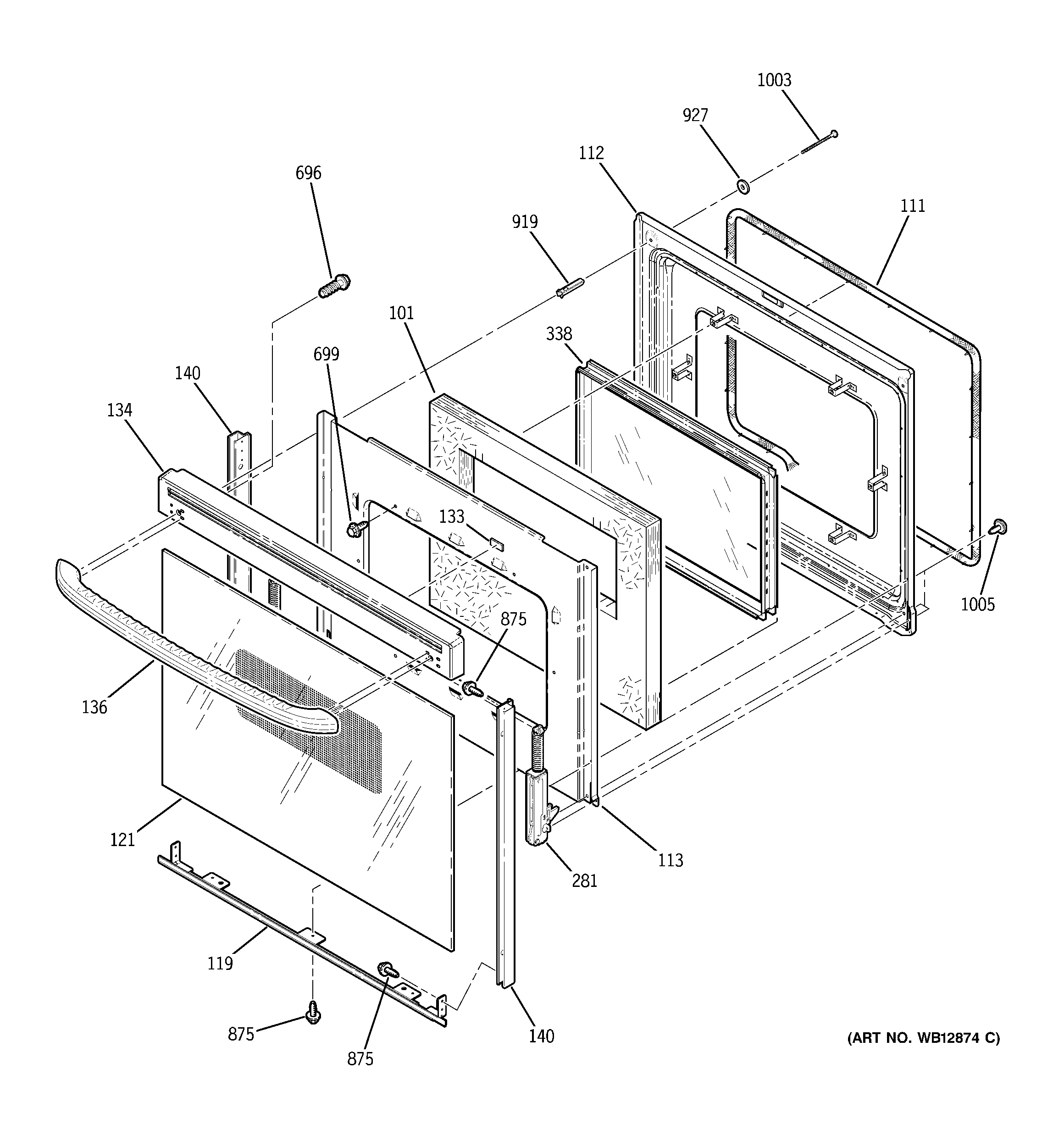

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJBP24BH3WH Ranges

  • Range Oven Light Bulb WX12X1510
    #257

    Body parts diagram

    Range oven light bulb

    Part #WX12X1510

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    1.72 (18)
    BEST SELLER
    $14.62 |
    12% OFF Phone Price : $16.62
    In Stock
  • G.e. Range Surface Element Control Switch WB24T10025
    #19

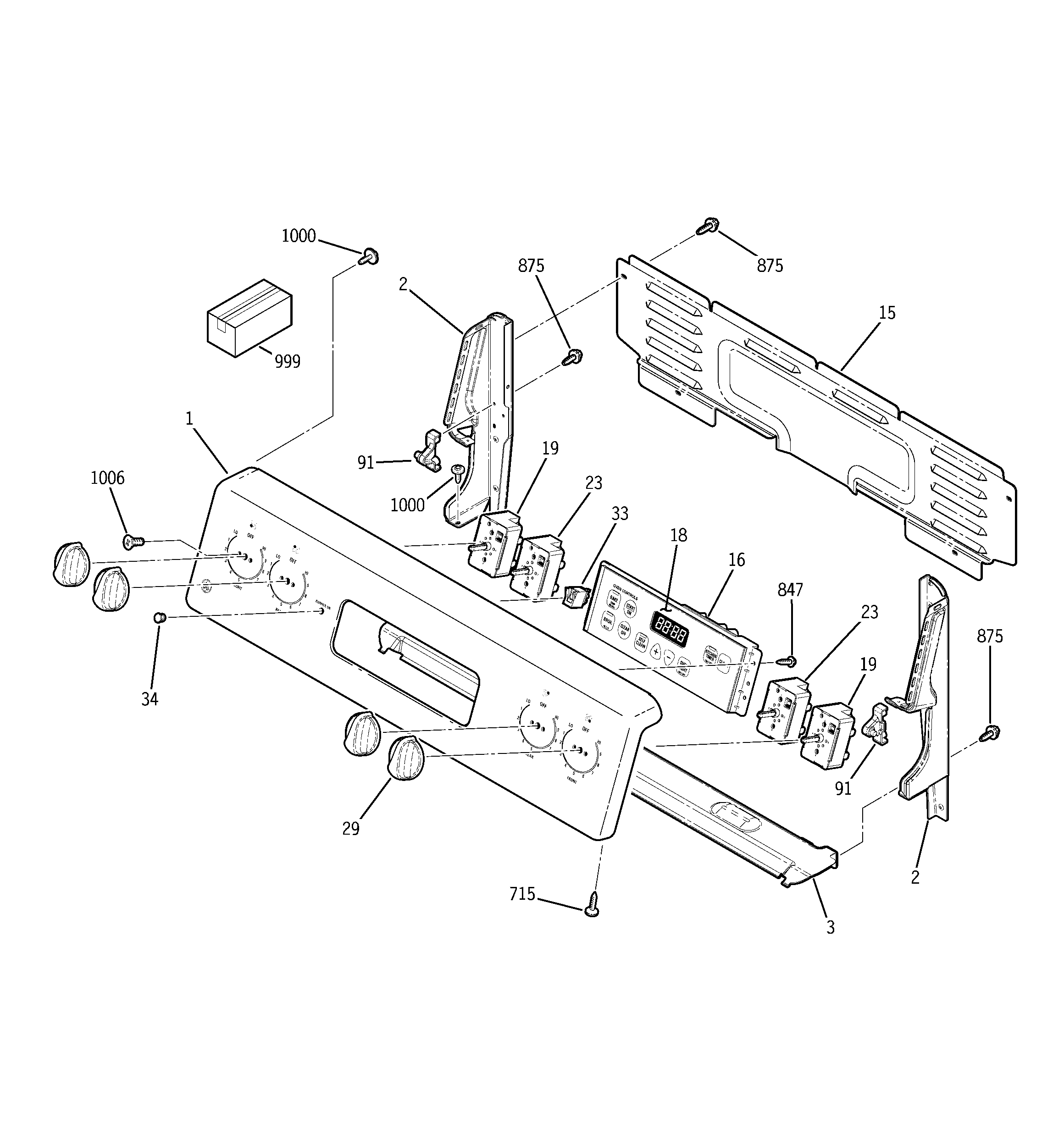

    Control panel diagram

    G.e. range surface element control switch

    Part #WB24T10025

    4.75 (4)
    BEST SELLER
    $34.94 |
    15% OFF Phone Price : $40.94
    In Stock
  • Oven Control WB27T10468
    #16

    Control panel diagram

    Oven control

    Part #WB27T10468

    Replaced by #WB27X45466

    ?
    Manufacturer substitution
    This part replaces WB27T10468. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $130.43 |
    8% OFF Phone Price : $142.43
    In Stock
  • Wall Oven Temperature Sensor WB21T10007
    #253

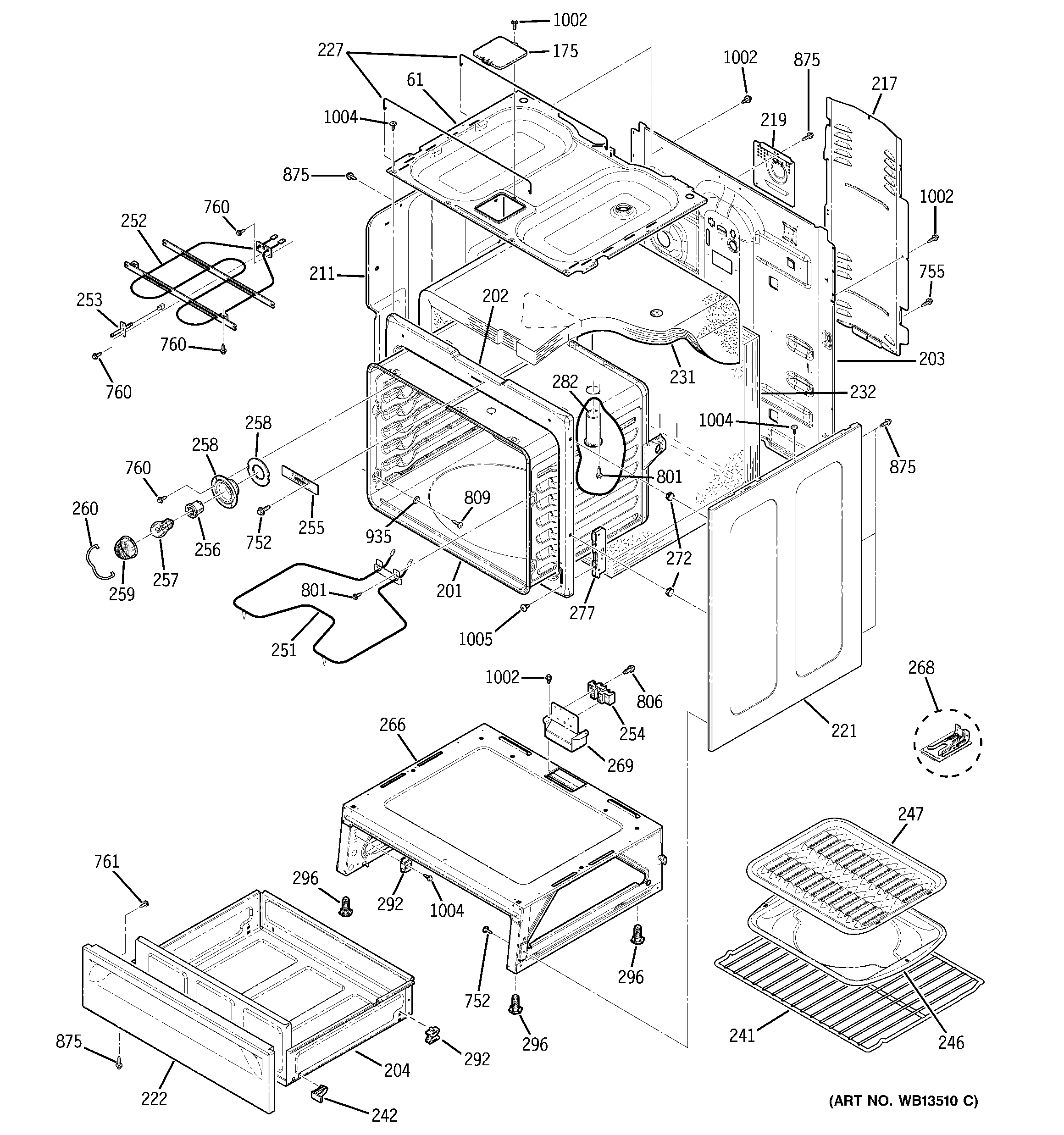

    Body parts diagram

    Wall oven temperature sensor

    Part #WB21T10007

    Replaced by #WB21X22134

    ?
    Manufacturer substitution
    This part replaces WB21T10007. Substitute parts can look different from the original.
    4 (3)
    BEST SELLER
    $20.61 |
    23% OFF Phone Price : $26.61
    In Stock
  • Range Surface Element Control Switch, 1,500-watt WB24T10029
    #23

    Control panel diagram

    Range surface element control switch, 1,500-watt

    Part #WB24T10029

    5 (2)
    BEST SELLER
    $41.73 |
    13% OFF Phone Price : $47.73
    In Stock
  • Hotpoint Range Surface Element Receptacle WB17T10006
    #82

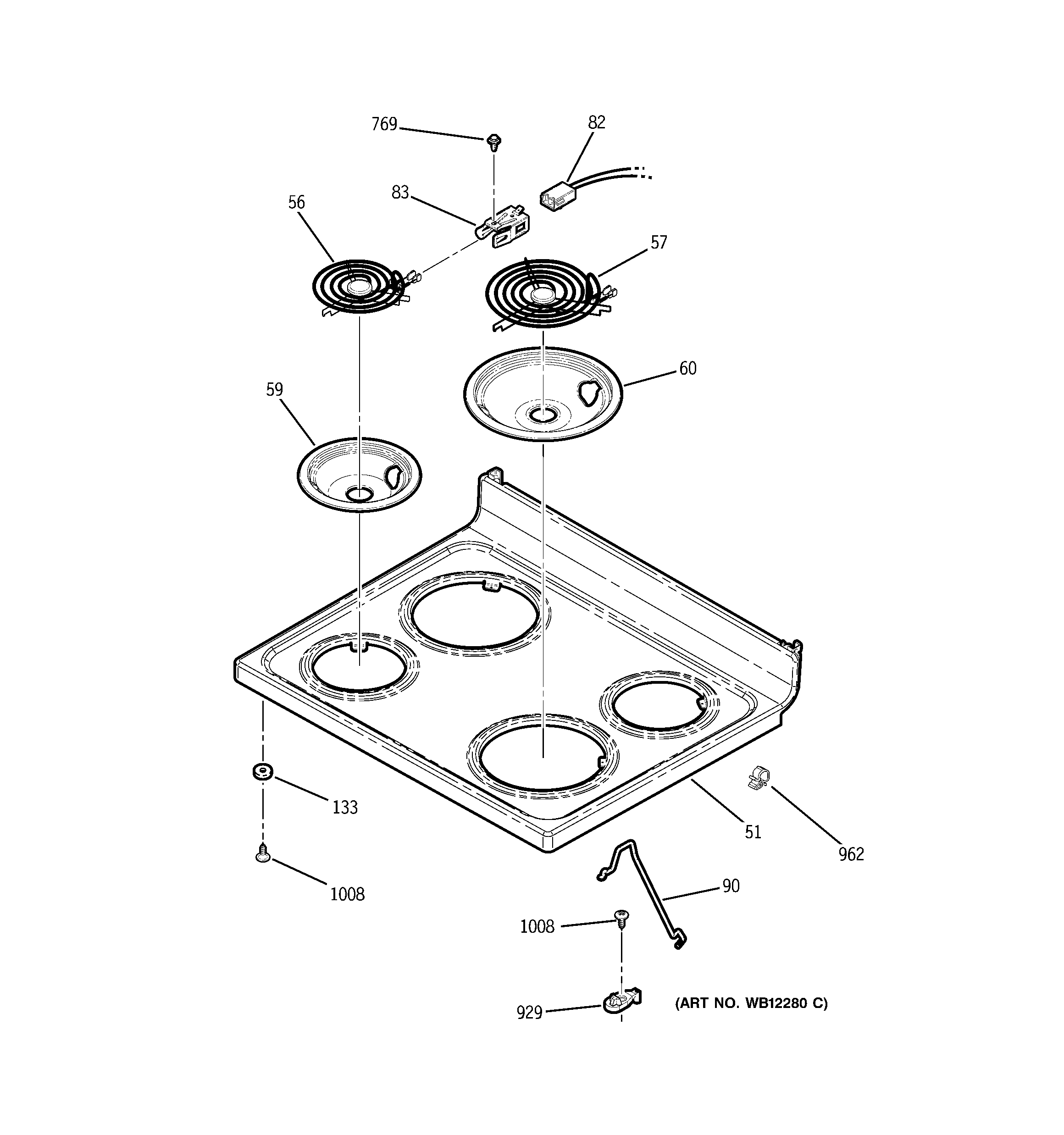

    Cooktop diagram

    Hotpoint range surface element receptacle

    Part #WB17T10006

    4.25 (4)
    BEST SELLER
    $22.98 |
    21% OFF Phone Price : $28.98
    In Stock
  • G.e. Range Drip Pan (chrome) WB31T10010
    #59

    Cooktop diagram

    G.e. range drip pan (chrome)

    Part #WB31T10010

    4.86 (7)
    BEST SELLER
    $18.75 |
    10% OFF Phone Price : $20.75
    In Stock
  • Range Terminal Block WB17T10011
    #254

    Body parts diagram

    Range terminal block

    Part #WB17T10011

    5 (1)
    BEST SELLER
    $54.72 |
    10% OFF Phone Price : $60.72
    In Stock
  • Range Light Socket WB08T10026
    #256

    Body parts diagram

    Range light socket

    Part #WB08T10026

    This item is not returnable
    $7.95 |
    11% OFF Phone Price : $8.95
    In Stock
  • Range Coil Surface Element, 8-in WB30T10074
    #57

    Cooktop diagram

    Range coil surface element, 8-in

    Part #WB30T10074

    3 (1)
    $51.73 |
    10% OFF Phone Price : $57.73
    In Stock
