Model # 7218834780 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218834780 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

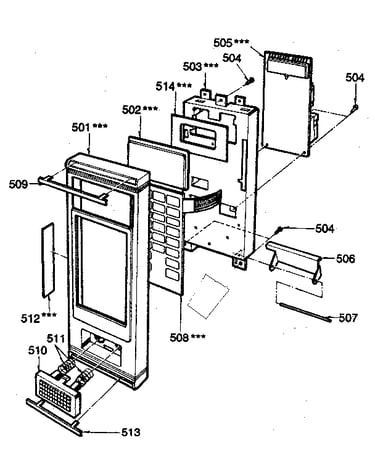

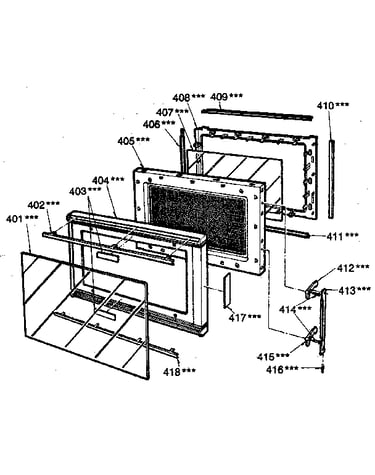

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
High-voltage Diode 500163
#211

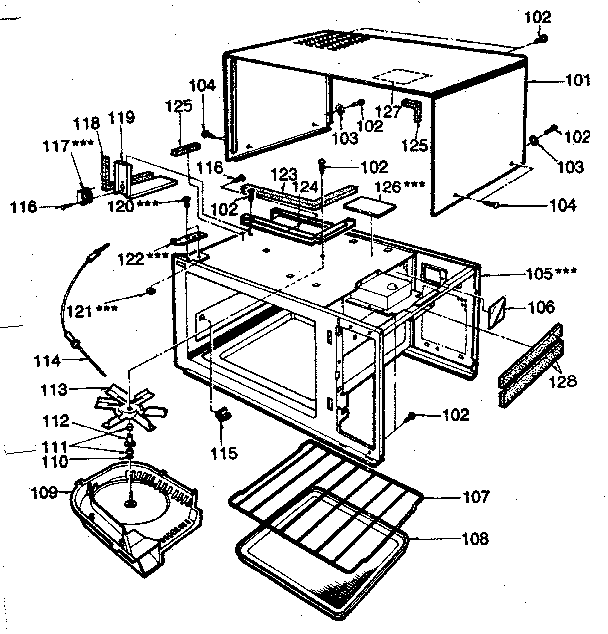

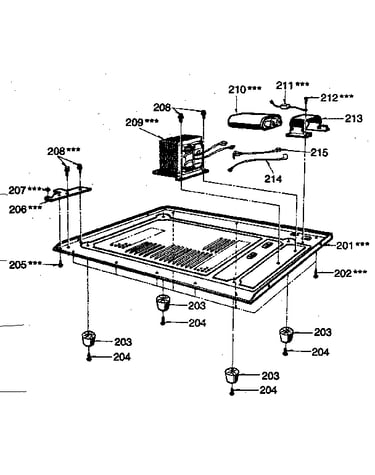

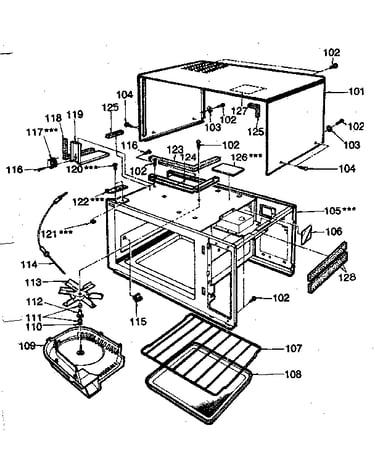

Microwave parts diagram

High-voltage diode

Part #500163

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Washer 500390
#207

Microwave parts diagram

Kenmore washer

Part #500390

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#337

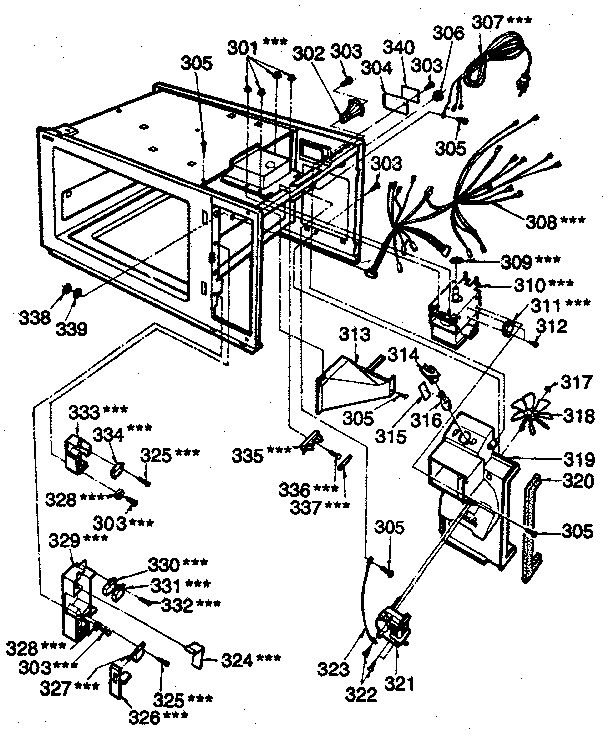

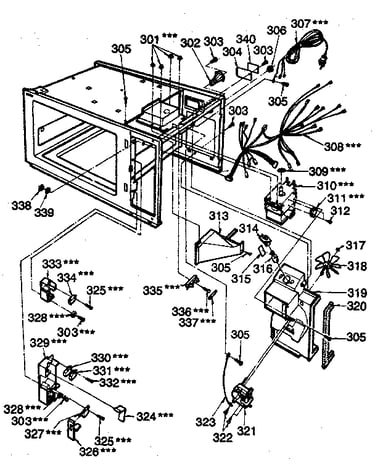

Switches and microwave parts diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Screw 500063
#312

Switches and microwave parts diagram

Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500274
#1K

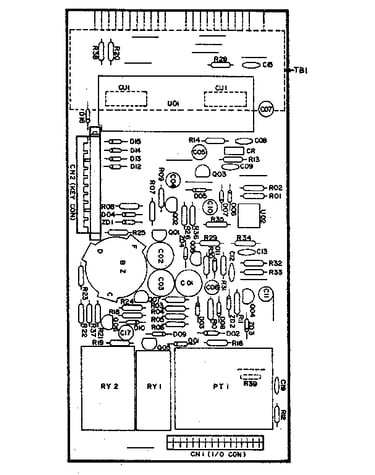

Power and control circuit board (part 2q10124q) diagram

Capacitor

Part #500274

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500277
#6A

Power and control circuit board (part 2q10124q) diagram

Transistor

Part #500277

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500014
Transistor

Part #500014

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500031
#5ZC

Power and control circuit board (part 2q10124q) diagram

Resistor

Part #500031

The manufacturer no longer makes this part, and there's no substitute part

Screw Specil 500396
#303

Switches and microwave parts diagram

Screw specil

Part #500396

The manufacturer no longer makes this part, and there's no substitute part

Switch 500212
#334

Switches and microwave parts diagram

Switch

Part #500212

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 500212. Substitute parts can look different from the original.
$10.27 |
16% OFF Phone Price : $12.27
In Stock
