Model # WFG231LVB1 Official Whirlpool 30" gas freestanding range

Here are the diagrams and repair parts for Official Whirlpool WFG231LVB1 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

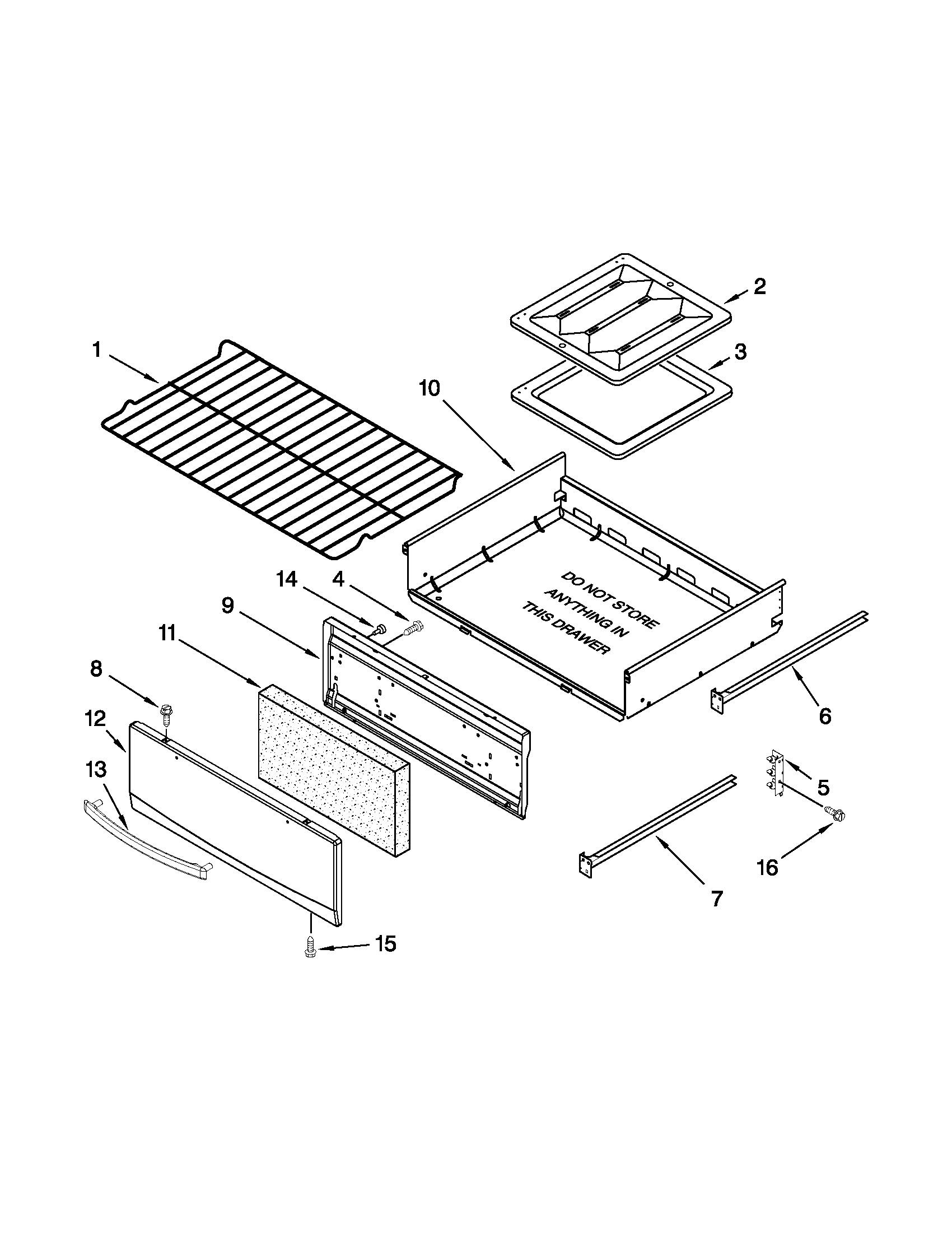

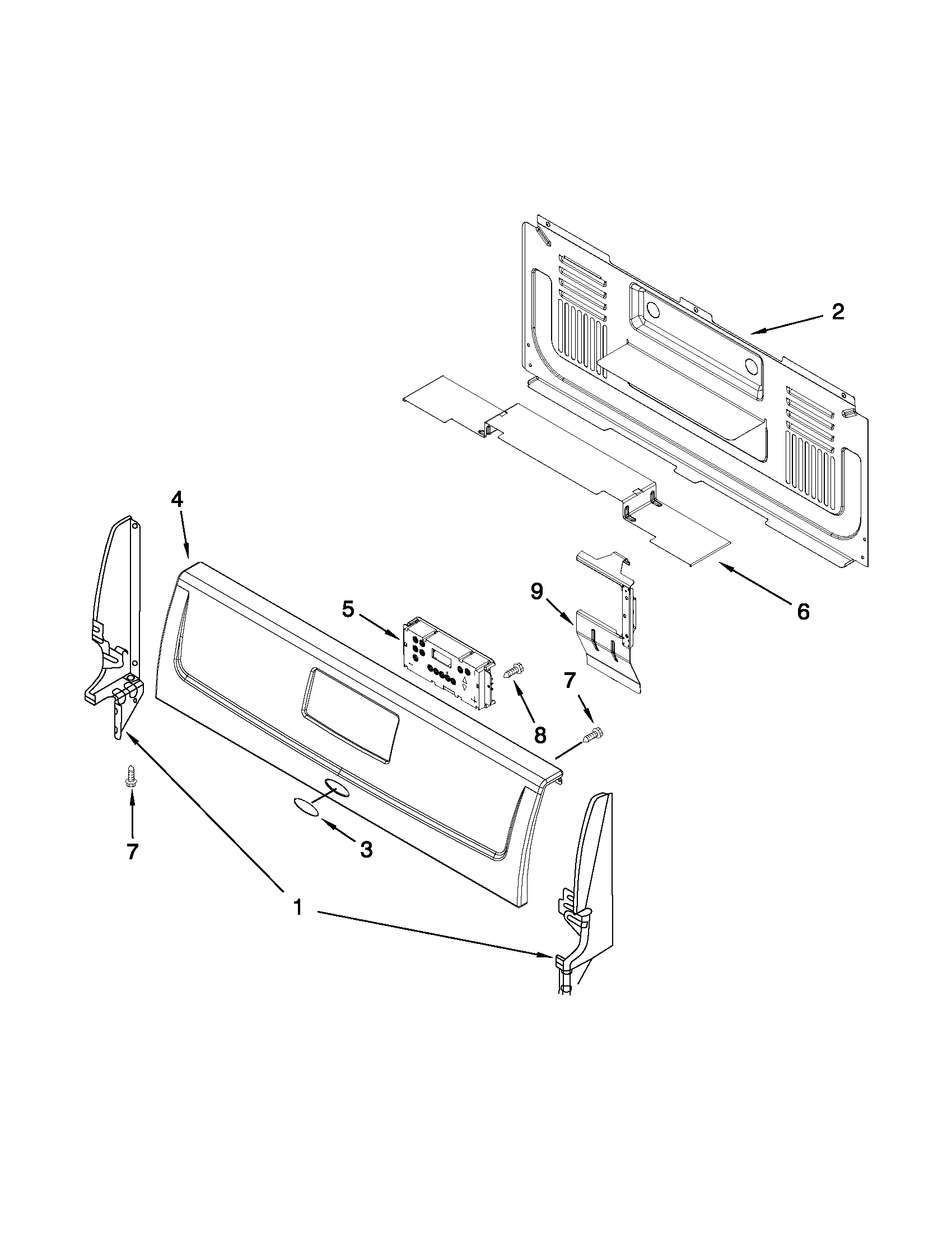

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Light Bulb 98004498
#37

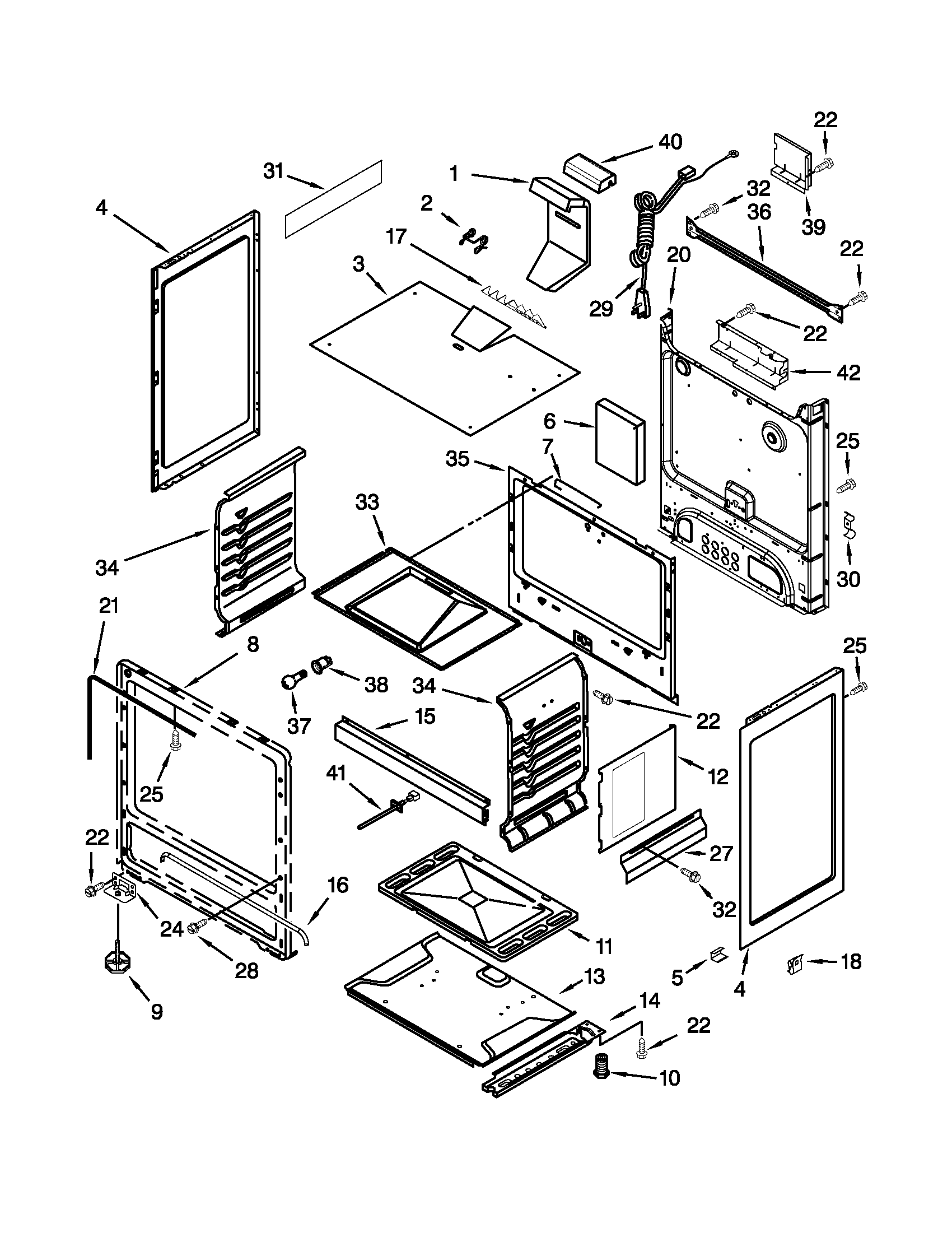

Chassis parts diagram

Light bulb

Part #98004498

Replaced by #40A15

?
Manufacturer substitution
This part replaces 98004498. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Oven Temperature Sensor W10181986
#41

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$65.03 |
8% OFF Phone Price : $71.03
In Stock
Range Oven Igniter 98005652
#21

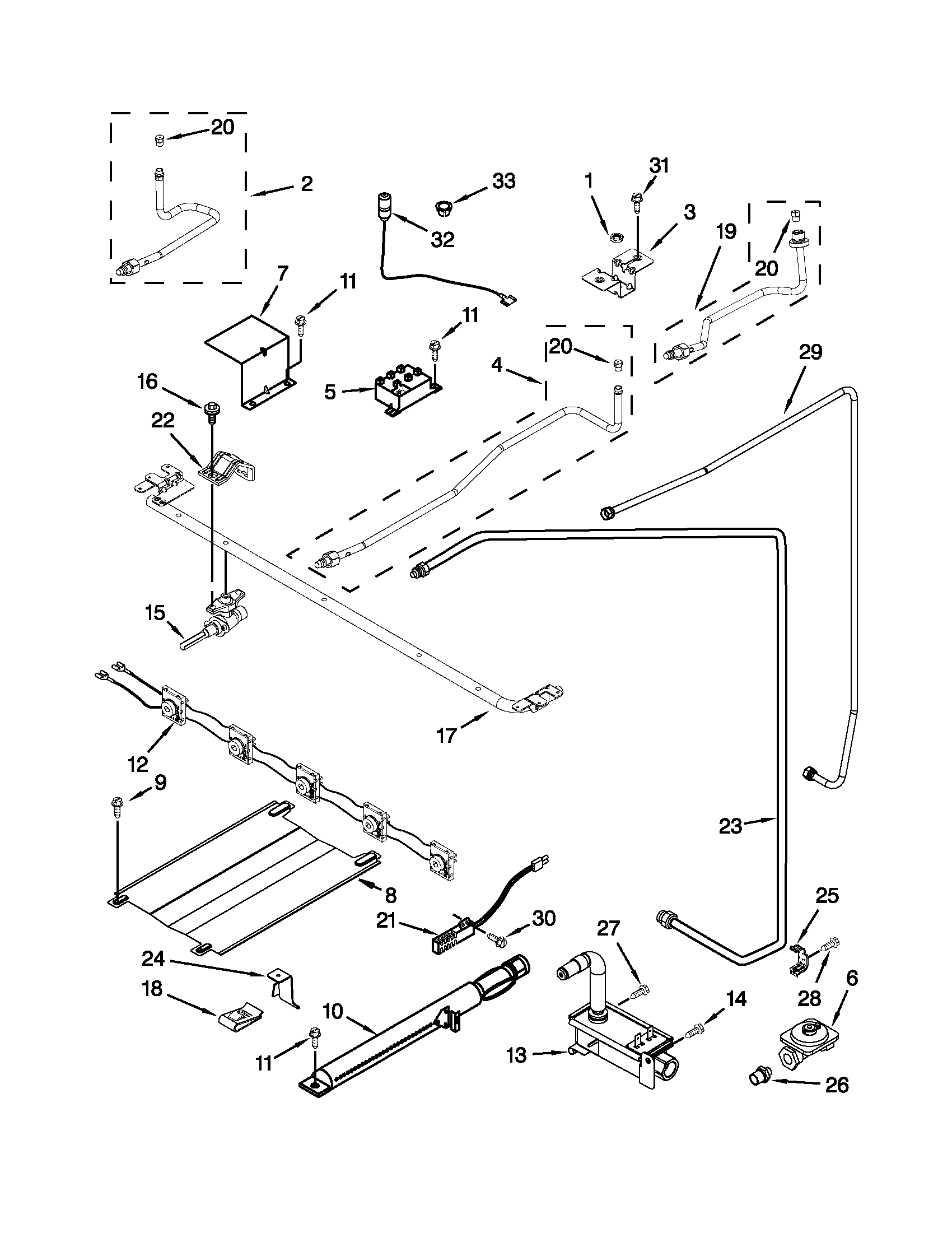

Manifold parts diagram

Range oven igniter

Part #98005652

Replaced by #W10918546

?
Manufacturer substitution
This part replaces 98005652. Substitute parts can look different from the original.
BEST SELLER
$30.07 |
17% OFF Phone Price : $36.07
In Stock
Appliance Touch-up Paint 72017
#NI

Miscellaneous parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Miscellaneous parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Door Handle (black) 98004942
#10A

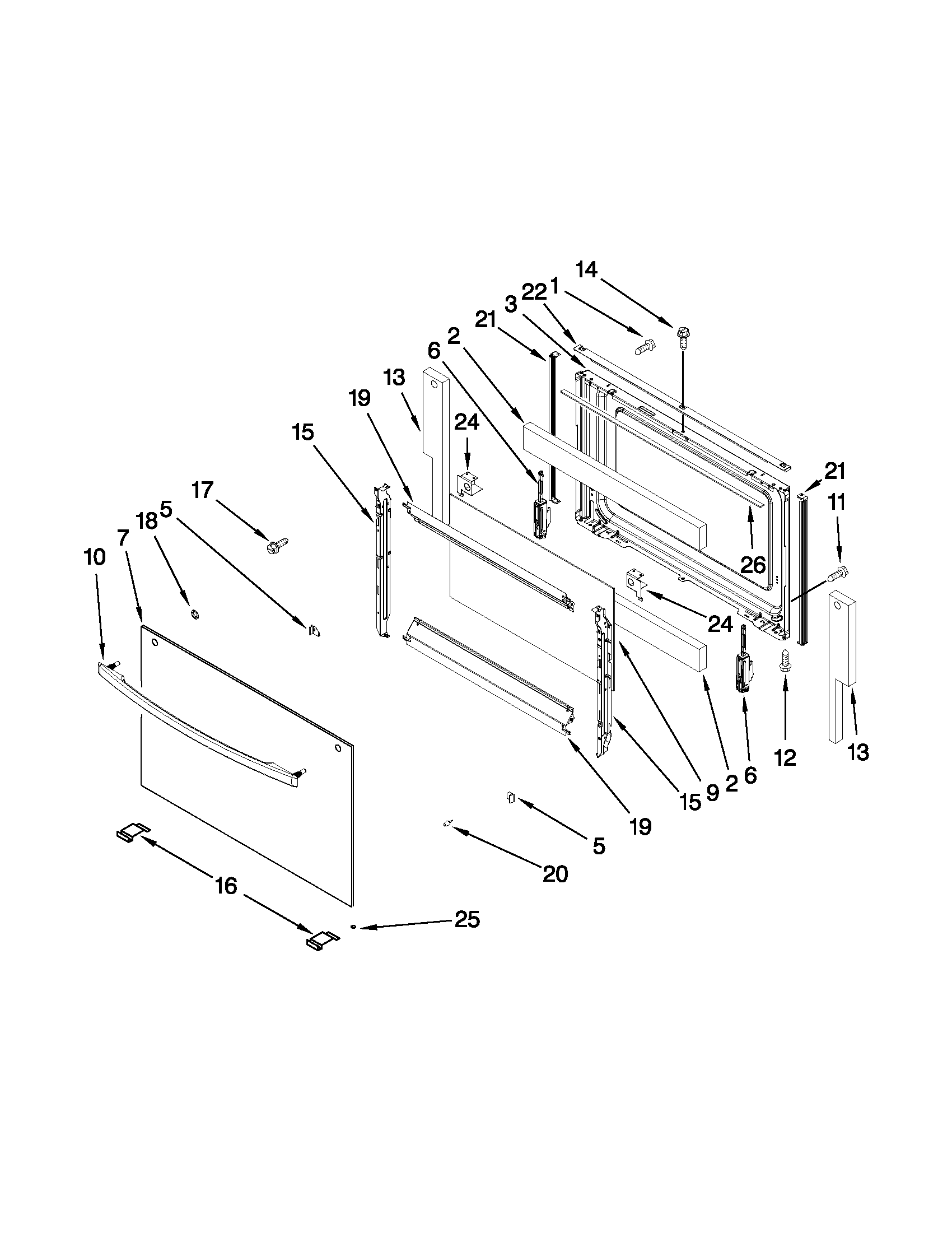

Door parts diagram

Range oven door handle (black)

Part #98004942

Replaced by #WP98004942

?
Manufacturer substitution
This part replaces 98004942. Substitute parts can look different from the original.
$66.86 |
8% OFF Phone Price : $72.86
In Stock
Range Surface Igniter Clip W10278150
#33

Manifold parts diagram

Range surface igniter clip

Part #W10278150

Replaced by #WPW10278150

?
Manufacturer substitution
This part replaces W10278150. Substitute parts can look different from the original.
$25.98 |
19% OFF Phone Price : $31.98
In Stock
Range Surface Burner Cap 98017461
#11

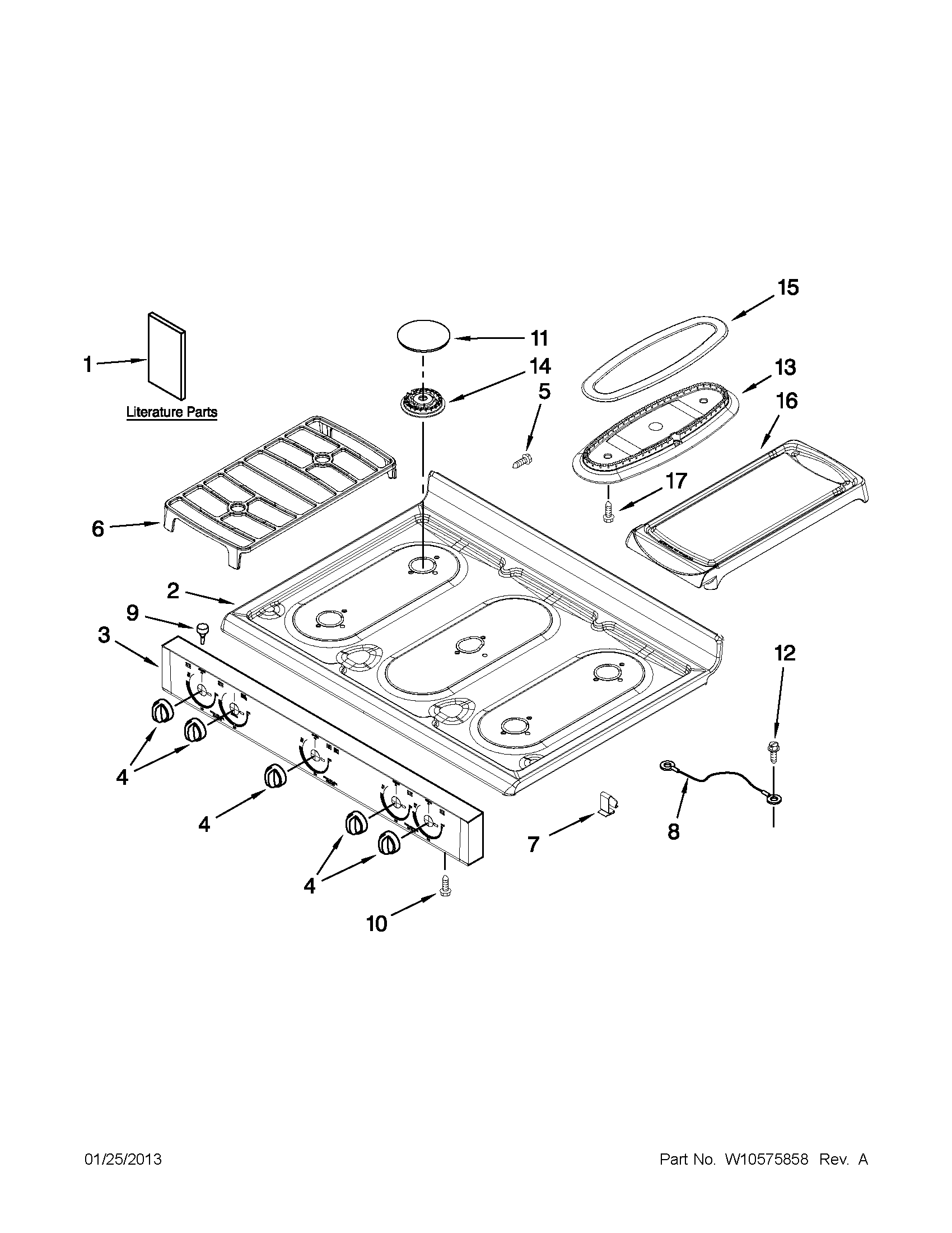

Cooktop parts diagram

Range surface burner cap

Part #98017461

Replaced by #WP98017461

?
Manufacturer substitution
This part replaces 98017461. Substitute parts can look different from the original.
$32.48 |
16% OFF Phone Price : $38.48
In Stock
Range Screw 98008545
Range screw

Part #98008545

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 98008545. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Range Leveling Leg W10058460
#10

Chassis parts diagram

Range leveling leg

Part #W10058460

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces W10058460. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
