Model # JES733WY002 Official GE microwave

Here are the diagrams and repair parts for Official GE JES733WY002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Primary Switch WB24X0439
#1446

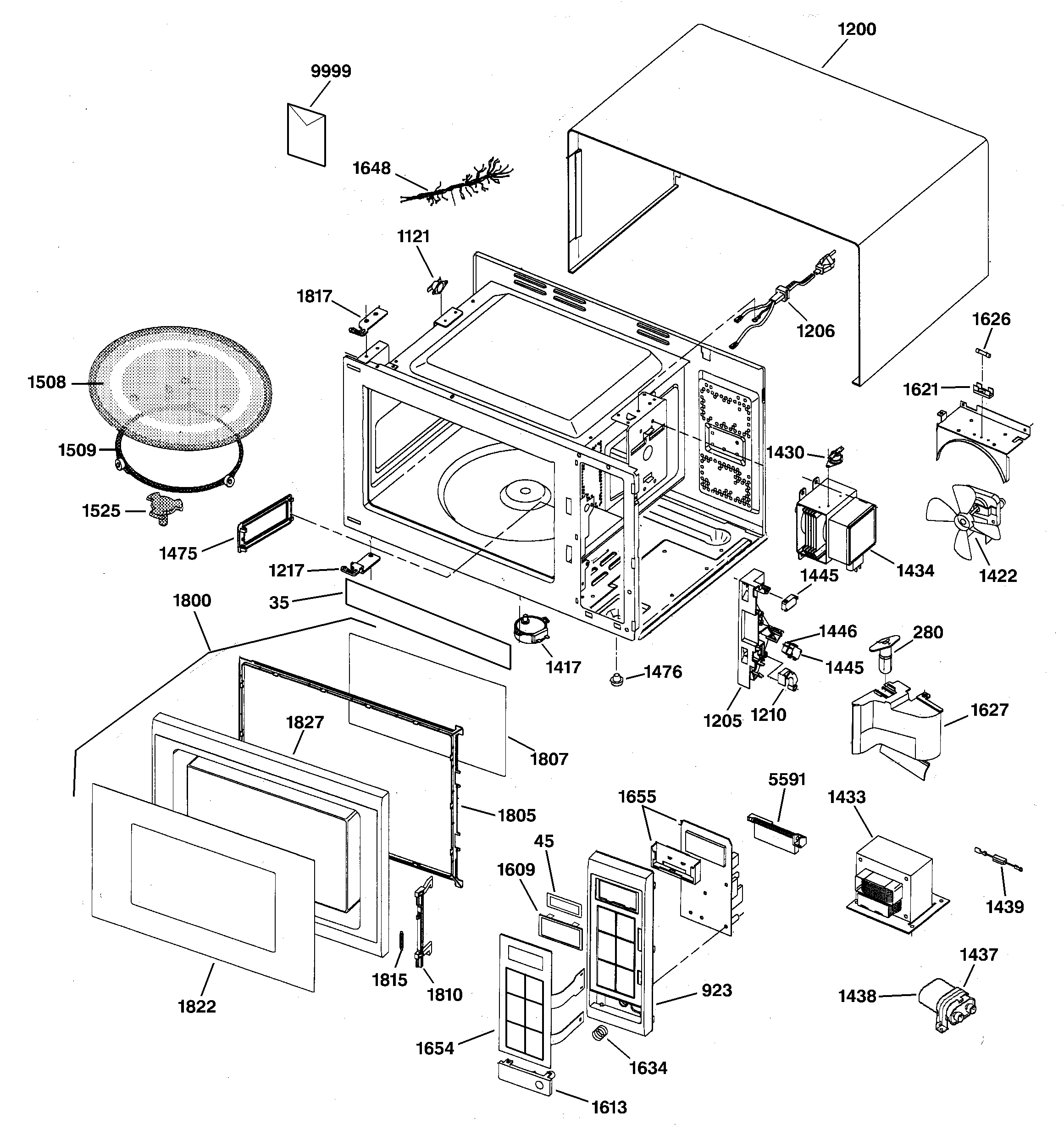

Microwave diagram

Primary switch

Part #WB24X0439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0439. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Monitor Switch WB24X0796
#1445

Microwave diagram

Monitor switch

Part #WB24X0796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X10072
#1439

Microwave diagram

Diode

Part #WB27X10072

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X10072. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Fuse WB27X10454
#1626

Microwave diagram

Microwave fuse

Part #WB27X10454

This item is not returnable
$14.34 |
12% OFF Phone Price : $16.34
In Stock
Fuse Mda250v WB02X8151
#1626

Microwave diagram

Fuse mda250v

Part #WB02X8151

Replaced by #WB27X10454

?
Manufacturer substitution
This part replaces WB02X8151. Substitute parts can look different from the original.
This item is not returnable
$14.34 |
12% OFF Phone Price : $16.34
In Stock
Microwave Turntable Motor WB26X10024
#1417

Microwave diagram

Microwave turntable motor

Part #WB26X10024

$27.49
In Stock
Spring Key WB09X10019
#1815

Microwave diagram

Spring key

Part #WB09X10019

$7.51
In Stock
Coupler WB06X10059
#1525

Microwave diagram

Coupler

Part #WB06X10059

$45.77 |
12% OFF Phone Price : $51.77
In Stock
Microwave Thermostat WB20X10003
#1430

Microwave diagram

Microwave thermostat

Part #WB20X10003

$30.39 |
16% OFF Phone Price : $36.39
In Stock
Magnetron WB27X10103
#1434

Microwave diagram

Magnetron

Part #WB27X10103

The manufacturer no longer makes this part, and there's no substitute part
