Model # 16153981 Official Sears typewriter

Here are the diagrams and repair parts for Official Sears 16153981 typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

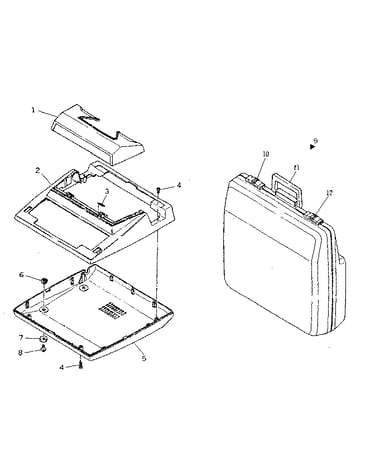

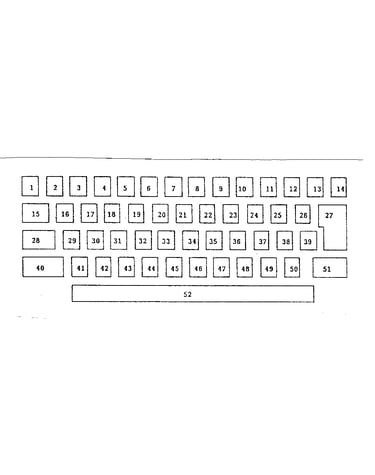

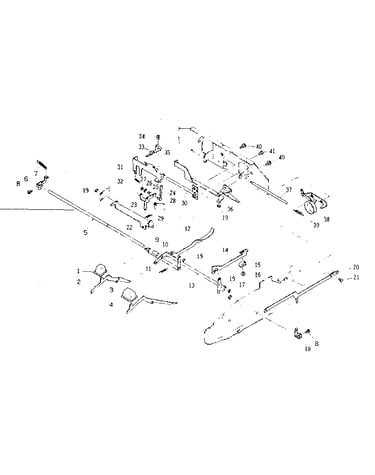

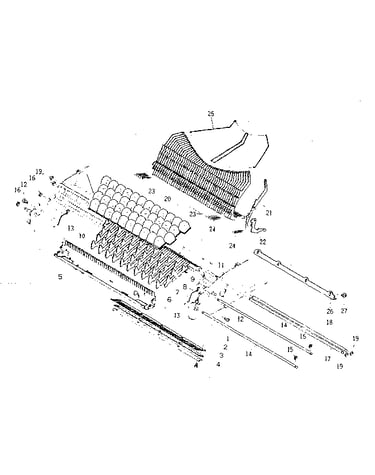

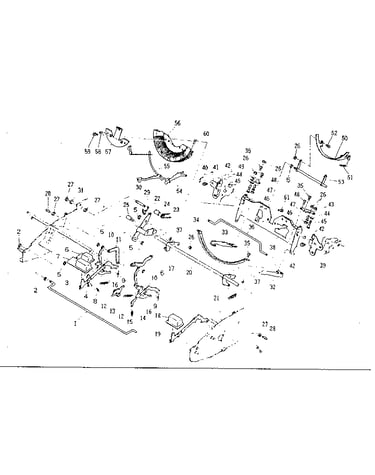

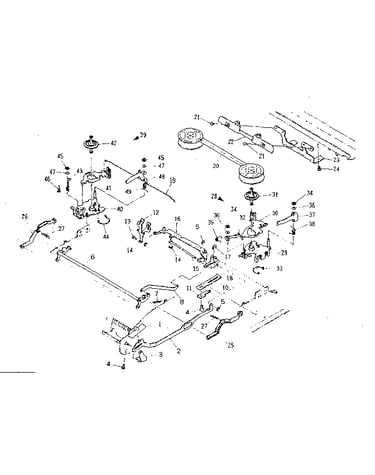

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 407 parts  |
Screm 3x4mm 011-00010
Screm 3x4mm

Part #011-00010

The manufacturer no longer makes this part, and there's no substitute part

Screw 801-00500
#48

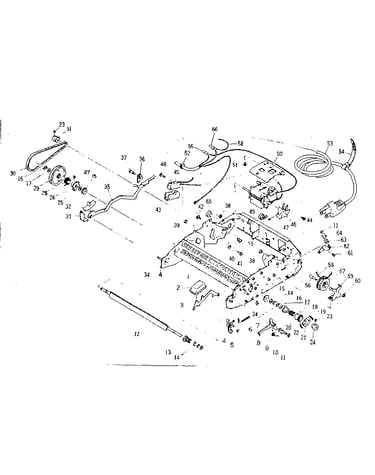

Chassis and power mechanism diagram

Screw

Part #801-00500

The manufacturer no longer makes this part, and there's no substitute part

Screw 820-40190
#11

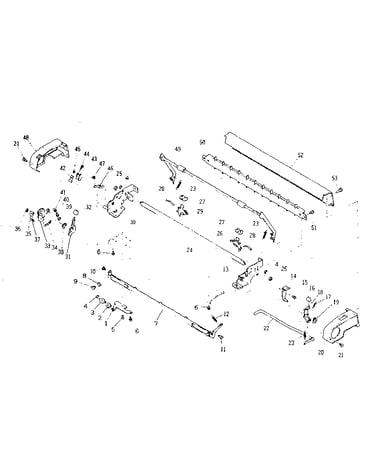

Carriage mechanism-no. 1 diagram

Screw

Part #820-40190

The manufacturer no longer makes this part, and there's no substitute part

Washer 880-90140
#8

Carriage mechanism-no. 1 diagram

Washer

Part #880-90140

The manufacturer no longer makes this part, and there's no substitute part

Bolt 501-70071
Bolt

Part #501-70071

The manufacturer no longer makes this part, and there's no substitute part

Screw 501-70110
#47

Carriage mechanism-no. 1 diagram

Screw

Part #501-70110

The manufacturer no longer makes this part, and there's no substitute part

Ring 820-90020
#19

Carriage mechanism-no. 1 diagram

Ring

Part #820-90020

The manufacturer no longer makes this part, and there's no substitute part

Screw 821-60290
#10A

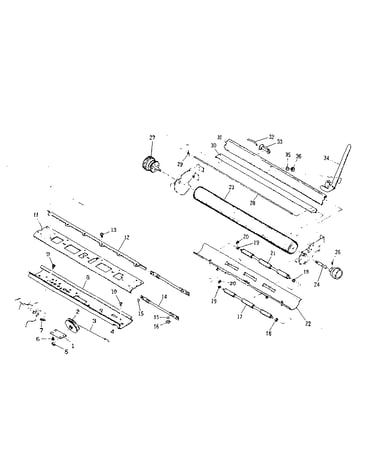

Carriage mechanism-no. 2 diagram

Screw

Part #821-60290

The manufacturer no longer makes this part, and there's no substitute part

Screw 011-18180
#47

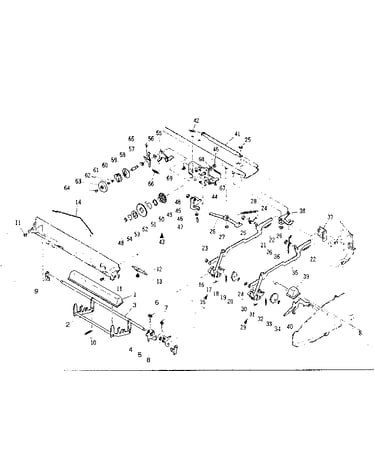

Power space, power back and escapement mechanism diagram

Screw

Part #011-18180

The manufacturer no longer makes this part, and there's no substitute part

Washer 880-90080
#14

Chassis and power mechanism diagram

Washer

Part #880-90080

The manufacturer no longer makes this part, and there's no substitute part
