Model # NEX-3K Official Sony camera

Here are the diagrams and repair parts for Official Sony NEX-3K camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Cutter 419387501
#404

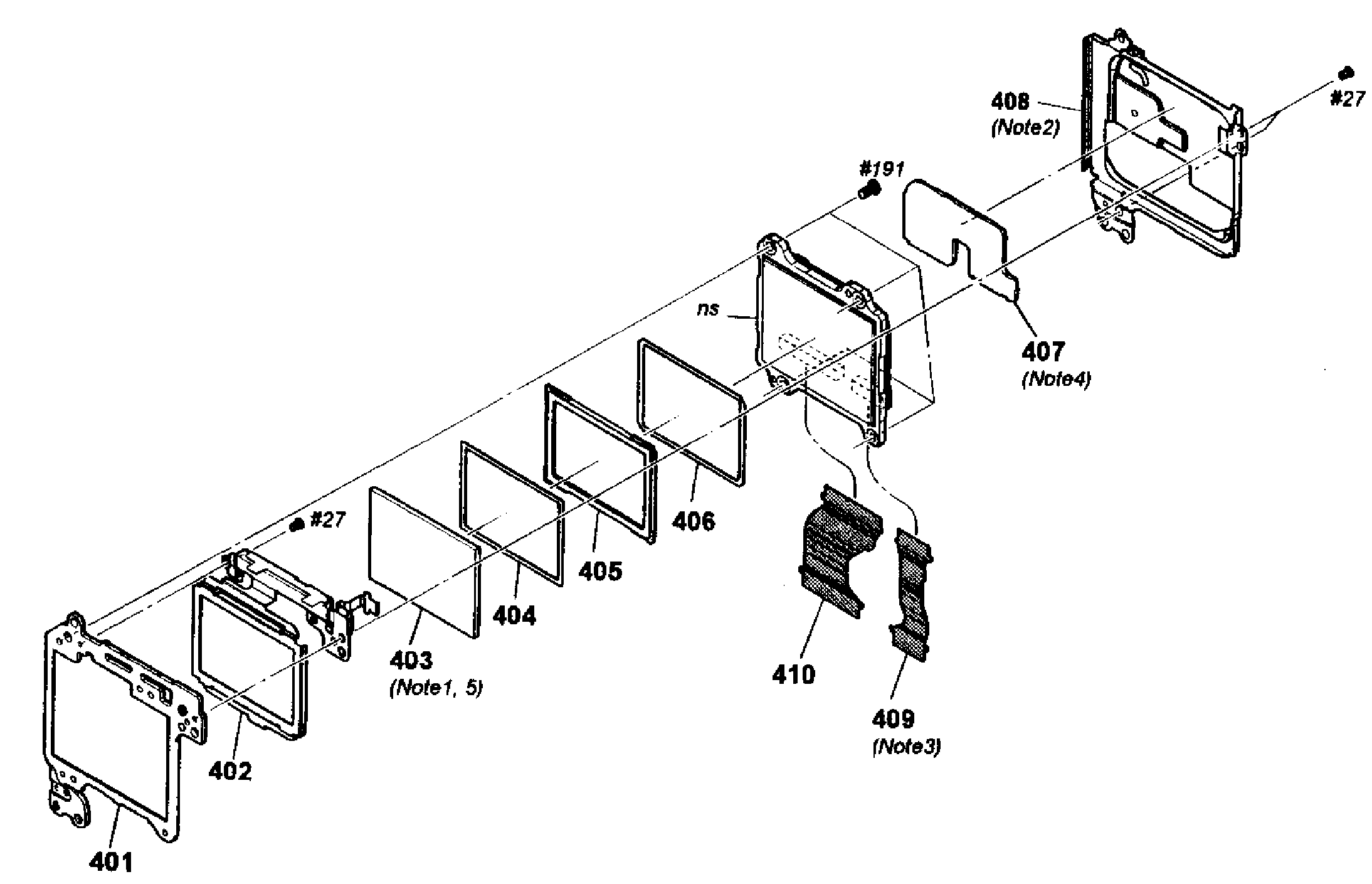

Imager unit diagram

Cutter

Part #419387501

$22.31
In Stock
Base,red 419096021
#58B

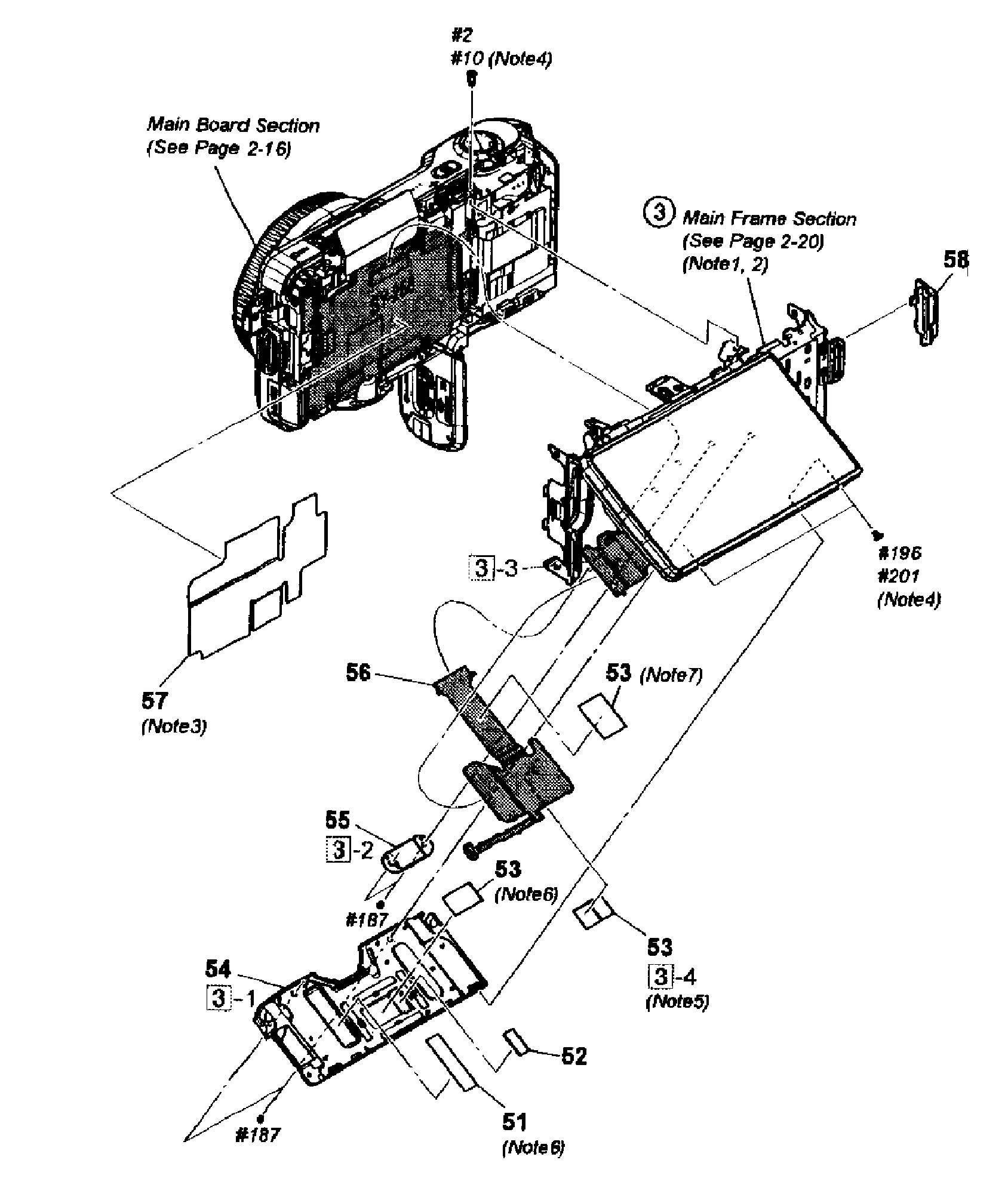

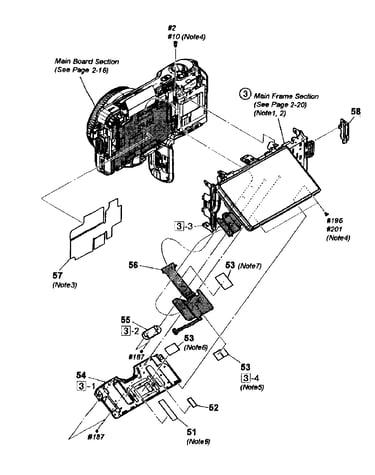

Lcd section diagram

Base,red

Part #419096021

$11.75
In Stock
Logo,red 418654321
#153B

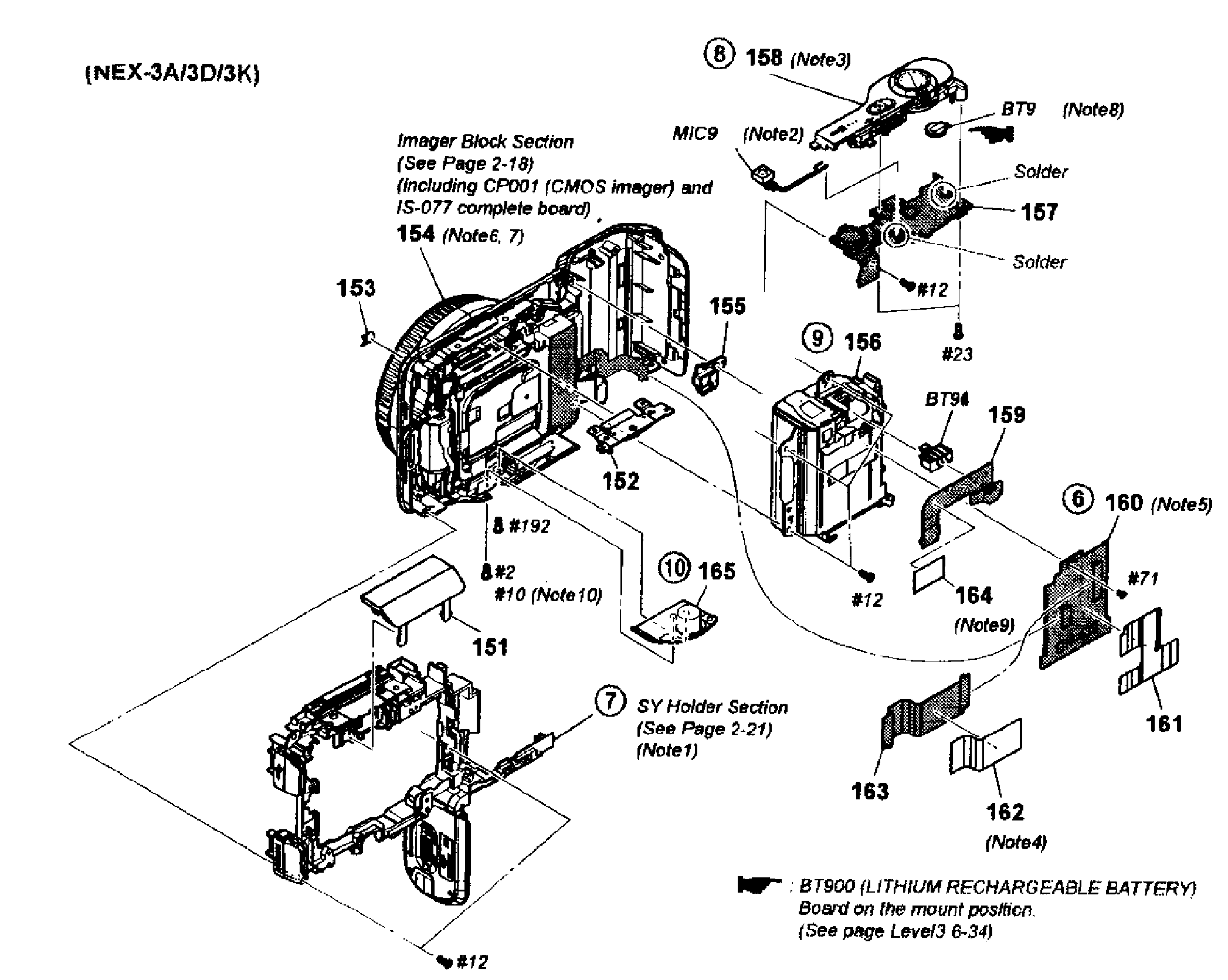

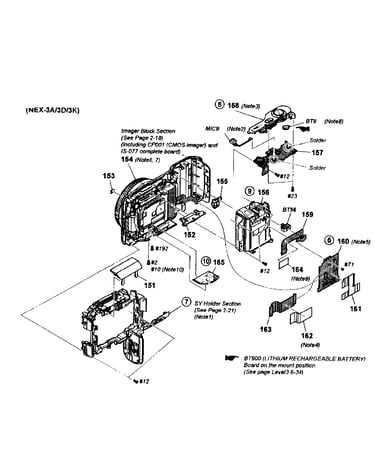

Bt/bl section diagram

Logo,red

Part #418654321

This item is not returnable
$5.03
In Stock
Ground Plate 419095401
#104

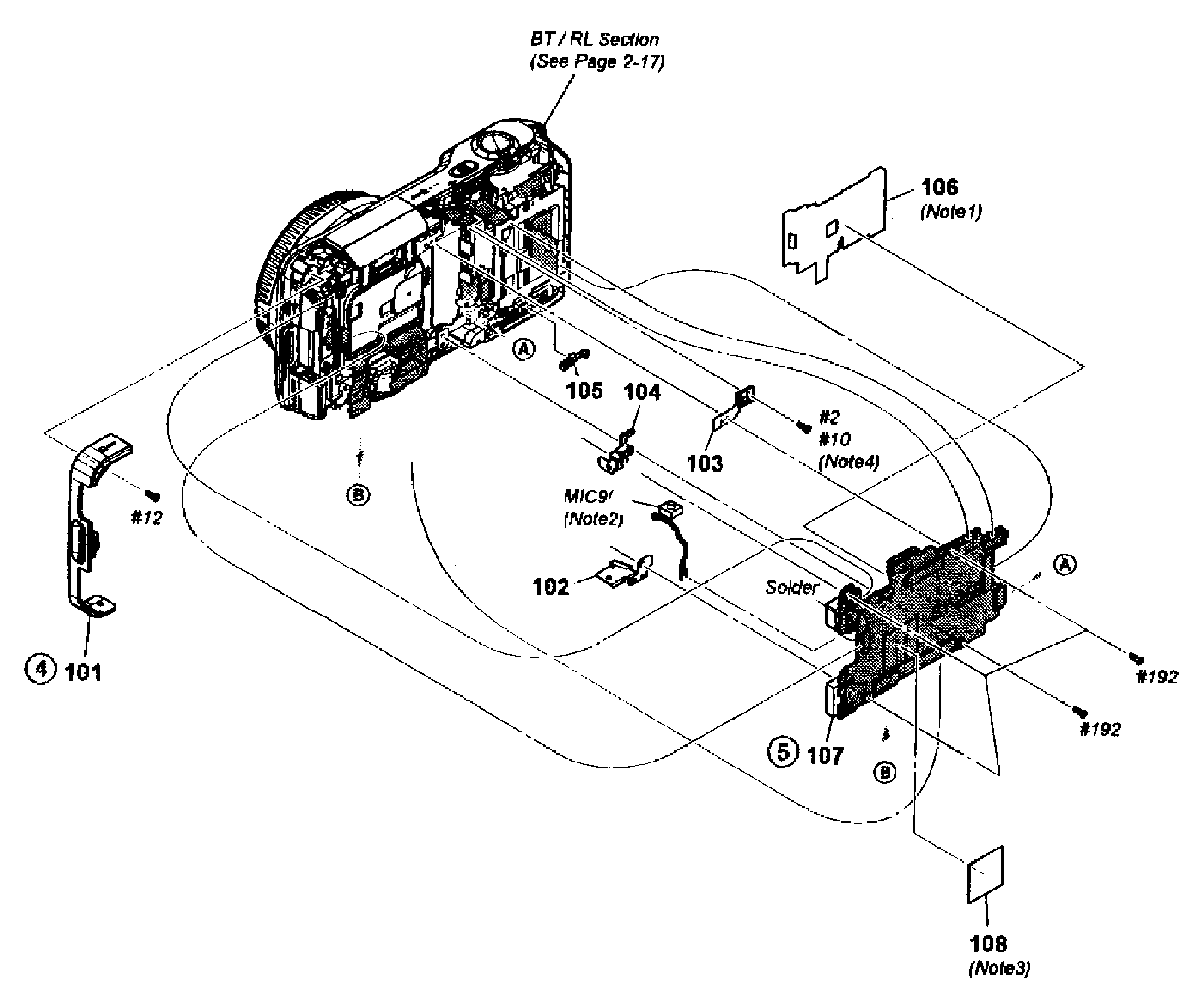

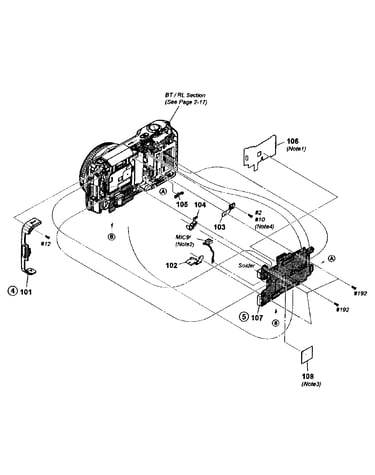

Main board diagram

Ground plate

Part #419095401

This item is not returnable
$2.65
In Stock
Cover Assembly X25482891
#354A

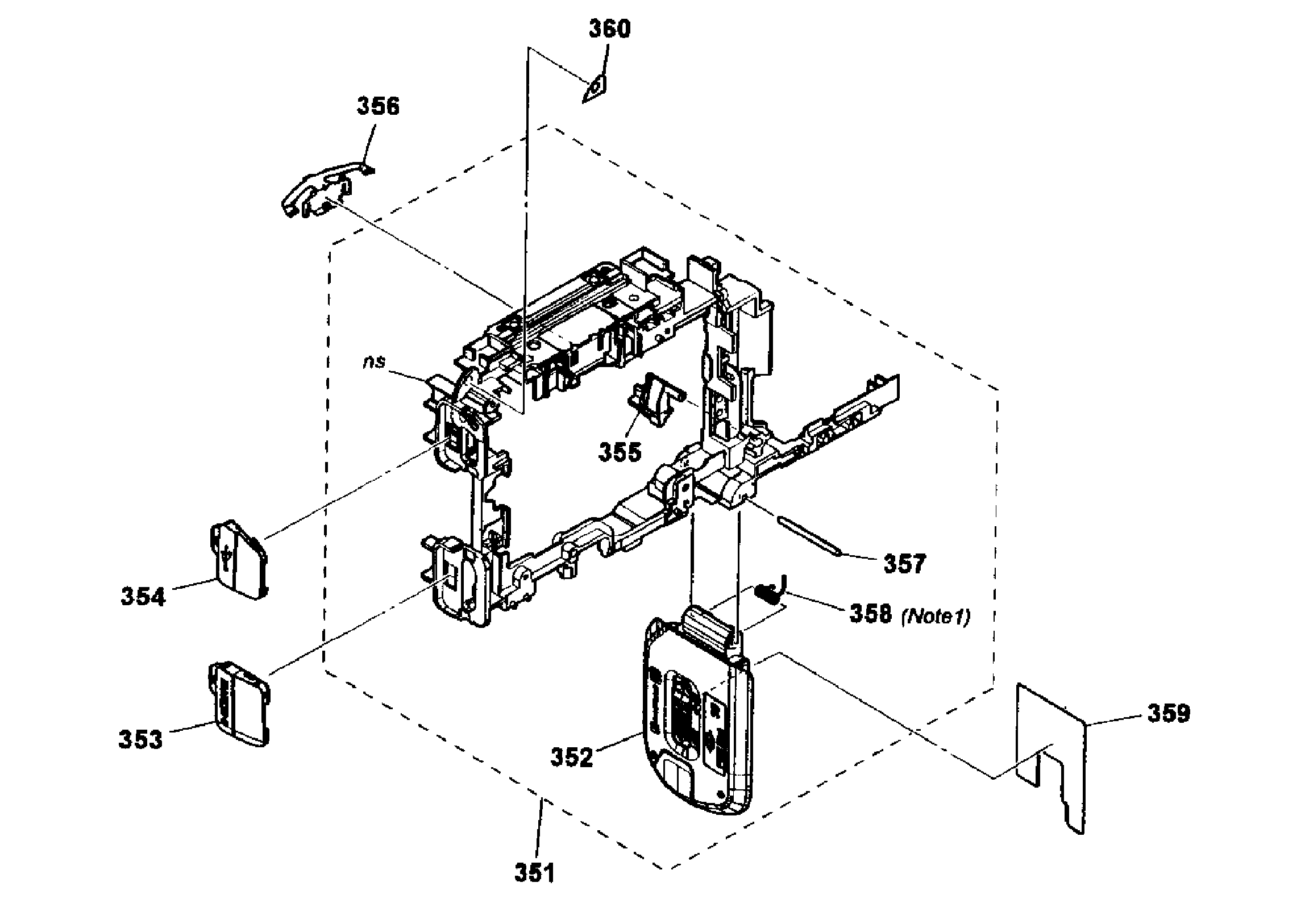

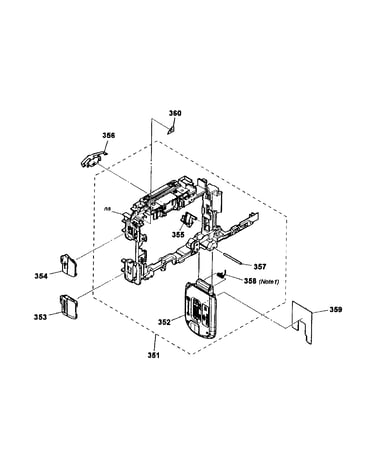

Sy holder diagram

Cover assembly

Part #X25482891

$8.03
In Stock
Washer 419398201
#263

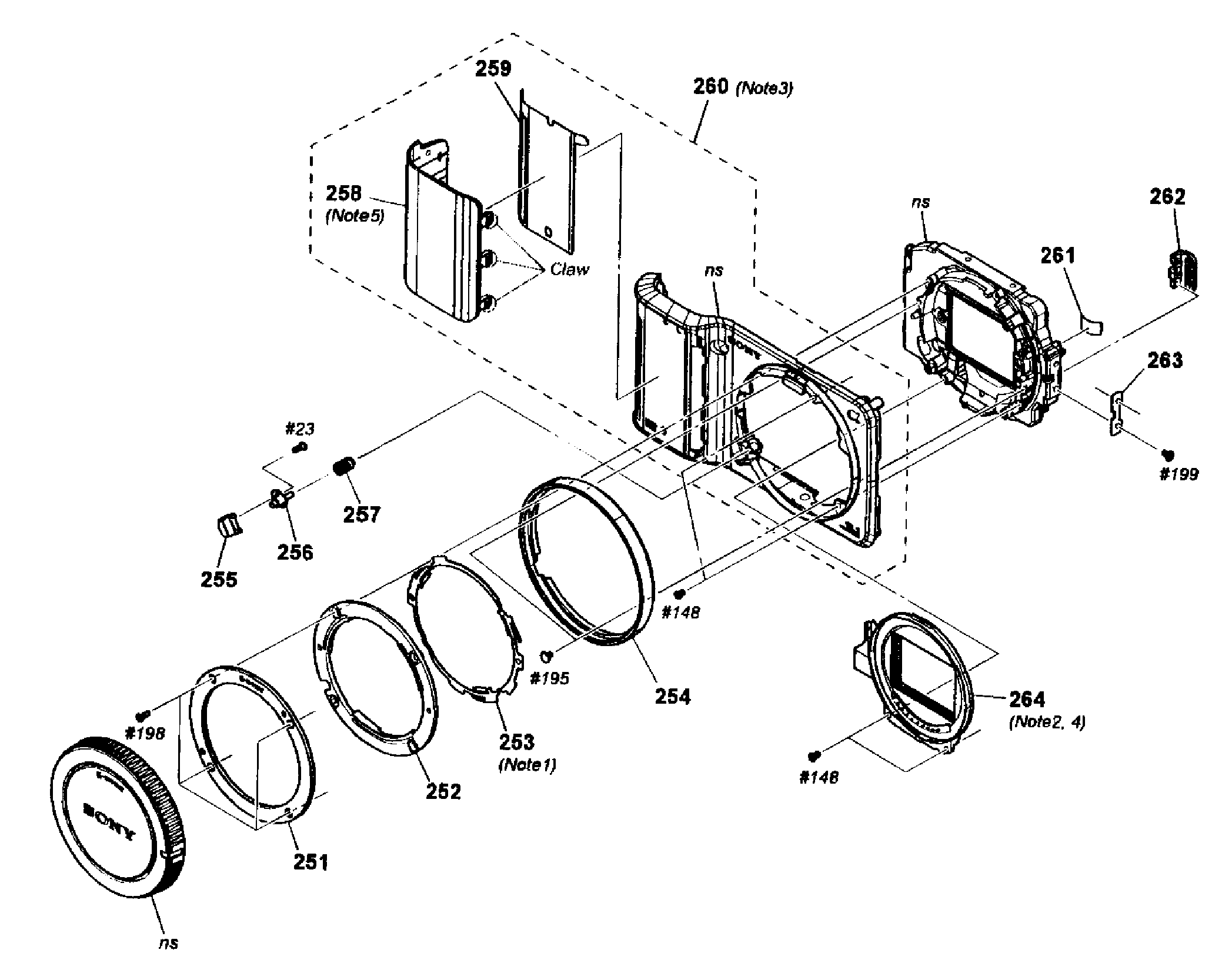

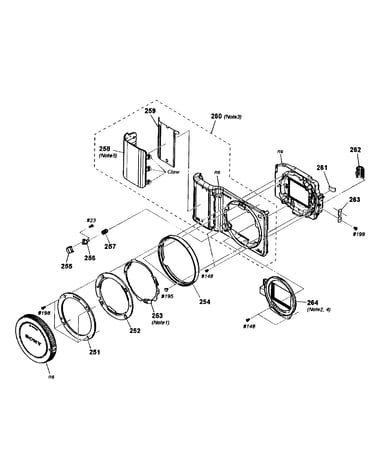

Fr cabinet diagram

Washer

Part #419398201

This item is not returnable
$2.16
In Stock
Plate A1773805A
#402

Imager unit diagram

Plate

Part #A1773805A

$38.40
In Stock
Cover Assembly X25482941
#353B

Sy holder diagram

Cover assembly

Part #X25482941

$11.75
In Stock
Rr Grip,re 419079321
#2B

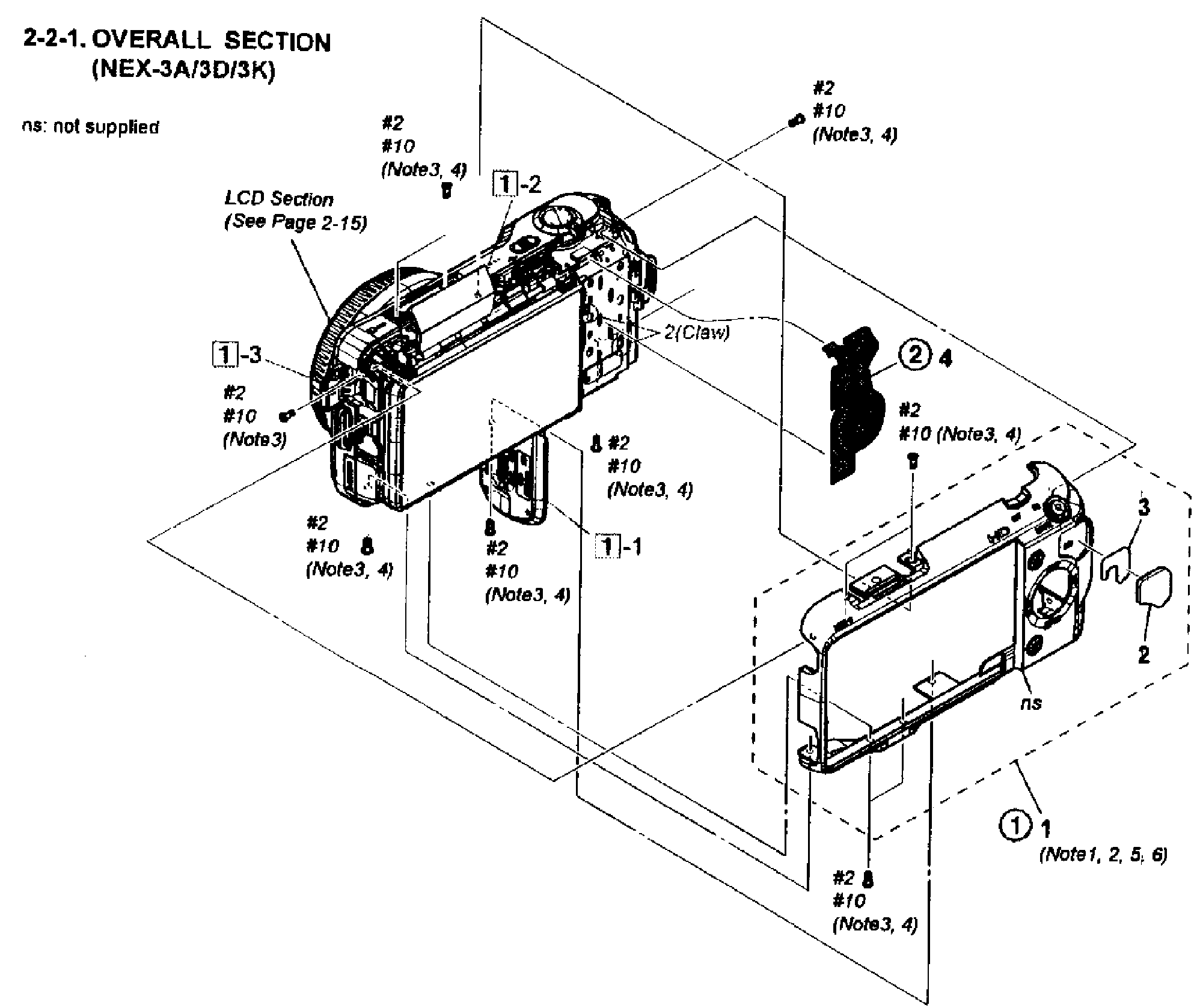

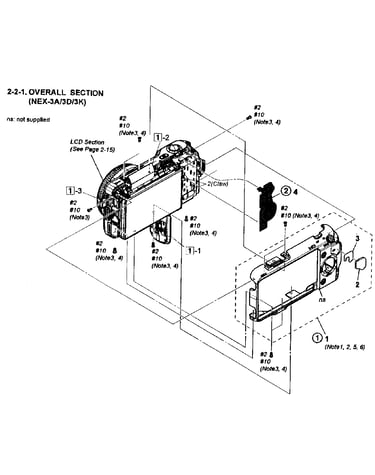

Overall view diagram

Rr grip,re

Part #419079321

This item is not returnable
$3.93
In Stock
Insulation Sheet 418657301
#106

Main board diagram

Insulation sheet

Part #418657301

This item is not returnable
$3.54
In Stock
