Model # 217585211 Official Craftsman 3.0-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585211 3.0-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

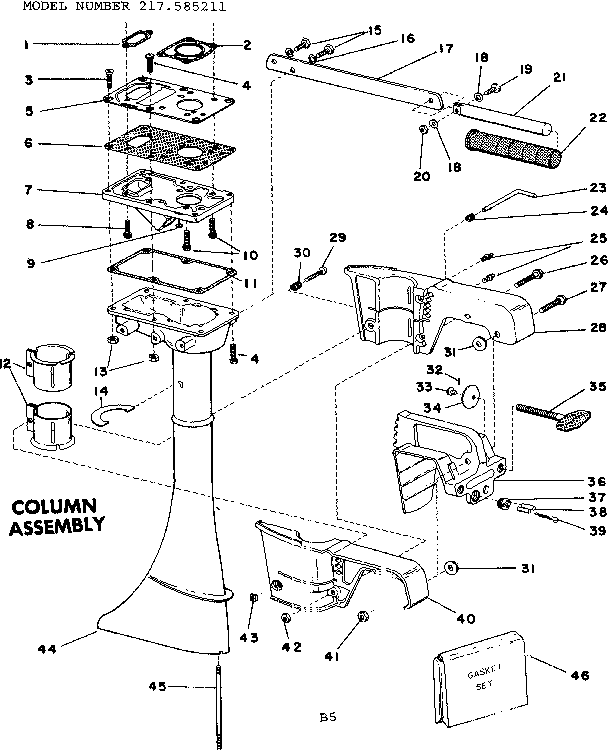

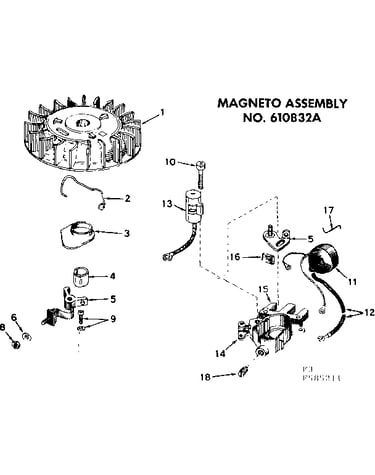

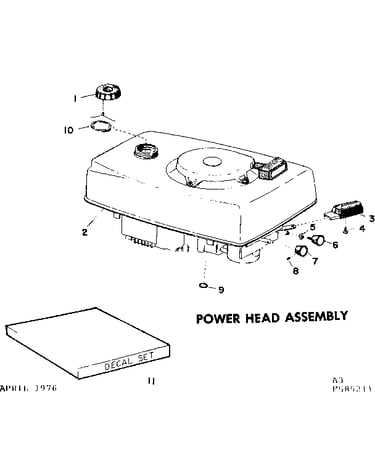

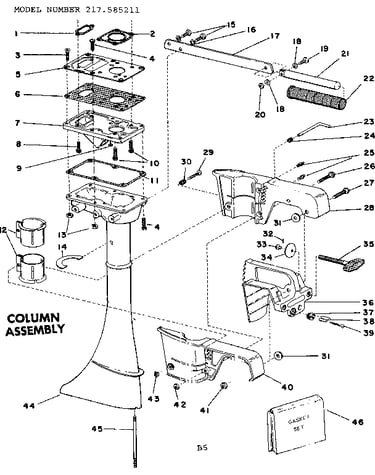

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 211 parts |

#26

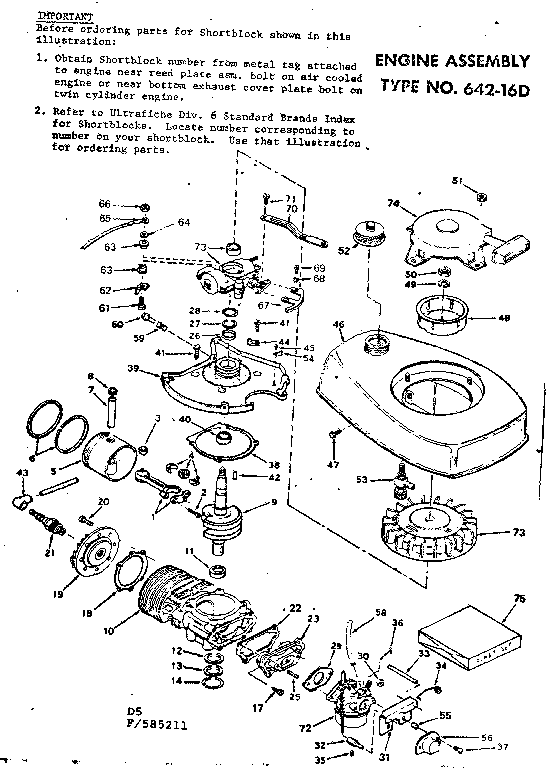

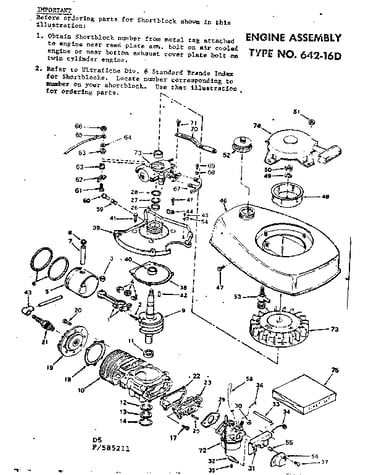

Engine assembly diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

#28

Engine assembly diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

#27

Engine assembly diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

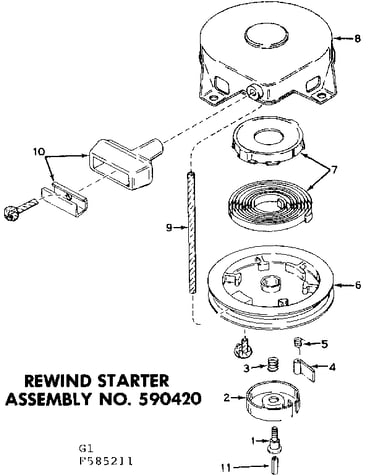

Rewind starter assembly no. 590420 diagram

Spring

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

#13

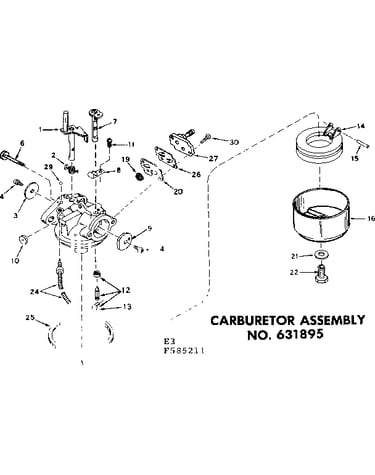

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

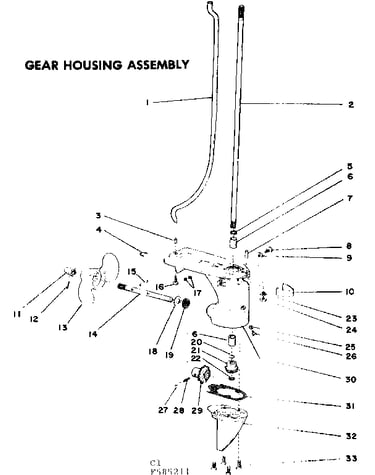

Gear housing assembly diagram

Preway roll pin

Part #7058

The manufacturer no longer makes this part, and there's no substitute part

#11

Gear housing assembly diagram

Preway boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Shaft Oil Seal 96014

#19

Gear housing assembly diagram

Preway boat motor propeller shaft oil seal

Part #96014

The manufacturer no longer makes this part, and there's no substitute part

Boat motor cotter pin, 3/32 x 1-in

Part #6405

The manufacturer no longer makes this part, and there's no substitute part

Gear housing assembly diagram

Preway boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part
