Model # YWED92HEFC1 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool YWED92HEFC1 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

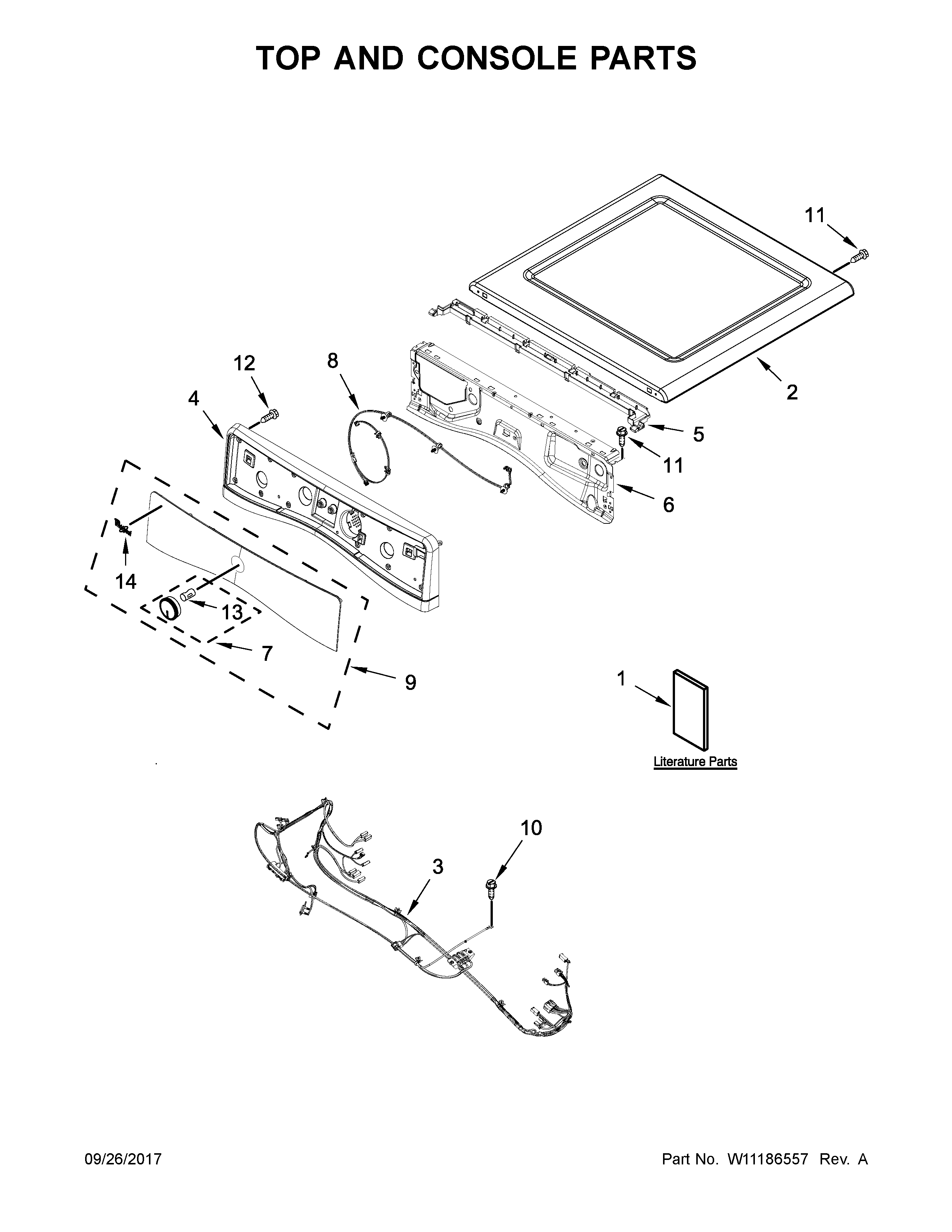

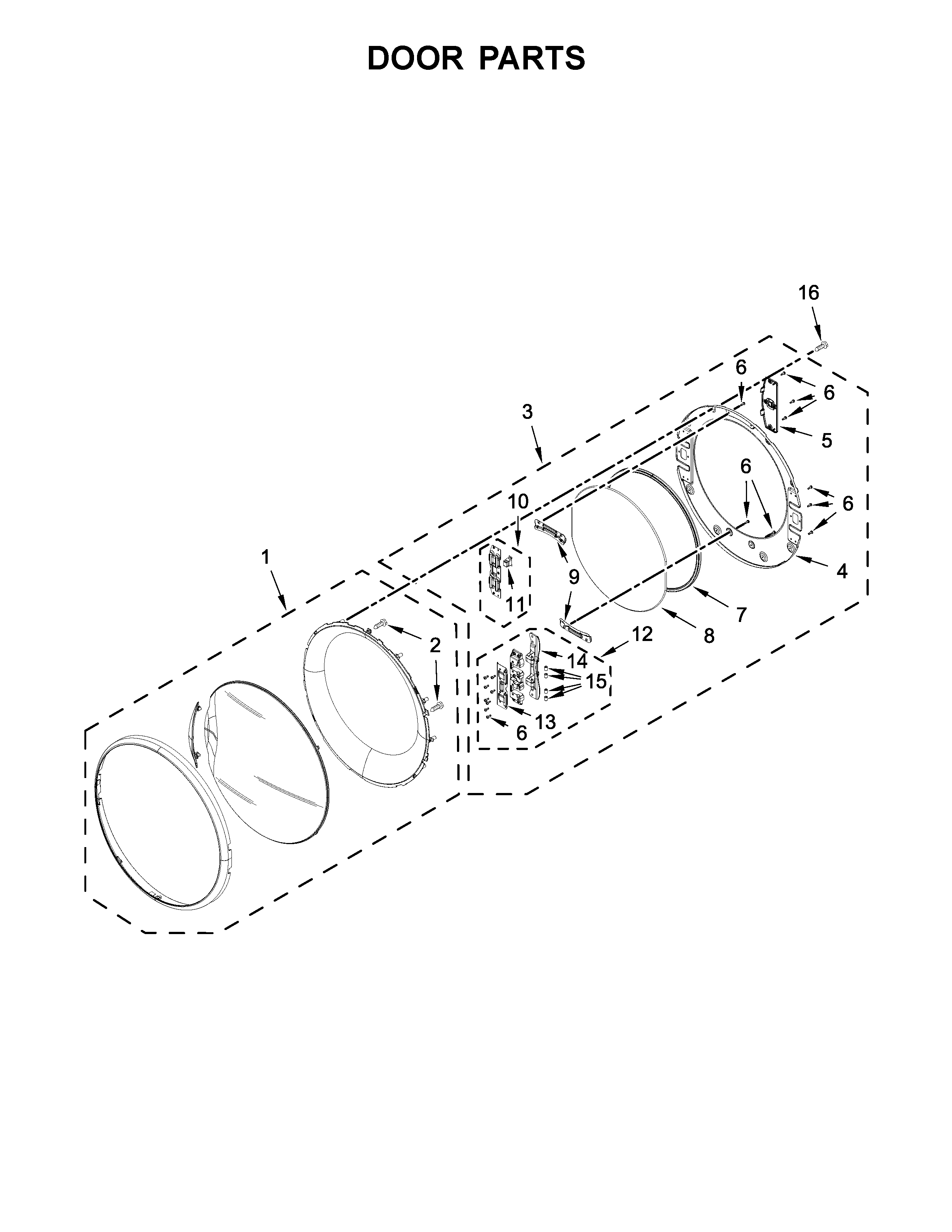

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Dryer Drum Support Roller W10314171
#21

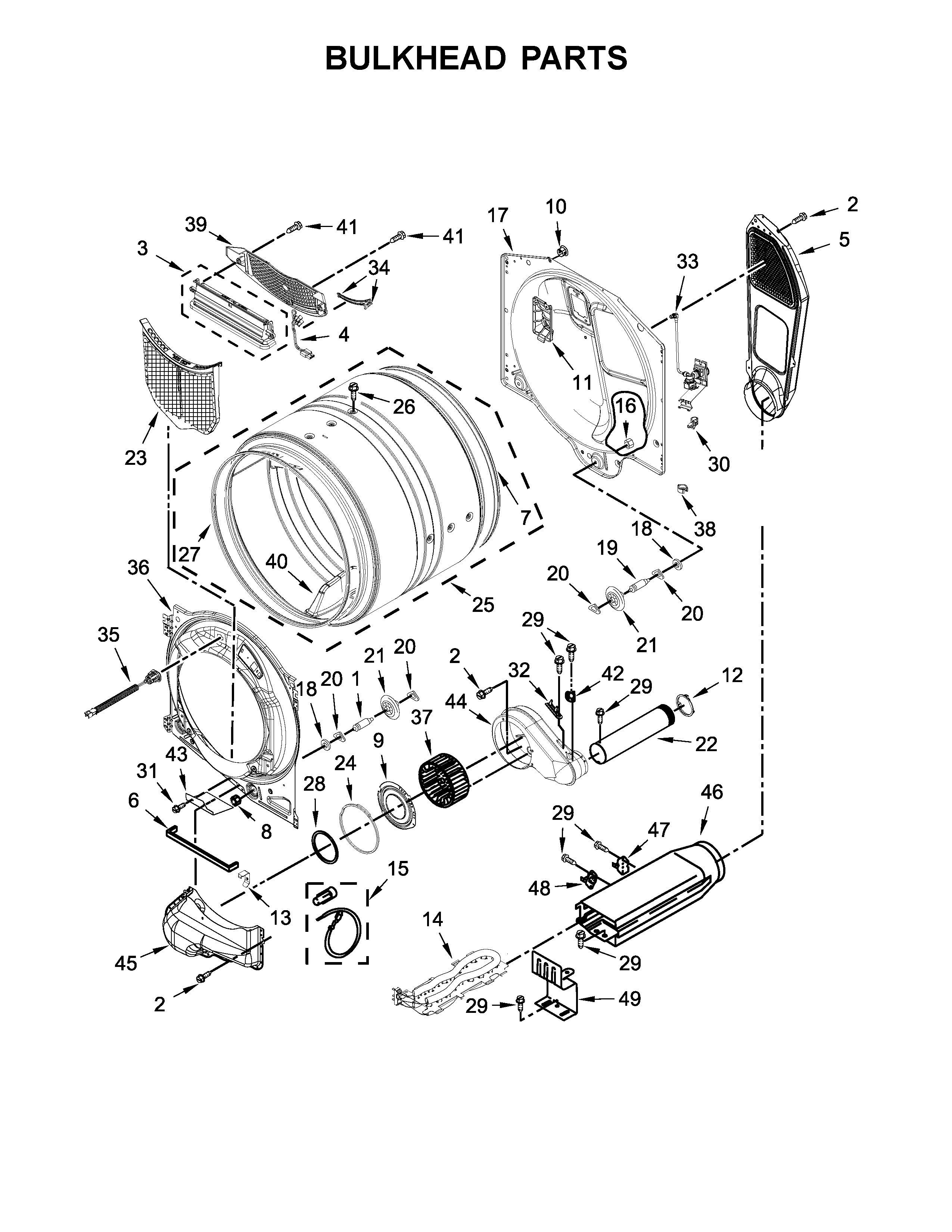

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$15.77 |
11% OFF Phone Price : $17.77
In Stock
Dryer Idler Pulley W10547287
#11

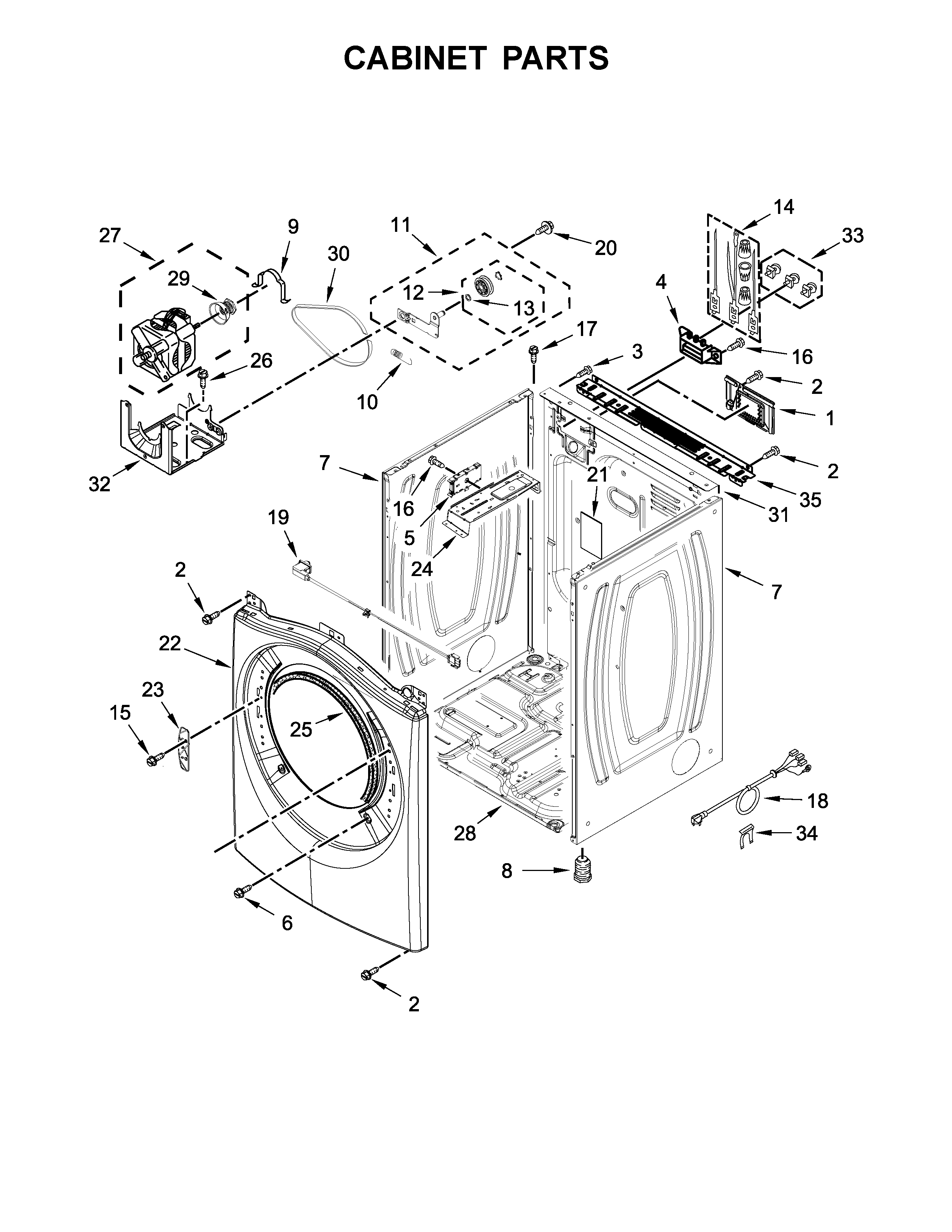

Cabinet parts diagram

Dryer idler pulley

Part #W10547287

Replaced by #W10837240

?
Manufacturer substitution
This part replaces W10547287. Substitute parts can look different from the original.
BEST SELLER
$20.63 |
23% OFF Phone Price : $26.63
In Stock
Dryer Drive Belt 3387610
#30

Cabinet parts diagram

Dryer drive belt

Part #3387610

Replaced by #661570V

?
Manufacturer substitution
This part replaces 3387610. Substitute parts can look different from the original.
BEST SELLER
$19.95 |
9% OFF Phone Price : $21.95
In Stock
Dryer Repair Kit 279948
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$29.75 |
17% OFF Phone Price : $35.75
In Stock
Dryer Thermistor 8577274
#48

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$31.84 |
16% OFF Phone Price : $37.84
In Stock
Sears Canada Dryer Thermal Cut-off Fuse Kit, 352-degree F 280148
#47

Bulkhead parts diagram

Sears canada dryer thermal cut-off fuse kit, 352-degree f

Part #280148

BEST SELLER
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Dryer High-limit Thermostat 8557403
#42

Bulkhead parts diagram

Dryer high-limit thermostat

Part #8557403

Replaced by #WP8557403

?
Manufacturer substitution
This part replaces 8557403. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Dryer Motor Pulley 8066184
#29

Cabinet parts diagram

Dryer motor pulley

Part #8066184

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 8066184. Substitute parts can look different from the original.
BEST SELLER
$33.26 |
15% OFF Phone Price : $39.26
In Stock
Thermal Fuse W10693363
#32

Bulkhead parts diagram

Thermal fuse

Part #W10693363

Replaced by #W10909685

?
Manufacturer substitution
This part replaces W10693363. Substitute parts can look different from the original.
BEST SELLER
$45.43 |
12% OFF Phone Price : $51.43
In Stock
Washer Seal W10521118
#7

Bulkhead parts diagram

Washer seal

Part #W10521118

Replaced by #280114

?
Manufacturer substitution
This part replaces W10521118. Substitute parts can look different from the original.
BEST SELLER
$31.50 |
16% OFF Phone Price : $37.50
In Stock
