Model # SR OIL BURNER Official Beckett oil furnace burner

Here are the diagrams and repair parts for Official Beckett SR-OIL-BURNER oil furnace burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Air Tube Gasket 3-416
#18A

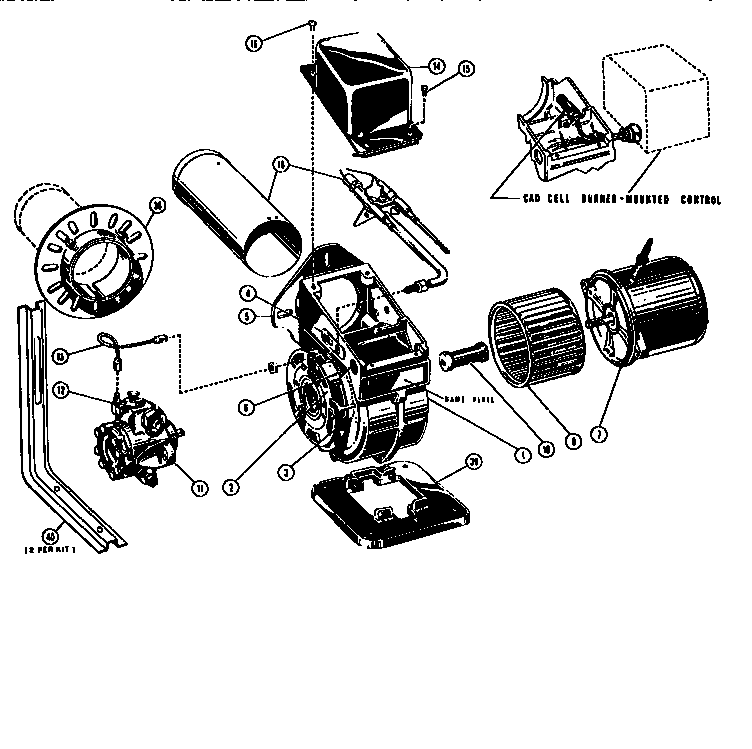

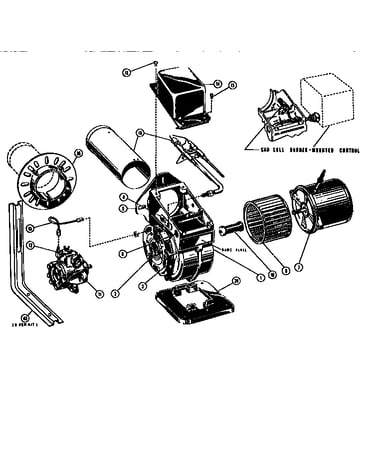

Parts diagram

Air tube gasket

Part #3-416

The manufacturer no longer makes this part, and there's no substitute part

Contact Spring Terminals 3-245
#17

Parts diagram

Contact spring terminals

Part #3-245

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel Regulator (6 1/4") 2-383
#9

Parts diagram

Blower wheel regulator (6 1/4")

Part #2-383

The manufacturer no longer makes this part, and there's no substitute part

Adjustable Mounting Flange 5-432
#38

Parts diagram

Adjustable mounting flange

Part #5-432

The manufacturer no longer makes this part, and there's no substitute part

Fuel Unit Model M Webster 2-517
#11D

Parts diagram

Fuel unit model m webster

Part #2-517

The manufacturer no longer makes this part, and there's no substitute part

Ignition Transformer 2-289
#14

Parts diagram

Ignition transformer

Part #2-289

The manufacturer no longer makes this part, and there's no substitute part

Bulkhead Fitting 3-488
#25

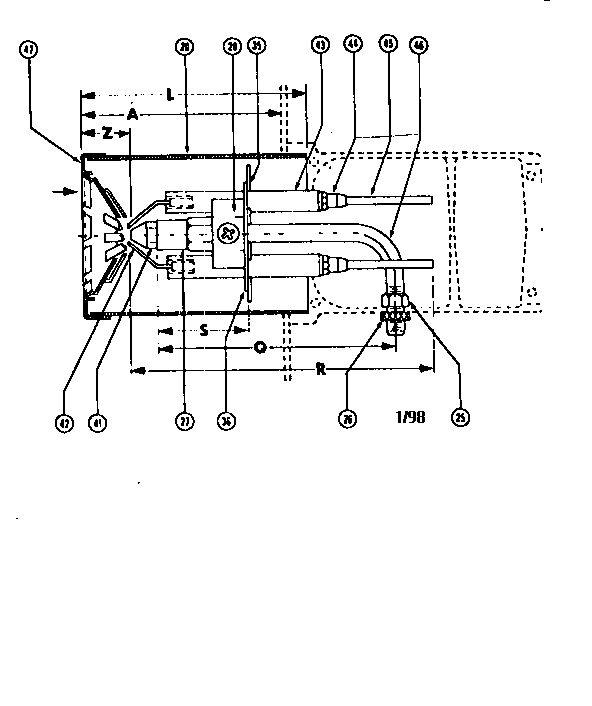

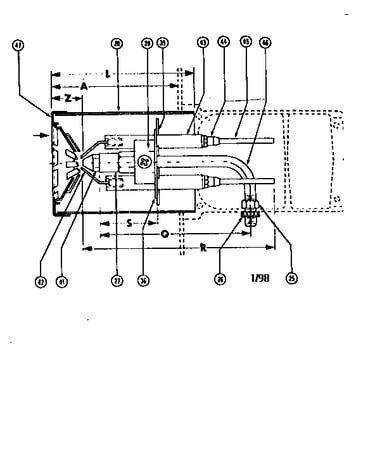

Air tube combination diagram

Bulkhead fitting

Part #3-488

The manufacturer no longer makes this part, and there's no substitute part

Flexible Coupling (use Coupling #2-433 With Model A And Model M Fuel Units) 2-290
#10

Parts diagram

Flexible coupling (use coupling #2-433 with model a and model m fuel units)

Part #2-290

The manufacturer no longer makes this part, and there's no substitute part

Pump Outlet Elbow 2-256
#12

Parts diagram

Pump outlet elbow

Part #2-256

The manufacturer no longer makes this part, and there's no substitute part

Holding Screws 4-292
#16

Parts diagram

Holding screws

Part #4-292

The manufacturer no longer makes this part, and there's no substitute part
