Model # MC25S7GYNB Official Gibson dehumidifier - lg34590030

Here are the diagrams and repair parts for Official Gibson MC25S7GYNB dehumidifier - lg34590030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Panel 5303209775
#6

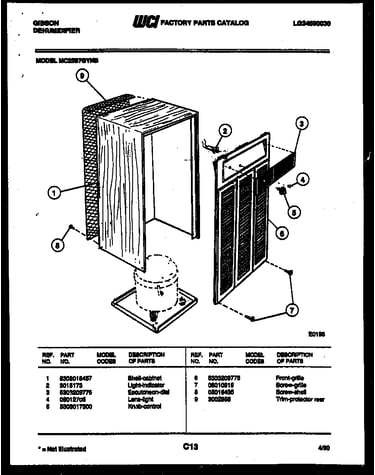

Cabinet parts diagram

Panel

Part #5303209775

In Stock
Screw 08016435
Screw

Part #08016435

This item is not returnable
In Stock
Compressor 5303015383
#1

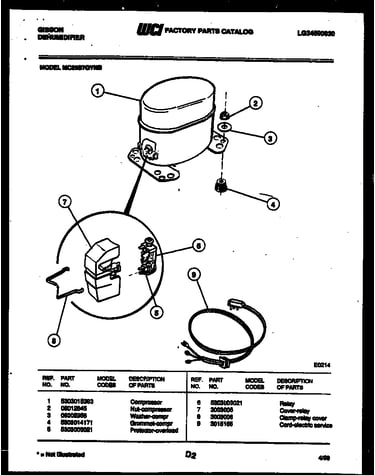

Compressor parts diagram

Compressor

Part #5303015383

In Stock
Switch 5303012345
#5

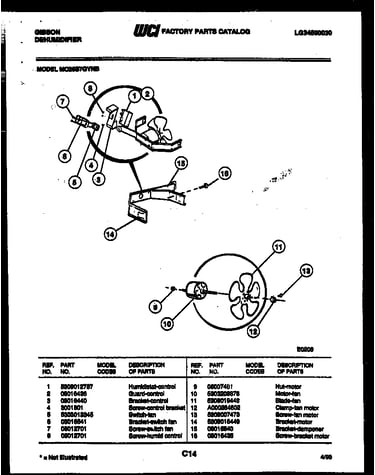

Air control parts diagram

Switch

Part #5303012345

In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#9

Air control parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
In Stock
Screw 5308007473
#13

Air control parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
In Stock
Clamp 08016455
#4

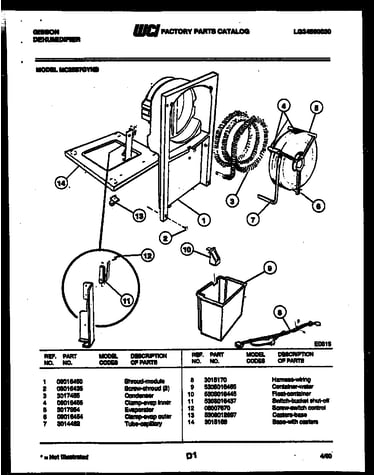

Water and condensing parts diagram

Clamp

Part #08016455

The manufacturer no longer makes this part, and there's no substitute part

Retainer 3003006
#8

Compressor parts diagram

Retainer

Part #3003006

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water Bucket Safety Switch 5308016437
#11

Water and condensing parts diagram

Dehumidifier water bucket safety switch

Part #5308016437

The manufacturer no longer makes this part, and there's no substitute part

Bulb 3015173
#2

Cabinet parts diagram

Bulb

Part #3015173

The manufacturer no longer makes this part, and there's no substitute part
