Porter Cable
Angle Grinder

Model # 7410 Official Porter Cable right angle grinder

Here are the diagrams and repair parts for Official Porter Cable 7410 right angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Seal 176559
#31

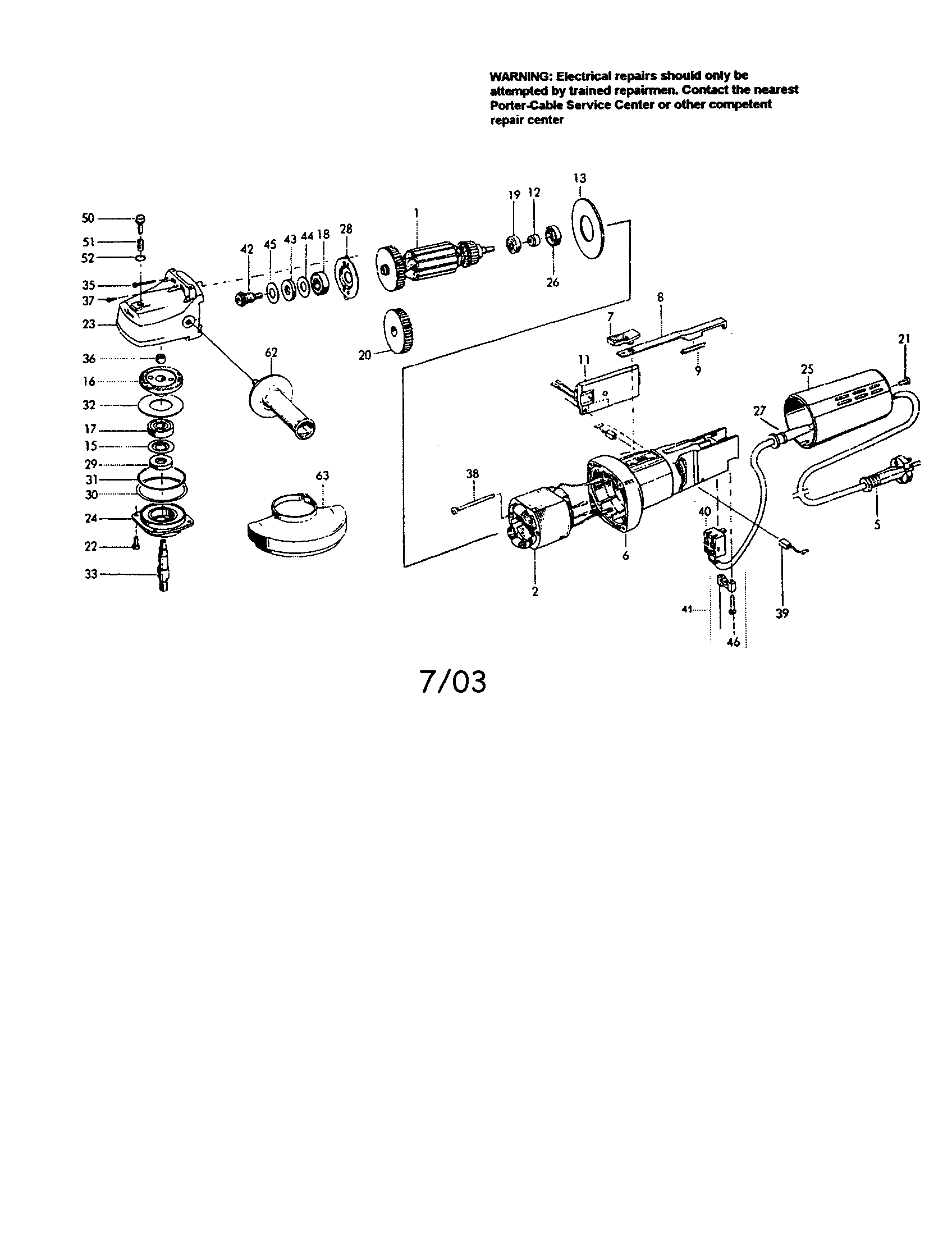

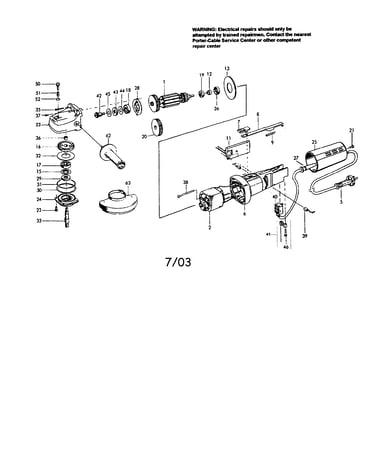

Right angle grinder diagram

Seal

Part #176559

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Magnet 219983
#12

Right angle grinder diagram

Porter cable magnet

Part #219983

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bearing 254442
#18

Right angle grinder diagram

Craftsman bearing

Part #254442

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Screw 225347
#38

Right angle grinder diagram

Porter cable screw

Part #225347

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bearing 254443
#19

Right angle grinder diagram

Craftsman bearing

Part #254443

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Seal 160512
#43

Right angle grinder diagram

Porter cable seal

Part #160512

The manufacturer no longer makes this part, and there's no substitute part

Bushing 199141
#36

Right angle grinder diagram

Bushing

Part #199141

The manufacturer no longer makes this part, and there's no substitute part

Screw 205990
#35

Right angle grinder diagram

Screw

Part #205990

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Strain Relief 215848
#27

Right angle grinder diagram

Craftsman strain relief

Part #215848

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring 195820
#9

Right angle grinder diagram

Craftsman spring

Part #195820

The manufacturer no longer makes this part, and there's no substitute part
