Model # R1804 Official LG room air conditioner

Here are the diagrams and repair parts for Official LG R1804 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

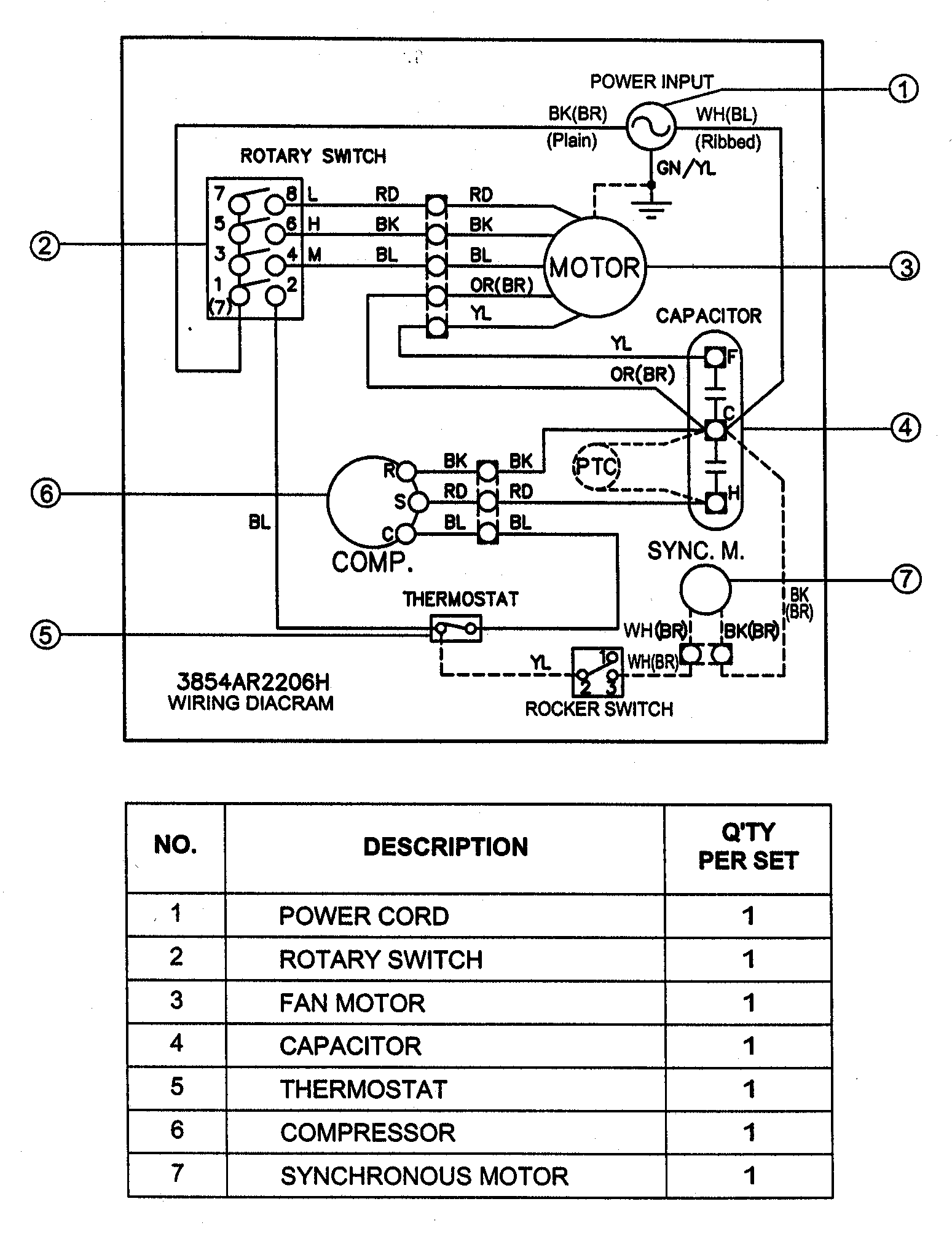

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Room Air Conditioner Blower Wheel 5834AR1599A
#9012

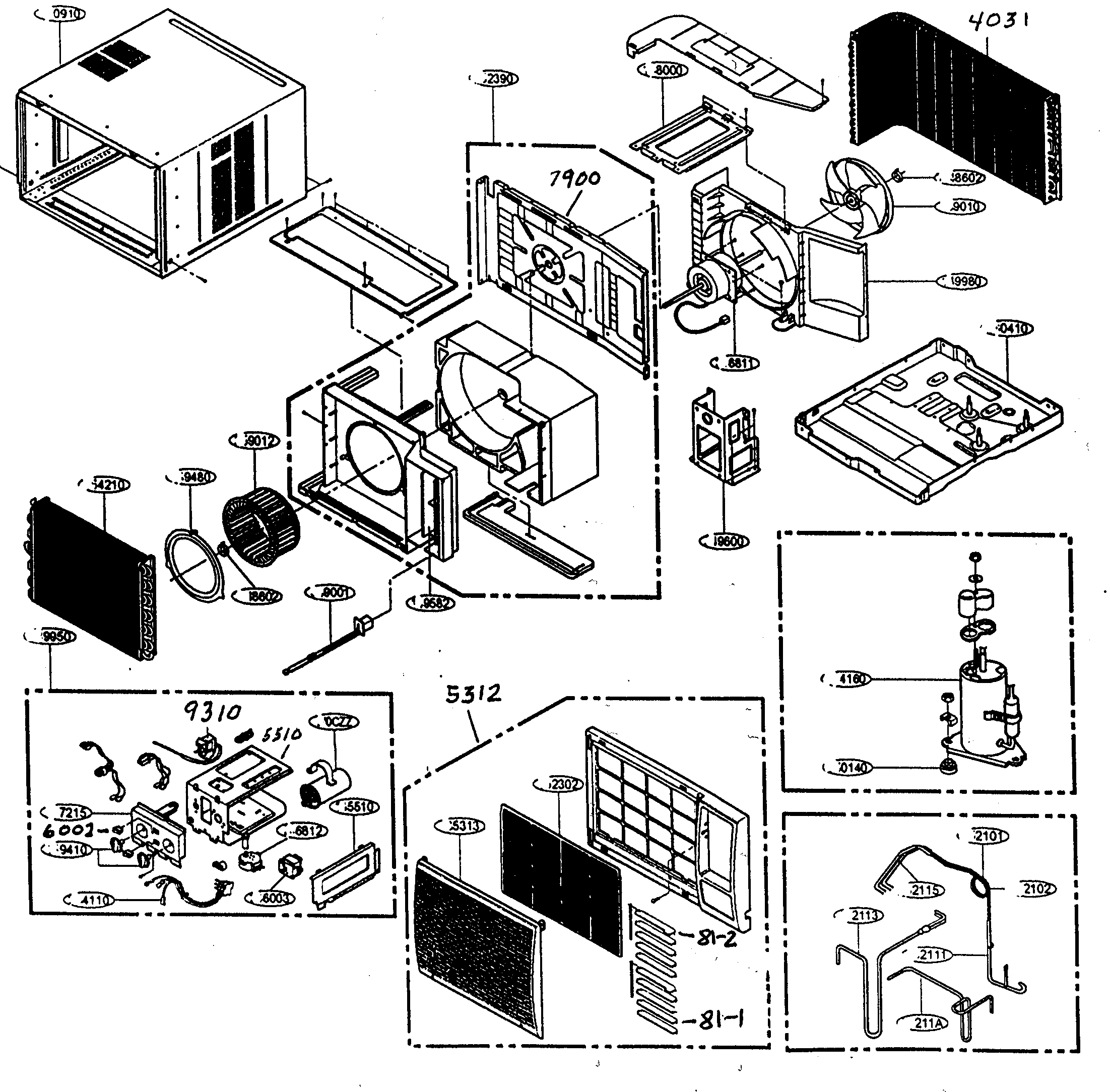

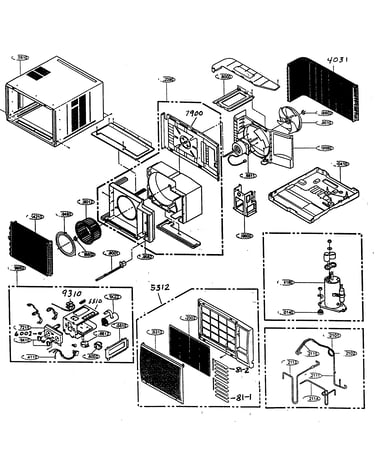

Cabinet parts diagram

Room air conditioner blower wheel

Part #5834AR1599A

Replaced by #5834AR1599B

?
Manufacturer substitution
This part replaces 5834AR1599A. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
Back Order
Capacitor 6120AR2194D
#CZZ

Cabinet parts diagram

Capacitor

Part #6120AR2194D

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194D. Substitute parts can look different from the original.
$33.61 |
15% OFF Phone Price : $39.61
In Stock
Louver 4758AR7264A
#81-1

Cabinet parts diagram

Louver

Part #4758AR7264A

This item is not returnable
$4.51
In Stock
Rotary Switch 2H00598E
#6003

Cabinet parts diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Room Air Conditioner Power Cord 2H00677Q
#4110

Cabinet parts diagram

Room air conditioner power cord

Part #2H00677Q

$47.16 |
11% OFF Phone Price : $53.16
In Stock
Brace 4800AR7272A
#8000

Cabinet parts diagram

Brace

Part #4800AR7272A

$14.51
In Stock
Damper 4900AR7265A
#9001

Cabinet parts diagram

Damper

Part #4900AR7265A

$71.93
In Stock
Comfort-aire Inlet Grille 3530AR1604A
#5313

Cabinet parts diagram

Comfort-aire inlet grille

Part #3530AR1604A

$58.47
In Stock
Cover 3551A30015A
#5510

Cabinet parts diagram

Cover

Part #3551A30015A

This item is not returnable
$7.00
In Stock
Room Air Conditioner Louver 4758AR7278A
#81-2

Cabinet parts diagram

Room air conditioner louver

Part #4758AR7278A

This item is not returnable
$4.51
In Stock
