GE
Microwave/Hood Combo

Model # JVM1790SK01 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1790SK01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

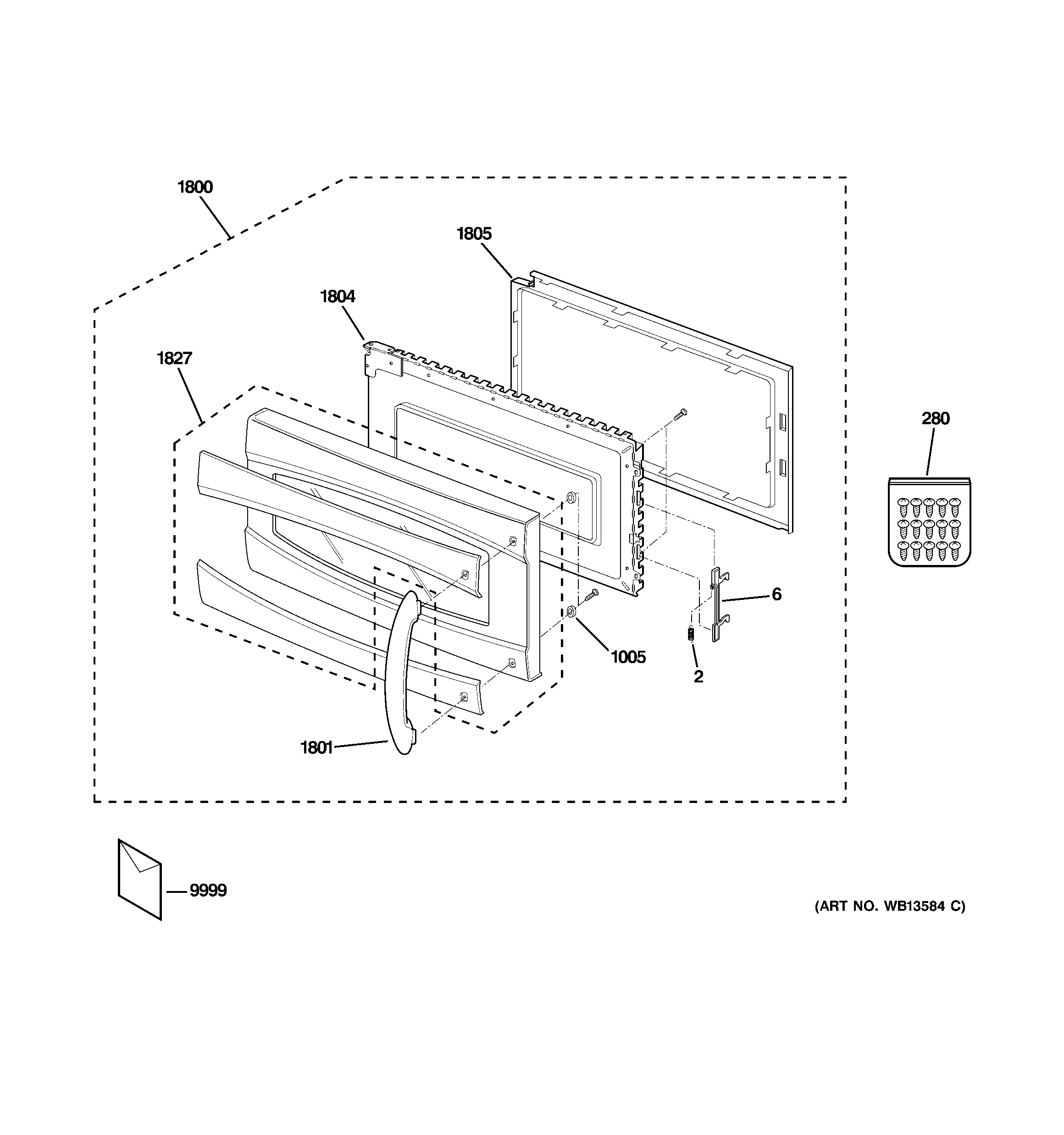

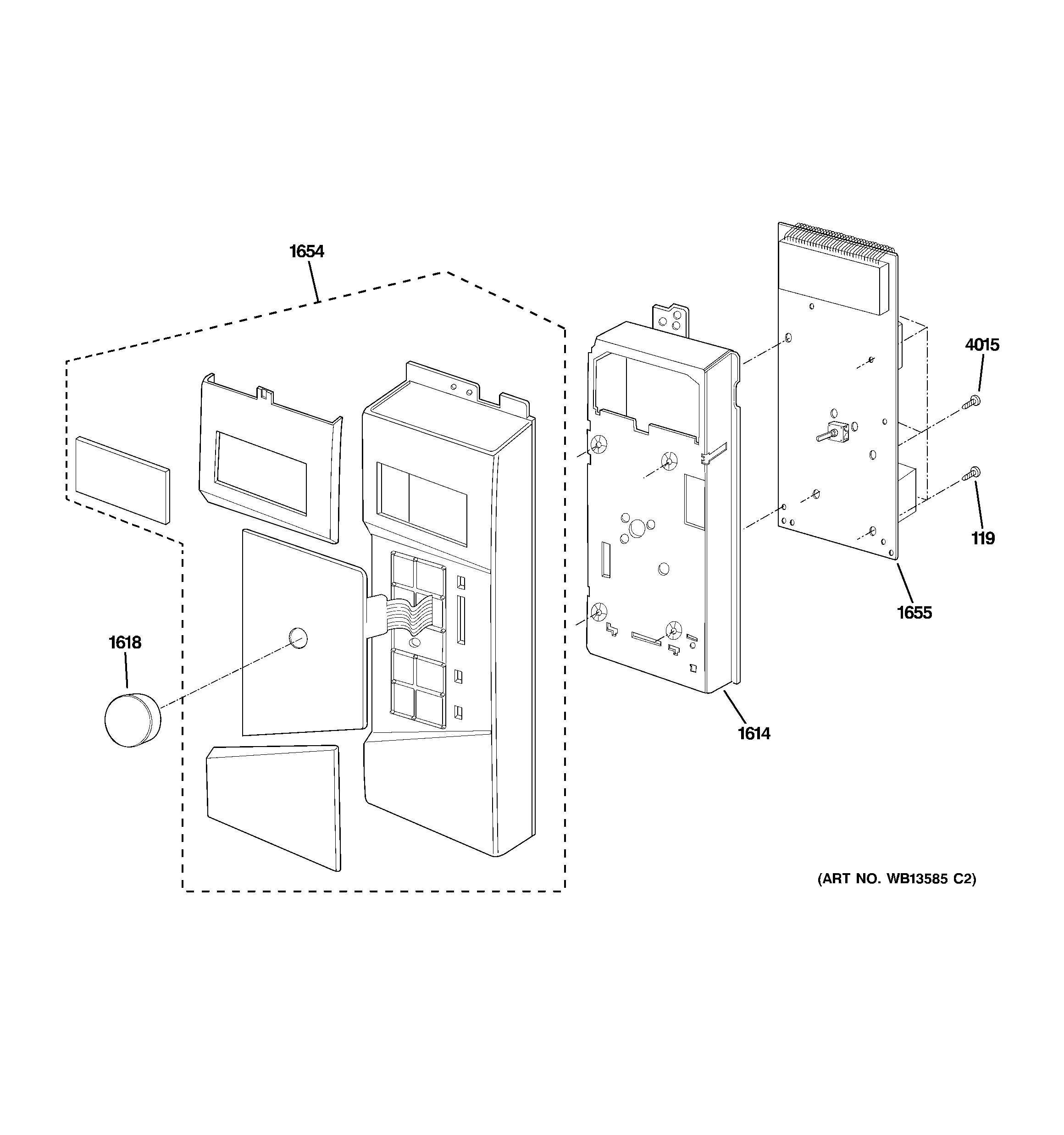

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Microwave Fuse WB27X10388
#47

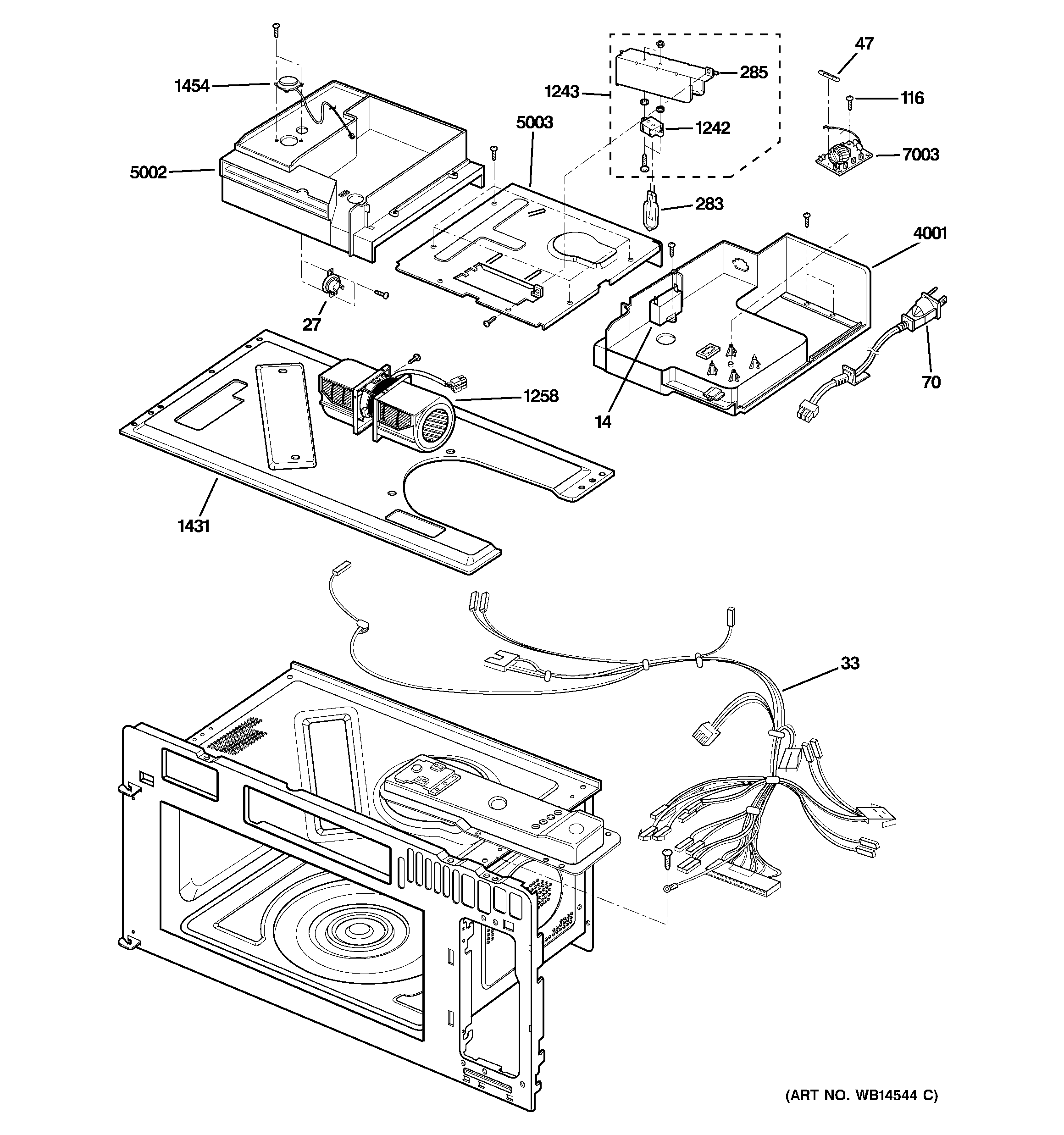

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Cable WB18X10286
#50

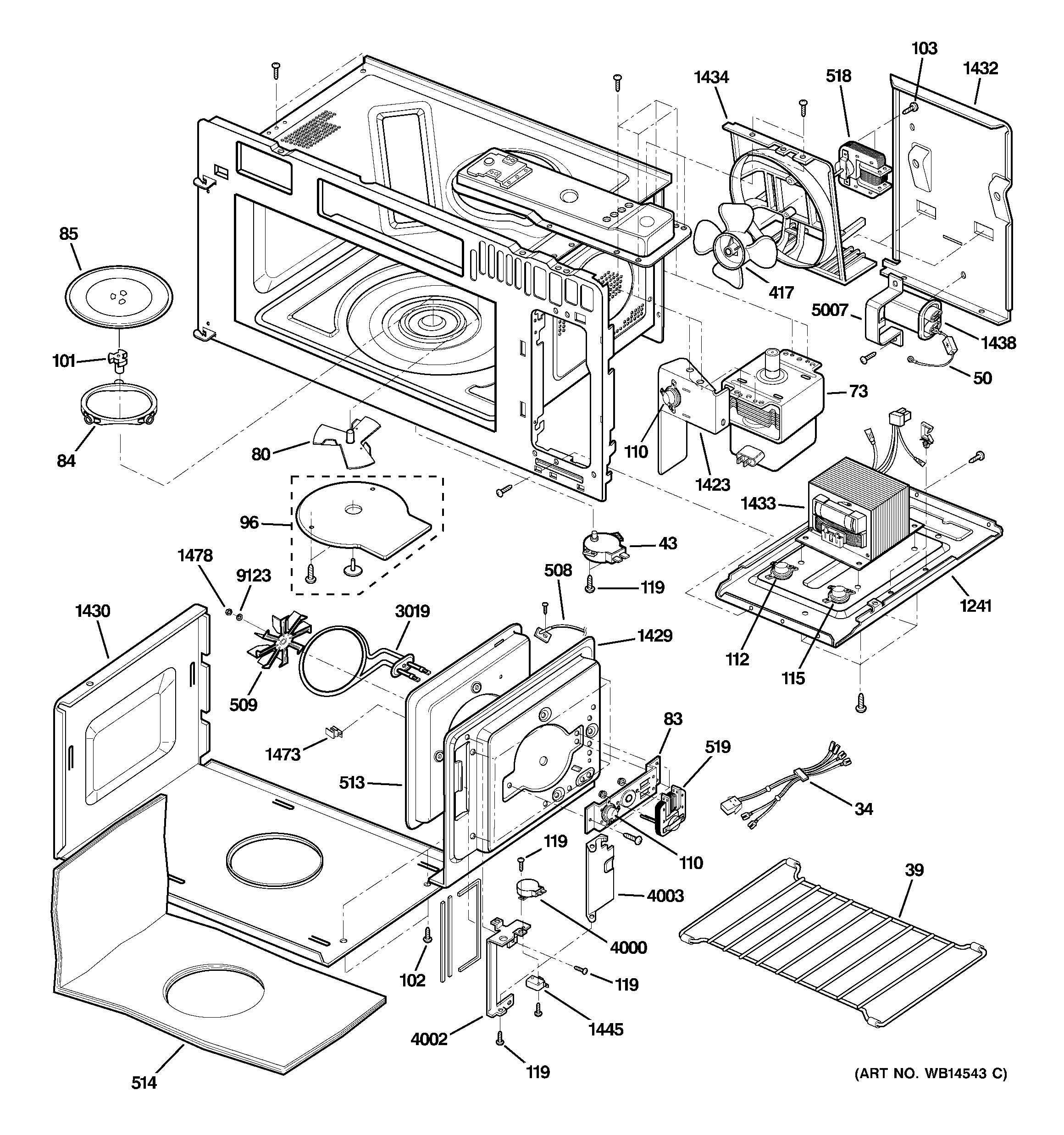

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Thermal Cut-off (replaces Wb27x10788) WB21X10148
#112

Interior parts (1) diagram

Microwave thermal cut-off (replaces wb27x10788)

Part #WB21X10148

BEST SELLER
$21.10 |
22% OFF Phone Price : $27.10
In Stock
Thermostat WB20X10020
#110

Interior parts (1) diagram

Thermostat

Part #WB20X10020

Replaced by #WB21X10148

?
Manufacturer substitution
This part replaces WB20X10020. Substitute parts can look different from the original.
BEST SELLER
$21.10 |
22% OFF Phone Price : $27.10
In Stock
Magnetron WB27X10865
#73

Interior parts (1) diagram

Magnetron

Part #WB27X10865

The manufacturer no longer makes this part, and there's no substitute part

Halogen Lamp WB08X10051
#282

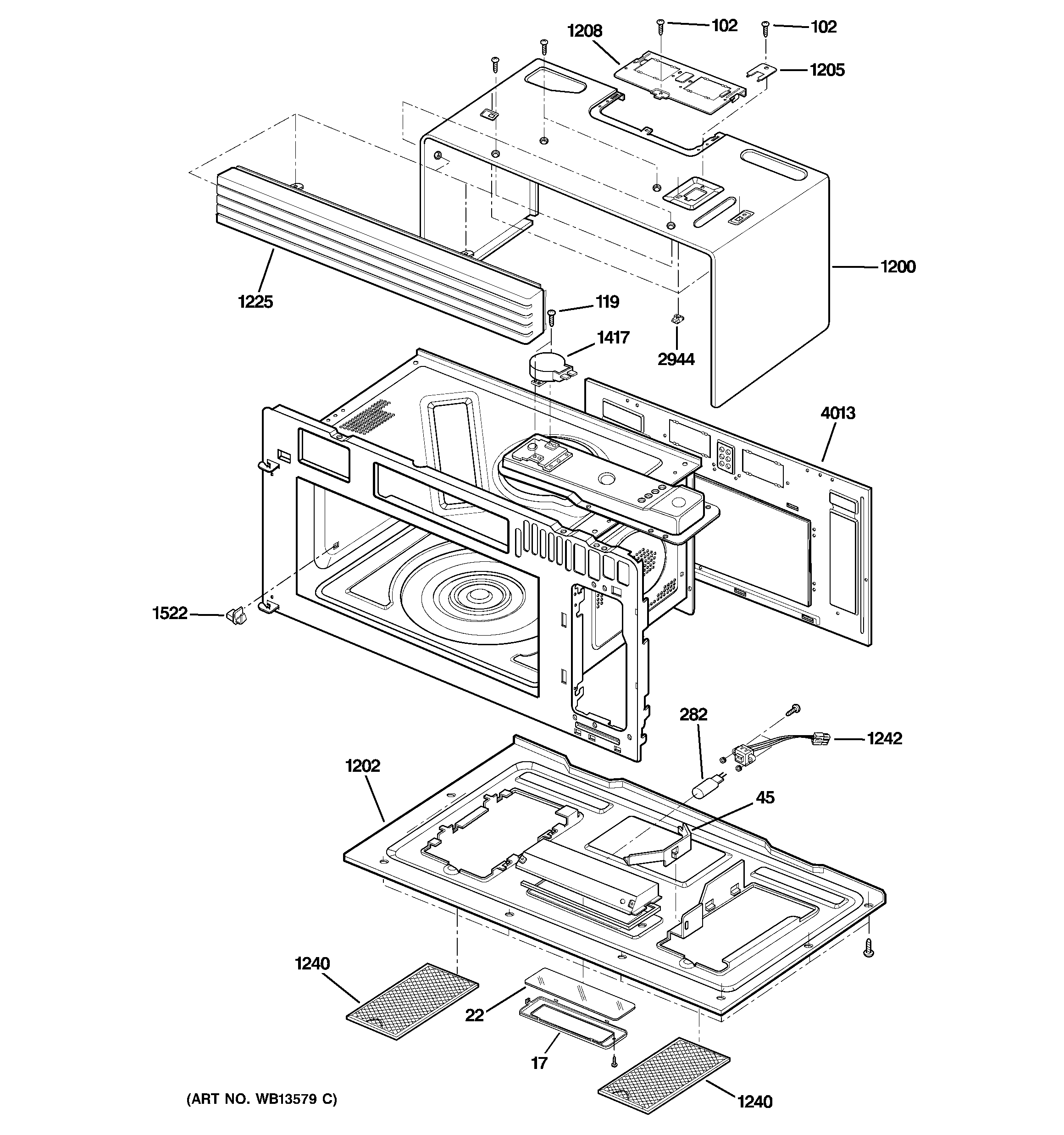

Oven cavity parts diagram

Halogen lamp

Part #WB08X10051

Replaced by #WB08X10057

?
Manufacturer substitution
This part replaces WB08X10051. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

$39.54 |
13% OFF Phone Price : $45.54
In Stock
Circulating Motor WB26X10186
#43

Interior parts (1) diagram

Circulating motor

Part #WB26X10186

Replaced by #WB26X10226

?
Manufacturer substitution
This part replaces WB26X10186. Substitute parts can look different from the original.
$28.69 |
17% OFF Phone Price : $34.69
In Stock
Latch Board WB06X10256
#28

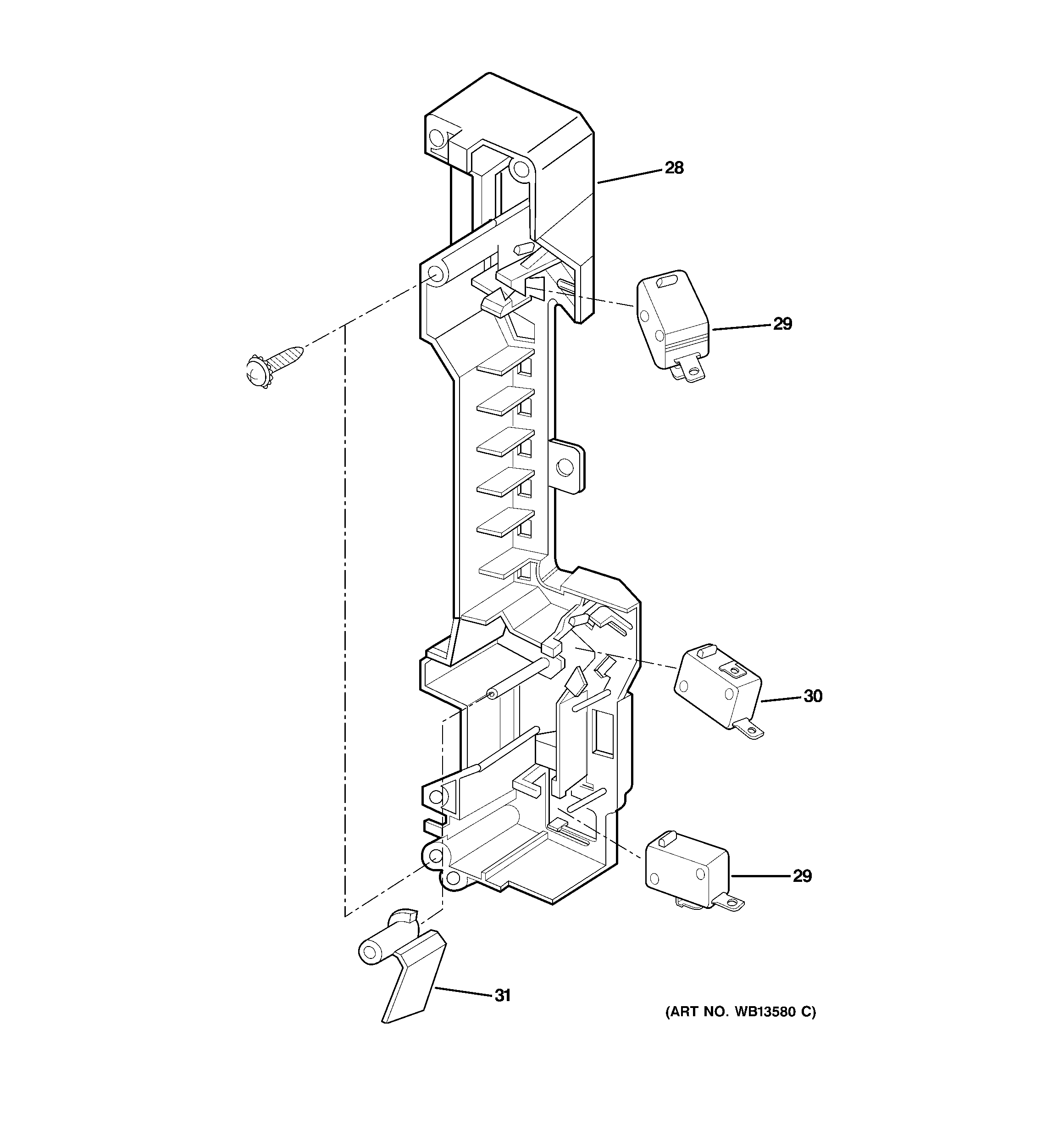

Latch board parts diagram

Latch board

Part #WB06X10256

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB06X10256. Substitute parts can look different from the original.
This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Microwave Mounting Plate WB56X10204
#9001

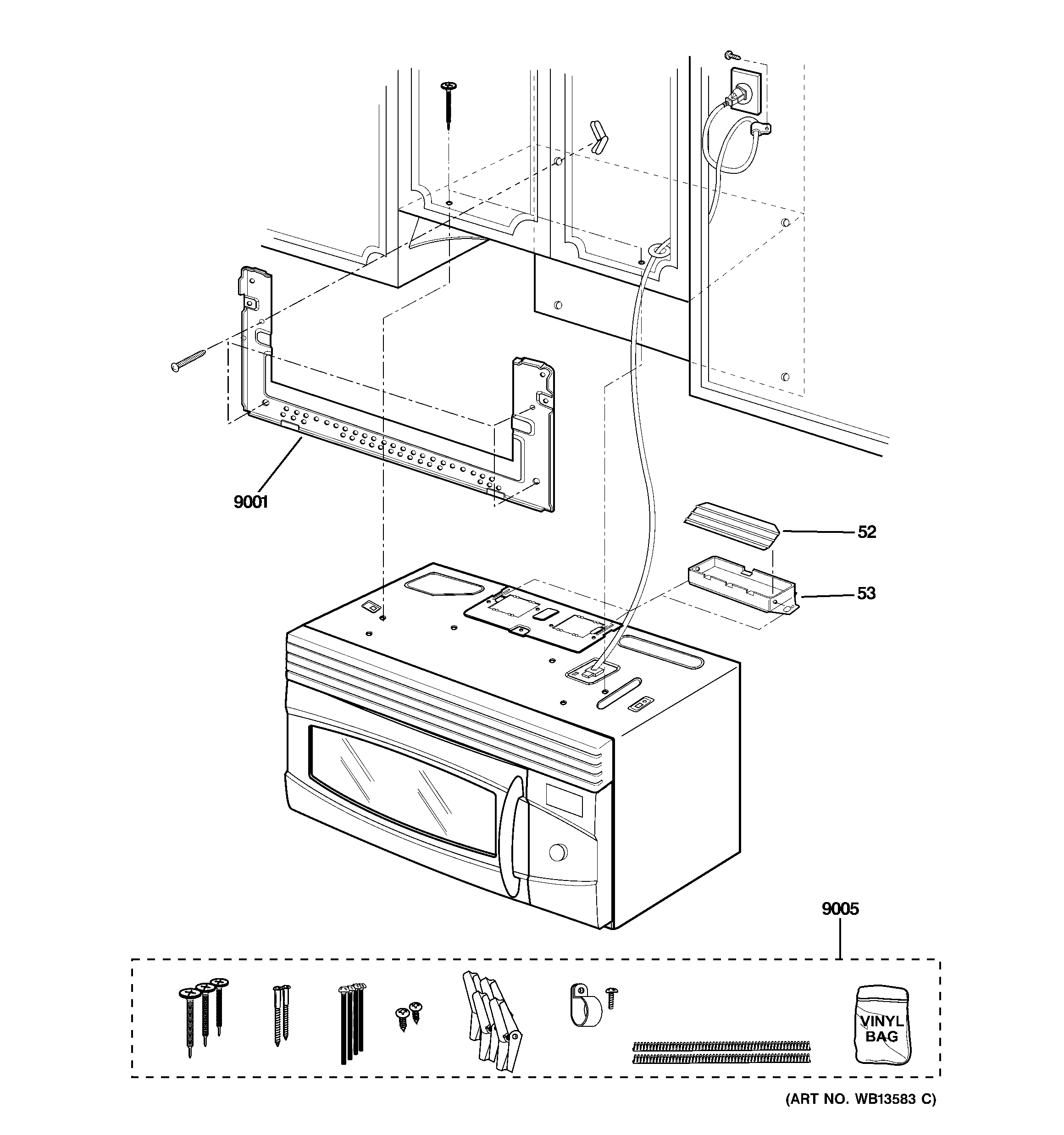

Installation parts diagram

Microwave mounting plate

Part #WB56X10204

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10204. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
