Model # FFHP223WS20 Official Frigidaire split-system air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFHP223WS20 split-system air conditioner, as well as links to manuals and error code tables, if available.

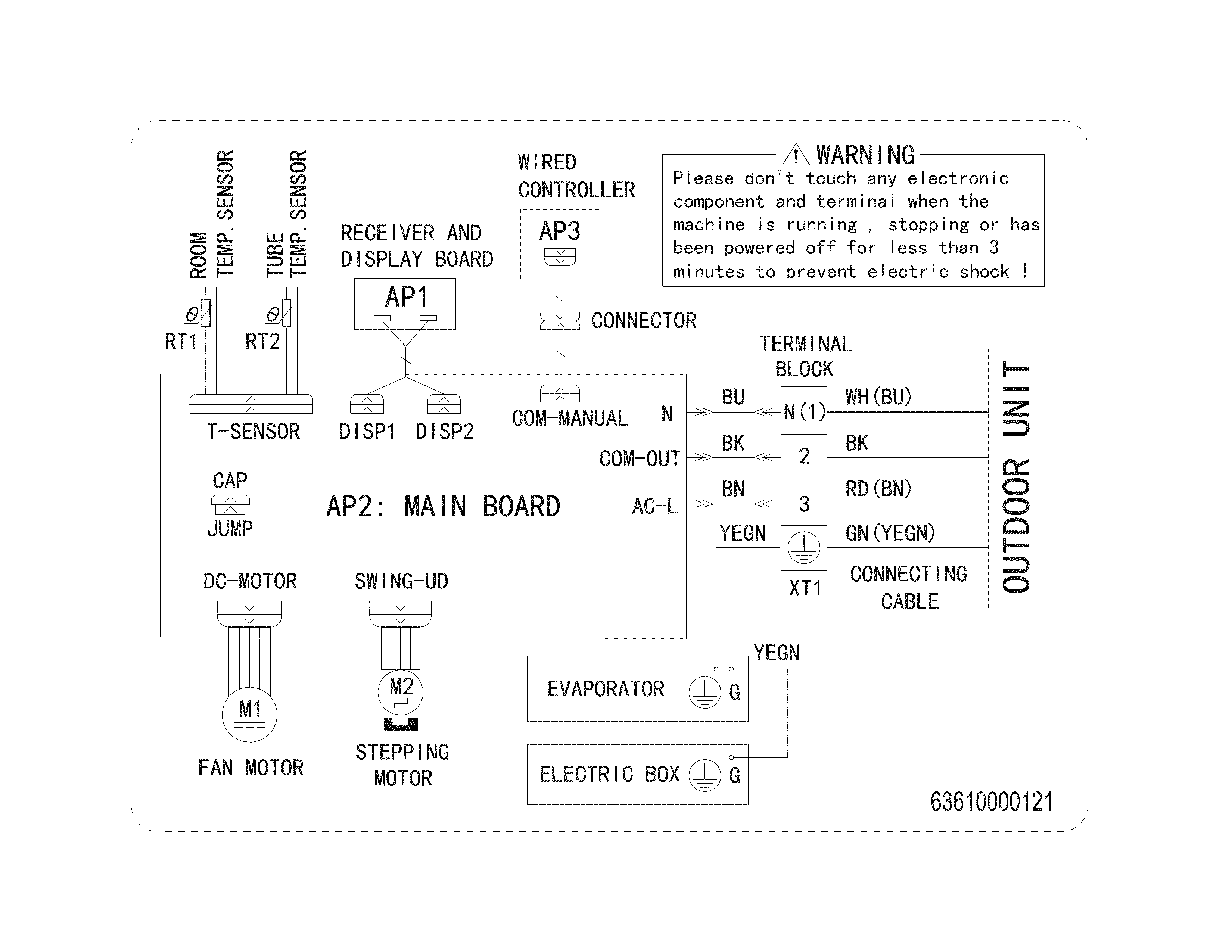

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFFHP223WS20 Split-System Air Conditioner

  • Lever 5304505718
    #23

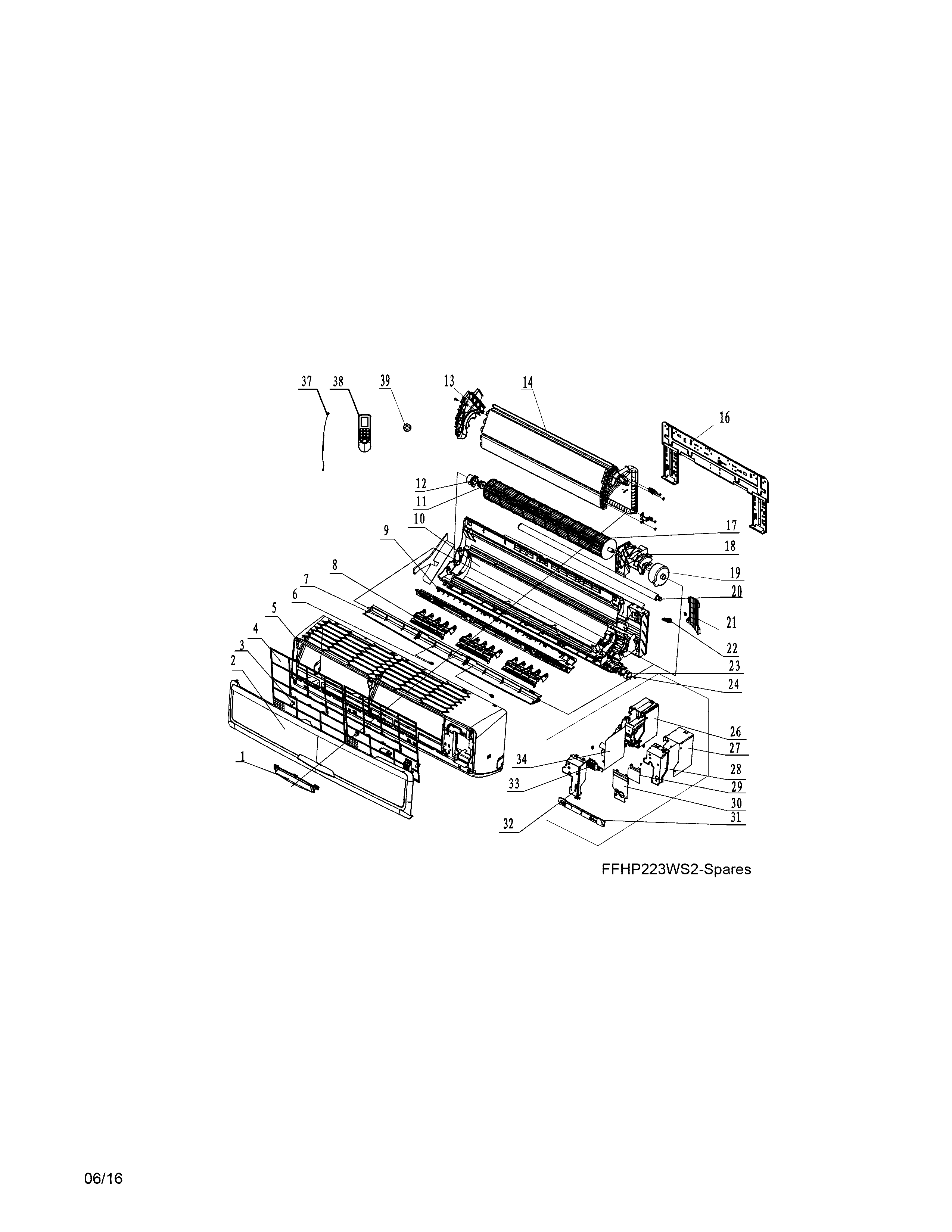

    Recommended spare parts diagram

    Lever

    Part #5304505718

    In Stock
  • Room Air Conditioner Fan Motor 5304502362
    #19

    Recommended spare parts diagram

    Room air conditioner fan motor

    Part #5304502362

    In Stock
  • Room Air Conditioner Electronic Control Board 5304505719
    #34

    Recommended spare parts diagram

    Room air conditioner electronic control board

    Part #5304505719

    In Stock
  • Evaporator 5304505799
    #13

    Recommended spare parts diagram

    Evaporator

    Part #5304505799

    In Stock
  • Room Air Conditioner Remote Control 5304505723
    #38

    Recommended spare parts diagram

    Room air conditioner remote control

    Part #5304505723

    $133.20
    8% OFF Phone Price : $145.20
    In Stock
  • Hose 5304505803
    #20

    Recommended spare parts diagram

    Hose

    Part #5304505803

    In Stock
  • Pc Board 5304505743
    #31

    Recommended spare parts diagram

    Pc board

    Part #5304505743

    In Stock
  • Motor 5304505759
    #24

    Recommended spare parts diagram

    Motor

    Part #5304505759

    In Stock
  • Frigidaire Window 5304505817
    #1

    Recommended spare parts diagram

    Frigidaire window

    Part #5304505817

    $95.02
    11% OFF Phone Price : $107.02
    In Stock
  • Holder 5304505819
    #39

    Recommended spare parts diagram

    Holder

    Part #5304505819

    In Stock
