Model # S5635 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S5635 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Sweep 90 38681006
#16D

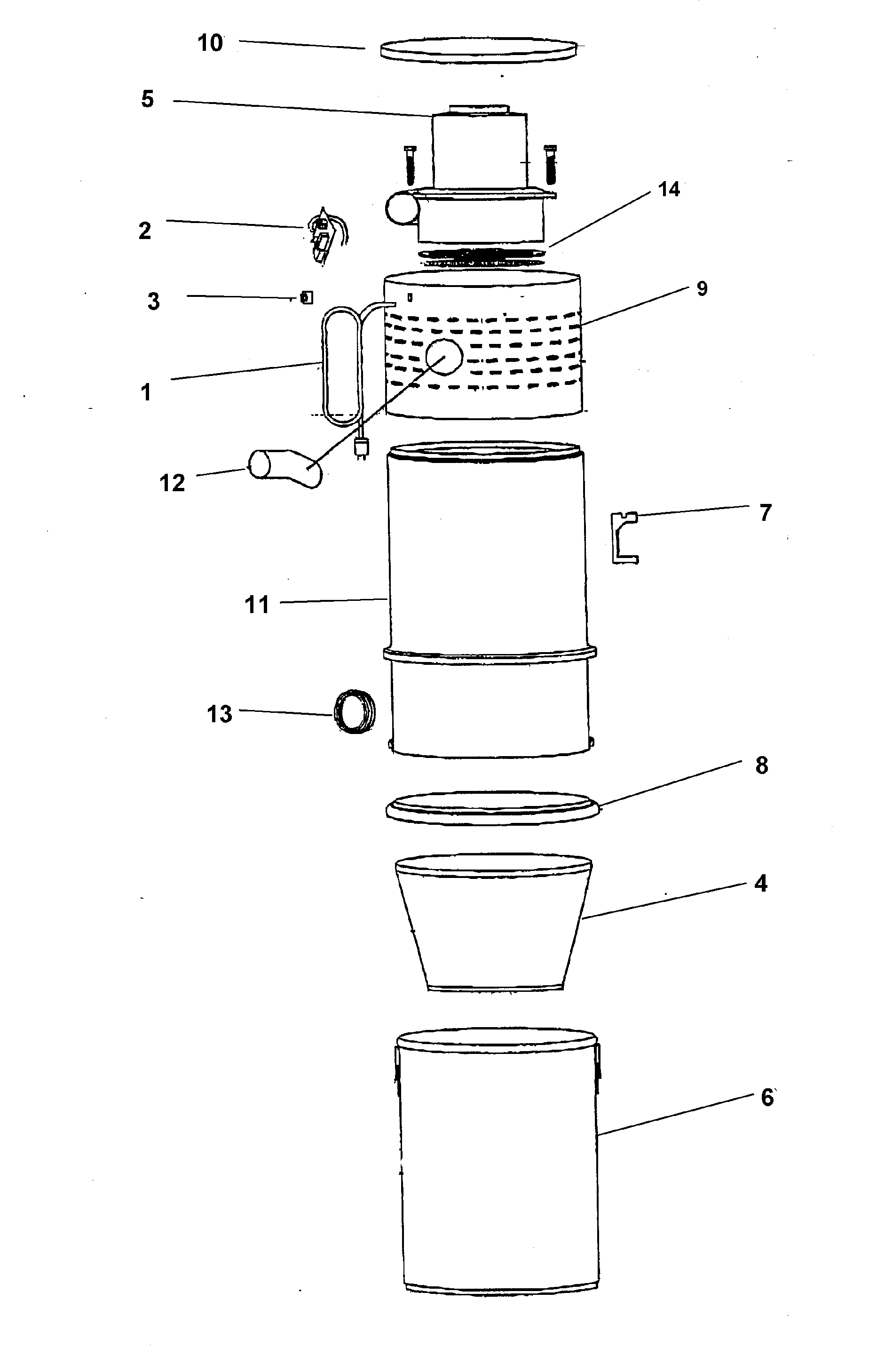

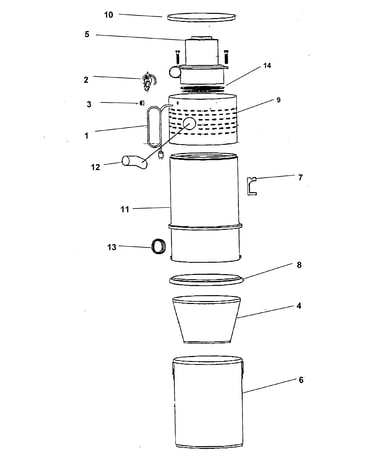

Main body diagram

Sweep 90

Part #38681006

The manufacturer no longer makes this part, and there's no substitute part

Gasket 14 59132024
#8A

Main body diagram

Gasket 14

Part #59132024

The manufacturer no longer makes this part, and there's no substitute part

Control Module 59132006
#2

Main body diagram

Control module

Part #59132006

The manufacturer no longer makes this part, and there's no substitute part

45 Spigot 10096002
#16B

Main body diagram

45 spigot

Part #10096002

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 59132011
#1

Main body diagram

Ac cord

Part #59132011

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59132038
#12

Main body diagram

Adapter

Part #59132038

The manufacturer no longer makes this part, and there's no substitute part

Dust Container 93001208
#6A

Main body diagram

Dust container

Part #93001208

The manufacturer no longer makes this part, and there's no substitute part

Canister C 93001211
#10

Main body diagram

Canister c

Part #93001211

The manufacturer no longer makes this part, and there's no substitute part

Cloth Filter 93001205
#4

Main body diagram

Cloth filter

Part #93001205

The manufacturer no longer makes this part, and there's no substitute part

Bracket 59132022
#7

Main body diagram

Bracket

Part #59132022

The manufacturer no longer makes this part, and there's no substitute part
