Model # WNCJ2050D0WC Official GE washer

Here are the diagrams and repair parts for Official GE WNCJ2050D0WC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

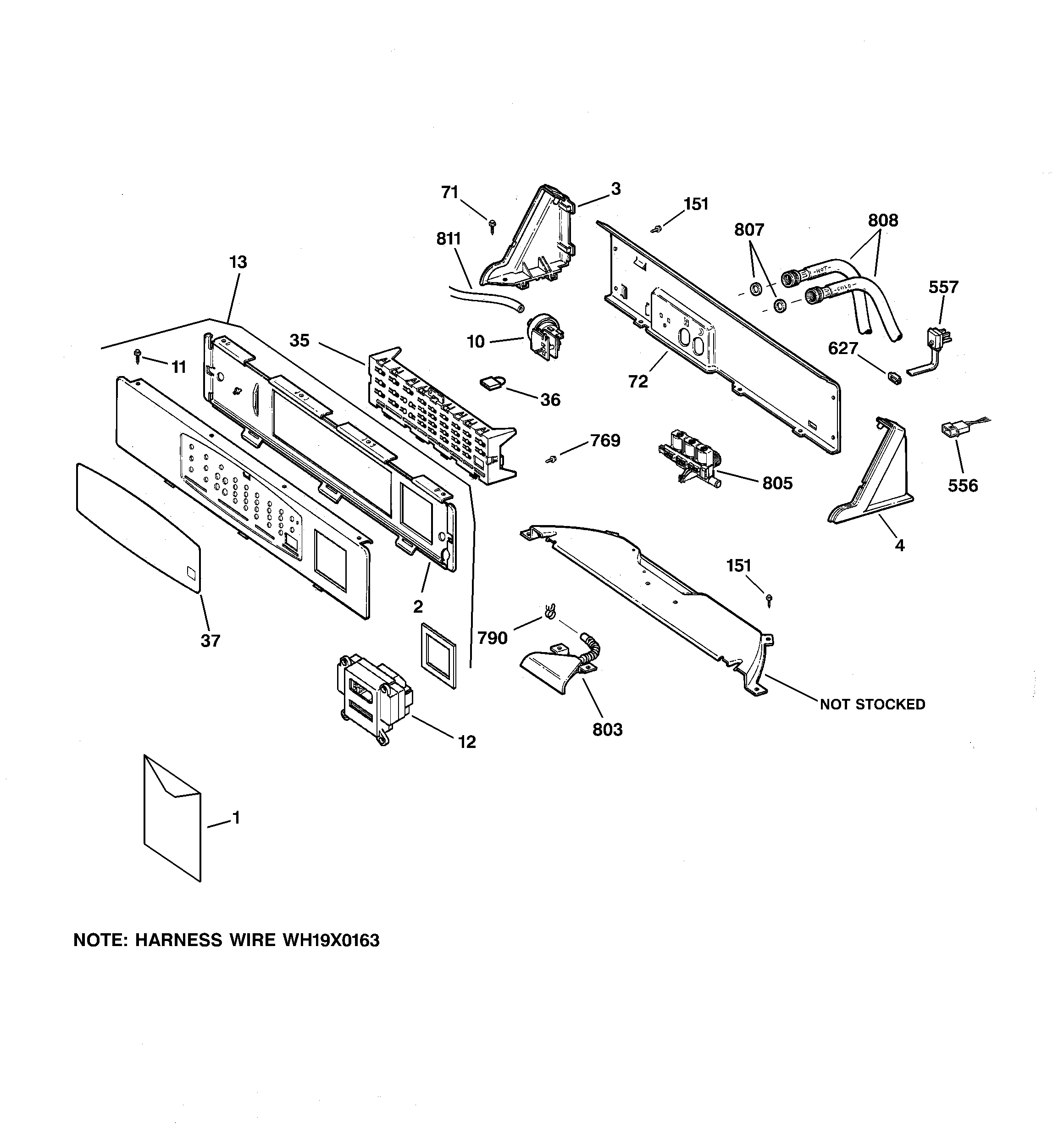

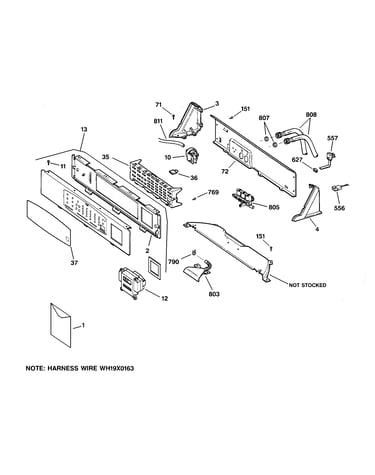

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Hub Nut WH02X1193
#325

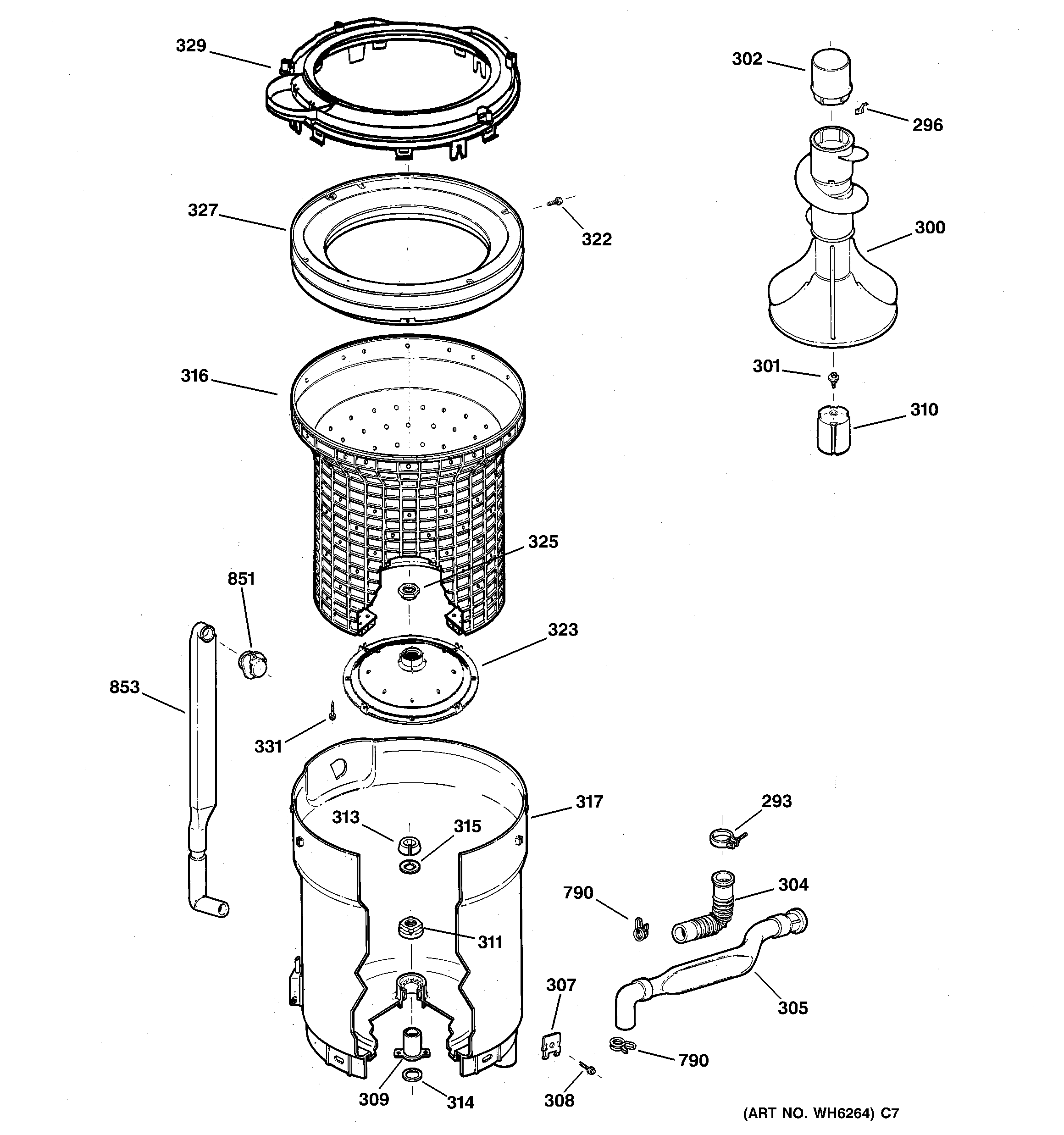

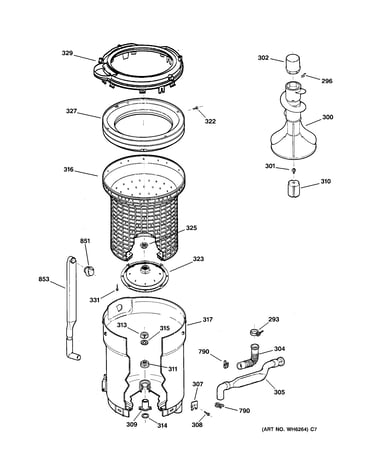

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Tub Bearing WH02X1198
#309

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1198

Replaced by #WH2X1198

?
Manufacturer substitution
This part replaces WH02X1198. Substitute parts can look different from the original.
BEST SELLER
$29.01 |
17% OFF Phone Price : $35.01
In Stock
Tub Bearing WH02X1197
#314

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1197

Replaced by #WH2X1197

?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Pump Label WH23X10003
#655

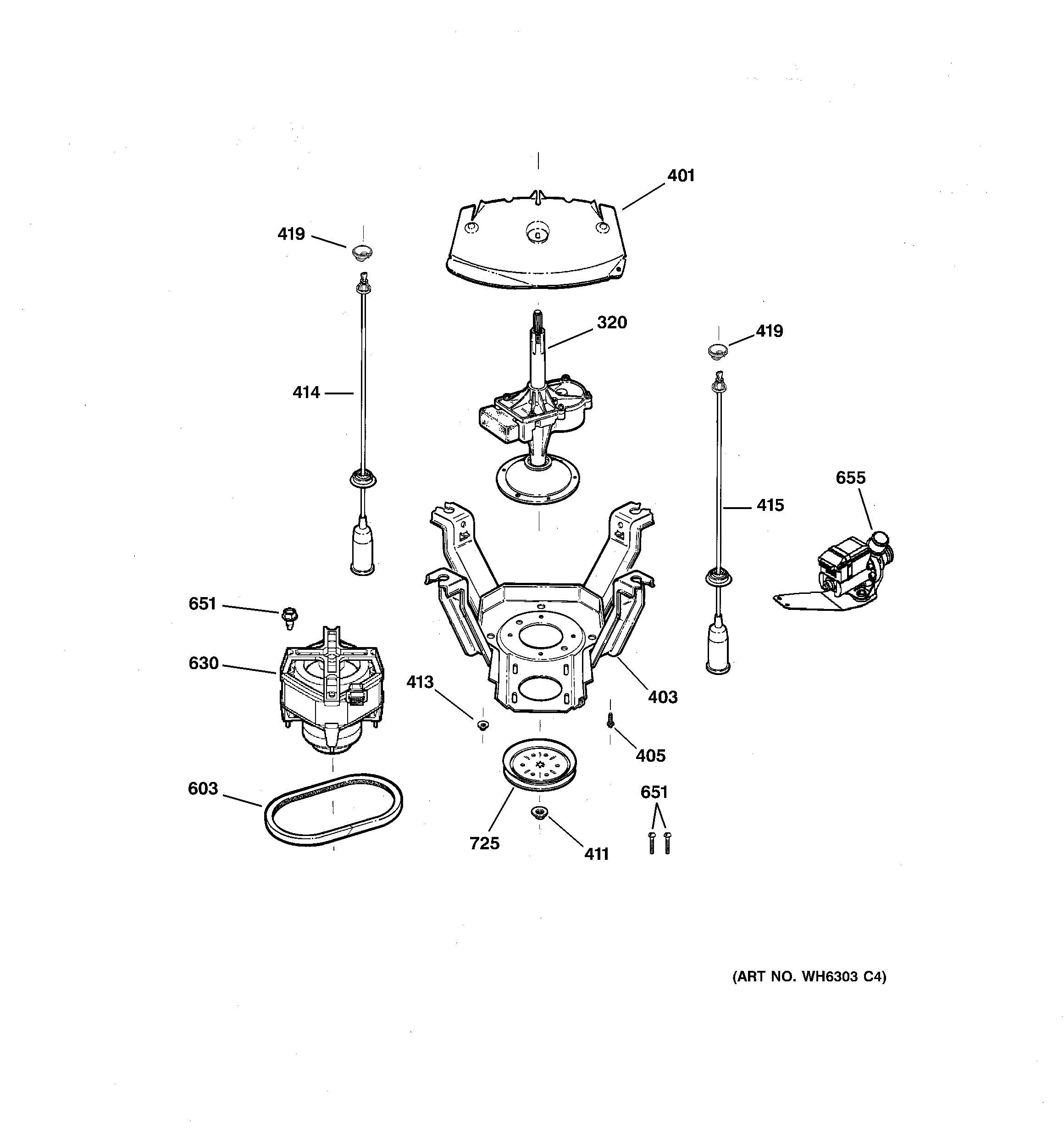

Suspension, pump & drive components diagram

Pump label

Part #WH23X10003

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10003. Substitute parts can look different from the original.
BEST SELLER
$62.84 |
9% OFF Phone Price : $68.84
In Stock
Strap Dampng WH01X10046
#370

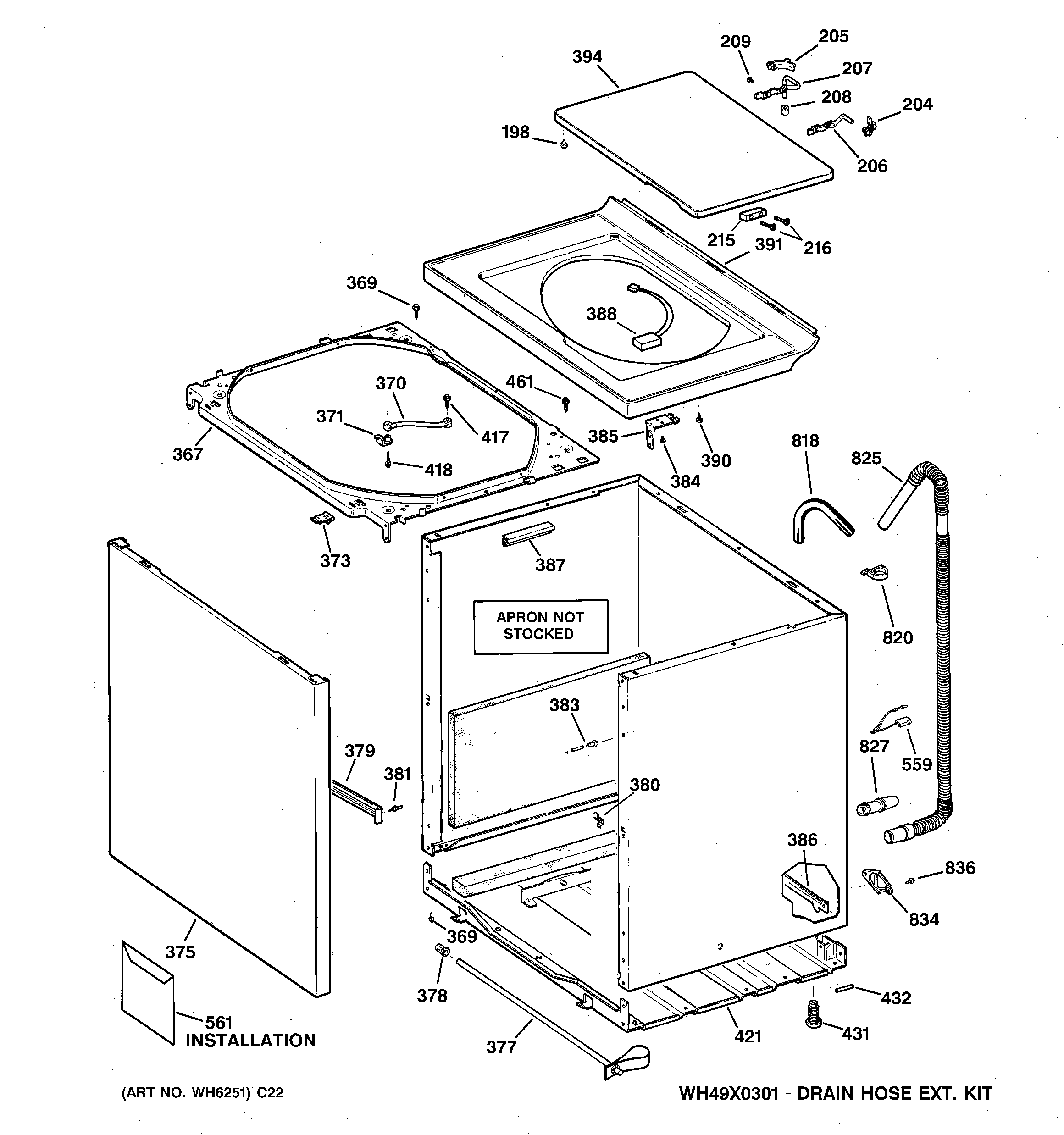

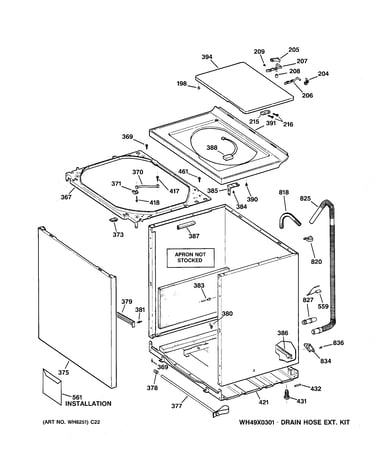

Cabinet, cover & front panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Rod/sprg Blk WH16X0544
#414

Suspension, pump & drive components diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$34.24 |
15% OFF Phone Price : $40.24
In Stock
Rod/spr Yllw WH16X0543
#415

Suspension, pump & drive components diagram

Rod/spr yllw

Part #WH16X0543

Replaced by #WH16X543

?
Manufacturer substitution
This part replaces WH16X0543. Substitute parts can look different from the original.
BEST SELLER
$33.98 |
15% OFF Phone Price : $39.98
In Stock
Belt WH01X2026
#603

Suspension, pump & drive components diagram

Belt

Part #WH01X2026

Replaced by #WH1X2026

?
Manufacturer substitution
This part replaces WH01X2026. Substitute parts can look different from the original.
BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Washer Suspension Rod Socket (replaces Wh01x10197) WH01X10001
#419

Suspension, pump & drive components diagram

Washer suspension rod socket (replaces wh01x10197)

Part #WH01X10001

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Tub Mounting Hub (replaces Wh45x10013) WH45X10027
#323

Tub, basket & agitator diagram

Washer tub mounting hub (replaces wh45x10013)

Part #WH45X10027

$81.96 |
7% OFF Phone Price : $87.96
In Stock
