GE
Electric Range

Model # JBS18GV2 Official GE electric range

Here are the diagrams and repair parts for Official GE JBS18GV2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Range Drip Pan WB32X5075
#165A

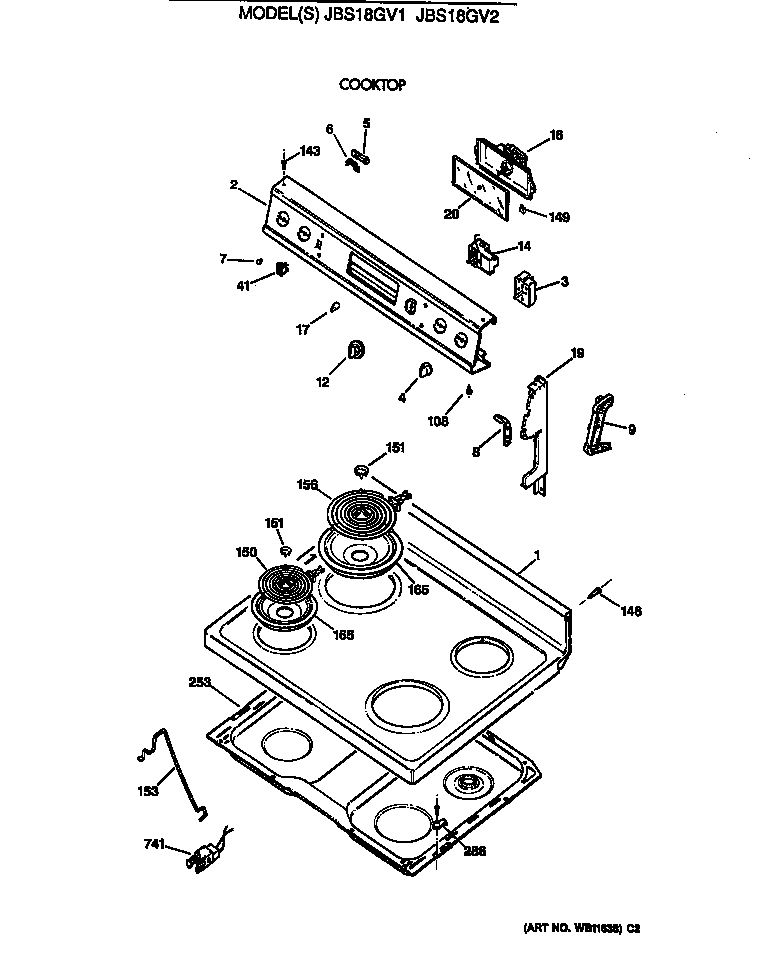

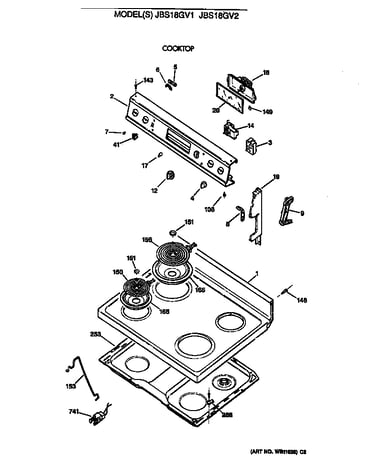

Cooktop diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Receptacle WB8X5095
#279

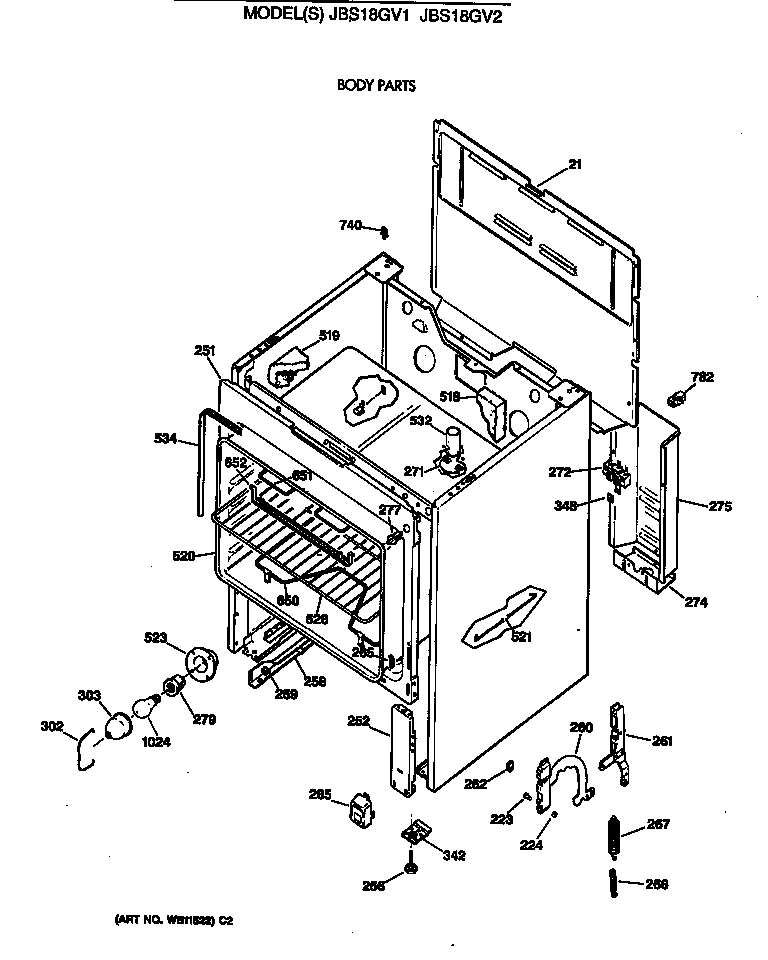

Body parts diagram

Receptacle

Part #WB8X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB8X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Terminal Block WB17X5095
#272

Body parts diagram

Range terminal block

Part #WB17X5095

$69.94 |
8% OFF Phone Price : $75.94
In Stock
Range Oven Control Thermostat (replaces Wb20x5067, Wb20x5070) WB20X5071
#14

Cooktop diagram

Range oven control thermostat (replaces wb20x5067, wb20x5070)

Part #WB20X5071

$129.55 |
8% OFF Phone Price : $141.55
In Stock
Range Screw WB1X536
Range screw

Part #WB1X536

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1X593
#461

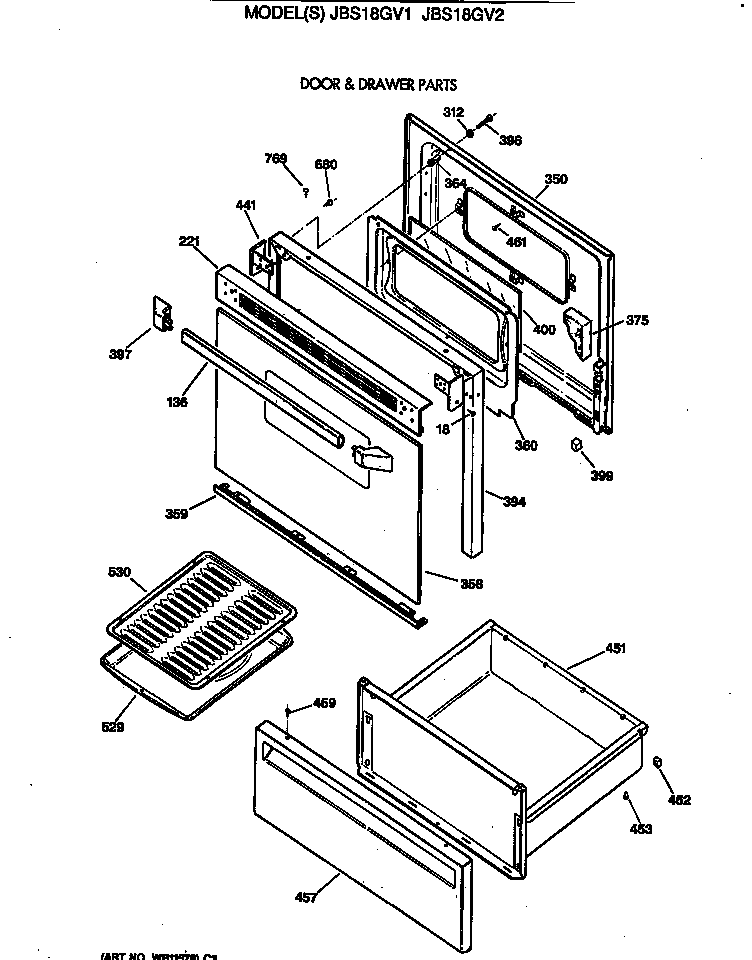

Door & drawer parts diagram

Screw

Part #WB1X593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Handle End Cap, Right WB7X7189
#397

Door & drawer parts diagram

Range oven door handle end cap, right

Part #WB7X7189

This item is not returnable
$14.20 |
12% OFF Phone Price : $16.20
In Stock
Range Oven Rack (replaces Wb48x5097) WB48X5099
#528

Body parts diagram

Range oven rack (replaces wb48x5097)

Part #WB48X5099

$28.48 |
17% OFF Phone Price : $34.48
In Stock
Range Indicator Light Lens WB25X65
#7

Cooktop diagram

Range indicator light lens

Part #WB25X65

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Grid Broiler Pan WB48X5107
#530

Door & drawer parts diagram

Grid broiler pan

Part #WB48X5107

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5107. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
