Kenmore Elite
Electric Range

Model # 79097723412 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79097723412 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

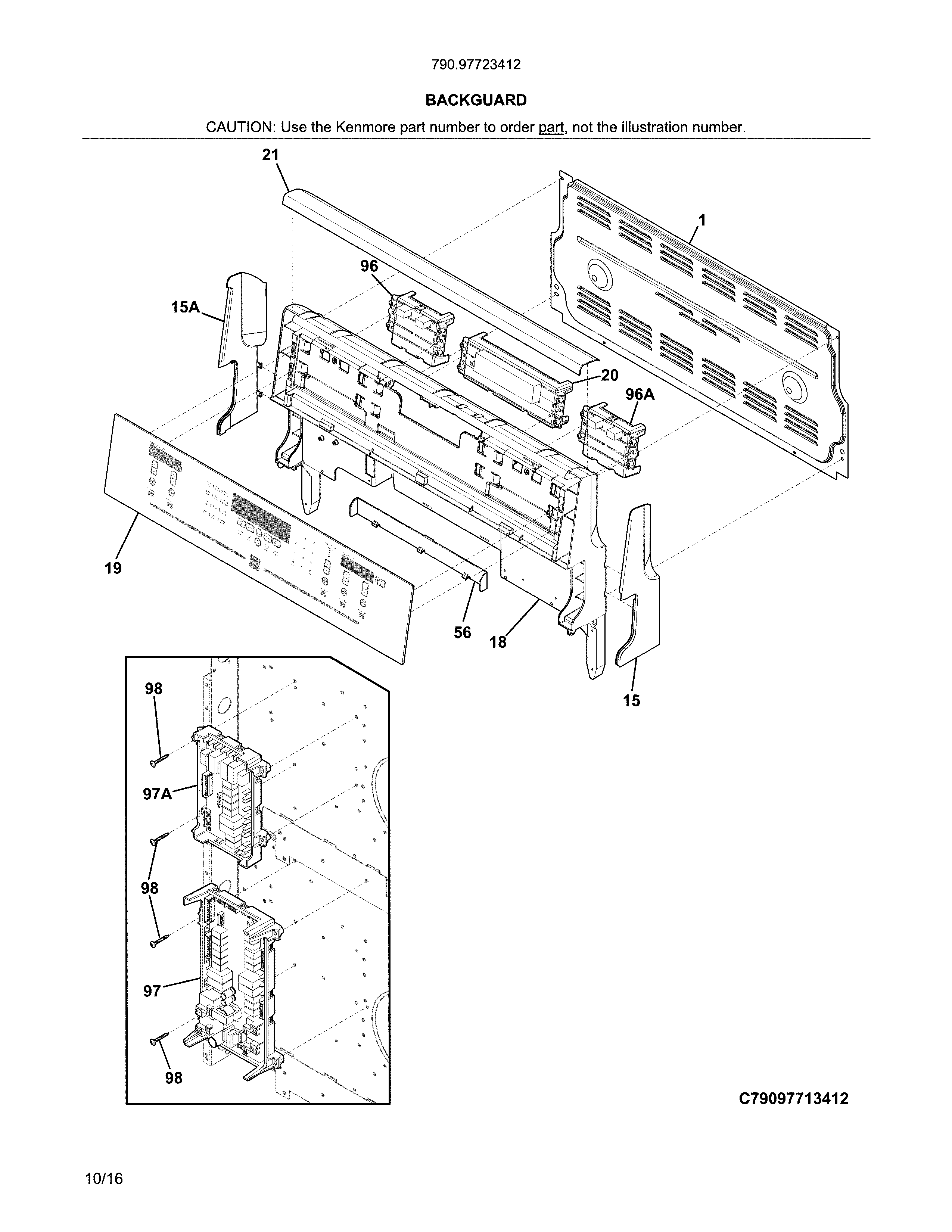

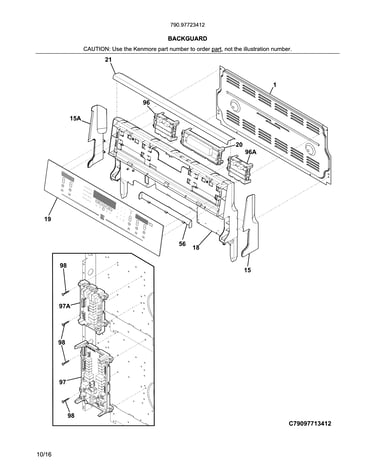

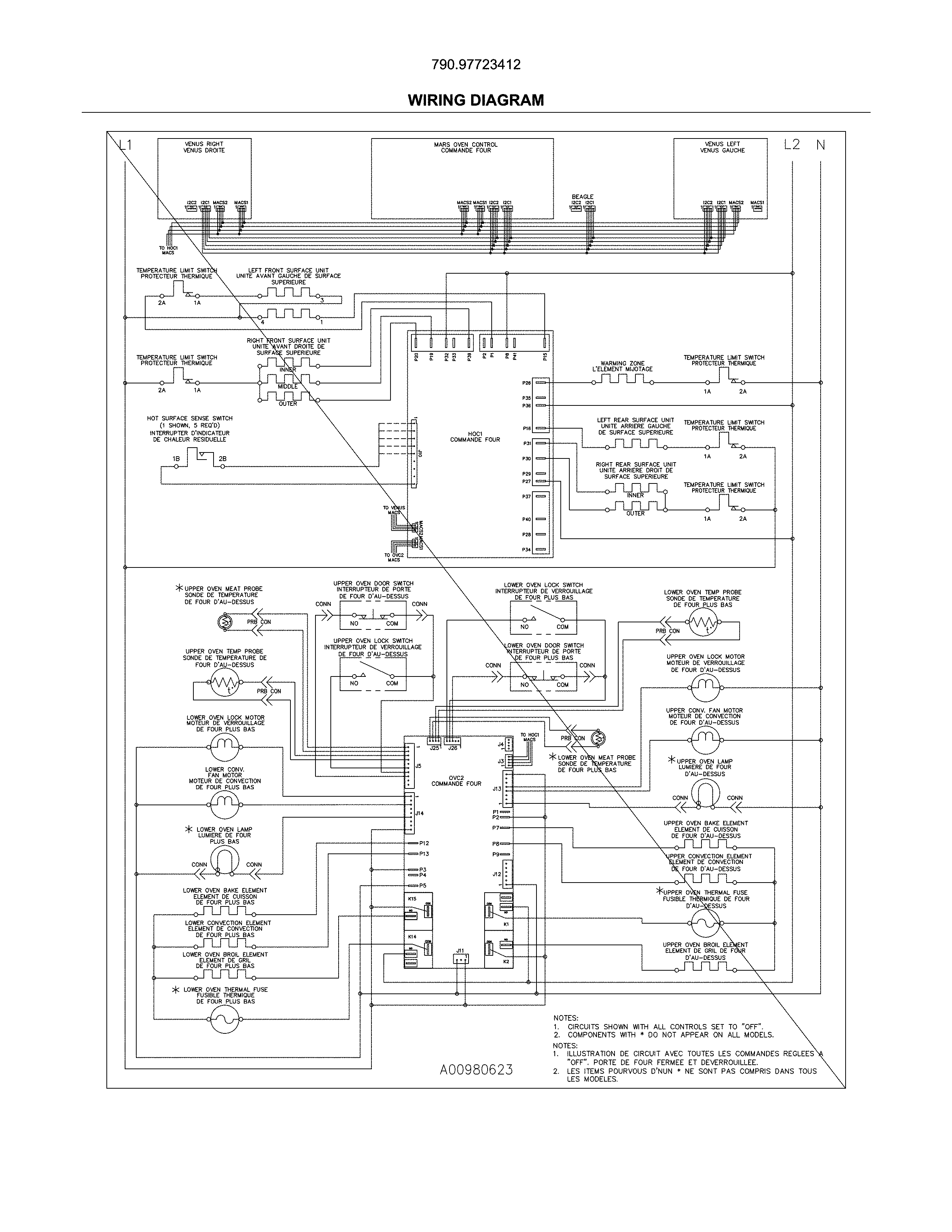

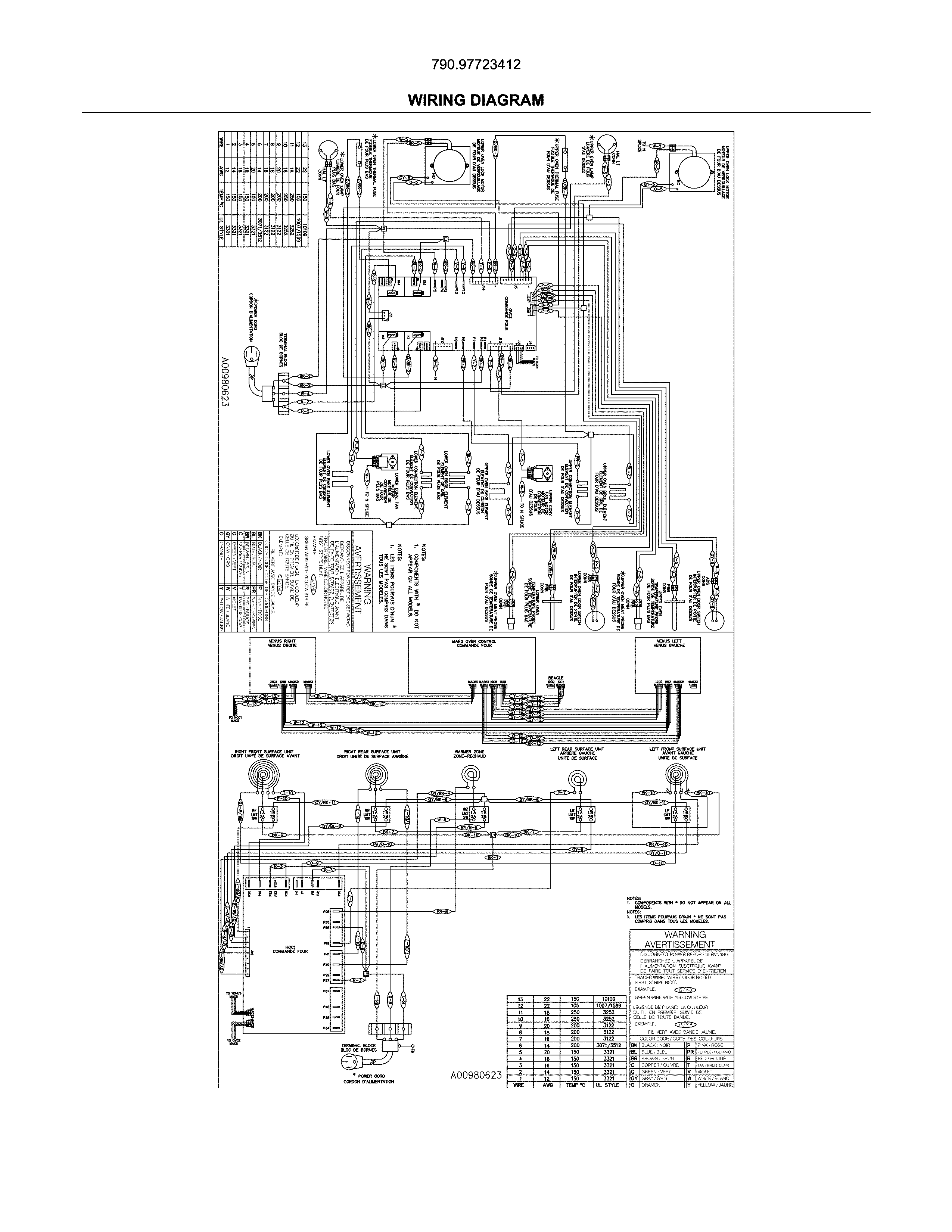

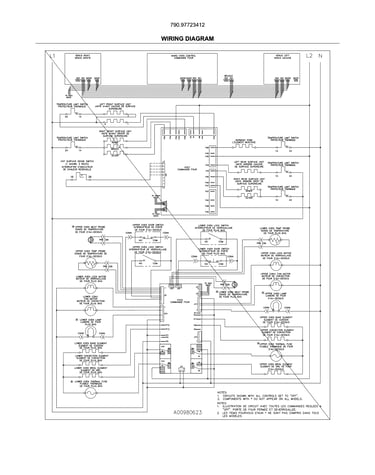

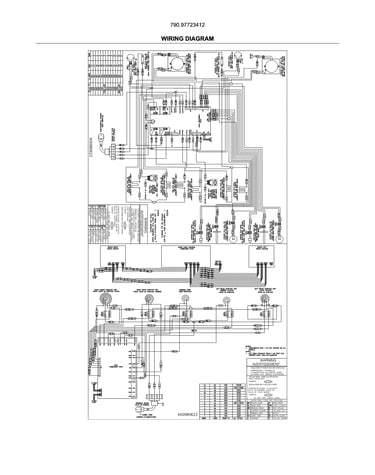

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Ikea Range Radiant Surface Element, 9-in (replaces 316530000) 316530001
#15C

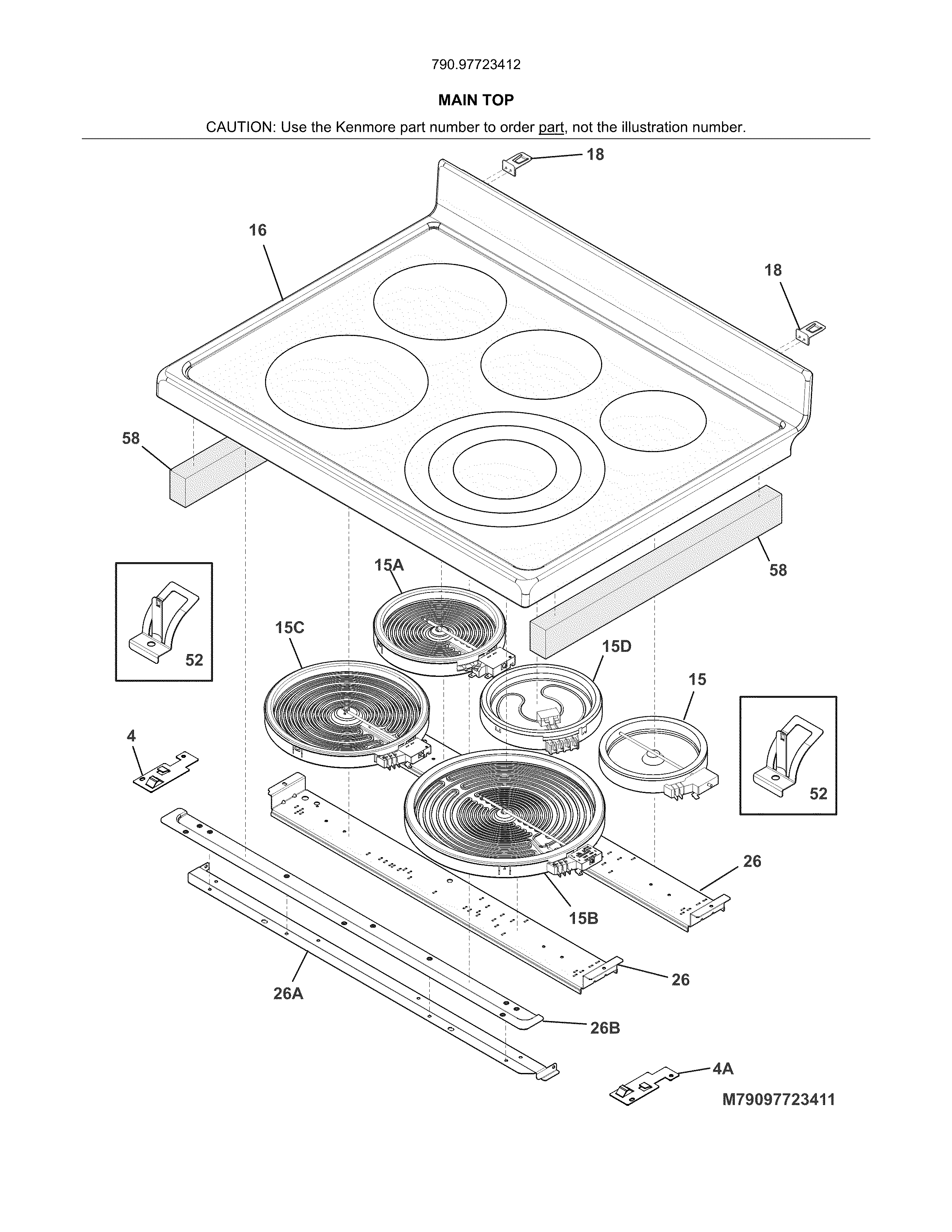

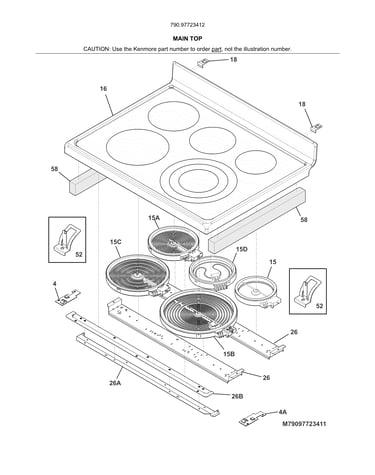

Main top diagram

Ikea range radiant surface element, 9-in (replaces 316530000)

Part #316530001

BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Terminal Block 5303935061
#62

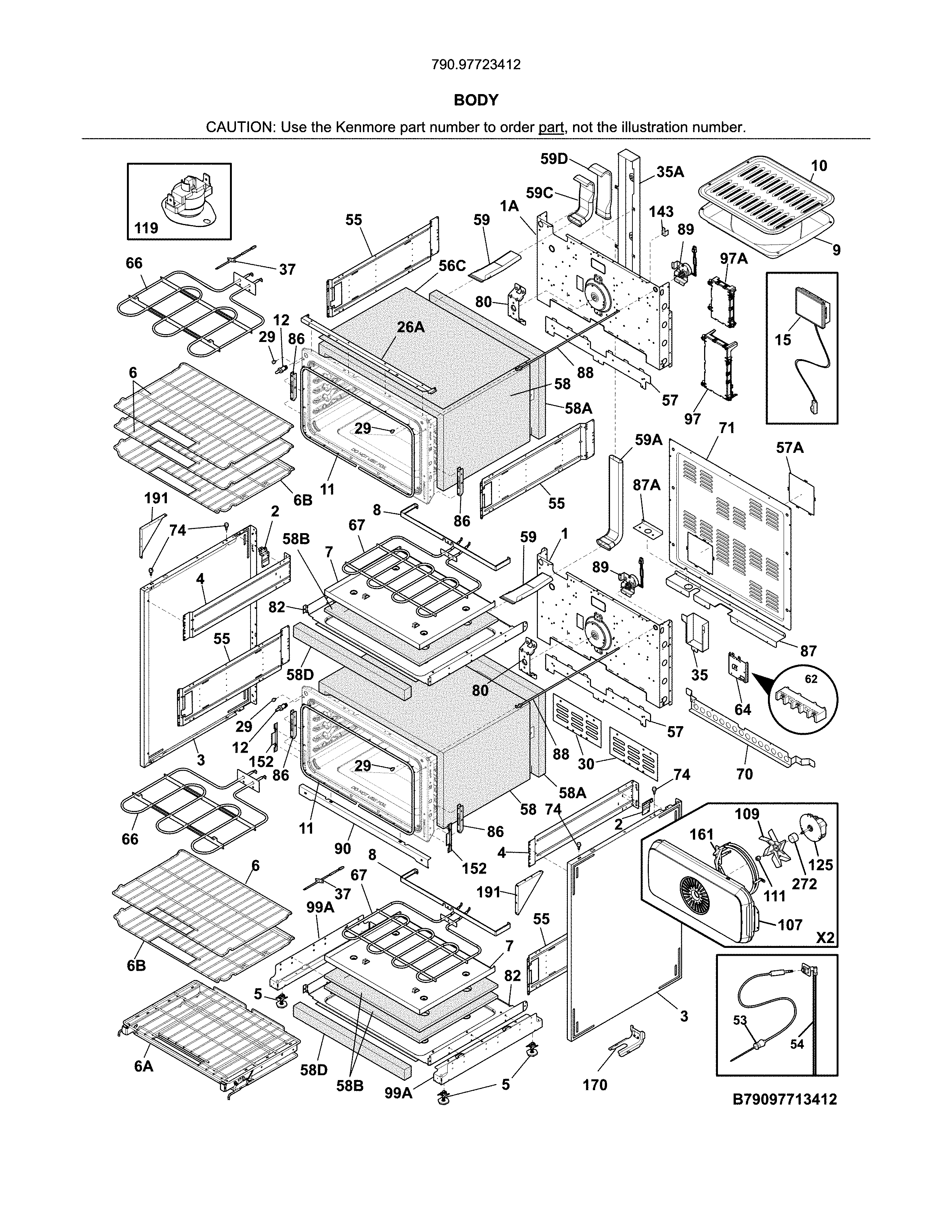

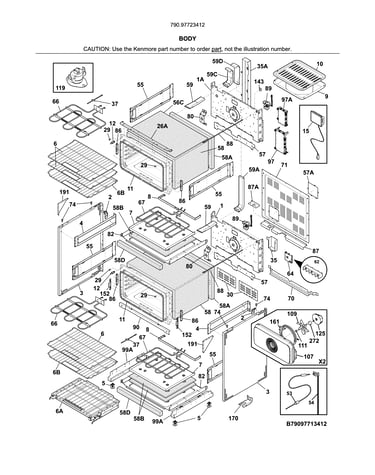

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Blade 139009100
#109

Body diagram

Blade

Part #139009100

Replaced by #318398302

?
Manufacturer substitution
This part replaces 139009100. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Range Triple Radiant Surface Element (replaces 318297809) 318297810
#15B

Main top diagram

Range triple radiant surface element (replaces 318297809)

Part #318297810

BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
Range Oven Door Switch 316445507
#12

Body diagram

Range oven door switch

Part #316445507

Replaced by #316445500

?
Manufacturer substitution
This part replaces 316445507. Substitute parts can look different from the original.
BEST SELLER
$47.51 |
11% OFF Phone Price : $53.51
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Body diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Range High-limit Thermostat (replaces 7318004902) 318004902
#119

Body diagram

Range high-limit thermostat (replaces 7318004902)

Part #318004902

$57.40 |
9% OFF Phone Price : $63.40
In Stock
Range Oven Meat Probe Sensor 318601302
#53

Body diagram

Range oven meat probe sensor

Part #318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 318601302. Substitute parts can look different from the original.
$92.28 |
6% OFF Phone Price : $98.28
In Stock
Range Oven Door Handle 5304504300
#39

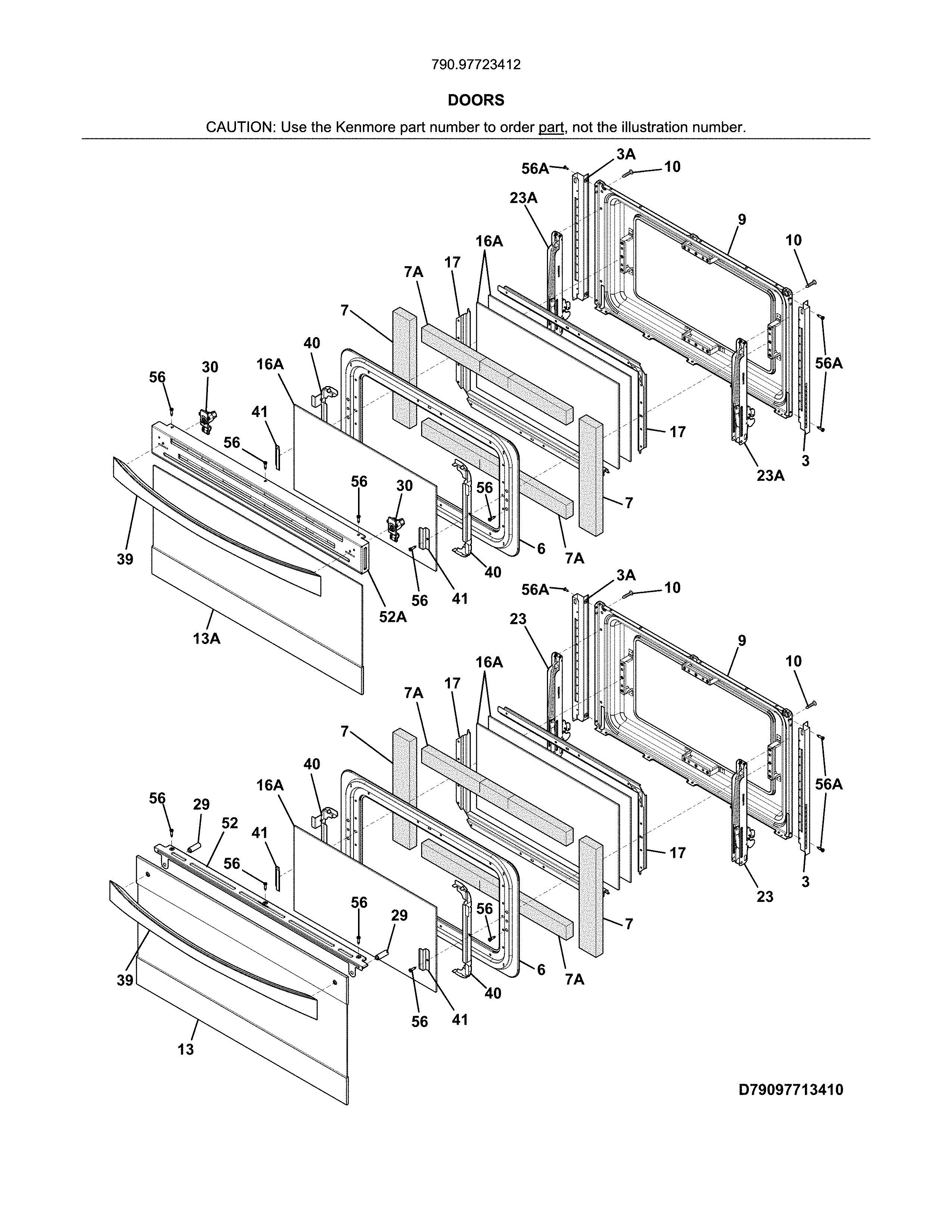

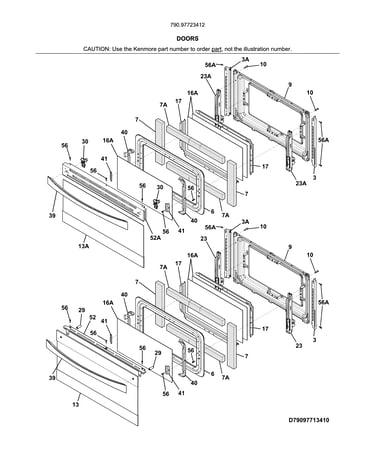

Doors diagram

Range oven door handle

Part #5304504300

$118.11 |
9% OFF Phone Price : $130.11
In Stock
