Whirlpool
Countertop Microwave

Model # MT9160XEB0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT9160XEB0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Switch 4313055
Switch

Part #4313055

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4313055. Substitute parts can look different from the original.
BEST SELLER
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4174784
Screw

Part #4174784

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4174784. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Wall Oven Touch-up Paint 261869

#NI

All parts diagram

Wall oven touch-up paint

Part #261869

Replaced by #WP261869

?
Manufacturer substitution
This part replaces 261869. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Switch 4313105
#1

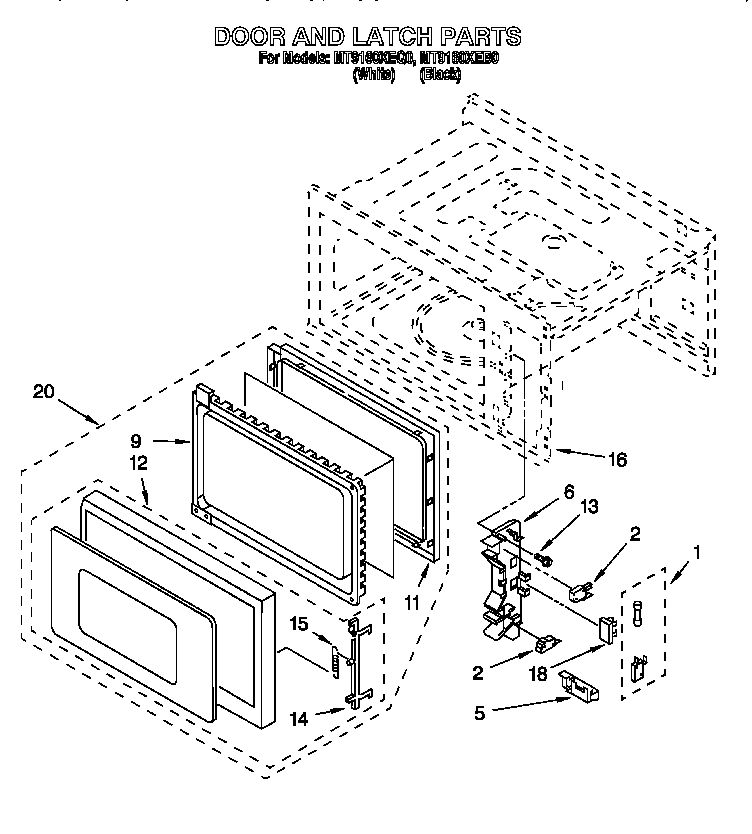

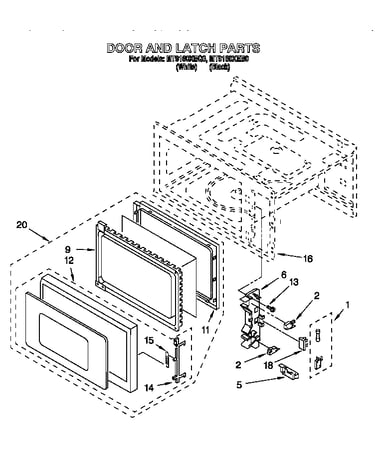

Door and latch diagram

Switch

Part #4313105

$30.49
In Stock
Appliance Touch-up Paint, 6-oz (citrine White) 261900

#NI

All parts diagram

Appliance touch-up paint, 6-oz (citrine white)

Part #261900

$23.19 |
21% OFF Phone Price : $29.19
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Spring 4313631
#4

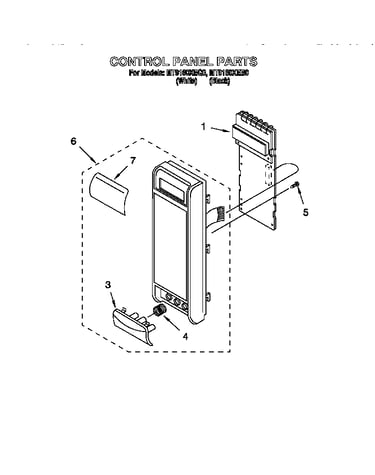

Control panel diagram

Spring

Part #4313631

Replaced by #8205529

?
Manufacturer substitution
This part replaces 4313631. Substitute parts can look different from the original.
$18.86
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Magnetron 4313675
#4

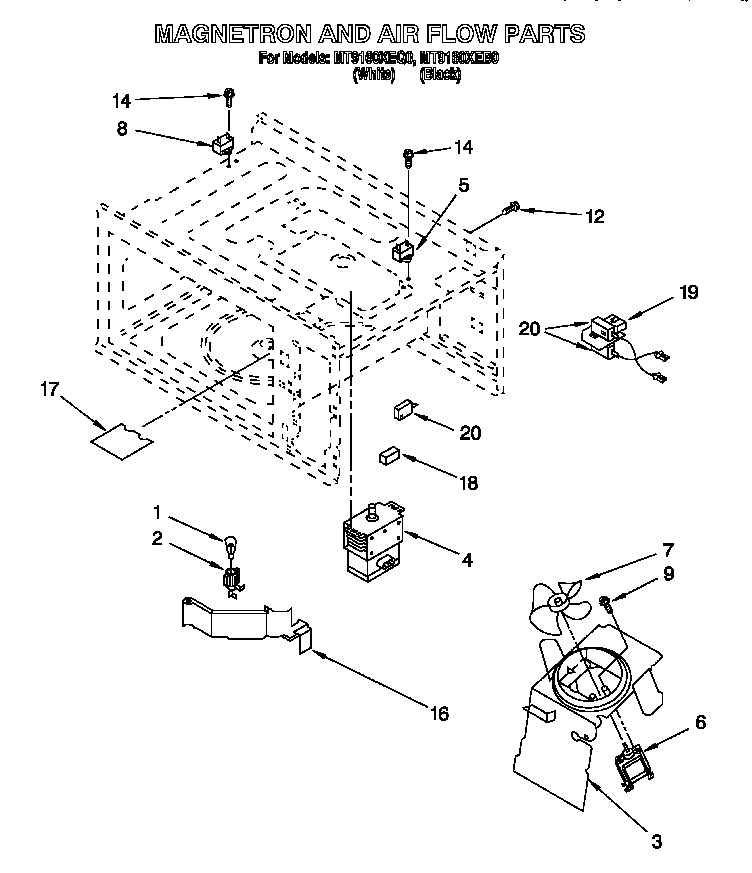

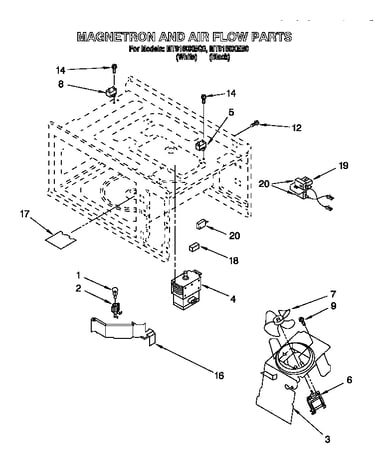

Magnetron and air flow diagram

Magnetron

Part #4313675

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4357406
#1

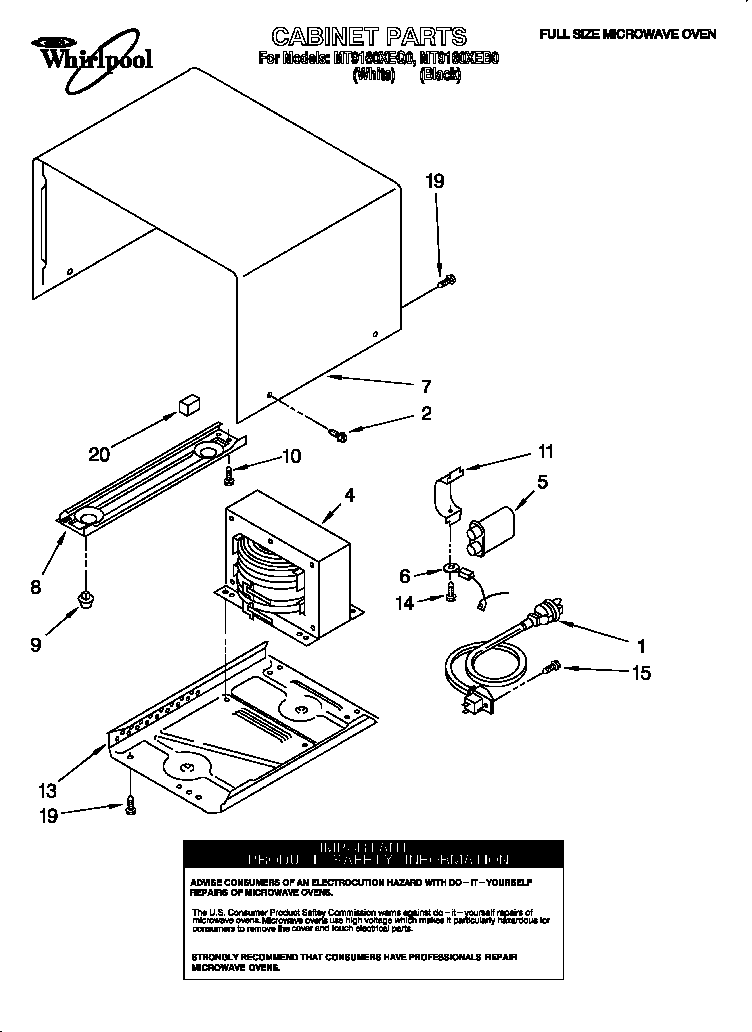

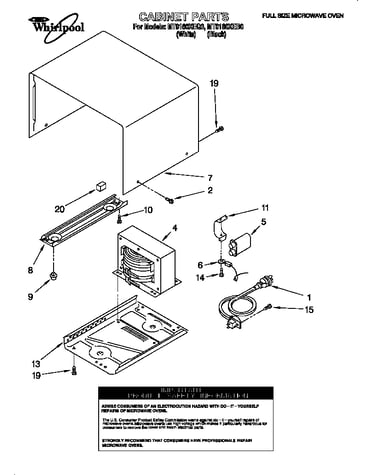

Cabinet diagram

Power cord

Part #4357406

The manufacturer no longer makes this part, and there's no substitute part
