Aiwa
DVD Player

Model # BZG-9 Official Aiwa dvd mechanism

Here are the diagrams and repair parts for Official Aiwa BZG-9 dvd mechanism, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Plate 81ZG1255110
#25

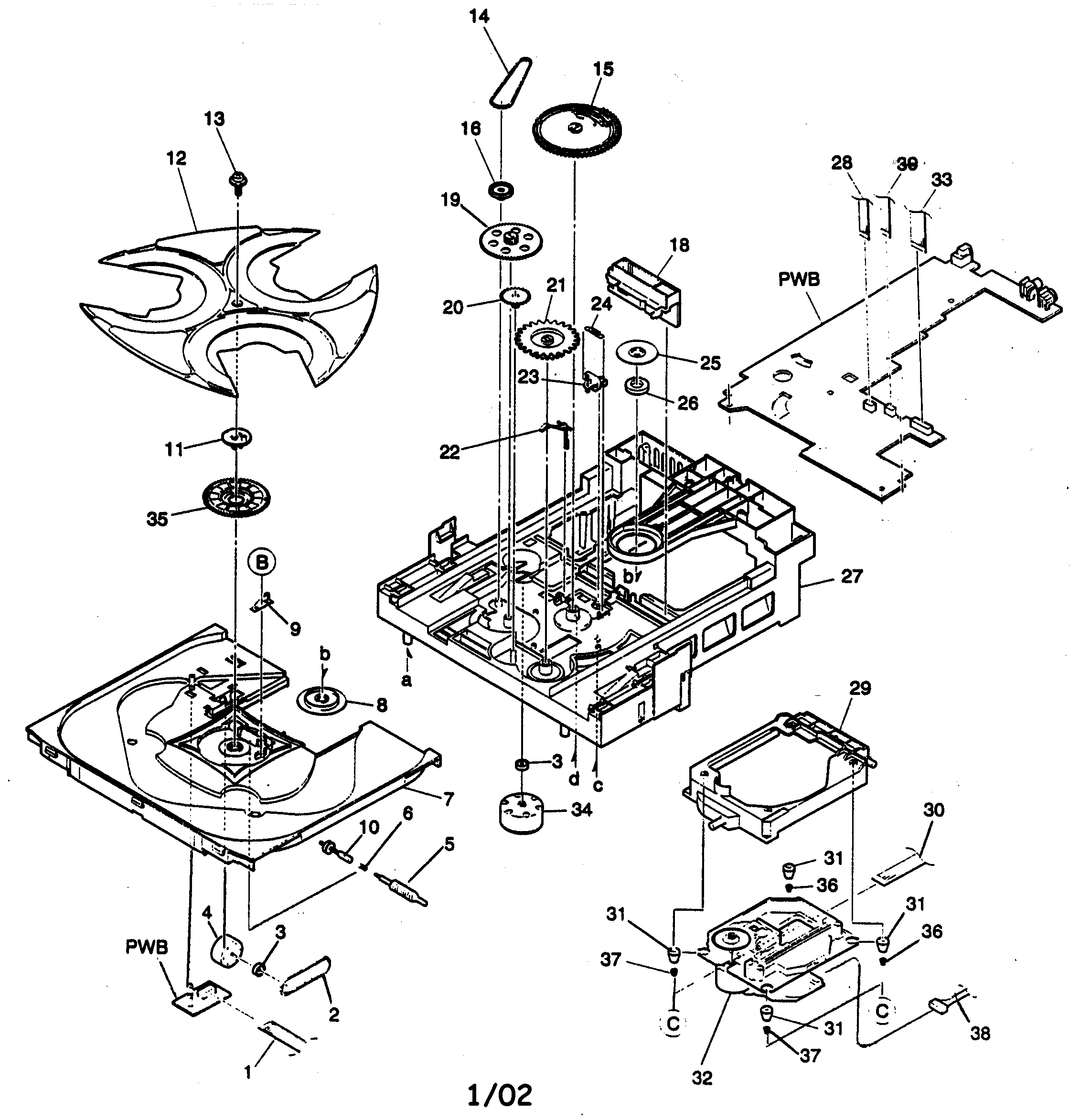

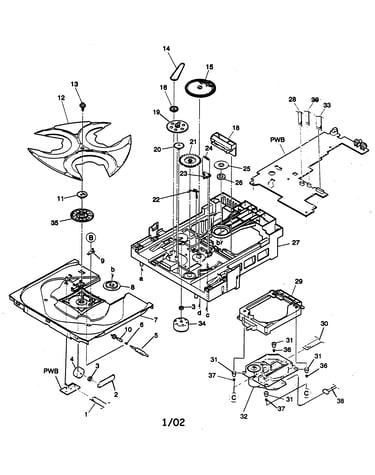

Cabinet parts diagram

Plate

Part #81ZG1255110

The manufacturer no longer makes this part, and there's no substitute part

Worm Gear 84ZG1238010
#5

Cabinet parts diagram

Worm gear

Part #84ZG1238010

The manufacturer no longer makes this part, and there's no substitute part

Spring 84ZG1248010
#6

Cabinet parts diagram

Spring

Part #84ZG1248010

The manufacturer no longer makes this part, and there's no substitute part

Relay Pulley 84ZG1207010
#16

Cabinet parts diagram

Relay pulley

Part #84ZG1207010

The manufacturer no longer makes this part, and there's no substitute part

Gear,main Cam 84ZG1203410
#15

Cabinet parts diagram

Gear,main cam

Part #84ZG1203410

The manufacturer no longer makes this part, and there's no substitute part

Ff-cable 8BZG9609010
#33

Cabinet parts diagram

Ff-cable

Part #8BZG9609010

The manufacturer no longer makes this part, and there's no substitute part

Slider 84ZG1204310
#18

Cabinet parts diagram

Slider

Part #84ZG1204310

The manufacturer no longer makes this part, and there's no substitute part

Damper,mecha 8AZGD206010
#31

Cabinet parts diagram

Damper,mecha

Part #8AZGD206010

The manufacturer no longer makes this part, and there's no substitute part

Gear 84ZG1269010
#35

Cabinet parts diagram

Gear

Part #84ZG1269010

The manufacturer no longer makes this part, and there's no substitute part

Belt 84ZG1225010
#2

Cabinet parts diagram

Belt

Part #84ZG1225010

The manufacturer no longer makes this part, and there's no substitute part
