Kenmore
Wine & Beverage Cooler

Model # 46199100700 Official Kenmore wine cooler

Here are the diagrams and repair parts for Official Kenmore 46199100700 wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Kenmore Beverage Cooler Evaporator Assembly DG12-1
#10

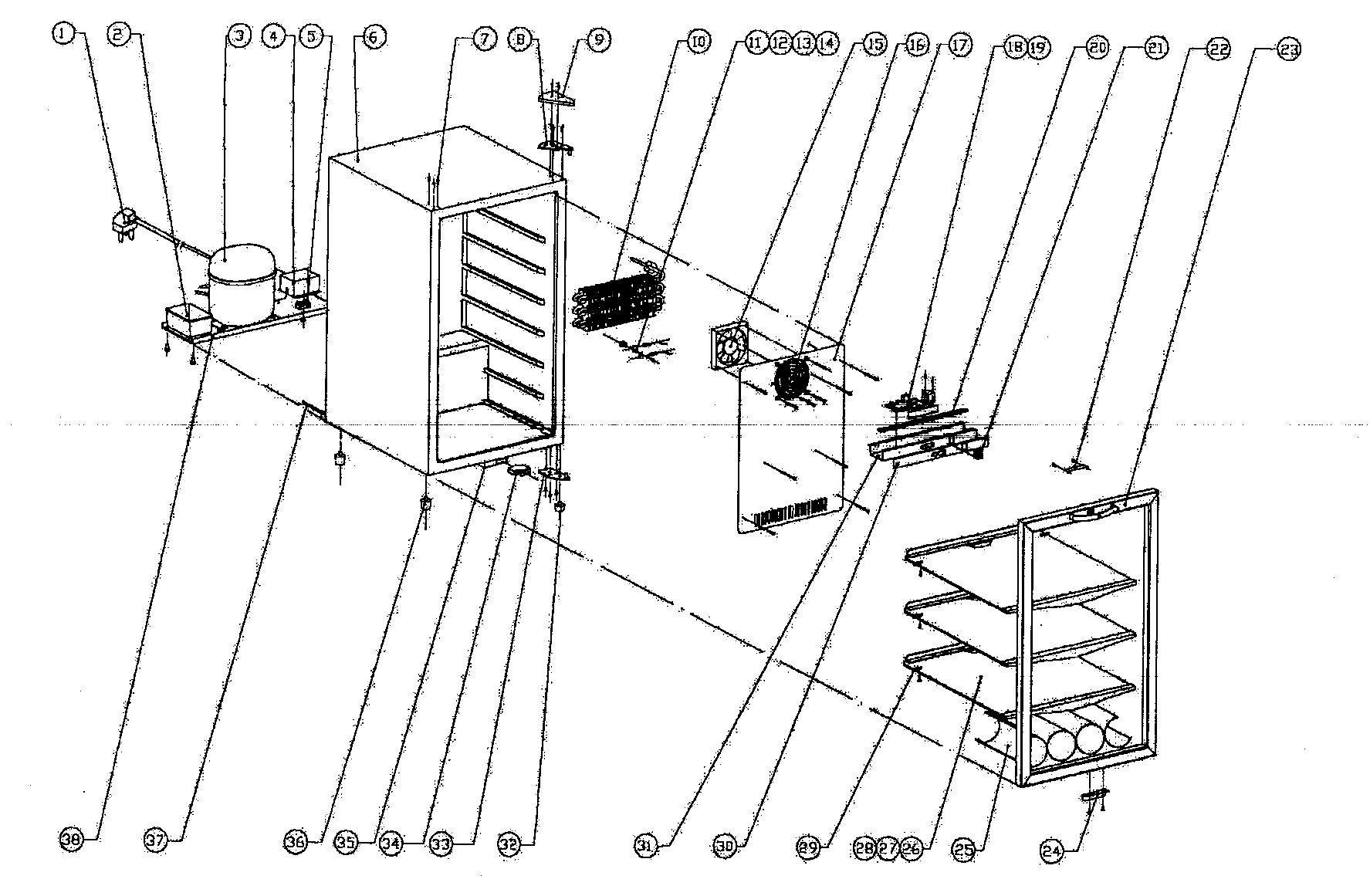

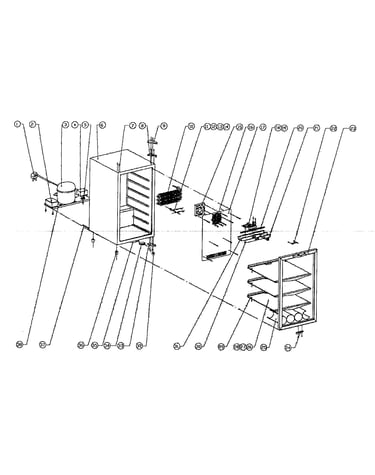

Cabinet parts diagram

Kenmore beverage cooler evaporator assembly

Part #DG12-1

$41.12
In Stock
Danby Wine Cooler Cover DG14-20
#22

Cabinet parts diagram

Danby wine cooler cover

Part #DG14-20

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Danby Wine Cooler Hole Plug DG13-8
#7

Cabinet parts diagram

Danby wine cooler hole plug

Part #DG13-8

This item is not returnable
$2.60 |
28% OFF Phone Price : $3.60
In Stock
Kenmore Wine Cooler Wire Harness Clamp DG20-1
#14

Cabinet parts diagram

Kenmore wine cooler wire harness clamp

Part #DG20-1

$8.06
In Stock
Kenmore Electrical Box DG22-22.2
#31

Cabinet parts diagram

Kenmore electrical box

Part #DG22-22.2

$12.45
In Stock
Module DG14-1.2
#8

Cabinet parts diagram

Module

Part #DG14-1.2

$7.88
In Stock
Danby Wine Cooler Light Switch DG9-3
#21

Cabinet parts diagram

Danby wine cooler light switch

Part #DG9-3

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Low-voltage Transformer DG6-8
#19

Cabinet parts diagram

Wine cooler low-voltage transformer

Part #DG6-8

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Door Assembly DG23-6.7
#23

Cabinet parts diagram

Wine cooler door assembly

Part #DG23-6.7

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Temperature Sensor DG8-7-W
#11

Cabinet parts diagram

Wine cooler temperature sensor

Part #DG8-7-W

The manufacturer no longer makes this part, and there's no substitute part
