Kenmore Elite
Electric Cooktop

Model # 79045313410 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79045313410 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

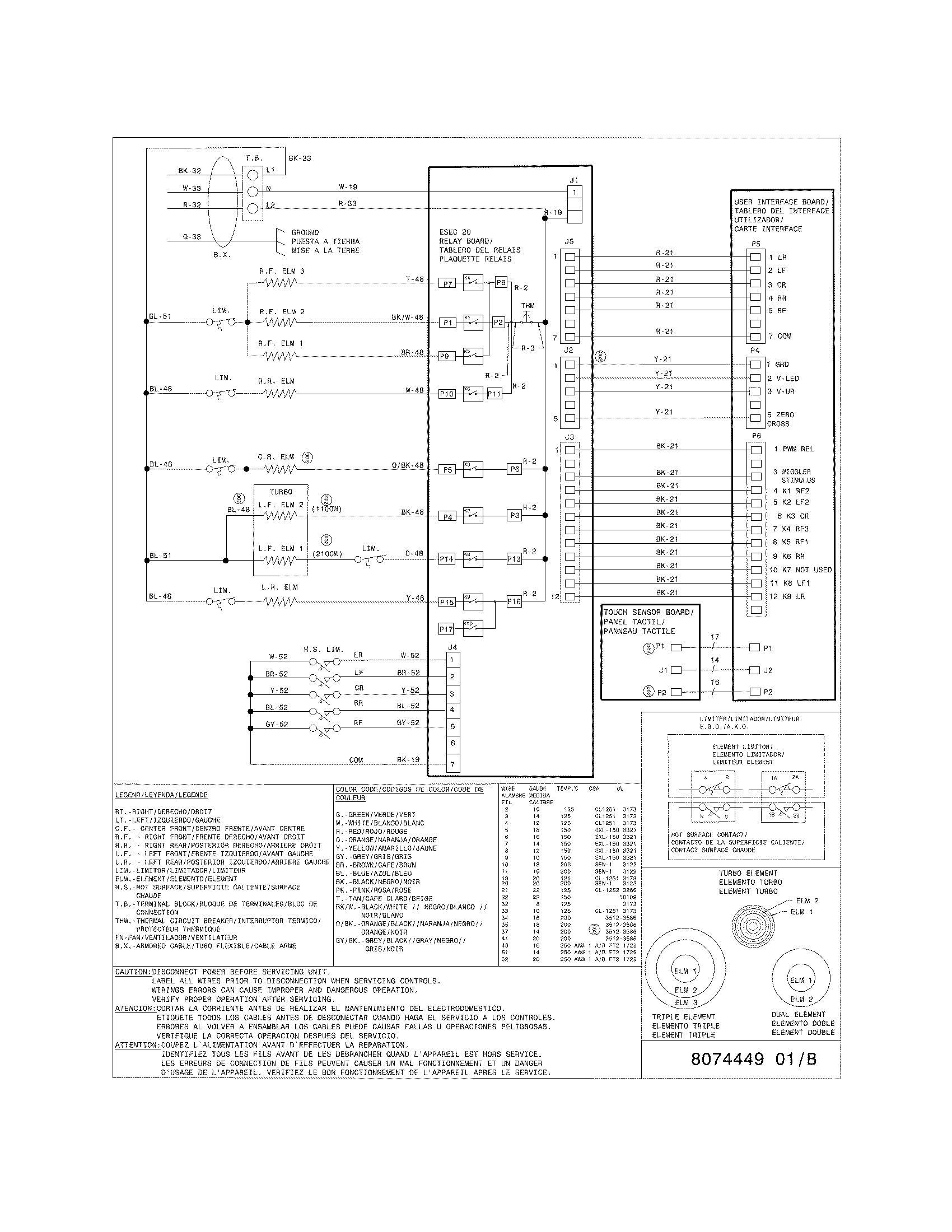

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

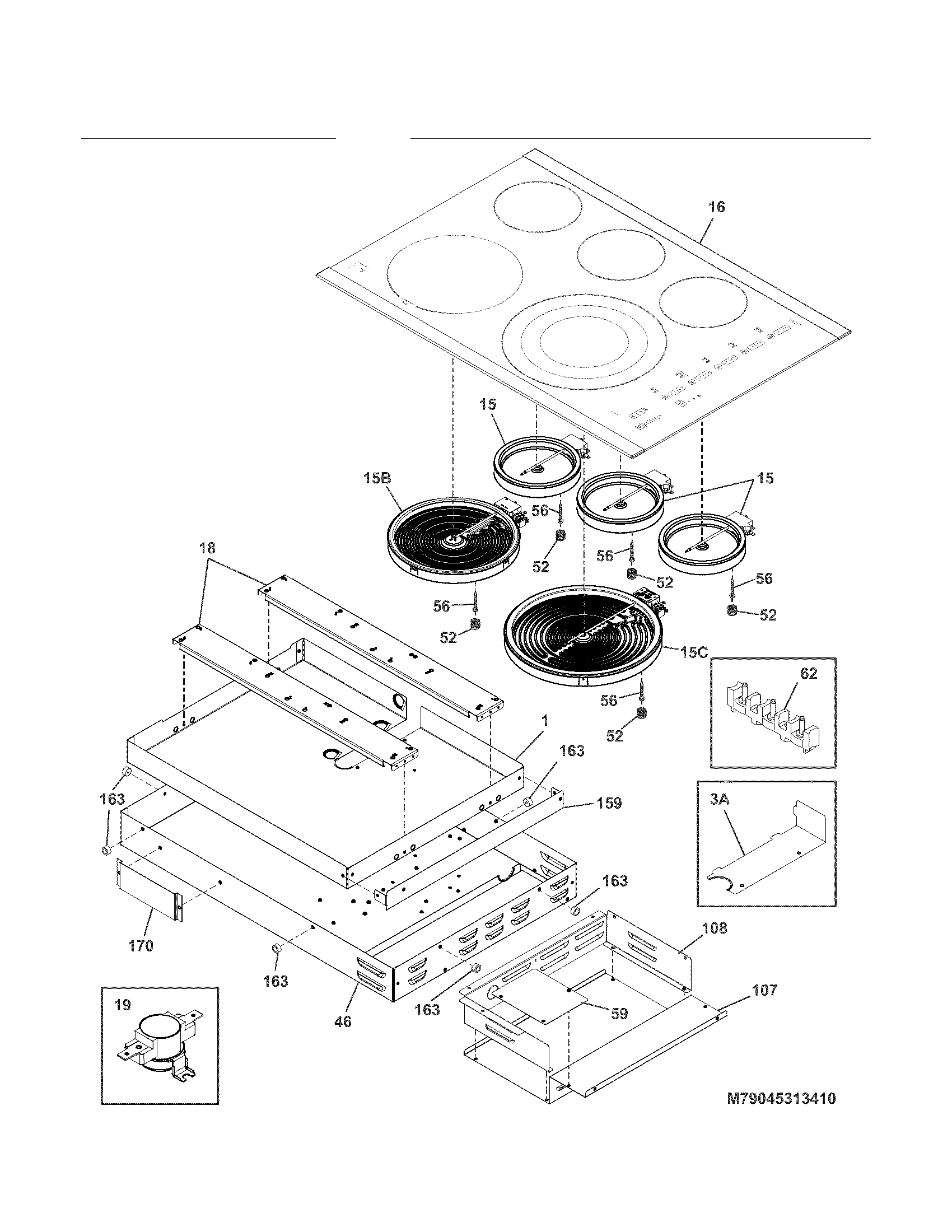

Main top and surface units diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Radiant Surface Element 316530000
#15B

Main top and surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$153.47 |
7% OFF Phone Price : $165.47
In Stock
Terminal Block 316056000
#62

Main top and surface units diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Surface Element Control Board (replaces 316442115) 316442120
#97

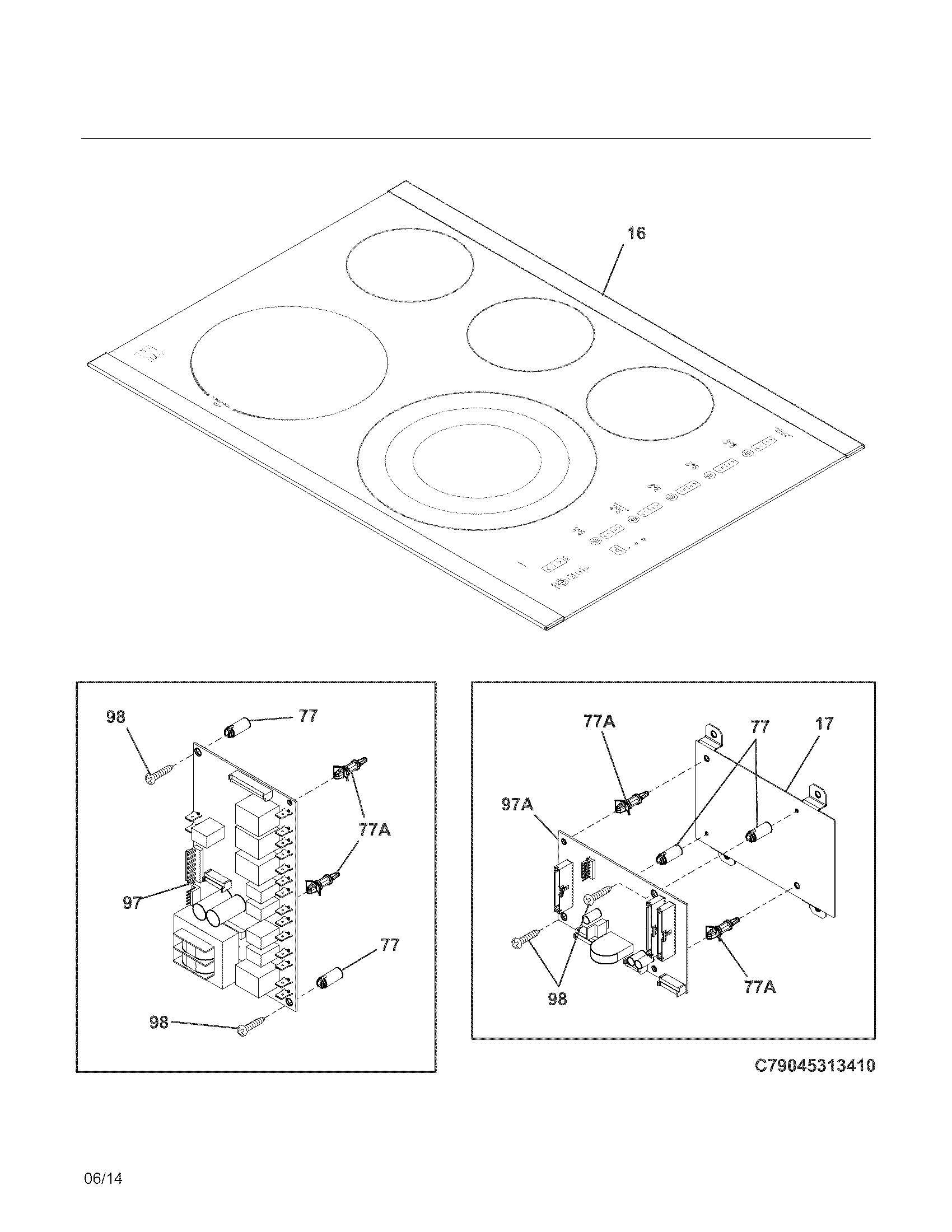

Control panel diagram

Range surface element control board (replaces 316442115)

Part #316442120

$190.80 |
6% OFF Phone Price : $202.80
In Stock
Cooking Appliance Screw, 6-18 X 1-in 5304401490
Cooking appliance screw, 6-18 x 1-in

Part #5304401490

$11.89
In Stock
Range Power Control Board Support 316114100
#77A

Control panel diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
Range Nut 5303323144
#NI

Main top and surface units diagram

Range nut

Part #5303323144

$8.83
In Stock
Cooktop Main Top Seal, 0.5 X 14-in 5304424462
#170

Main top and surface units diagram

Cooktop main top seal, 0.5 x 14-in

Part #5304424462

$50.07
In Stock
Range Screw, 10-24 X 0.906-in 5303323139
#NI

Main top and surface units diagram

Range screw, 10-24 x 0.906-in

Part #5303323139

$13.26
In Stock
Cooking Appliance Spacer 318531702
#163

Main top and surface units diagram

Cooking appliance spacer

Part #318531702

$9.77
In Stock
