GE
Warming Drawer

Model # JTD915SK3SS Official GE electric range

Here are the diagrams and repair parts for Official GE JTD915SK3SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Cavity 30" WB63X10059
#21

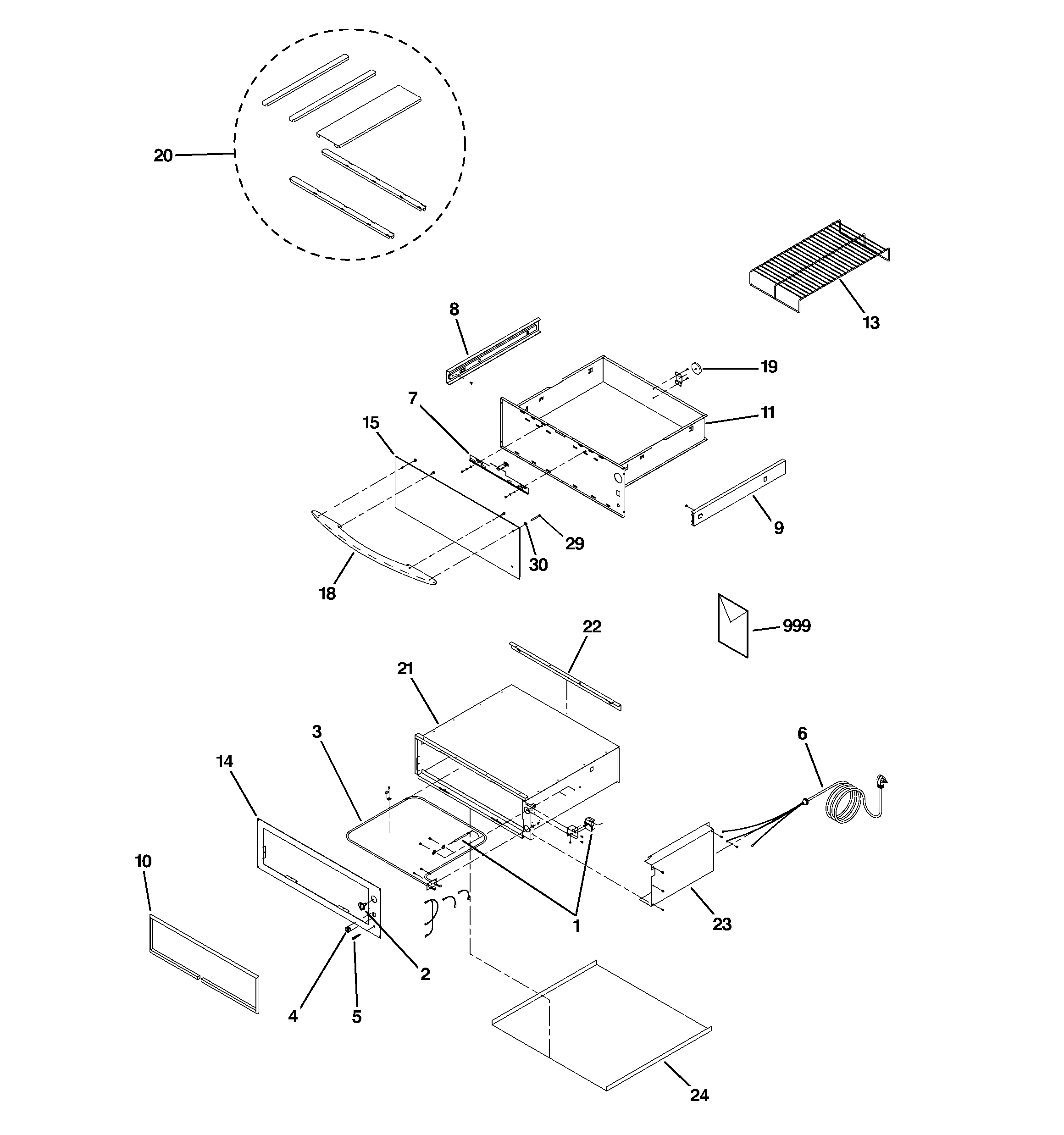

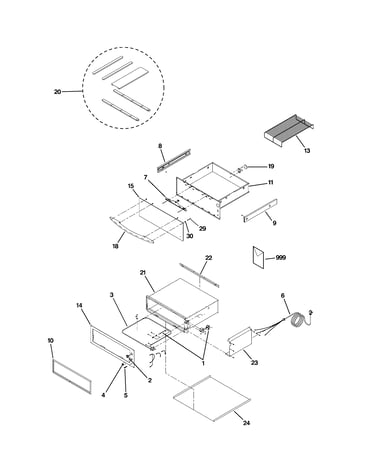

Warming drawer diagram

Cavity 30"

Part #WB63X10059

This item is not returnable
$159.81
In Stock
Cover WB02X11008
#24

Warming drawer diagram

Cover

Part #WB02X11008

$188.70
In Stock
Magnet-close WB02X11290
#19

Warming drawer diagram

Magnet-close

Part #WB02X11290

$131.39
In Stock
Bolt,hex Hea WB01X10288
#29

Warming drawer diagram

Bolt,hex hea

Part #WB01X10288

This item is not returnable
$4.35
In Stock
Indicator Lamp WB02X10587
#5

Warming drawer diagram

Indicator lamp

Part #WB02X10587

$74.69 |
7% OFF Phone Price : $80.69
In Stock
Heating Element WB44X10029
#3

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Wire Rack WB48X10010
#13

Warming drawer diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09 |
8% OFF Phone Price : $155.09
In Stock
Handle Profile WB15T10129
#18

Warming drawer diagram

Handle profile

Part #WB15T10129

Replaced by #WB15T10190

?
Manufacturer substitution
This part replaces WB15T10129. Substitute parts can look different from the original.
$177.11 |
6% OFF Phone Price : $189.11
In Stock
Rail Kit, 30 WB64X10002
#20

Warming drawer diagram

Rail kit, 30

Part #WB64X10002

Replaced by #WB64X10032

?
Manufacturer substitution
This part replaces WB64X10002. Substitute parts can look different from the original.
$248.70
In Stock
Anti Tip Bra WB02X11006
#22

Warming drawer diagram

Anti tip bra

Part #WB02X11006

The manufacturer no longer makes this part, and there's no substitute part
