Model # 155845200 Official Kenmore prefabricated built-in fireplace

Here are the diagrams and repair parts for Official Kenmore 155845200 prefabricated built-in fireplace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Grate Basket 3001
#98

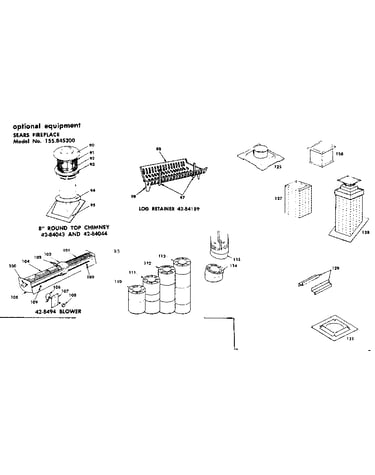

Optional equipment diagram

Grate basket

Part #3001

The manufacturer no longer makes this part, and there's no substitute part

Screen K16389R
#30

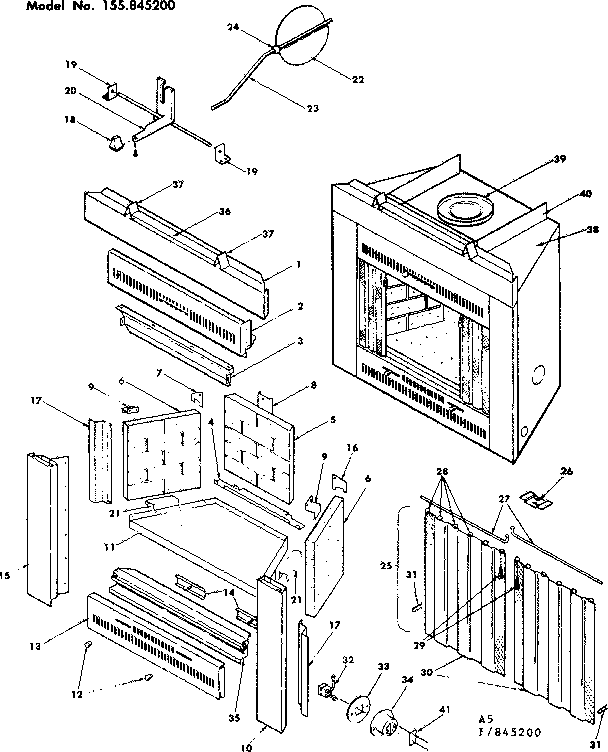

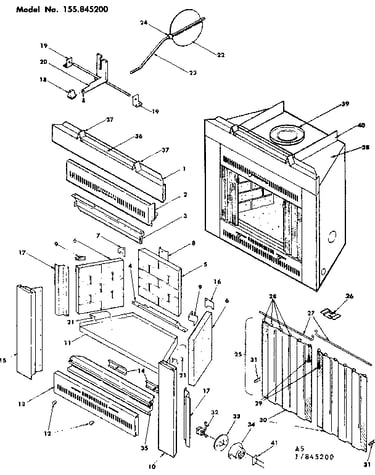

Replacement parts diagram

Screen

Part #K16389R

The manufacturer no longer makes this part, and there's no substitute part

Rain Cap T19516R
#90

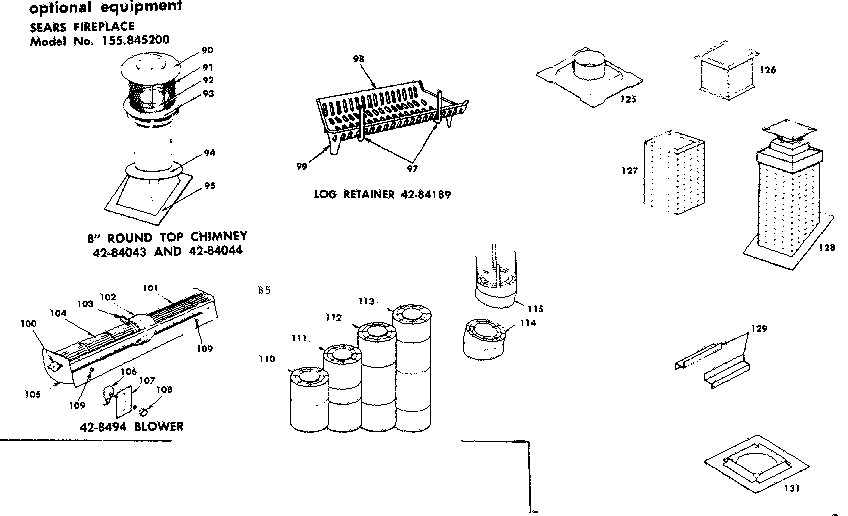

Optional equipment diagram

Rain cap

Part #T19516R

The manufacturer no longer makes this part, and there's no substitute part

Screen Y14522R
#25

Replacement parts diagram

Screen

Part #Y14522R

The manufacturer no longer makes this part, and there's no substitute part

Seal T19503R
#6

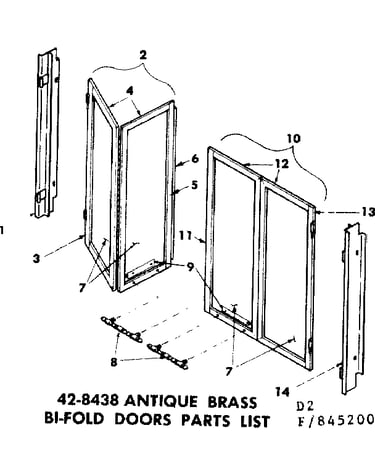

Bi-fold door diagram

Seal

Part #T19503R

The manufacturer no longer makes this part, and there's no substitute part

Grommet K15205R
#103

Optional equipment diagram

Grommet

Part #K15205R

The manufacturer no longer makes this part, and there's no substitute part

Damper Y13452R
#22

Replacement parts diagram

Damper

Part #Y13452R

The manufacturer no longer makes this part, and there's no substitute part

Bifold Door 42-8438

#NI

All parts diagram

Bifold door

Part #42-8438

The manufacturer no longer makes this part, and there's no substitute part

Knob Z3504R
#12

Replacement parts diagram

Knob

Part #Z3504R

The manufacturer no longer makes this part, and there's no substitute part

Collar Assembly Y14945R
#4

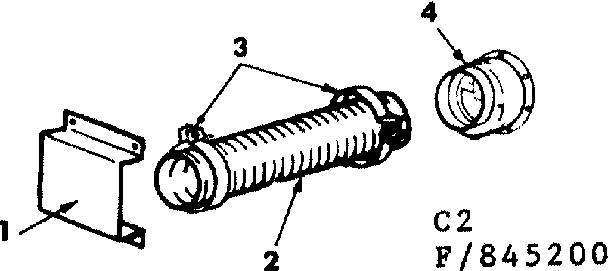

Combustion air kit diagram

Collar assembly

Part #Y14945R

The manufacturer no longer makes this part, and there's no substitute part
