Model # 18C5Y-P1178204R Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana 18C5Y-P1178204R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Screw M0211017
Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Tie M0321202
#681

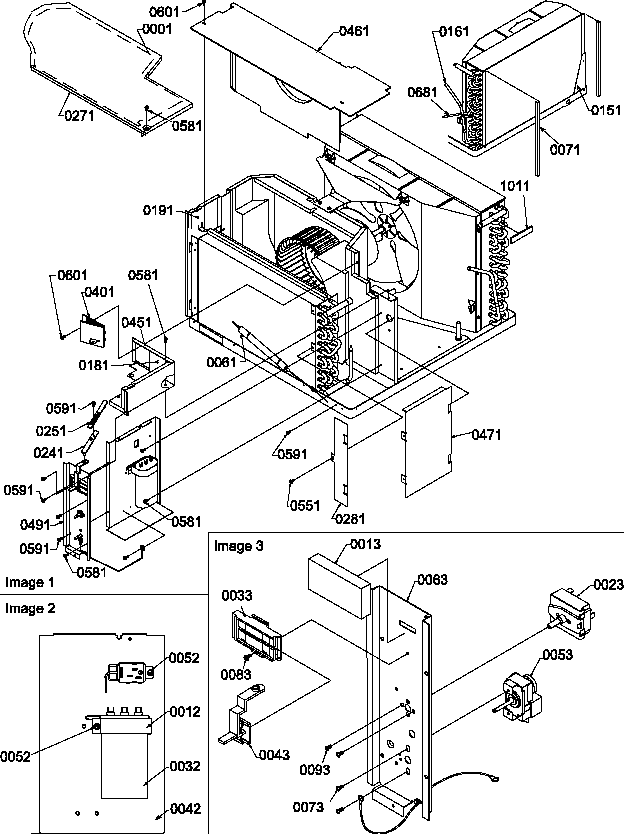

Controls diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0241118
#951

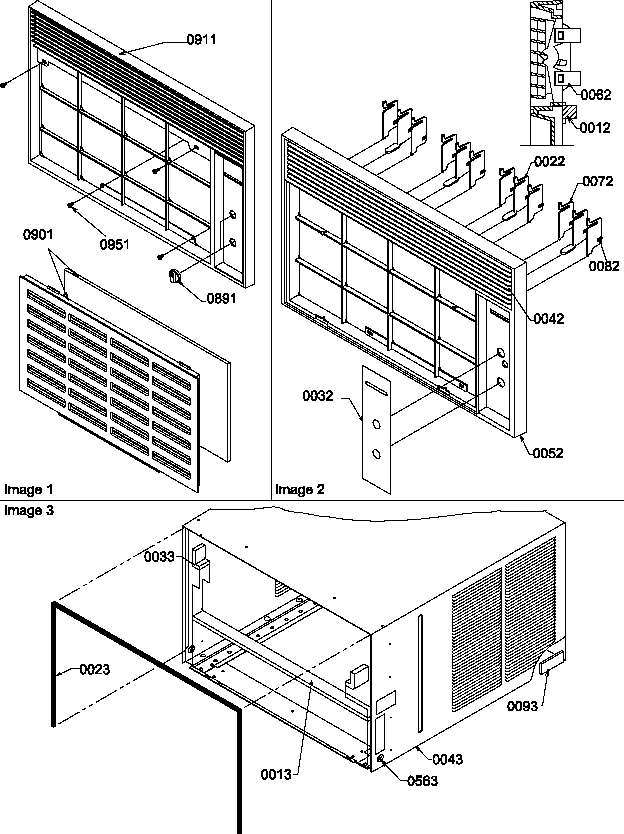

Cabinet diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Tap Screw M0224956
#611

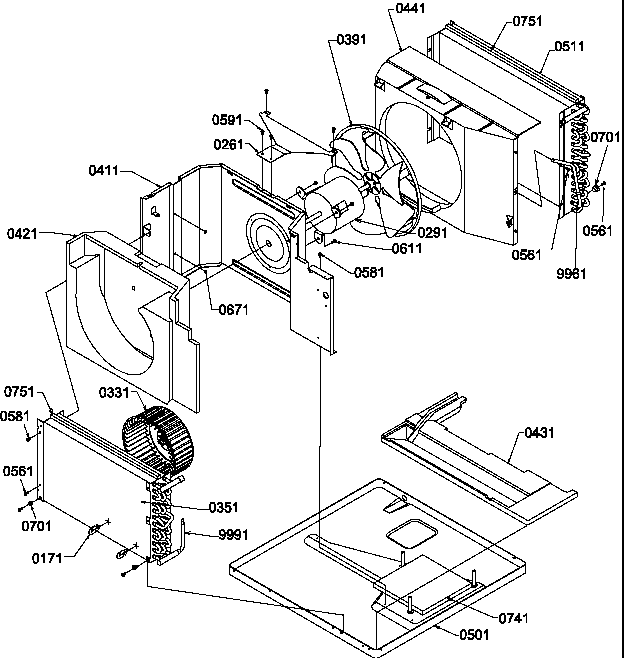

Chassis diagram

Tap screw

Part #M0224956

Replaced by #WP489427

?
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0245116
#601

Controls diagram

Screw

Part #M0245116

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces M0245116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0211016
#551

Controls diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Use D9998802 D9998802
#511

Chassis diagram

Use d9998802

Part #D9998802

Replaced by #D9998802Q

?
Manufacturer substitution
This part replaces D9998802. Substitute parts can look different from the original.
$263.99
In Stock
Screw M0202321
#93

Controls diagram

Screw

Part #M0202321

Replaced by #W11214483

?
Manufacturer substitution
This part replaces M0202321. Substitute parts can look different from the original.
$12.49
In Stock
Gasket 10839706
#12

Cabinet diagram

Gasket

Part #10839706

The manufacturer no longer makes this part, and there's no substitute part

Washer M0274008
#1081

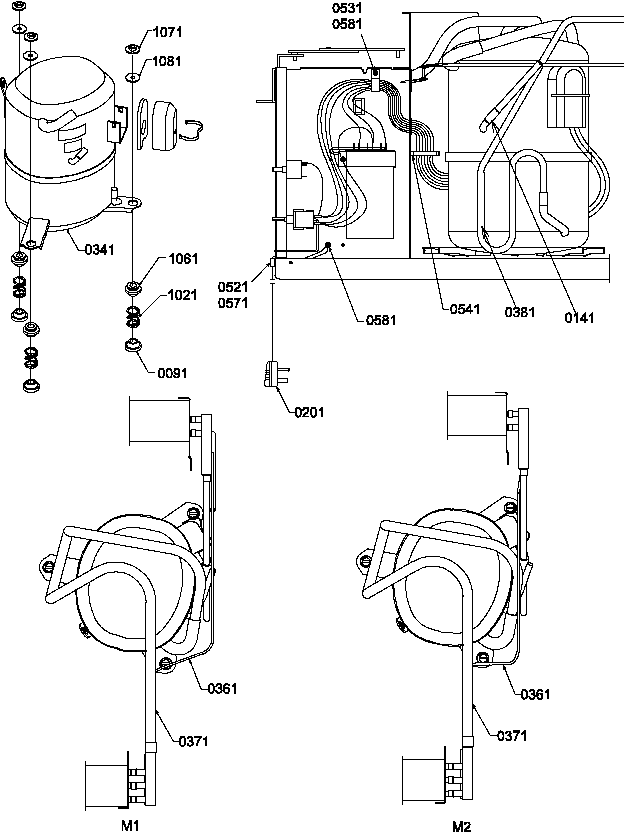

Compressor/tubing diagram

Washer

Part #M0274008

The manufacturer no longer makes this part, and there's no substitute part
