York
Heating & Cooling Combined Unit

Model # D2CG072N09946A Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D2CG072N09946A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

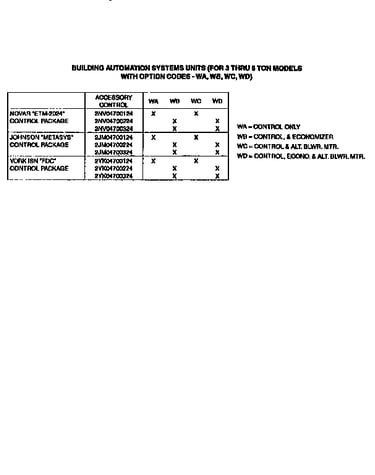

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Capacitor 024-20043-000

#9

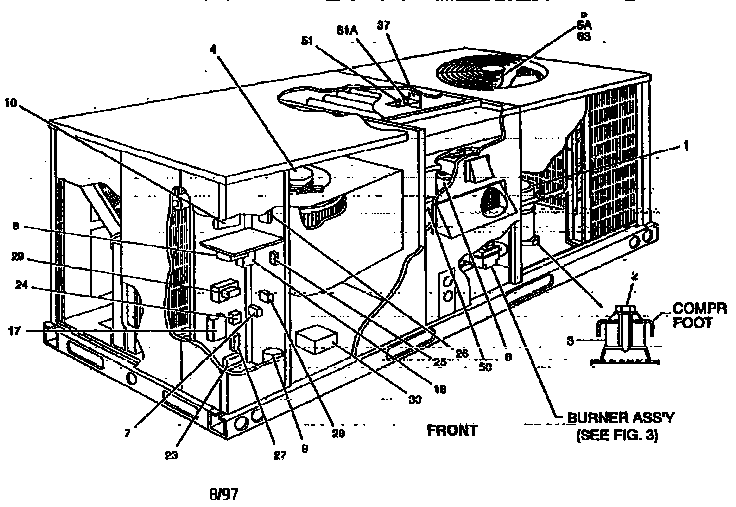

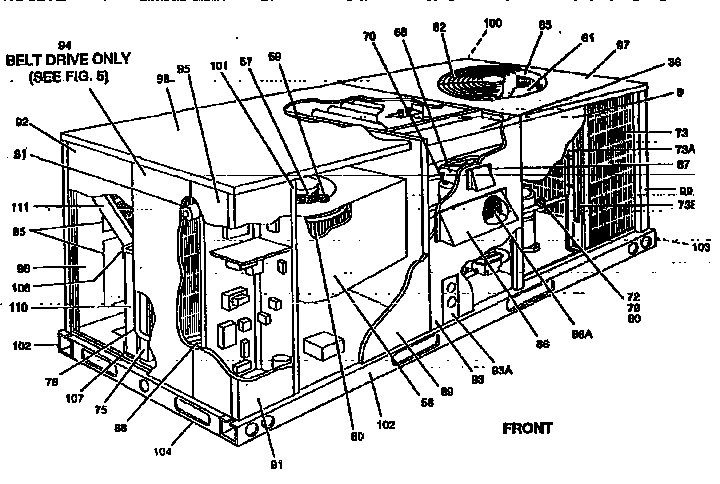

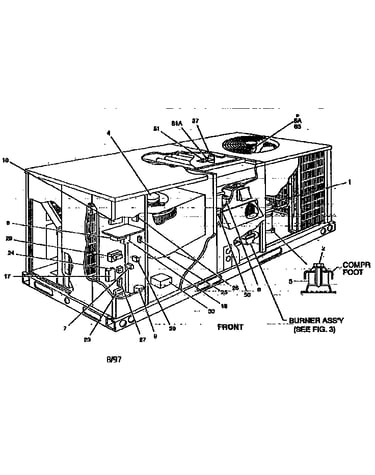

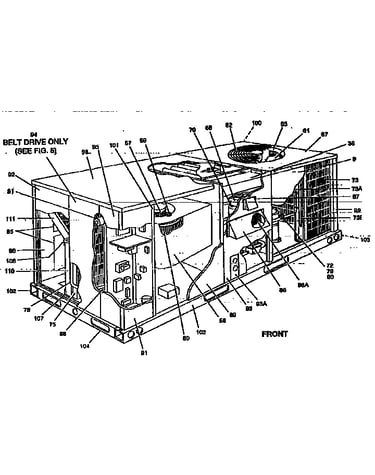

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Part 025-30105-700

#55

All parts diagram

Part

Part #025-30105-700

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 024-21060-000

#8

All parts diagram

Capacitor

Part #024-21060-000

Replaced by #12910

?
Manufacturer substitution
This part replaces 024-21060-000. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Belt 028-09573-000
#7

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Blower, Belt Drive W/wheel 026-25542-001
#6

Belt drive option diagram

Blower, belt drive w/wheel

Part #026-25542-001

The manufacturer no longer makes this part, and there's no substitute part

Rail, Base (front And Rear) 063-87534-001

#102

All parts diagram

Rail, base (front and rear)

Part #063-87534-001

The manufacturer no longer makes this part, and there's no substitute part

Contol, Low Pressure (d3cg090n16525d) (see Notes) 025-30249-700

#82

All parts diagram

Contol, low pressure (d3cg090n16525d) (see notes)

Part #025-30249-700

The manufacturer no longer makes this part, and there's no substitute part

Housing, Ventor Blower 073-05376-000

#66

All parts diagram

Housing, ventor blower

Part #073-05376-000

The manufacturer no longer makes this part, and there's no substitute part

Coil, Condenser (formed (includes Headers And Distributor Assembly.) 373-07820-700

#73

All parts diagram

Coil, condenser (formed (includes headers and distributor assembly.)

Part #373-07820-700

The manufacturer no longer makes this part, and there's no substitute part

Isolator, Neoprene (mtg. Hanger) 028-12414-700

#59

All parts diagram

Isolator, neoprene (mtg. hanger)

Part #028-12414-700

The manufacturer no longer makes this part, and there's no substitute part
