Hotpoint
Side-By-Side Refrigerator

Model # CSF24ELB Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CSF24ELB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

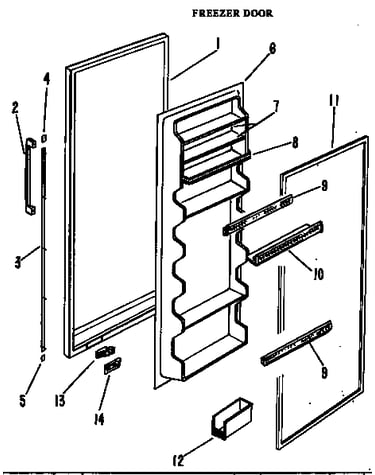

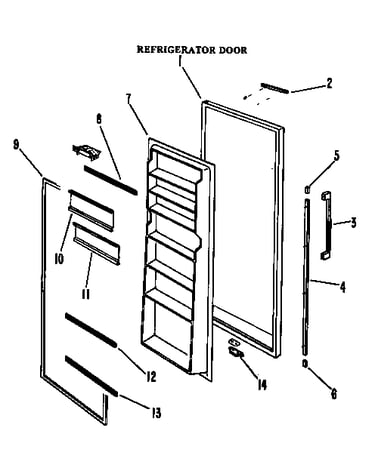

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |
Refrigerator Grommet WR17X988
#13

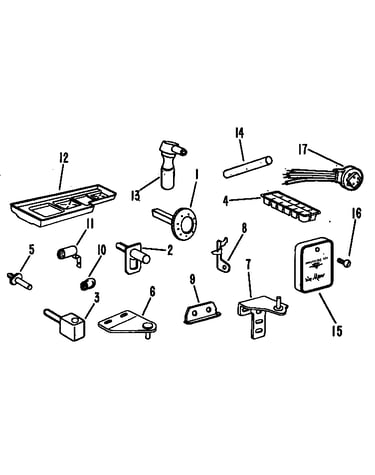

Components diagram

Refrigerator grommet

Part #WR17X988

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR17X988. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Power Cord WR23X108
#17

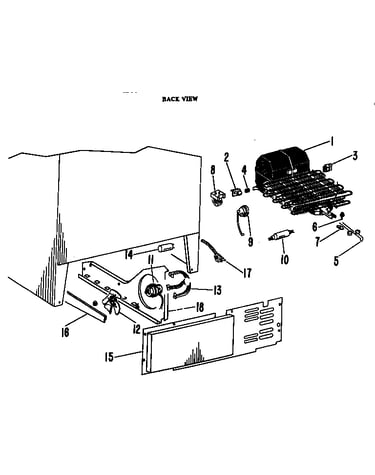

Backview diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Wheel WR2X5721
#19A

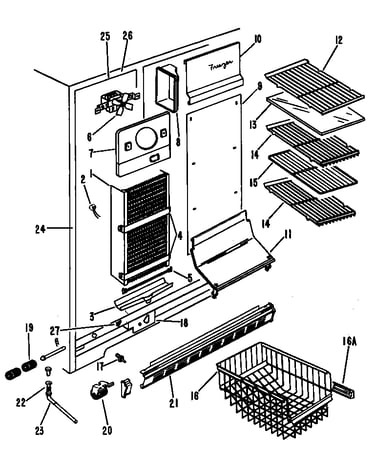

Shelves diagram

Refrigerator wheel

Part #WR2X5721

Replaced by #WR2X3594

?
Manufacturer substitution
This part replaces WR2X5721. Substitute parts can look different from the original.
This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Handle Screw WR1X5345
Refrigerator handle screw

Part #WR1X5345

This item is not returnable
$2.16
In Stock
Refrigerator Baffle WR82X5001
#15A

Backview diagram

Refrigerator baffle

Part #WR82X5001

$30.99
In Stock
Refrigerator Fan Blade WR2X3198
#6G

Shelves diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Motor WR60X77
#11

Backview diagram

Refrigerator fan motor

Part #WR60X77

Replaced by #WR60X177

?
Manufacturer substitution
This part replaces WR60X77. Substitute parts can look different from the original.
$159.18 |
7% OFF Phone Price : $171.18
In Stock
Refrigerator Ice Tray WR30X5074
#4

Components diagram

Refrigerator ice tray

Part #WR30X5074

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X5074. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Thermostat WR50X5021
#2

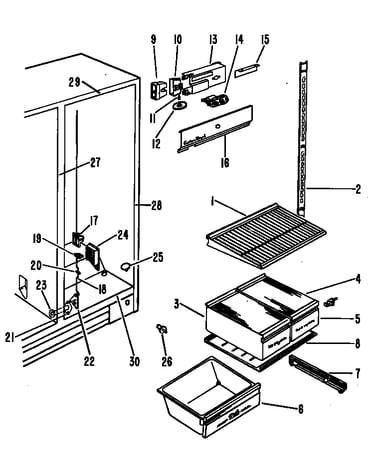

Shelves diagram

Refrigerator thermostat

Part #WR50X5021

Replaced by #WR50X50

?
Manufacturer substitution
This part replaces WR50X5021. Substitute parts can look different from the original.
$14.34 |
12% OFF Phone Price : $16.34
In Stock
Refrigerator Screw, 2-pack WR1X5039
#14B

Shelves diagram

Refrigerator screw, 2-pack

Part #WR1X5039

Replaced by #WZ2X464D

?
Manufacturer substitution
This part replaces WR1X5039. Substitute parts can look different from the original.
$18.89 |
10% OFF Phone Price : $20.89
In Stock
