Model # 113179100 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179100 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Wet/dry Vacuum Extension Wand 17854
#26

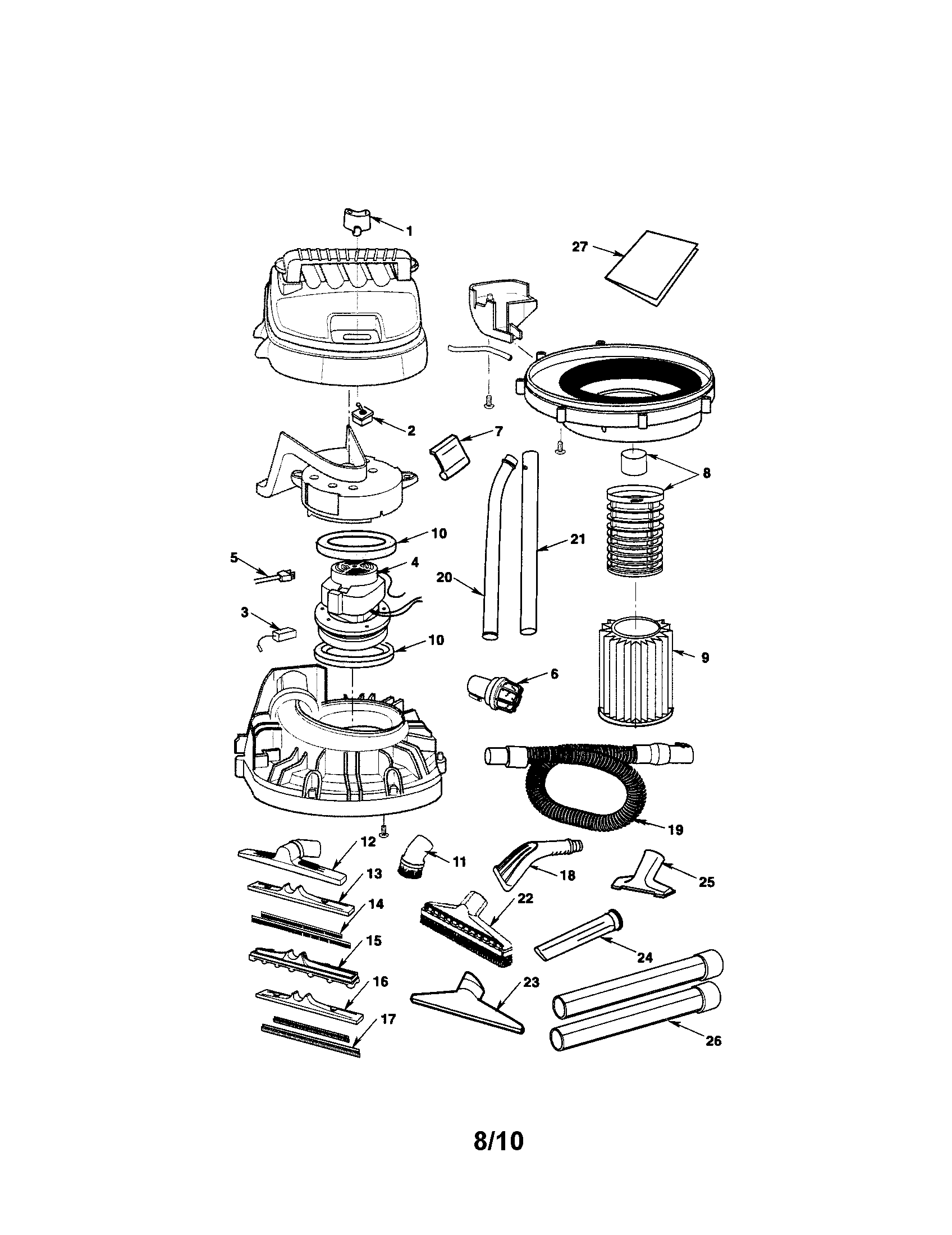

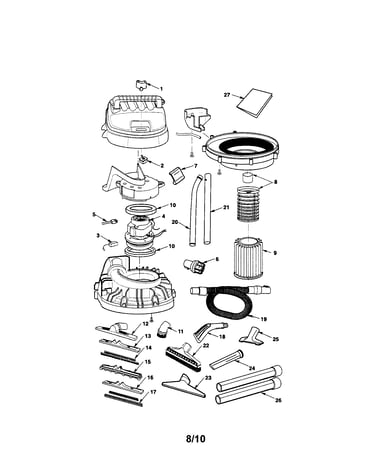

Nozzles/filter/motor diagram

Wet/dry vacuum extension wand

Part #17854

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 16902
#24

Nozzles/filter/motor diagram

Crevice tool

Part #16902

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 16922
#25

Nozzles/filter/motor diagram

Nozzle

Part #16922

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 17838
#24A

Nozzles/filter/motor diagram

Crevice tool

Part #17838

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 16926
#22

Nozzles/filter/motor diagram

Floor brush

Part #16926

The manufacturer no longer makes this part, and there's no substitute part

Tote 830597-2
#9

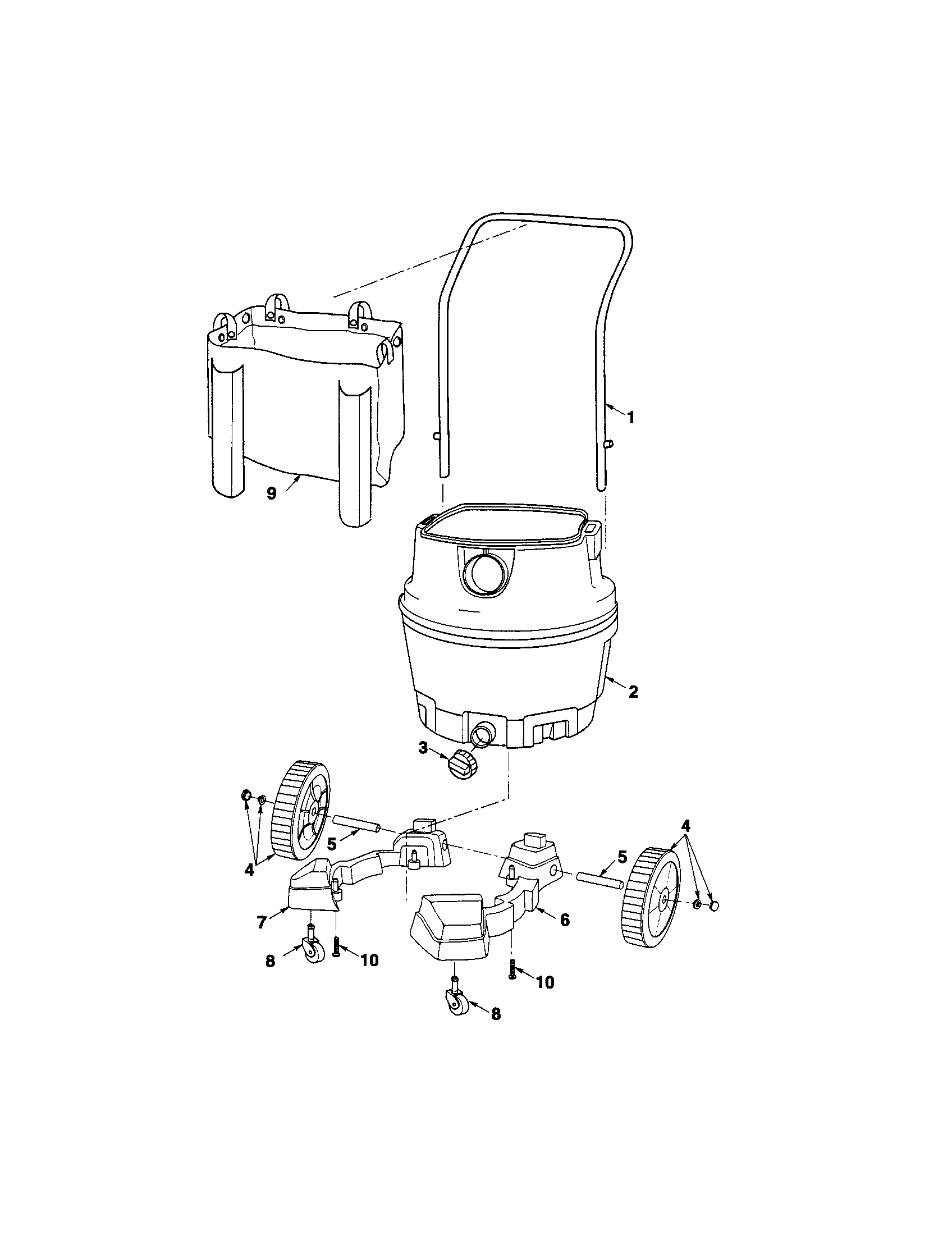

Dust drum/handle/wheels diagram

Tote

Part #830597-2

The manufacturer no longer makes this part, and there's no substitute part

Posi-lock Pr 831337-6
#19A

Nozzles/filter/motor diagram

Posi-lock pr

Part #831337-6

The manufacturer no longer makes this part, and there's no substitute part

Dust Drum As 510037
#2A

Dust drum/handle/wheels diagram

Dust drum as

Part #510037

The manufacturer no longer makes this part, and there's no substitute part

Wheel Assembly 832190
#4A

Dust drum/handle/wheels diagram

Wheel assembly

Part #832190

The manufacturer no longer makes this part, and there's no substitute part

Drum Latch 826387
#7

Nozzles/filter/motor diagram

Drum latch

Part #826387

The manufacturer no longer makes this part, and there's no substitute part
