Model # 1034073010 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 1034073010 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Light Bulb 69651

#NI

All parts diagram

Light bulb

Part #69651

Replaced by #40A15

?
Manufacturer substitution
This part replaces 69651. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Selector Knob 104770
#22

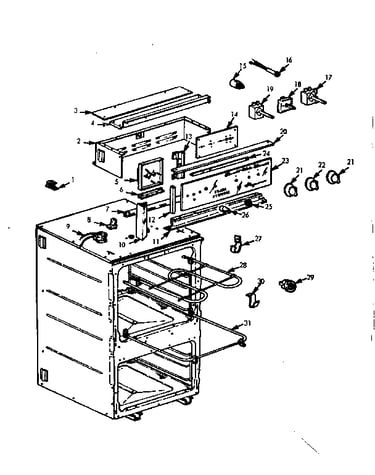

Control panel and element section diagram

Selector knob

Part #104770

The manufacturer no longer makes this part, and there's no substitute part

Door Insulation 104988
#64

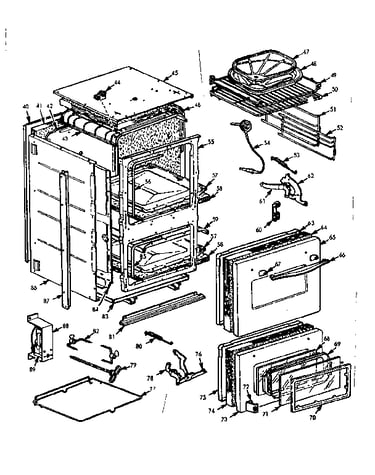

Body section diagram

Door insulation

Part #104988

The manufacturer no longer makes this part, and there's no substitute part

Ballast 98186

#NI

All parts diagram

Ballast

Part #98186

The manufacturer no longer makes this part, and there's no substitute part

Insulation 104997
#41

Body section diagram

Insulation

Part #104997

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 105022
#75

Body section diagram

Door lining

Part #105022

The manufacturer no longer makes this part, and there's no substitute part

Door Glass 105392
#68

Body section diagram

Door glass

Part #105392

The manufacturer no longer makes this part, and there's no substitute part

Mounting Box 104677
#88

Body section diagram

Mounting box

Part #104677

The manufacturer no longer makes this part, and there's no substitute part

Top Seal-lt 105511
#56B

Body section diagram

Top seal-lt

Part #105511

The manufacturer no longer makes this part, and there's no substitute part

Mounting Angle 104743
#6

Control panel and element section diagram

Mounting angle

Part #104743

The manufacturer no longer makes this part, and there's no substitute part
