Model # 15813032 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15813032 sewing machine head, as well as links to manuals and error code tables, if available.

By Schematic

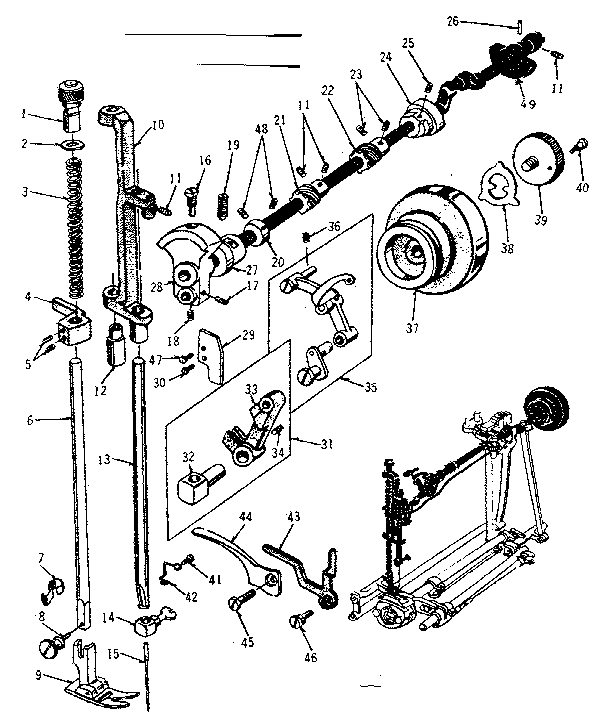

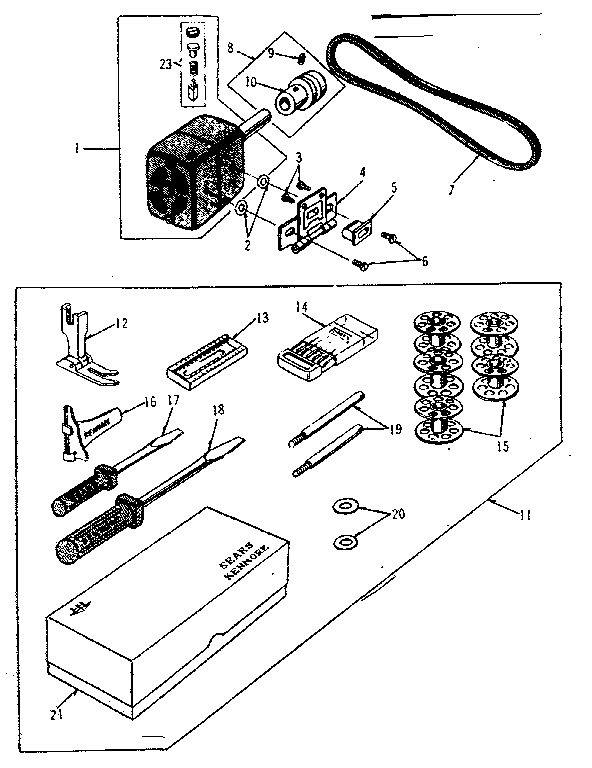

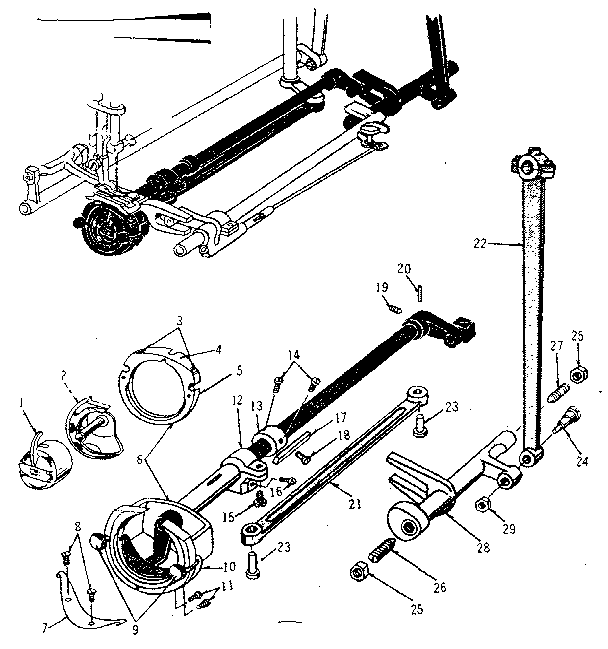

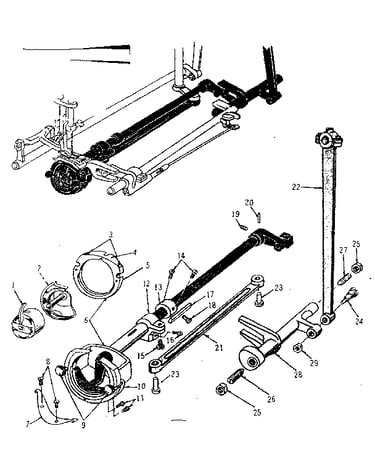

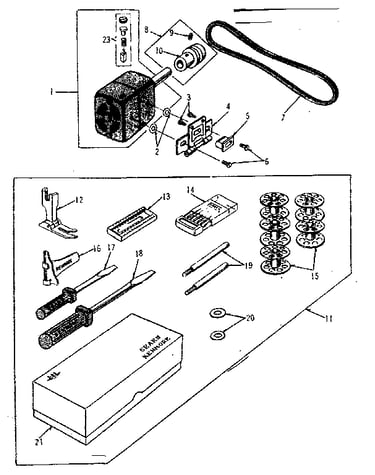

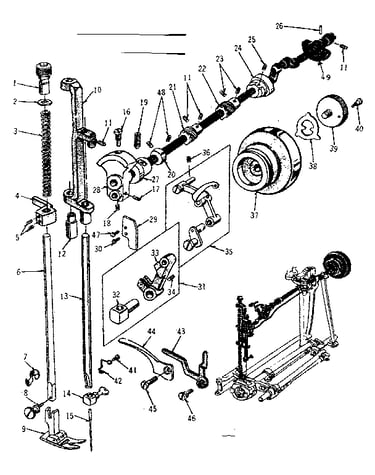

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
15813032 Sewing Machine Head
Base Axis 30971
#28

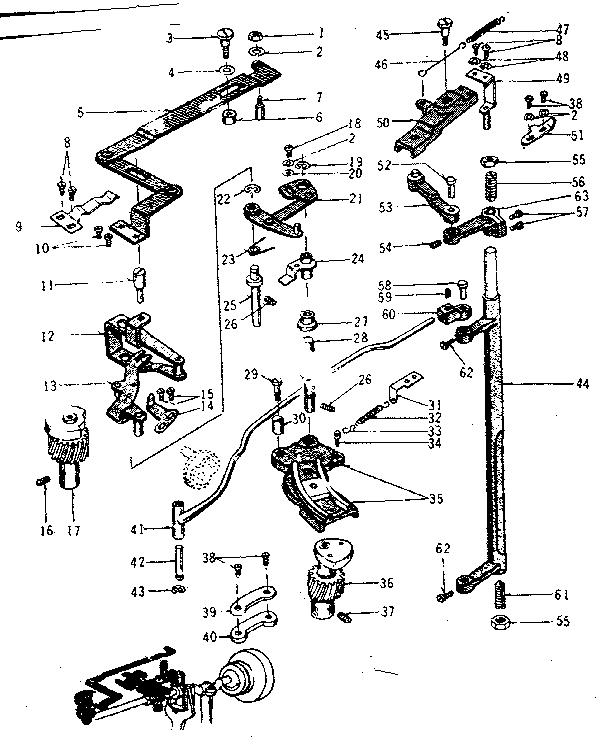

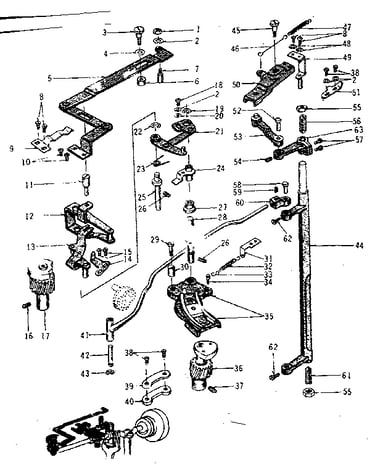

Zigzag guide assembly diagram

Base axis

Part #30971

The manufacturer no longer makes this part, and there's no substitute part

Hanger 31121
#46

Zigzag guide assembly diagram

Hanger

Part #31121

The manufacturer no longer makes this part, and there's no substitute part

Lever Base 31119
#49

Zigzag guide assembly diagram

Lever base

Part #31119

The manufacturer no longer makes this part, and there's no substitute part

Width Arm 30967
#10

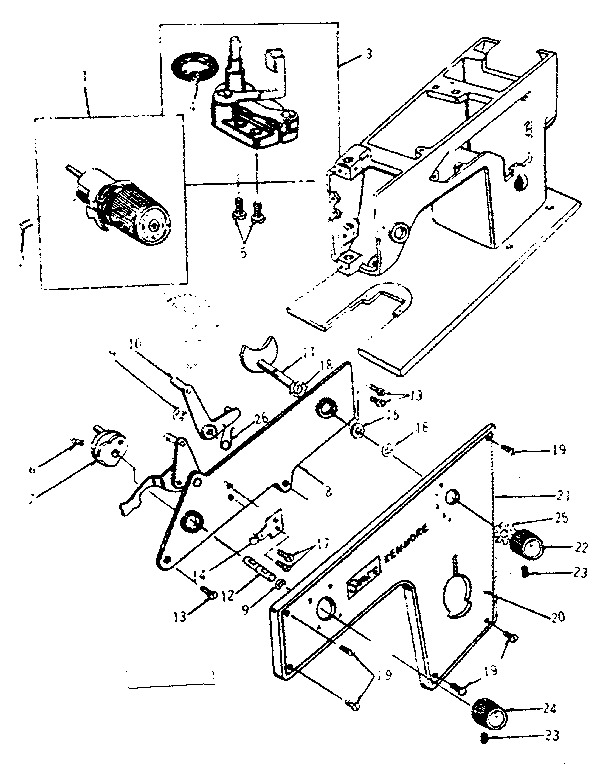

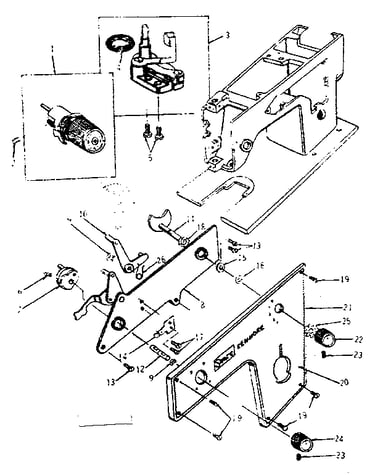

Selector dials diagram

Width arm

Part #30967

The manufacturer no longer makes this part, and there's no substitute part

Panel 30992
#21

Selector dials diagram

Panel

Part #30992

The manufacturer no longer makes this part, and there's no substitute part

Guard Cord 31095
#44

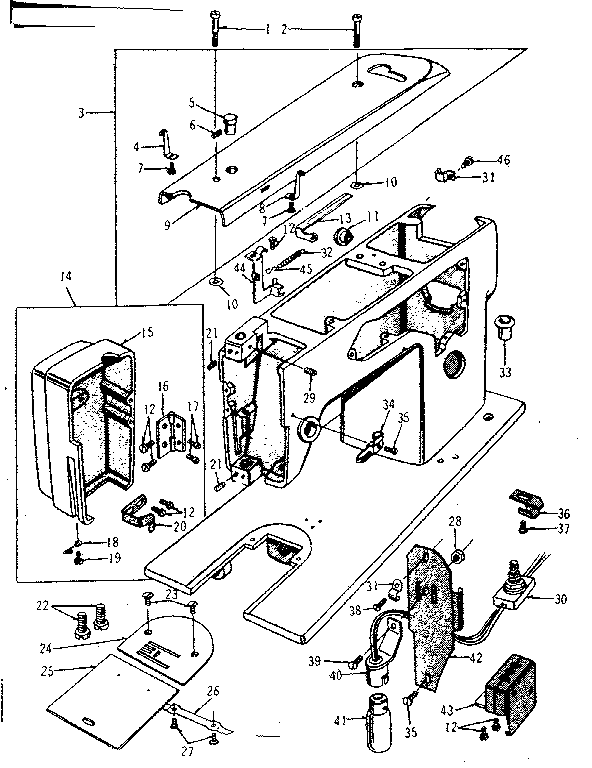

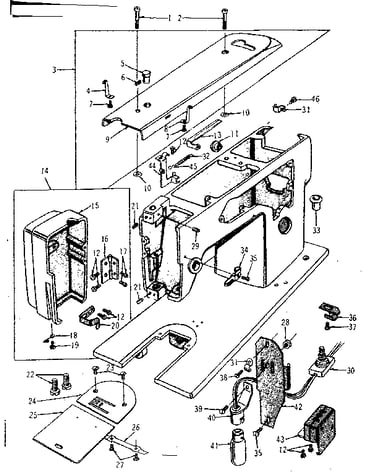

Base assembly diagram

Guard cord

Part #31095

The manufacturer no longer makes this part, and there's no substitute part

Rod Screw 26873
#1

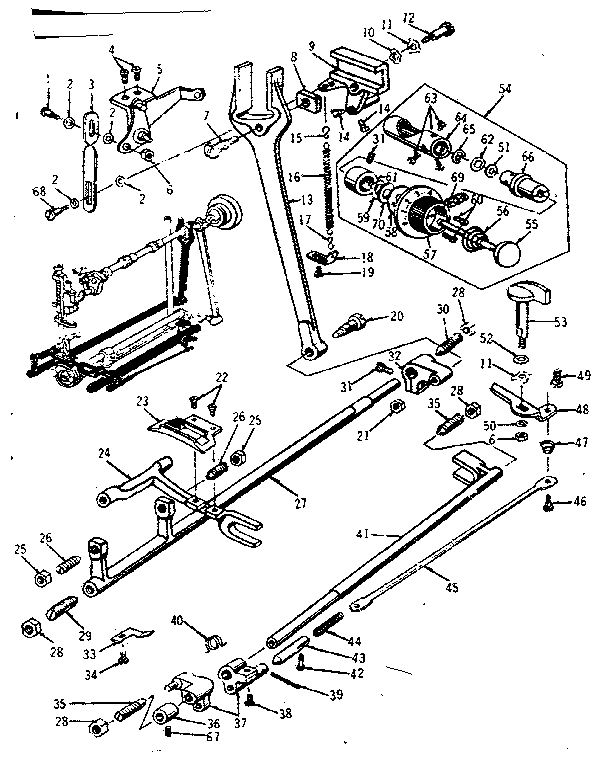

Feed regulator assembly diagram

Rod screw

Part #26873

The manufacturer no longer makes this part, and there's no substitute part

Plate Assembly 32453
#5

Zigzag guide assembly diagram

Plate assembly

Part #32453

The manufacturer no longer makes this part, and there's no substitute part

Dial Shaft 31018
#12

Selector dials diagram

Dial shaft

Part #31018

The manufacturer no longer makes this part, and there's no substitute part

Super Rod 31001
#3

Feed regulator assembly diagram

Super rod

Part #31001

The manufacturer no longer makes this part, and there's no substitute part
