Jenn-Air
Electric Wall Oven

Model # JJW2327WB00 Official Jenn-Air 27" electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air JJW2327WB00 27" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

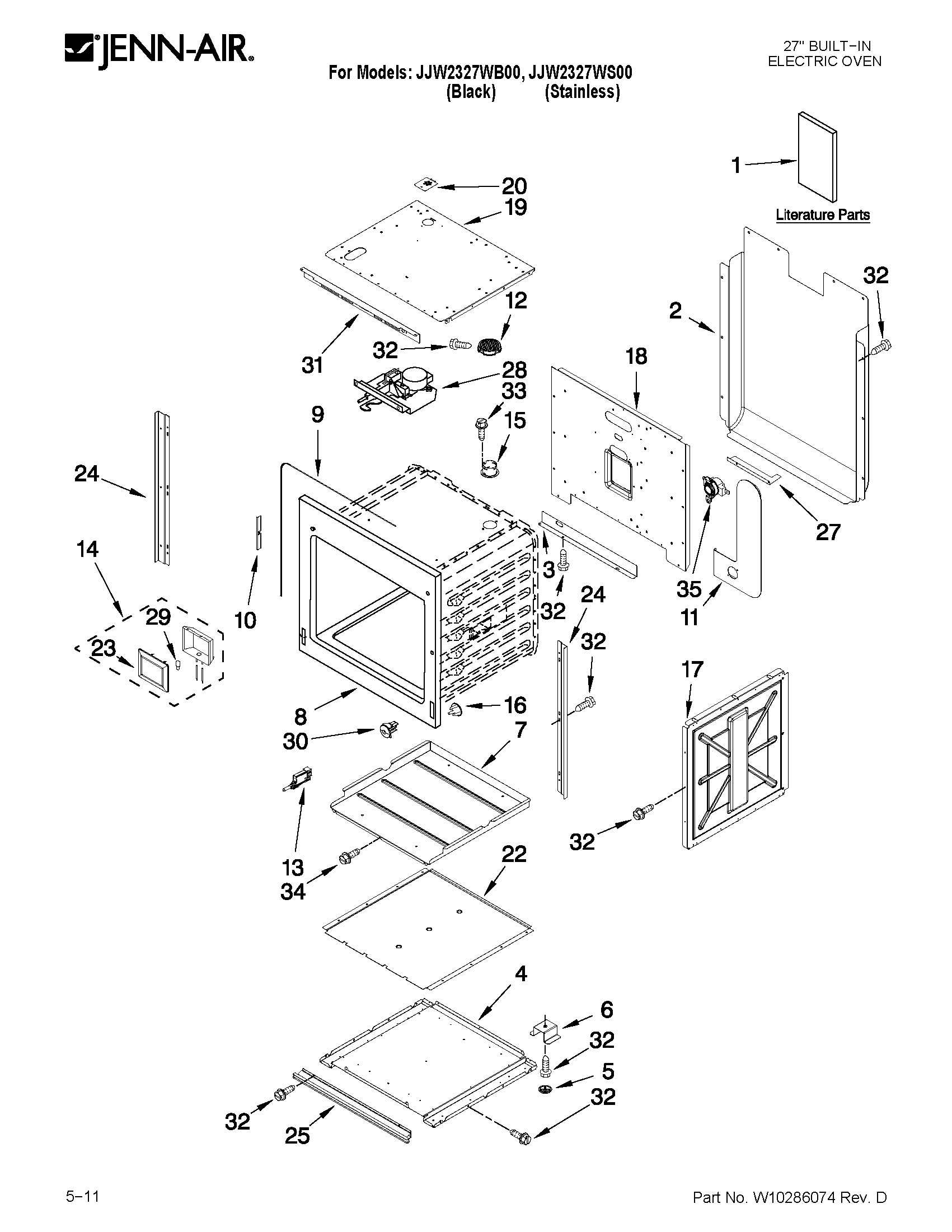

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Sensor Probe 7430P043-60
#10

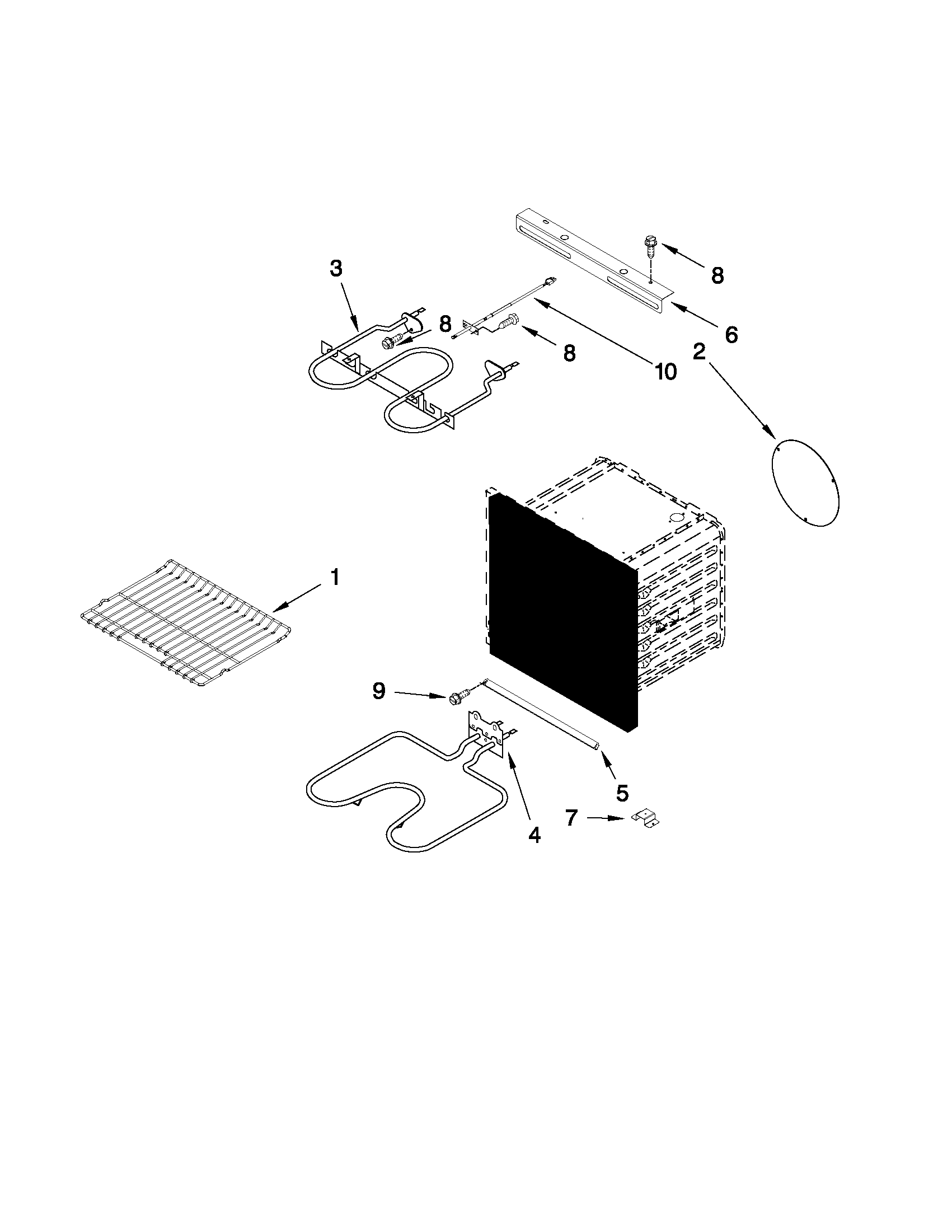

Internal oven parts diagram

Sensor probe

Part #7430P043-60

Replaced by #WP74008369

?
Manufacturer substitution
This part replaces 7430P043-60. Substitute parts can look different from the original.
BEST SELLER
$96.39 |
11% OFF Phone Price : $108.39
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Wall Oven Thermal Fuse W10277609
#13

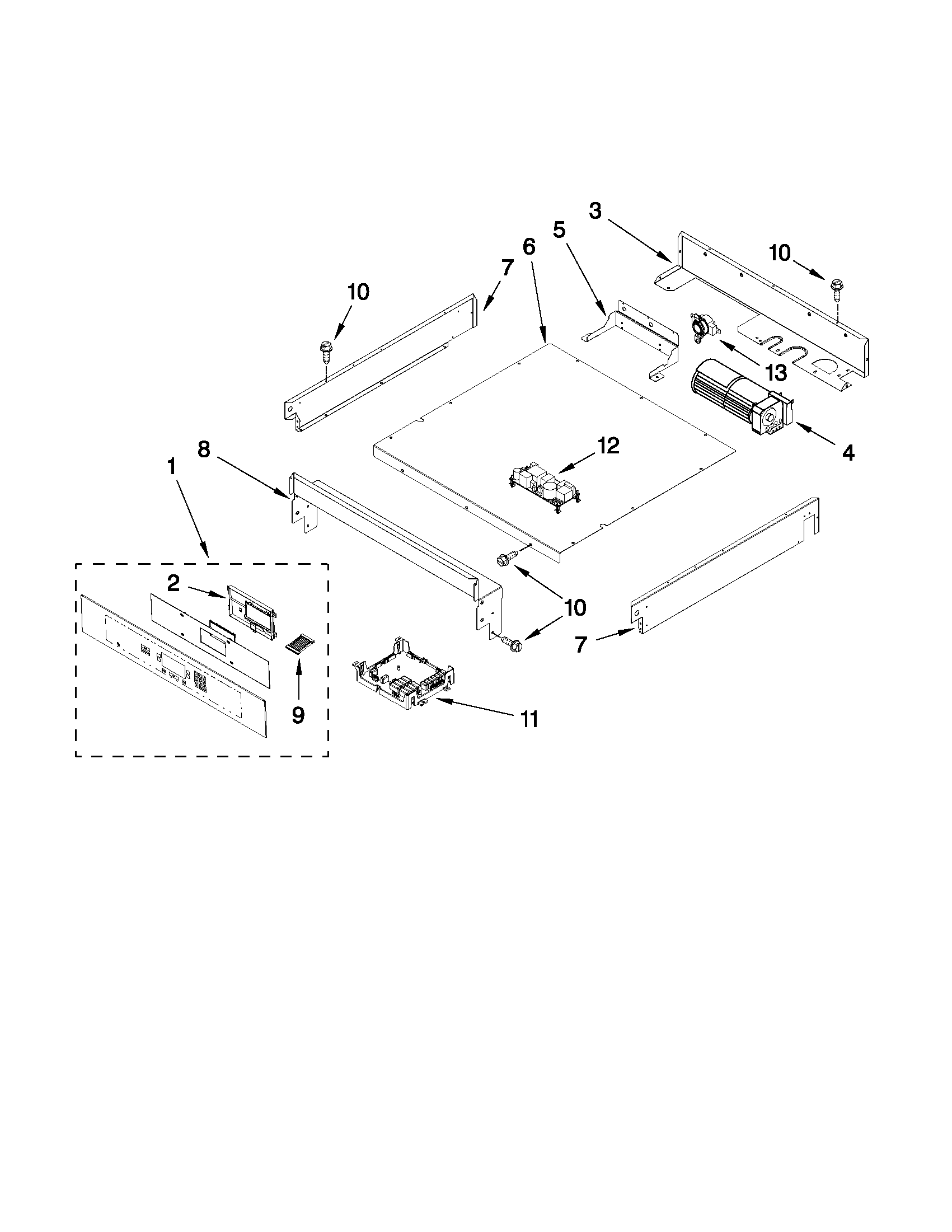

Control panel parts diagram

Wall oven thermal fuse

Part #W10277609

$82.56
In Stock
Support 3807F754-45
#6

Internal oven parts diagram

Support

Part #3807F754-45

$7.80
In Stock
Electronic Control W10186901
#2

Control panel parts diagram

Electronic control

Part #W10186901

Replaced by #W10811884

?
Manufacturer substitution
This part replaces W10186901. Substitute parts can look different from the original.
$384.01 |
$12.00 OFF Phone Price : $396.01
In Stock
Wire Harness W10186998
#NI

Optional parts diagram

Wire harness

Part #W10186998

$188.84
In Stock
Wall Oven Door Bumper W10176233
#9

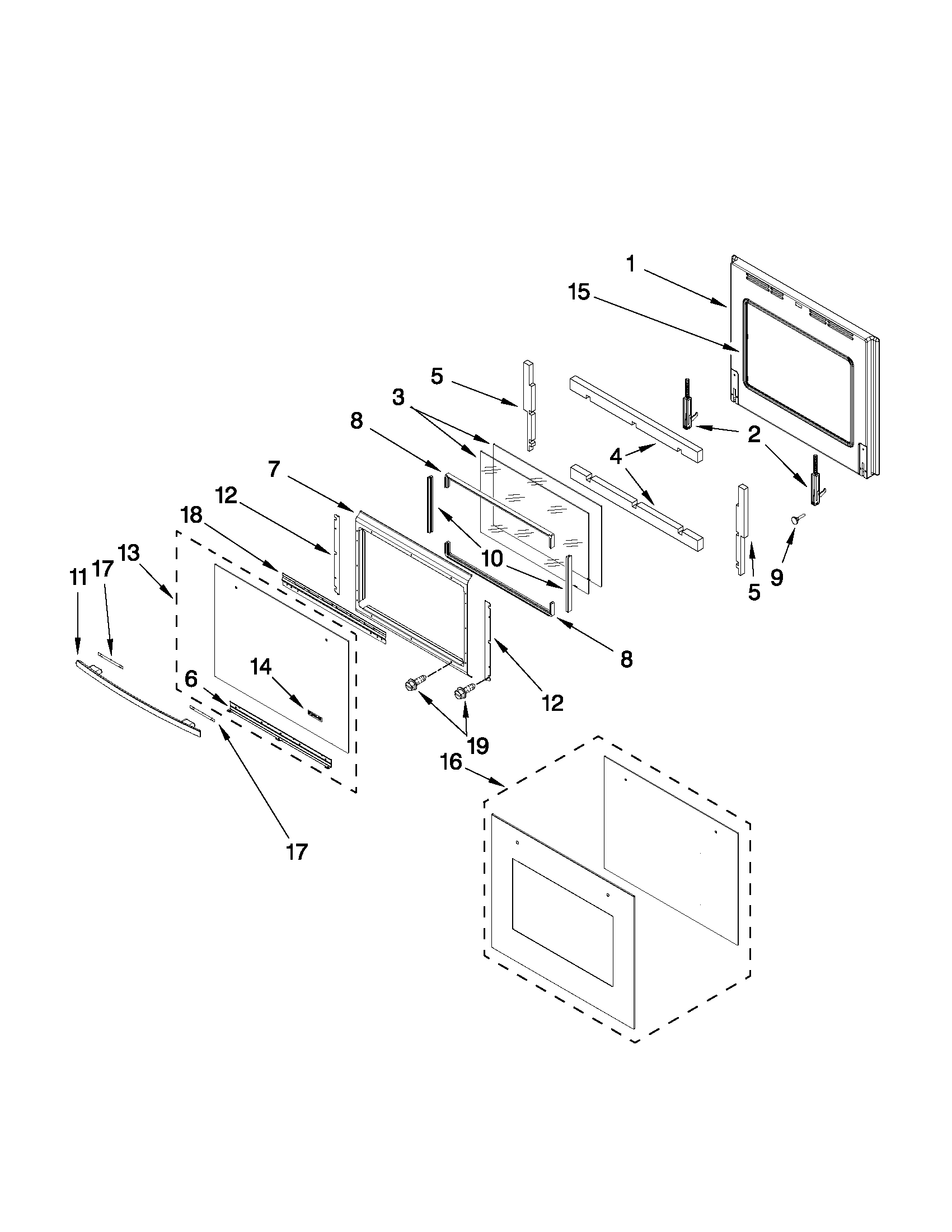

Oven door parts diagram

Wall oven door bumper

Part #W10176233

This item is not returnable
$6.07
In Stock
Mounting Bracket W10176126
#18

Oven door parts diagram

Mounting bracket

Part #W10176126

$62.89
In Stock
Support W10176004
Support

Part #W10176004

$15.89
In Stock
Wall Oven Control Panel End Cap, Left W10176002
#7

Control panel parts diagram

Wall oven control panel end cap, left

Part #W10176002

$53.20
In Stock
