KitchenAid
Microwave/Hood Combo

Model # KHMS147HSS2 Official KitchenAid microwave

Here are the diagrams and repair parts for Official KitchenAid KHMS147HSS2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Diode 8184664
#19

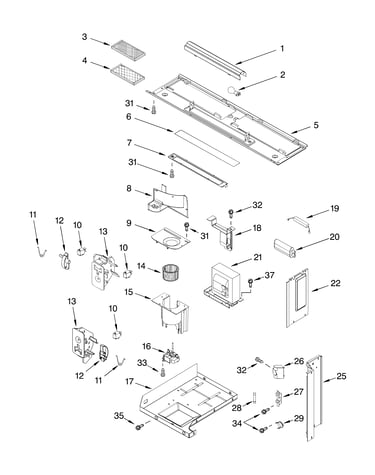

Interior and ventilation parts diagram

Diode

Part #8184664

Replaced by #W11256462

?
Manufacturer substitution
This part replaces 8184664. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Capacitor 8169501
#20

Interior and ventilation parts diagram

Capacitor

Part #8169501

Replaced by #W10850446

?
Manufacturer substitution
This part replaces 8169501. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
6% OFF Phone Price : $100.83
In Stock
Thermal Fuse 4393308
#28

Interior and ventilation parts diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
$23.80
In Stock
Grease Filter 4393790
#4

Interior and ventilation parts diagram

Grease filter

Part #4393790

Replaced by #6802A

?
Manufacturer substitution
This part replaces 4393790. Substitute parts can look different from the original.
This item is not returnable
$22.99 |
21% OFF Phone Price : $28.99
In Stock
Microwave/hood Grille Vent 8184641
#8B

Cabinet and installation parts diagram

Microwave/hood grille vent

Part #8184641

Replaced by #8205008

?
Manufacturer substitution
This part replaces 8184641. Substitute parts can look different from the original.
$162.24 |
7% OFF Phone Price : $174.24
In Stock
Support 8183949
#11

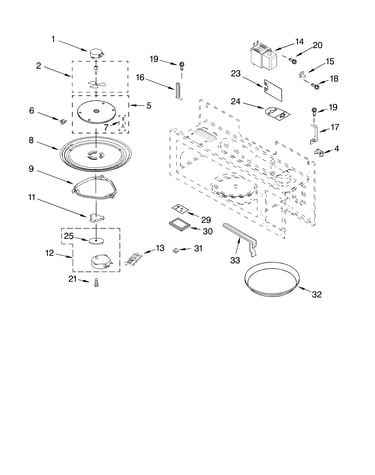

Magnetron and turntable parts diagram

Support

Part #8183949

Replaced by #W10435116

?
Manufacturer substitution
This part replaces 8183949. Substitute parts can look different from the original.
This item is not returnable
$22.09 |
21% OFF Phone Price : $28.09
In Stock
Microwave Turntable Motor Spacer (replaces 4393588, 8206101) 8184109
#25

Magnetron and turntable parts diagram

Microwave turntable motor spacer (replaces 4393588, 8206101)

Part #8184109

This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Interlock 4393595
#13

Interior and ventilation parts diagram

Interlock

Part #4393595

Replaced by #8205572

?
Manufacturer substitution
This part replaces 4393595. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Mounting Cabinet 8169666
#1

Cabinet and installation parts diagram

Mounting cabinet

Part #8169666

Replaced by #WP8206174

?
Manufacturer substitution
This part replaces 8169666. Substitute parts can look different from the original.
This item is not returnable
$22.59 |
21% OFF Phone Price : $28.59
In Stock
Screw 4393834
#10

Cabinet and installation parts diagram

Screw

Part #4393834

Replaced by #WP4393834

?
Manufacturer substitution
This part replaces 4393834. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
