Thermador
Range/Microwave Combo

Model # CMT231S Official Thermador oven

Here are the diagrams and repair parts for Official Thermador CMT231S oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

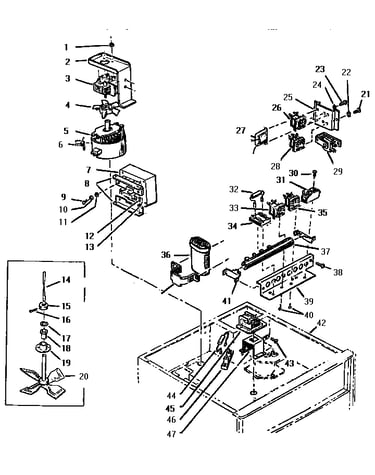

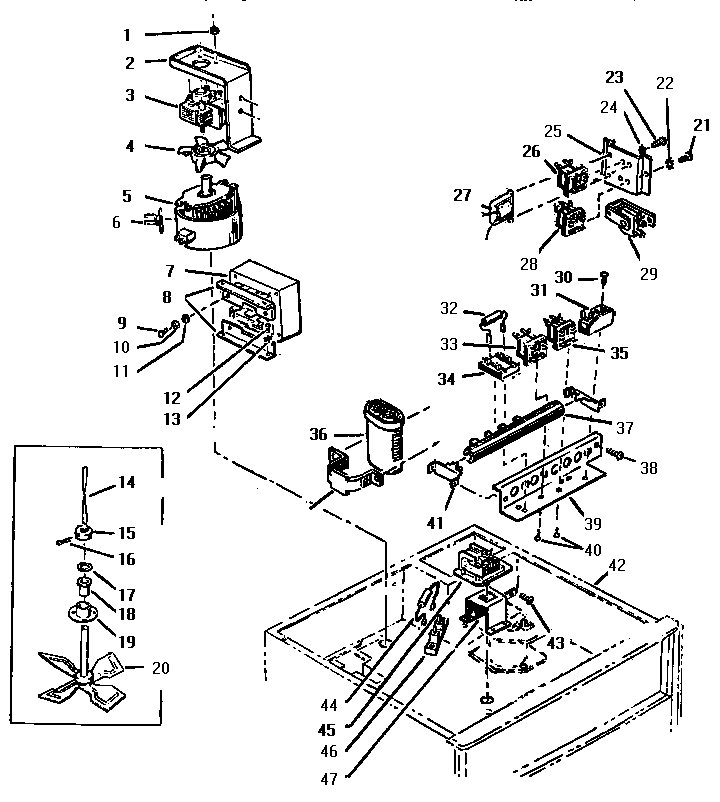

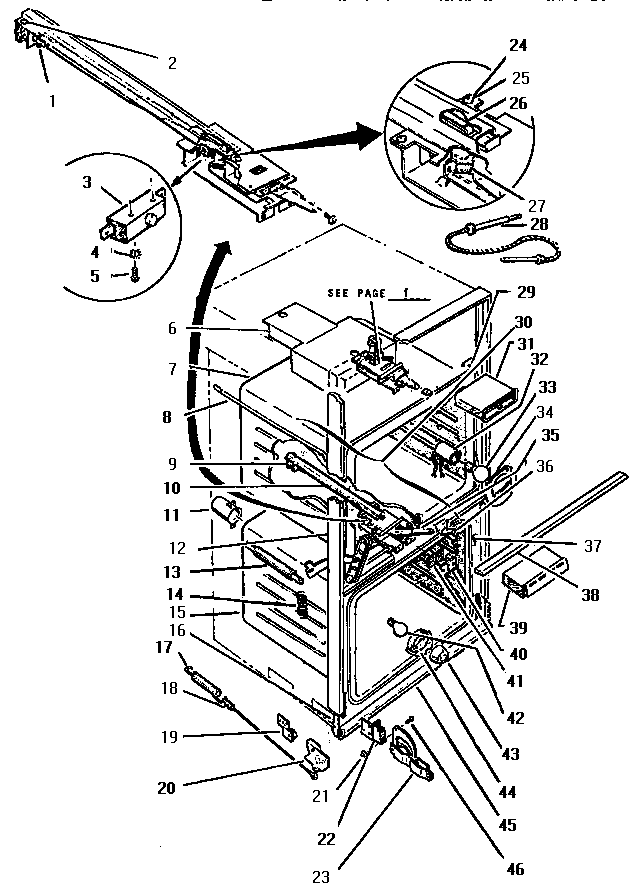

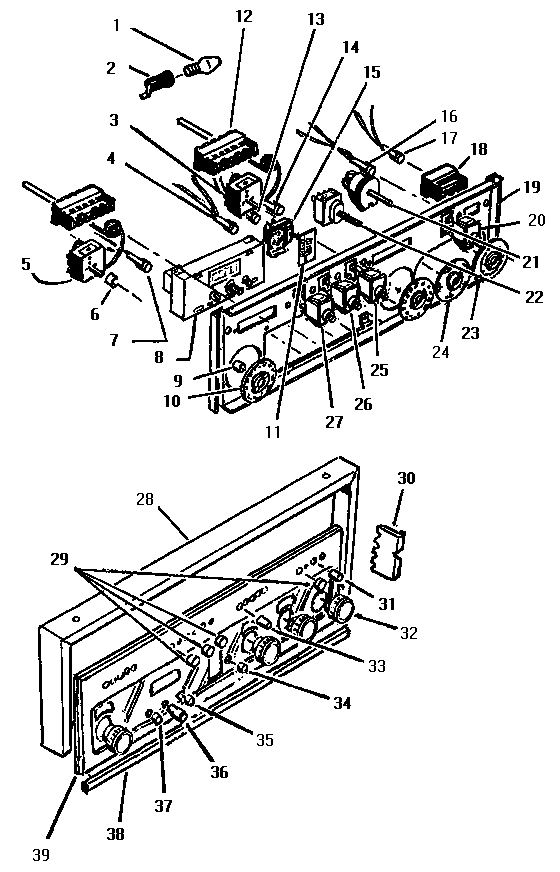

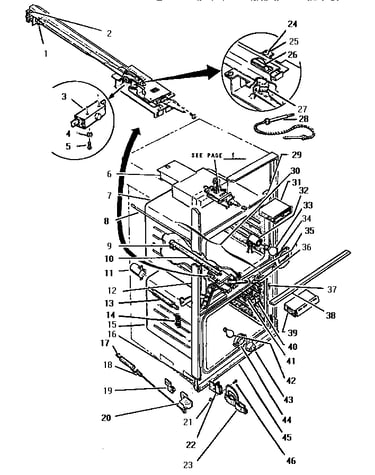

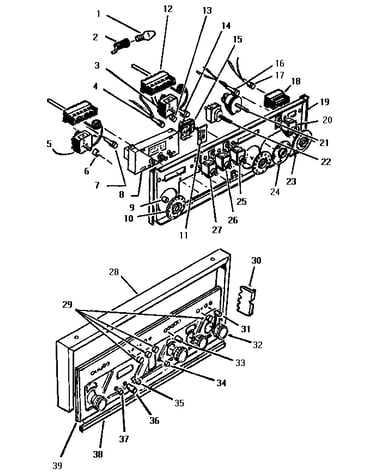

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 286 parts  |
Cover 14-34-887
#7

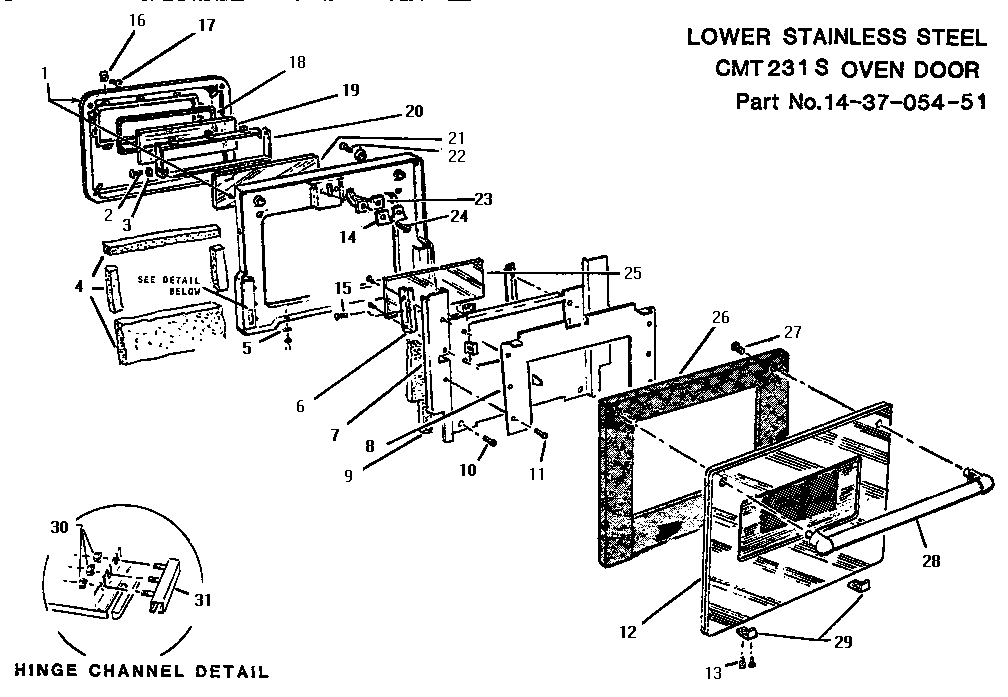

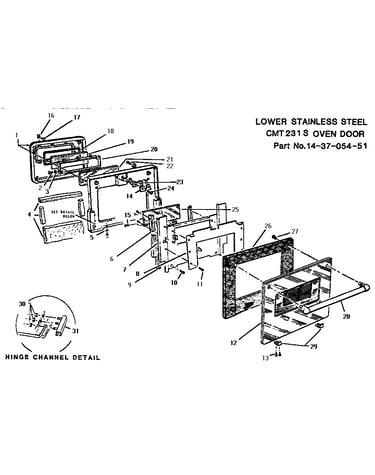

Oven door, lower diagram

Cover

Part #14-34-887

$56.99
In Stock
Guard 14-34-809
#15

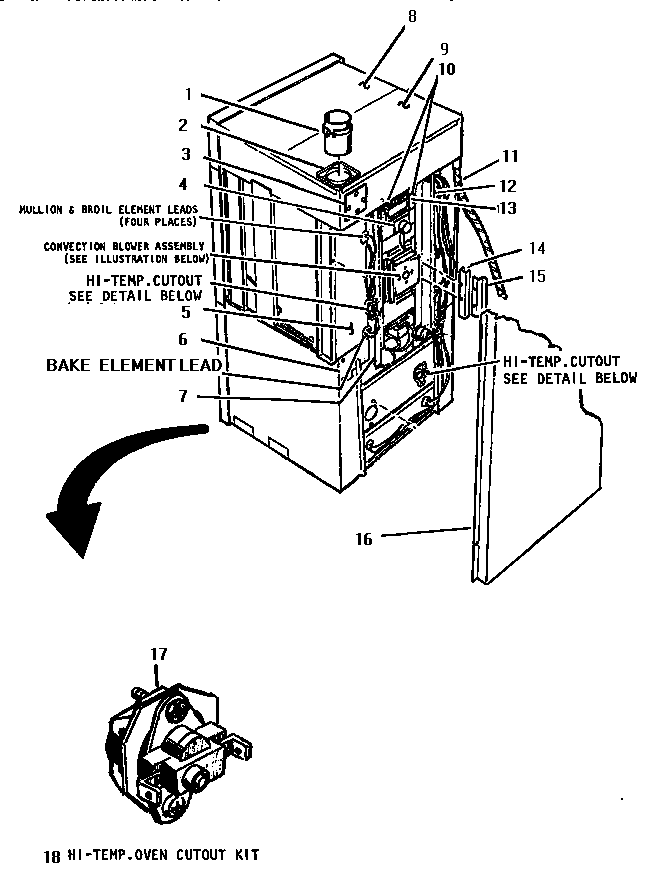

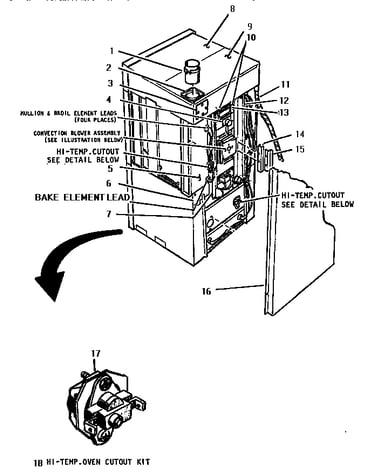

Rear body diagram

Guard

Part #14-34-809

This item is not returnable
$2.29
In Stock
Retainer 14-34-795
#4

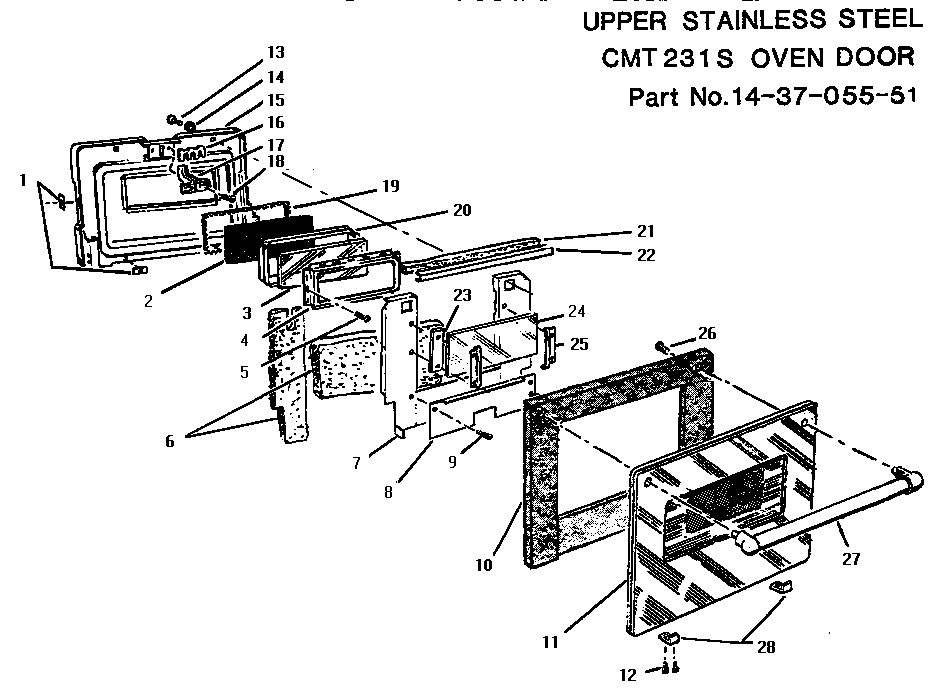

Oven door, upper diagram

Retainer

Part #14-34-795

This item is not returnable
$6.99
In Stock
Cover 14-34-884
#7

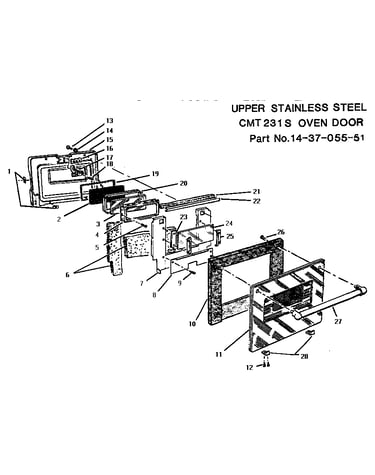

Oven door, upper diagram

Cover

Part #14-34-884

$67.49
In Stock
Shield 14-34-812
#12

Rear body diagram

Shield

Part #14-34-812

$12.99
In Stock
Bracket 14-34-831
#1

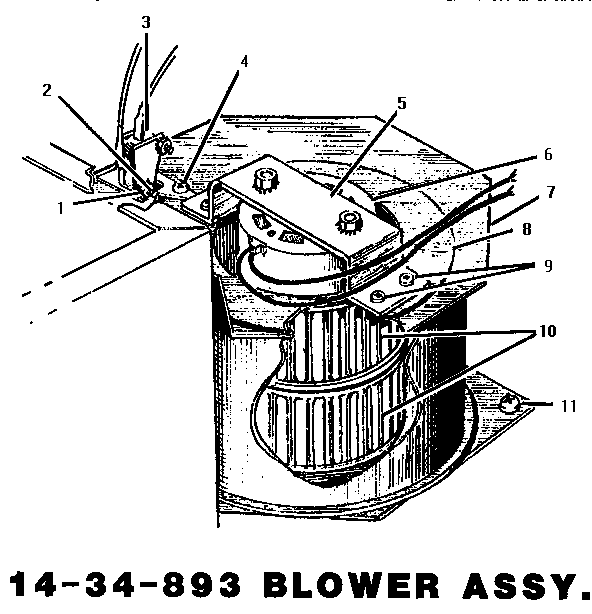

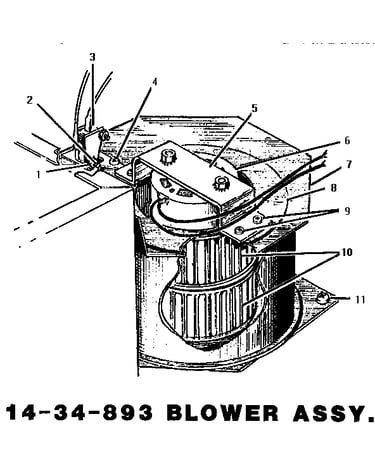

Convection blower assembly diagram

Bracket

Part #14-34-831

$17.49
In Stock
Plate 14-34-807
#7

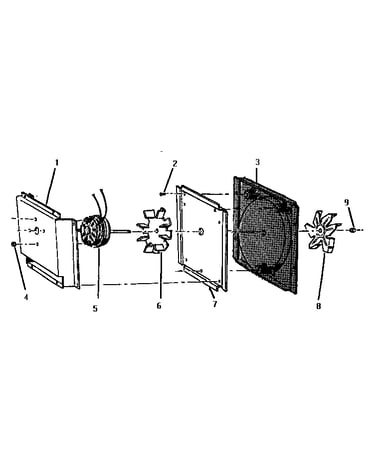

Convection blower assembly diagram

Plate

Part #14-34-807

This item is not returnable
$2.49
In Stock
Mounting Bracket 14-34-289-01
#24A

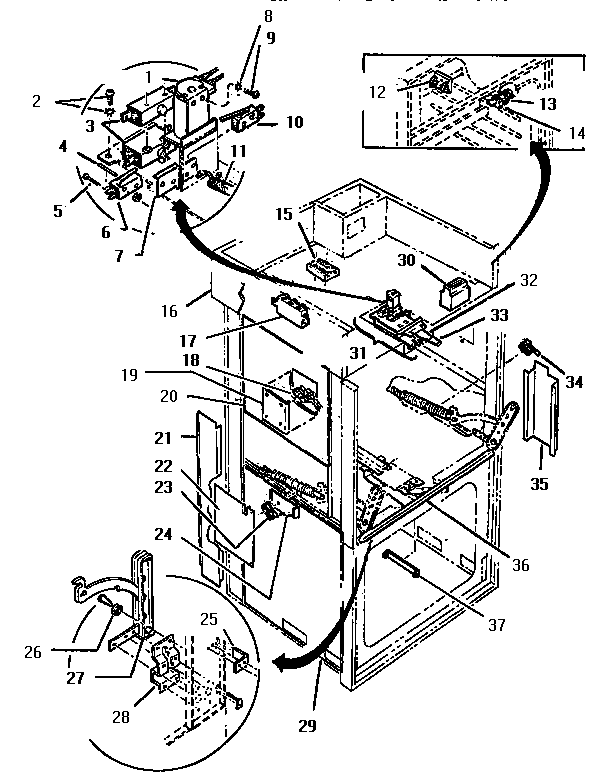

Switches and additional parts diagram

Mounting bracket

Part #14-34-289-01

$10.99
In Stock
Channel 14-34-814
#14

Rear body diagram

Channel

Part #14-34-814

This item is not returnable
$4.49
In Stock
Grid 14-39-072
#6

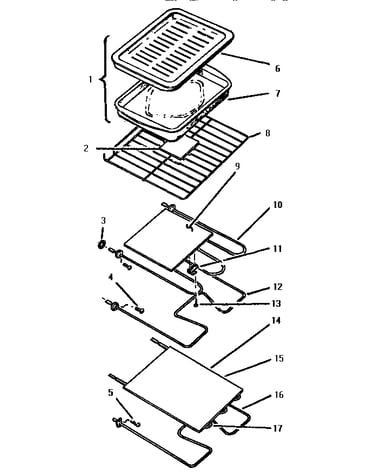

Rack, elements & pan assembly diagram

Grid

Part #14-39-072

$64.99
In Stock
