Model # SHE43C05UC/40 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE43C05UC-40 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

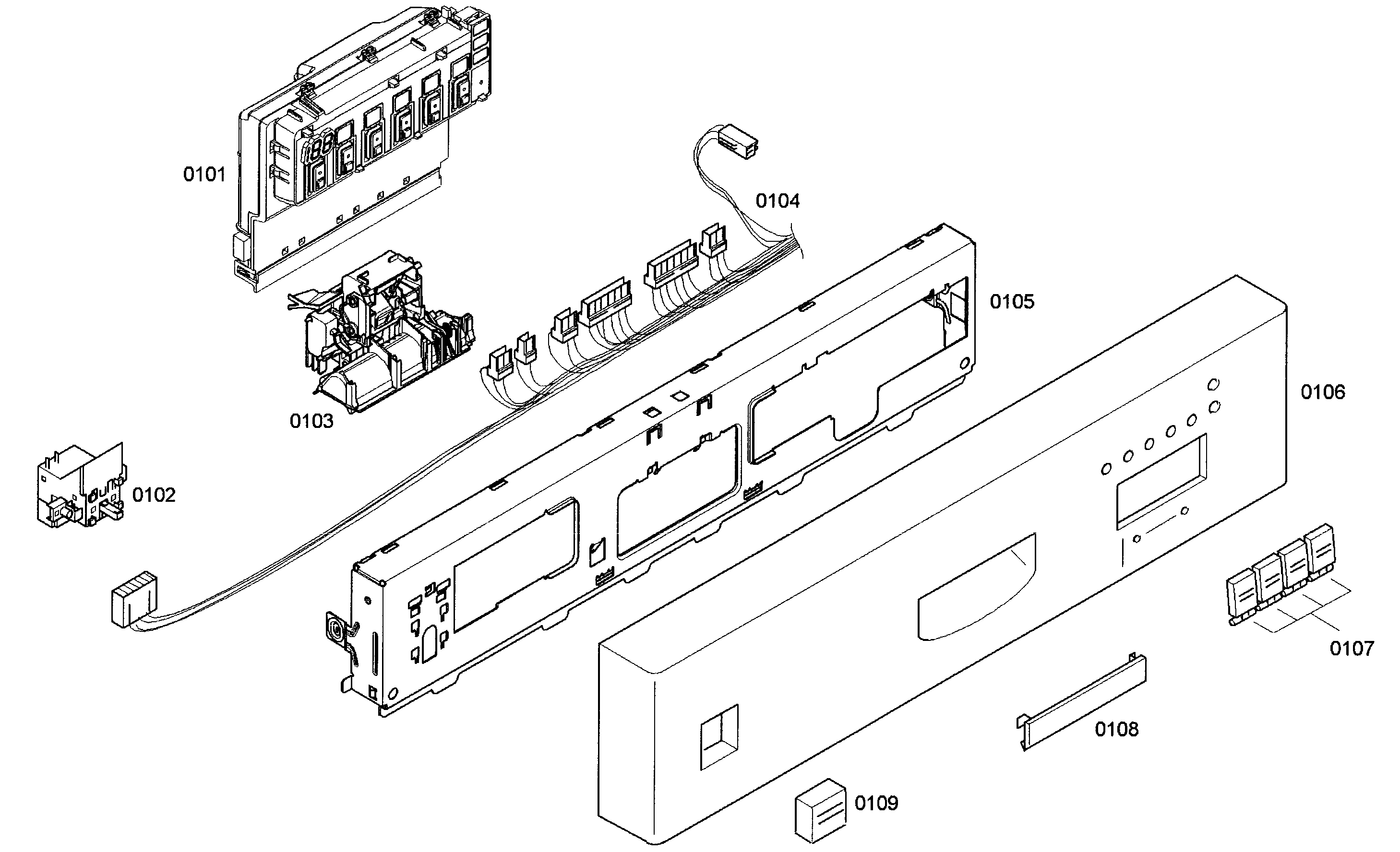

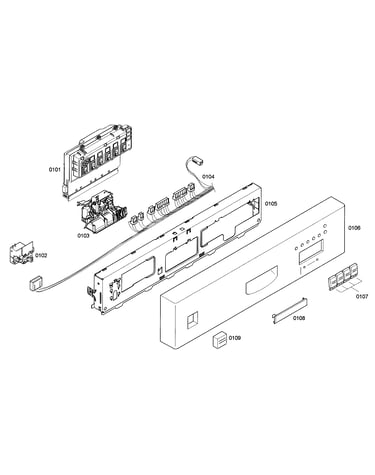

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Motor 167082
#417

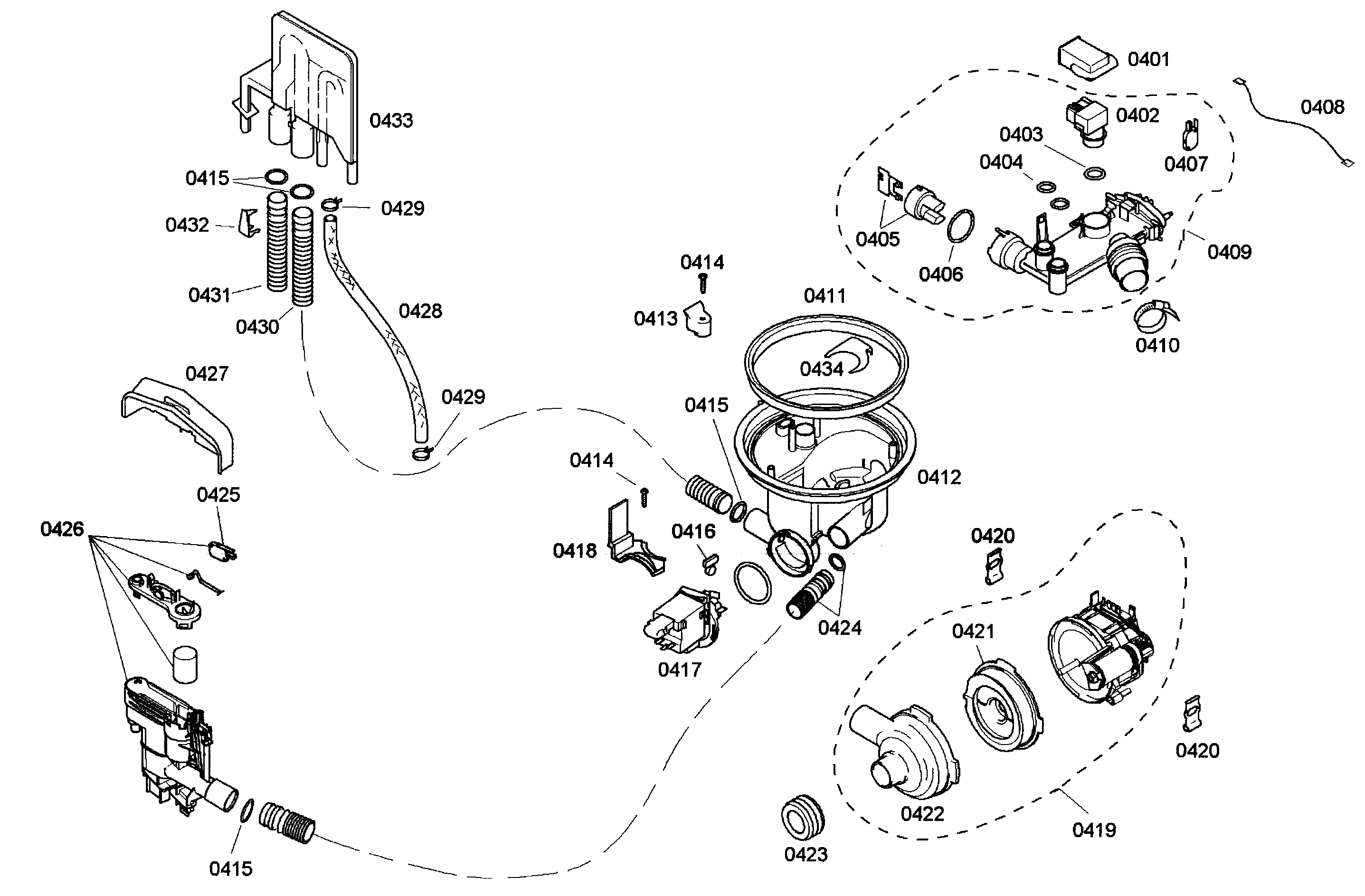

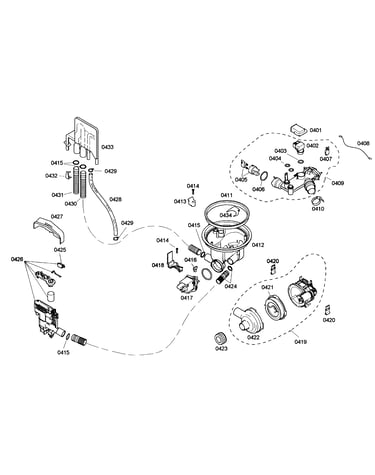

Pump diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Recirculation Pump Assembly 442548
#419

Pump diagram

Dishwasher recirculation pump assembly

Part #442548

Replaced by #00442548

?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Hose Clamp 172272
#410

Pump diagram

Hose clamp

Part #172272

Replaced by #00172272

?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Door Seal 432490
#203

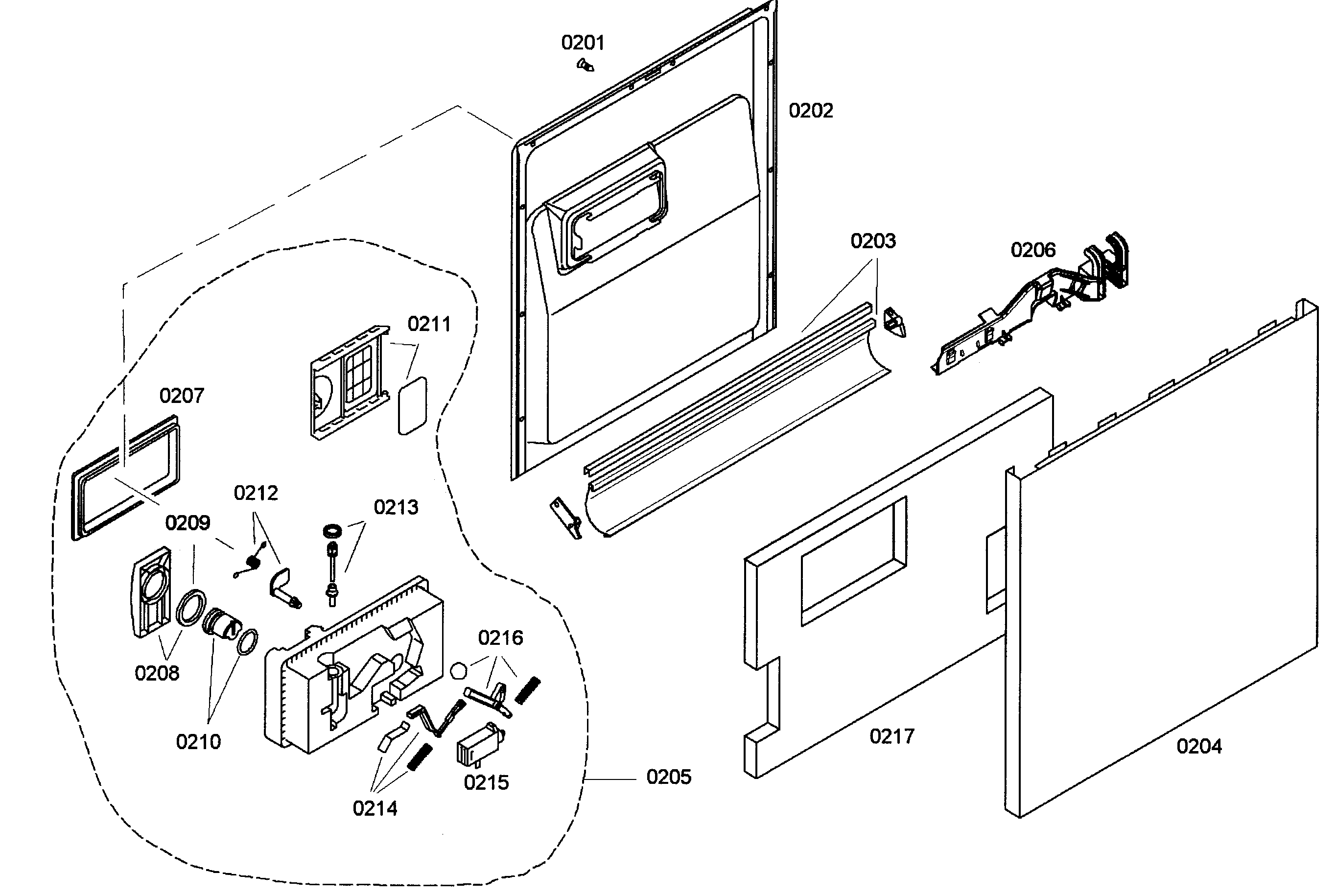

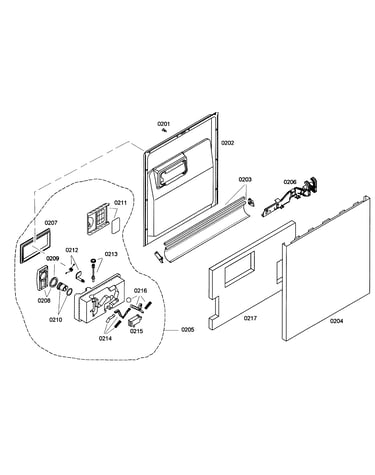

Door assy diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Lower Rack 434647
#614

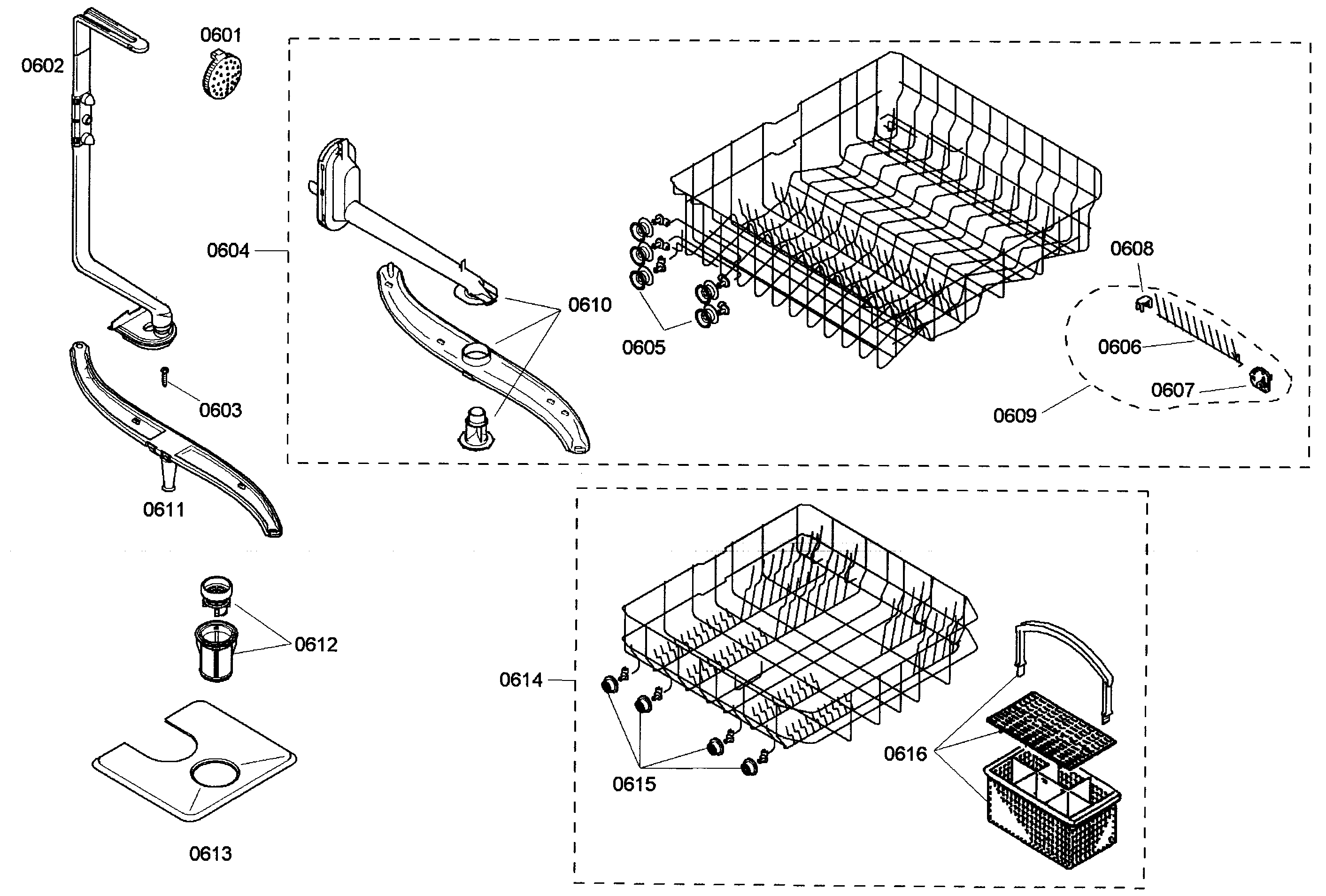

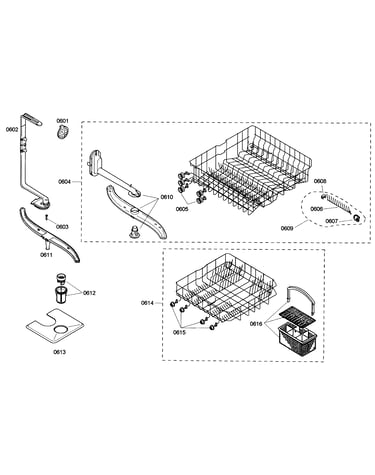

Baskets diagram

Lower rack

Part #434647

Replaced by #00249276

?
Manufacturer substitution
This part replaces 434647. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
Back Order
Dishwasher Lower Rack 249276
#614A

Baskets diagram

Dishwasher lower rack

Part #249276

Replaced by #00249276

?
Manufacturer substitution
This part replaces 249276. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
Back Order
Dishwasher Water Inlet Valve 263833
#433

Pump diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Dishwasher Screw 151703
#201

Door assy diagram

Dishwasher screw

Part #151703

Replaced by #00151703

?
Manufacturer substitution
This part replaces 151703. Substitute parts can look different from the original.
This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Bearing 165296
#505

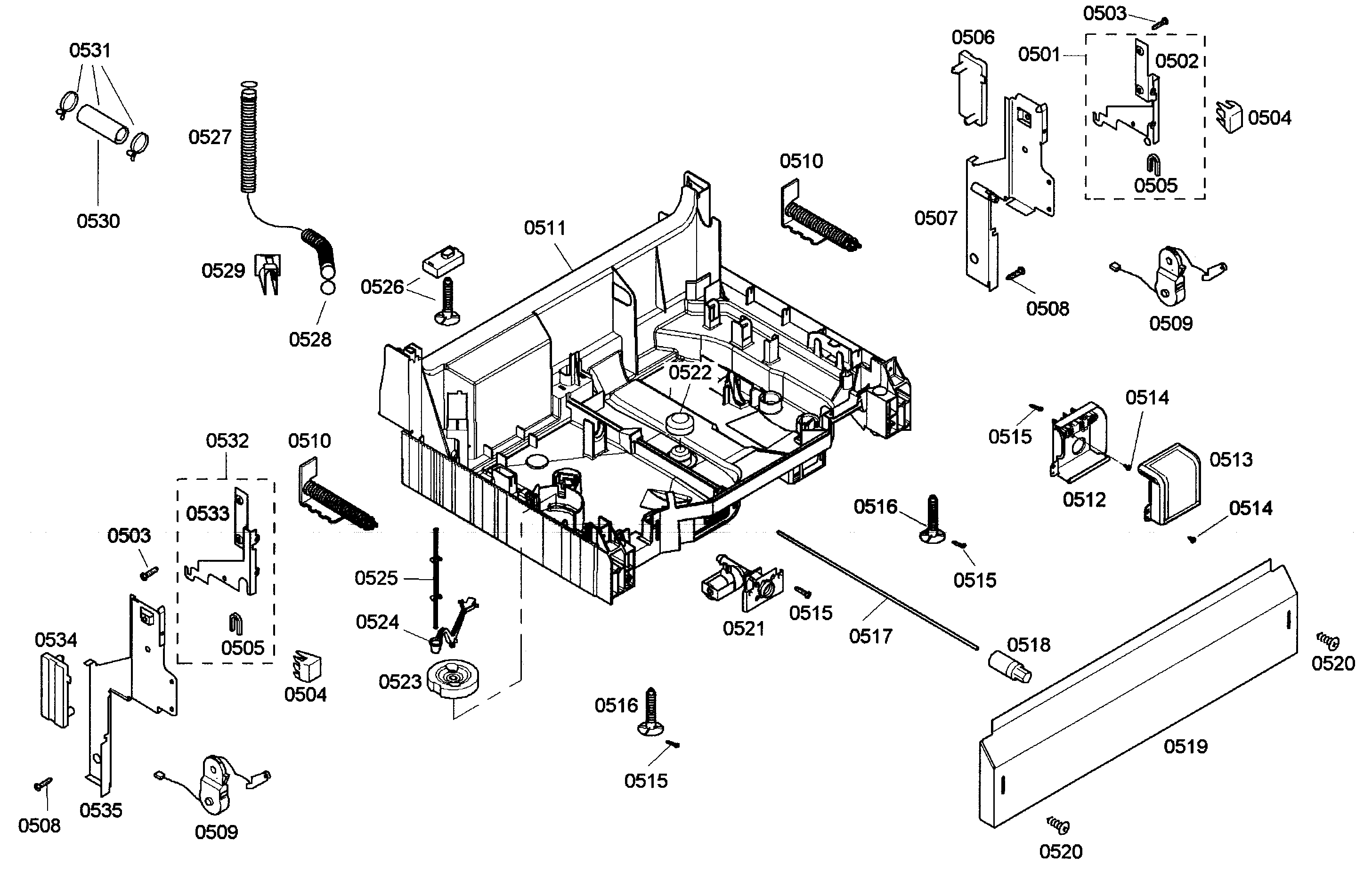

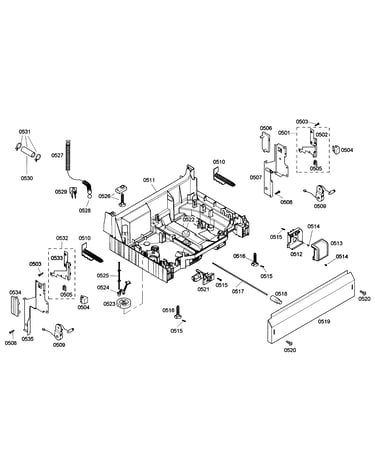

Base assy diagram

Bearing

Part #165296

Replaced by #00165296

?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Dishwasher Dishrack Slide Rail Stop, Upper 165254
#306

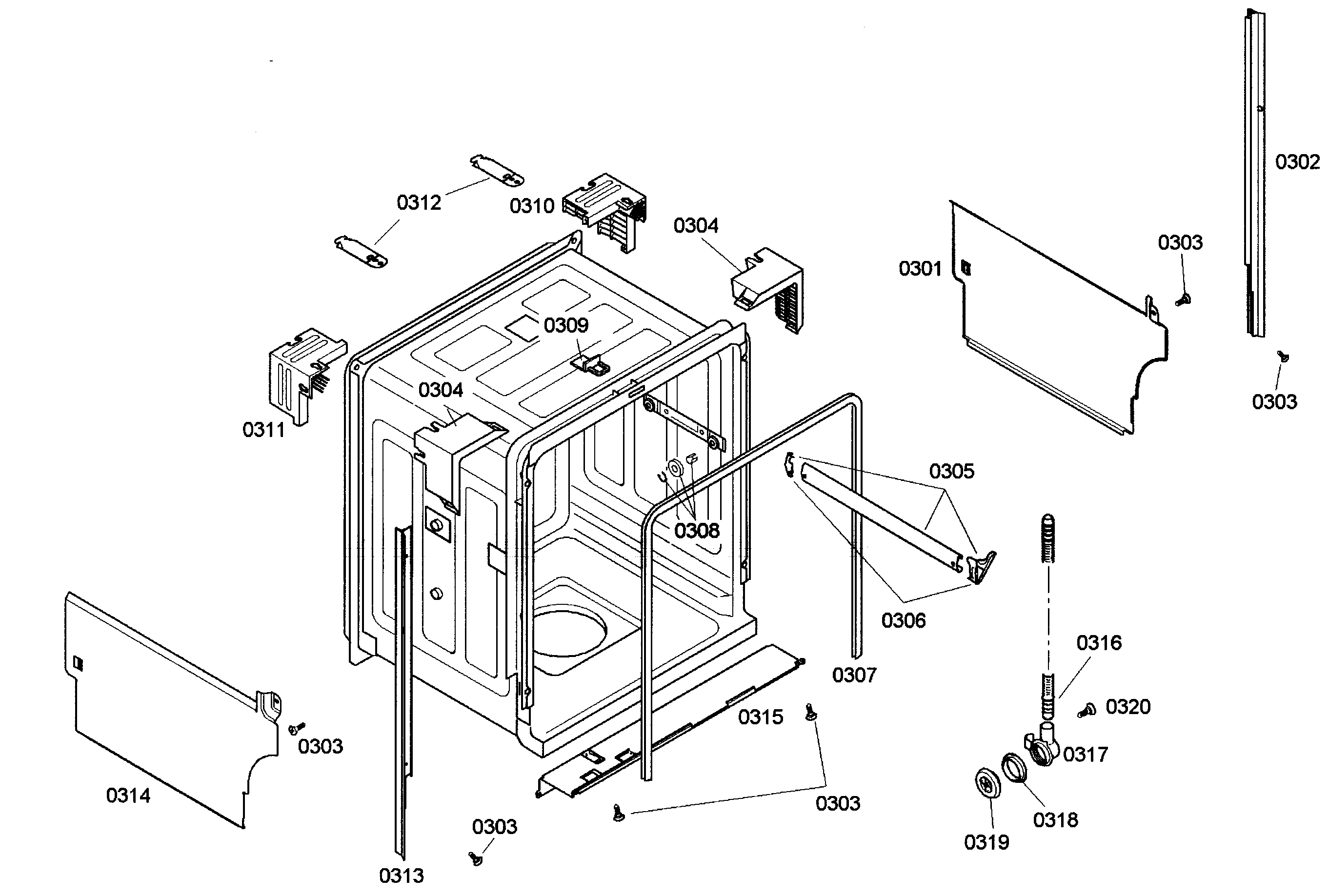

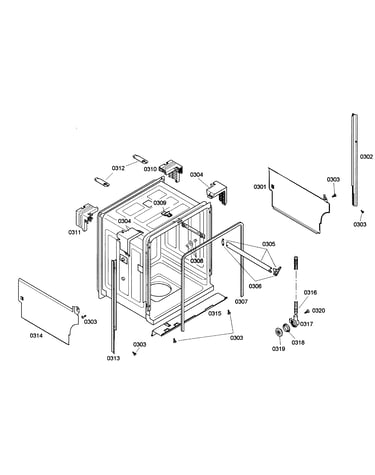

Cabinet diagram

Dishwasher dishrack slide rail stop, upper

Part #165254

Replaced by #00165254

?
Manufacturer substitution
This part replaces 165254. Substitute parts can look different from the original.
This item is not returnable
$15.56 |
11% OFF Phone Price : $17.56
In Stock
