Kenmore Elite
Electric Cooktop

Model # 79045413412 Official Kenmore Elite electric counter unit

Here are the diagrams and repair parts for Official Kenmore Elite 79045413412 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

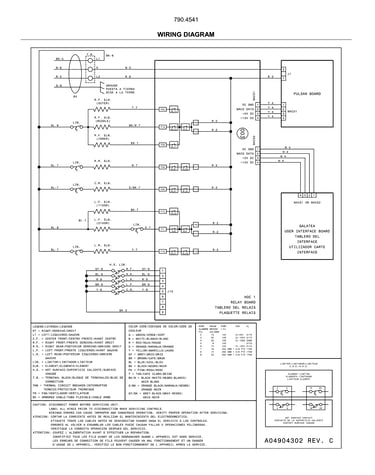

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Ikea Range Radiant Surface Element, 9-in (replaces 316530000) 316530001
#15B

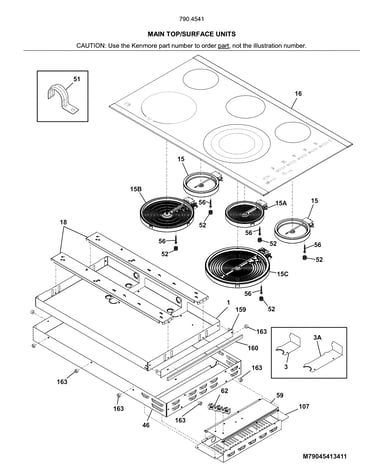

Main top/surface units diagram

Ikea range radiant surface element, 9-in (replaces 316530000)

Part #316530001

BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Terminal Block 316056000
#62

Main top/surface units diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

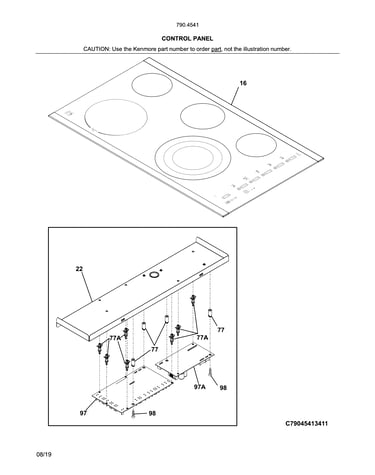

Control panel diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Cooktop Power Control Board 808844401
#97A

Control panel diagram

Cooktop power control board

Part #808844401

This item is not returnable
$159.70 |
7% OFF Phone Price : $171.70
In Stock
Screw 330447900
#NI

Main top/surface units diagram

Screw

Part #330447900

This item is not returnable
$11.17
In Stock
Cooktop Installation Bracket 387627700
#NI

Main top/surface units diagram

Cooktop installation bracket

Part #387627700

$26.63 |
18% OFF Phone Price : $32.63
In Stock
Cooktop Relay Control Board 316473301
#97

Control panel diagram

Cooktop relay control board

Part #316473301

$223.59 |
5% OFF Phone Price : $235.59
In Stock
Range Nut 5303323144
#NI

Main top/surface units diagram

Range nut

Part #5303323144

$8.83
In Stock
Range Triple Radiant Surface Element (replaces 318297809) 318297810
#15C

Main top/surface units diagram

Range triple radiant surface element (replaces 318297809)

Part #318297810

$245.54 |
5% OFF Phone Price : $257.54
In Stock
Range Radiant Surface Element, 7-in 318198851
#15A

Main top/surface units diagram

Range radiant surface element, 7-in

Part #318198851

$128.89 |
9% OFF Phone Price : $140.89
In Stock
