Model # 58075180500 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075180500 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

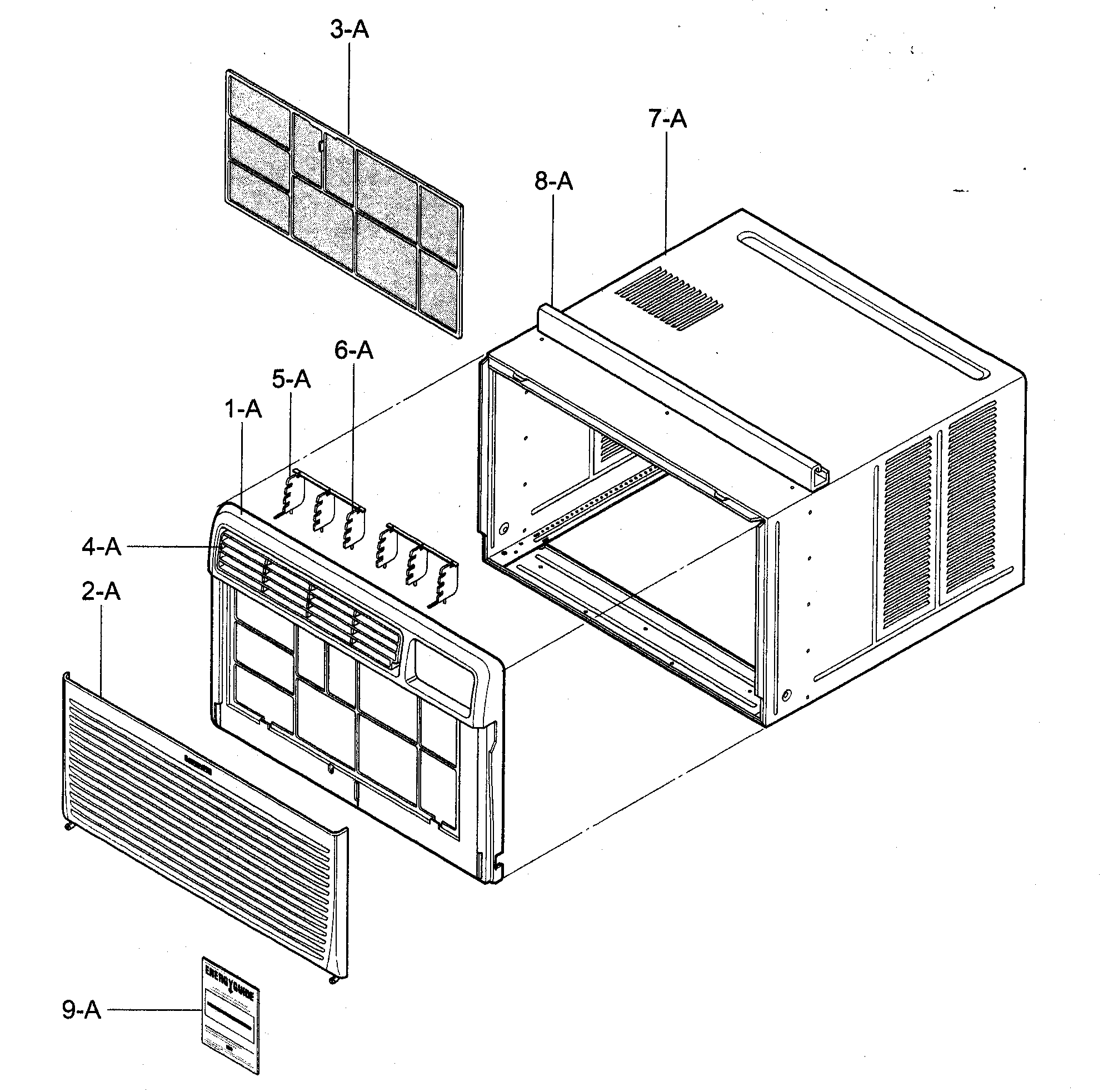

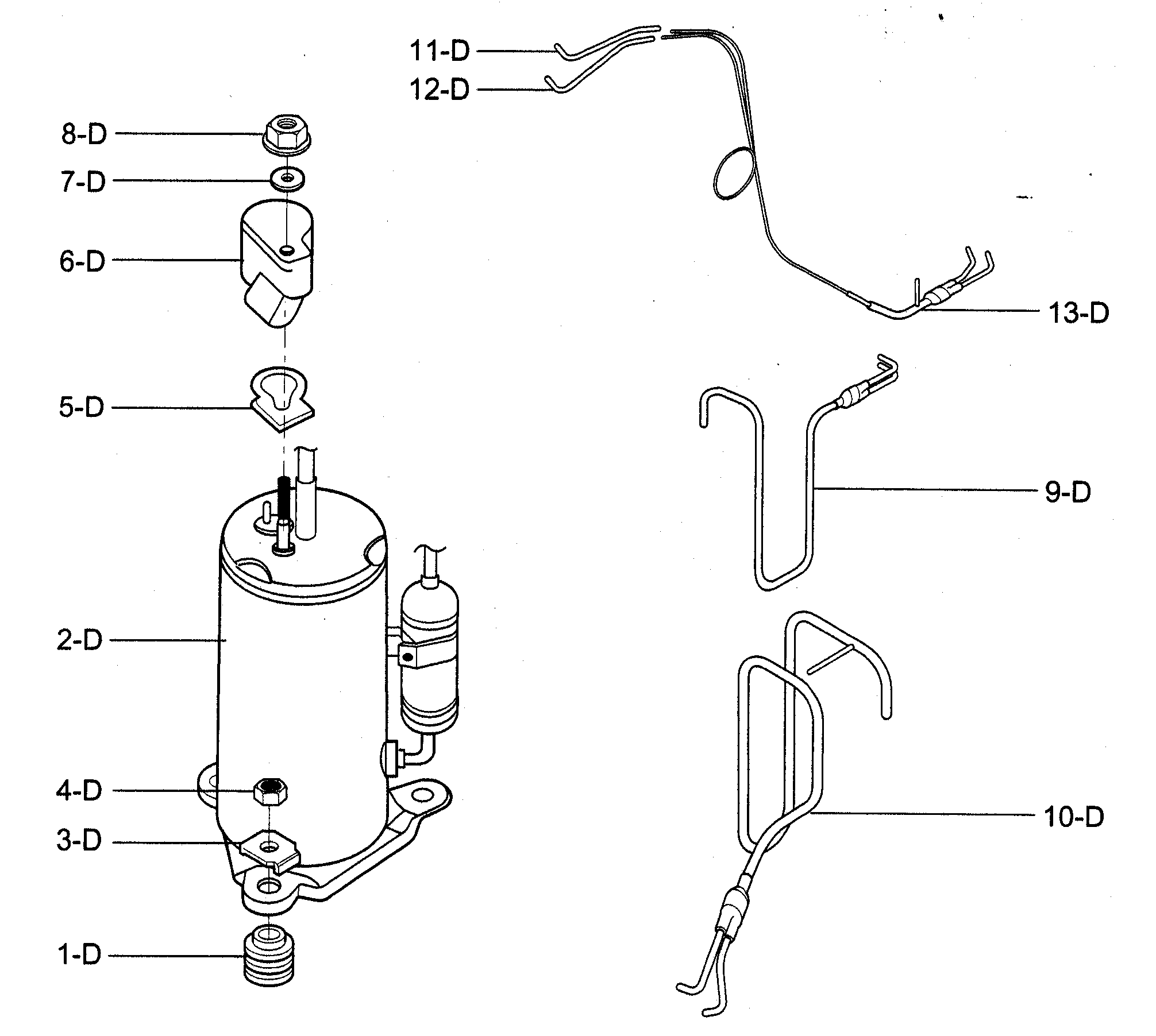

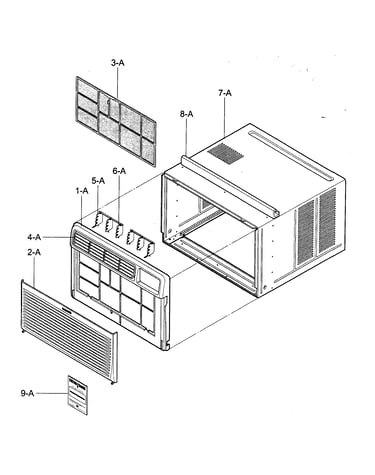

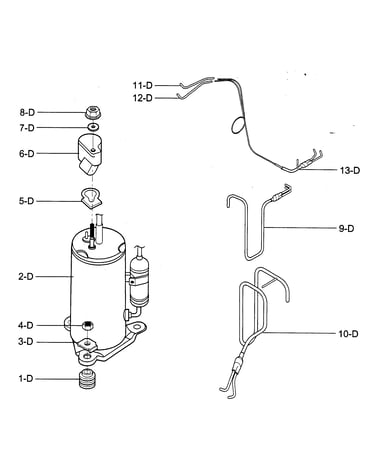

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Icp Room Air Conditioner Fan Motor Capacitor 0CZZA20001L
#6-B

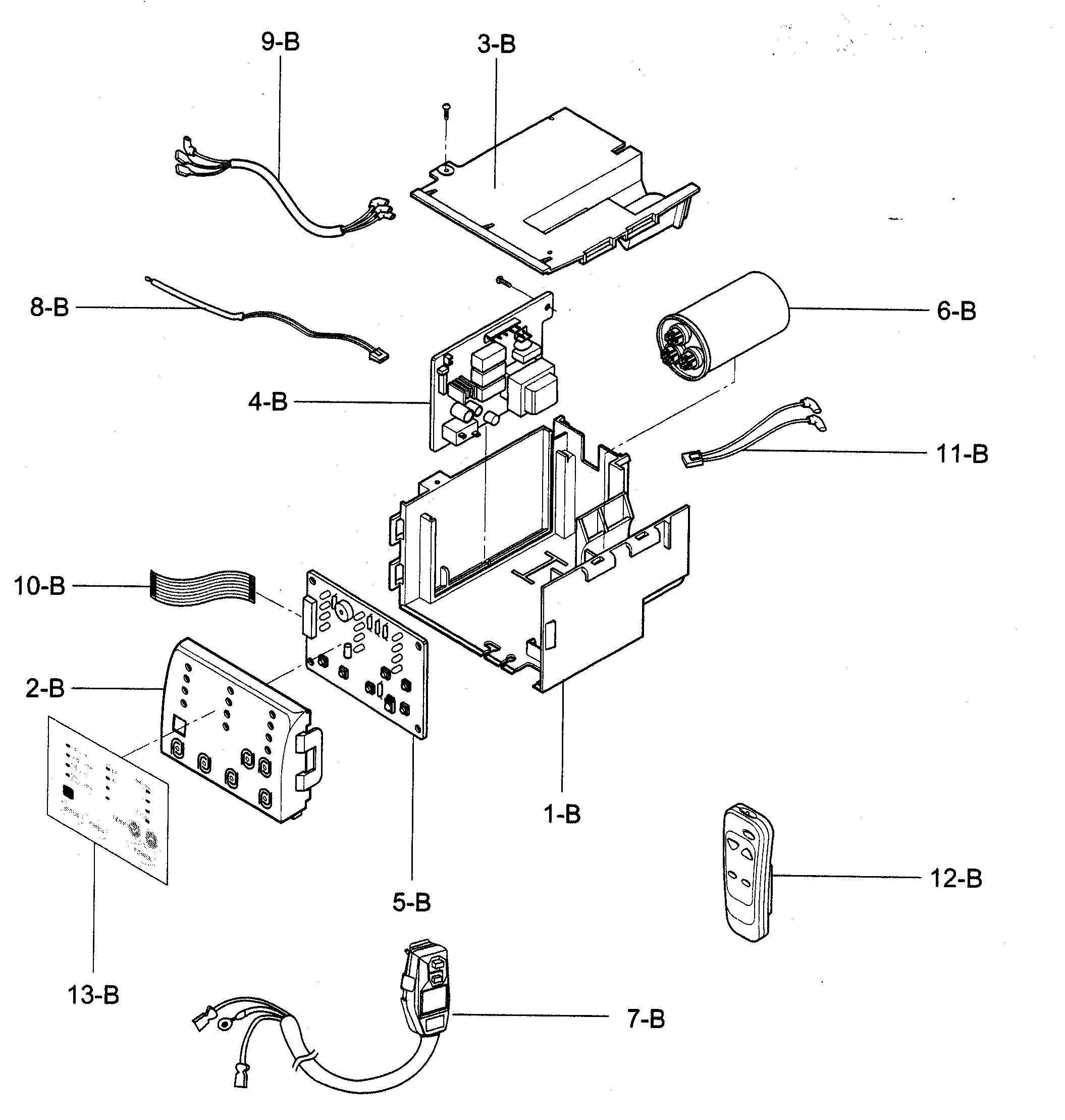

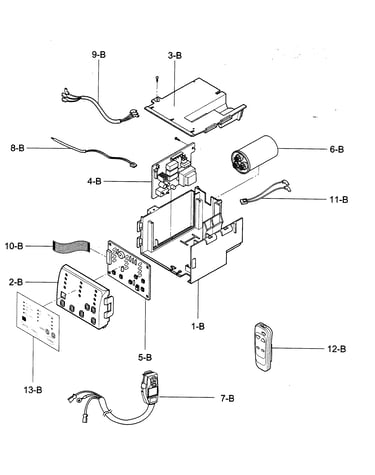

Control box assy diagram

Icp room air conditioner fan motor capacitor

Part #0CZZA20001L

$43.07 |
12% OFF Phone Price : $49.07
In Stock
Ac Power Cord Assembly 6411A20048J
#7-B

Control box assy diagram

Ac power cord assembly

Part #6411A20048J

Replaced by #EAD63469505

?
Manufacturer substitution
This part replaces 6411A20048J. Substitute parts can look different from the original.
$79.70 |
7% OFF Phone Price : $85.70
In Stock
Sill Bracket 3H01395C
#5-E

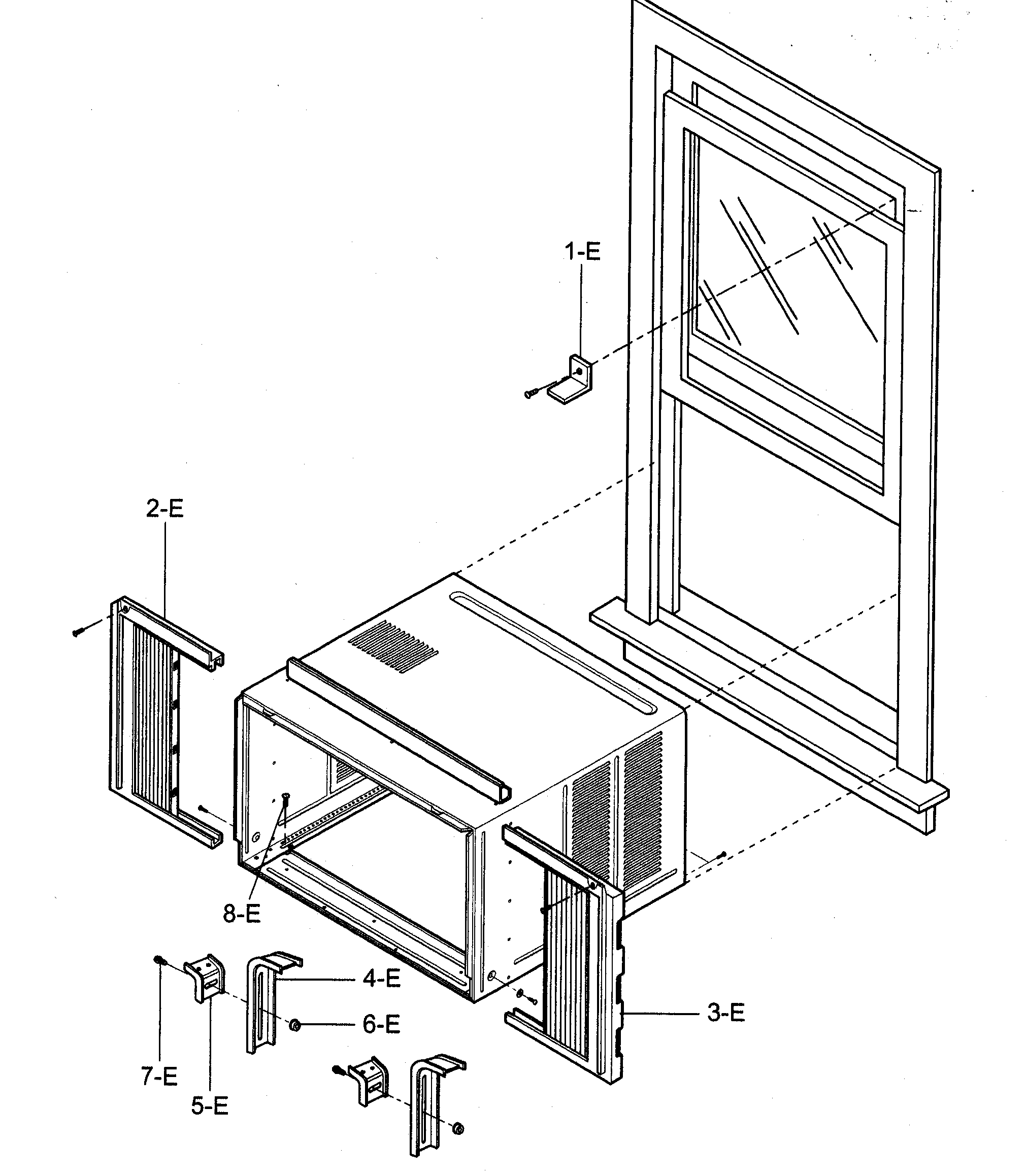

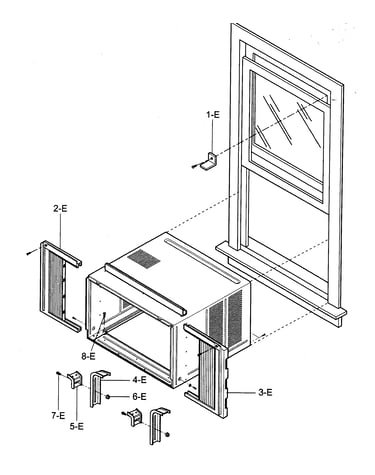

Installation kit assy diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
M-screw 4H01482A
#8-E

Installation kit assy diagram

M-screw

Part #4H01482A

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4H01482A. Substitute parts can look different from the original.
$71.96
In Stock
Bracket Support 3H01479D
#4-E

Installation kit assy diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
Connector 6631AR3843V
#9-B

Control box assy diagram

Connector

Part #6631AR3843V

$24.09
In Stock
Lg Lock Nut 4H01516A
#6-E

Installation kit assy diagram

Lg lock nut

Part #4H01516A

This item is not returnable
$4.51
In Stock
Barrier 4790A20031A
#4-C

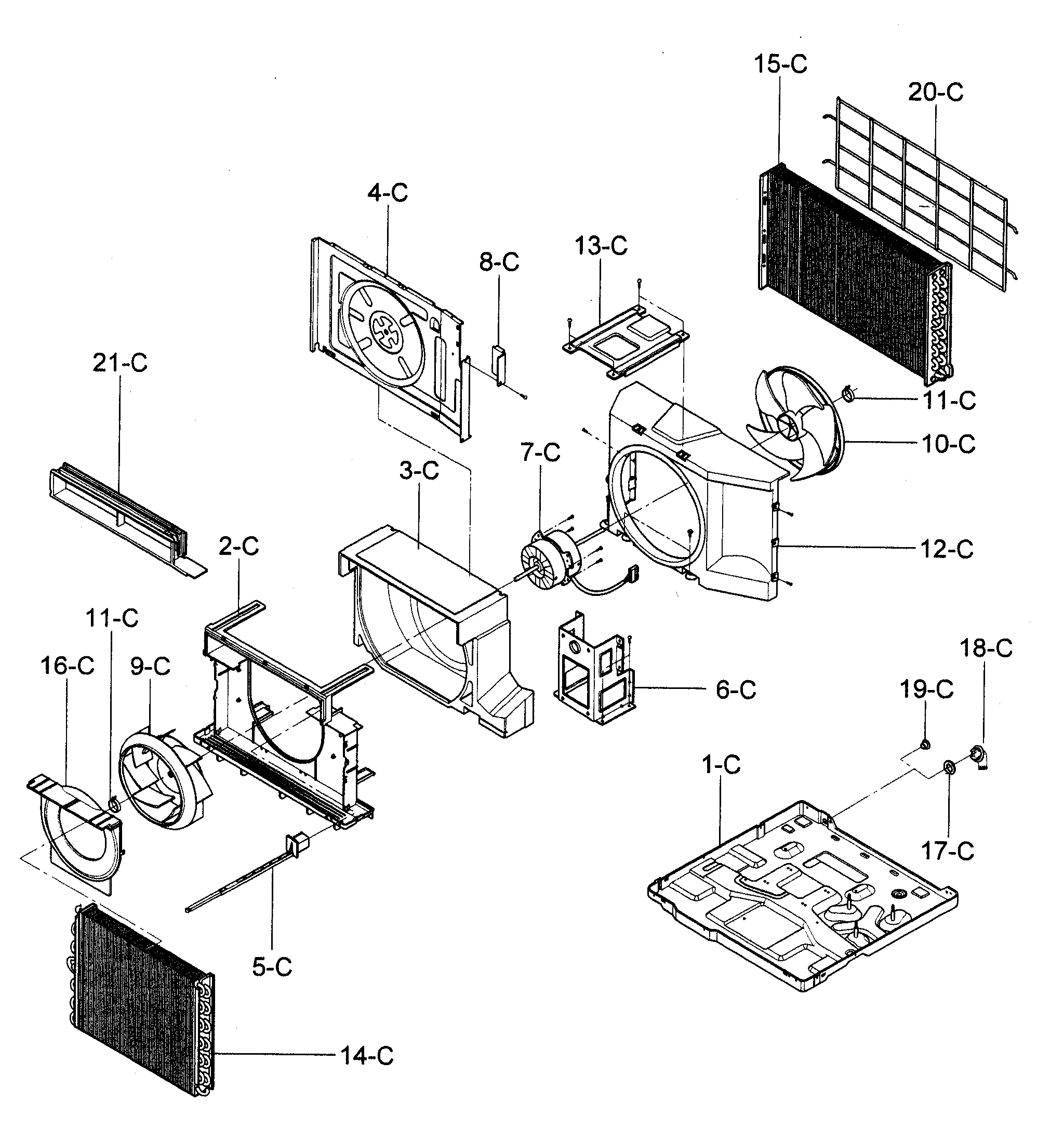

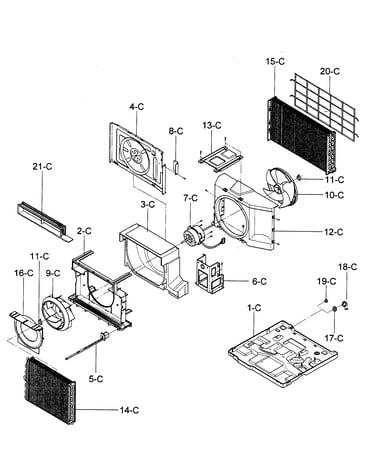

Air handling/cycle parts diagram

Barrier

Part #4790A20031A

$36.49
In Stock
Barrier,si 4790A30018A
#8-C

Air handling/cycle parts diagram

Barrier,si

Part #4790A30018A

This item is not returnable
$4.51
In Stock
Goldstar Orifice 4948A30008A
#16-C

Air handling/cycle parts diagram

Goldstar orifice

Part #4948A30008A

$15.49
In Stock
