KitchenAid
Dishwasher

Model # KUDS25SHAL1 Official KitchenAid dishwasher

Here are the diagrams and repair parts for Official KitchenAid KUDS25SHAL1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

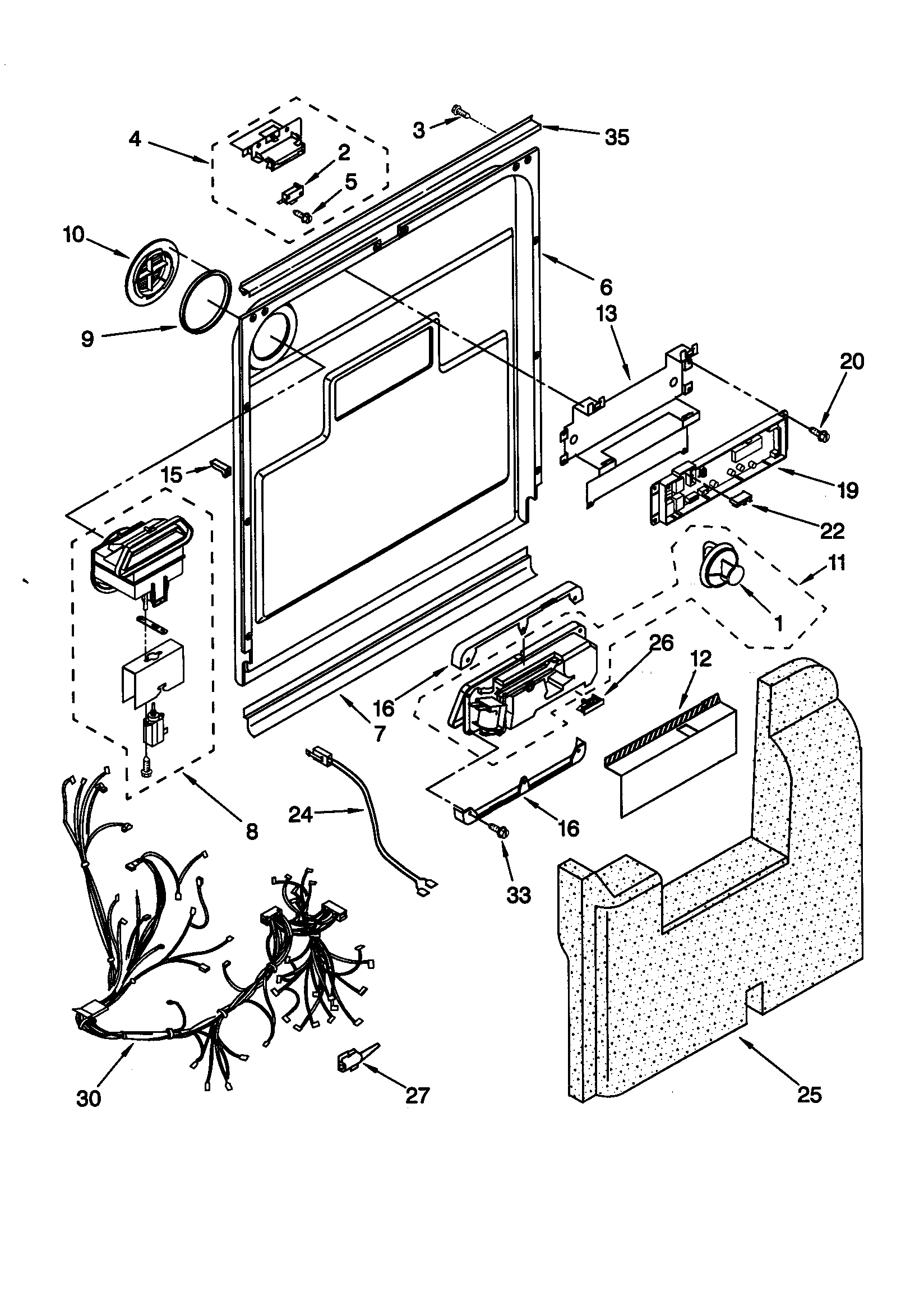

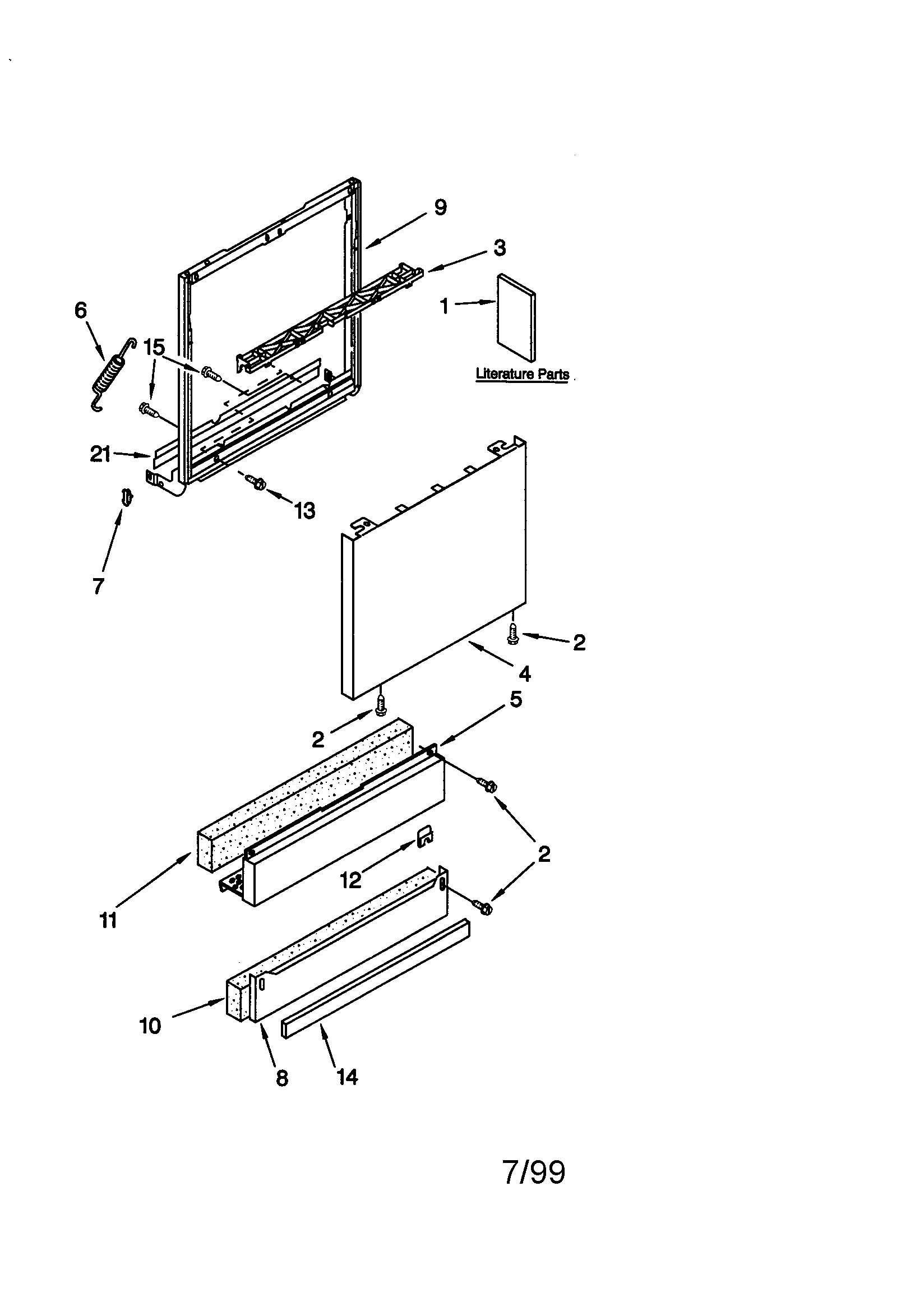

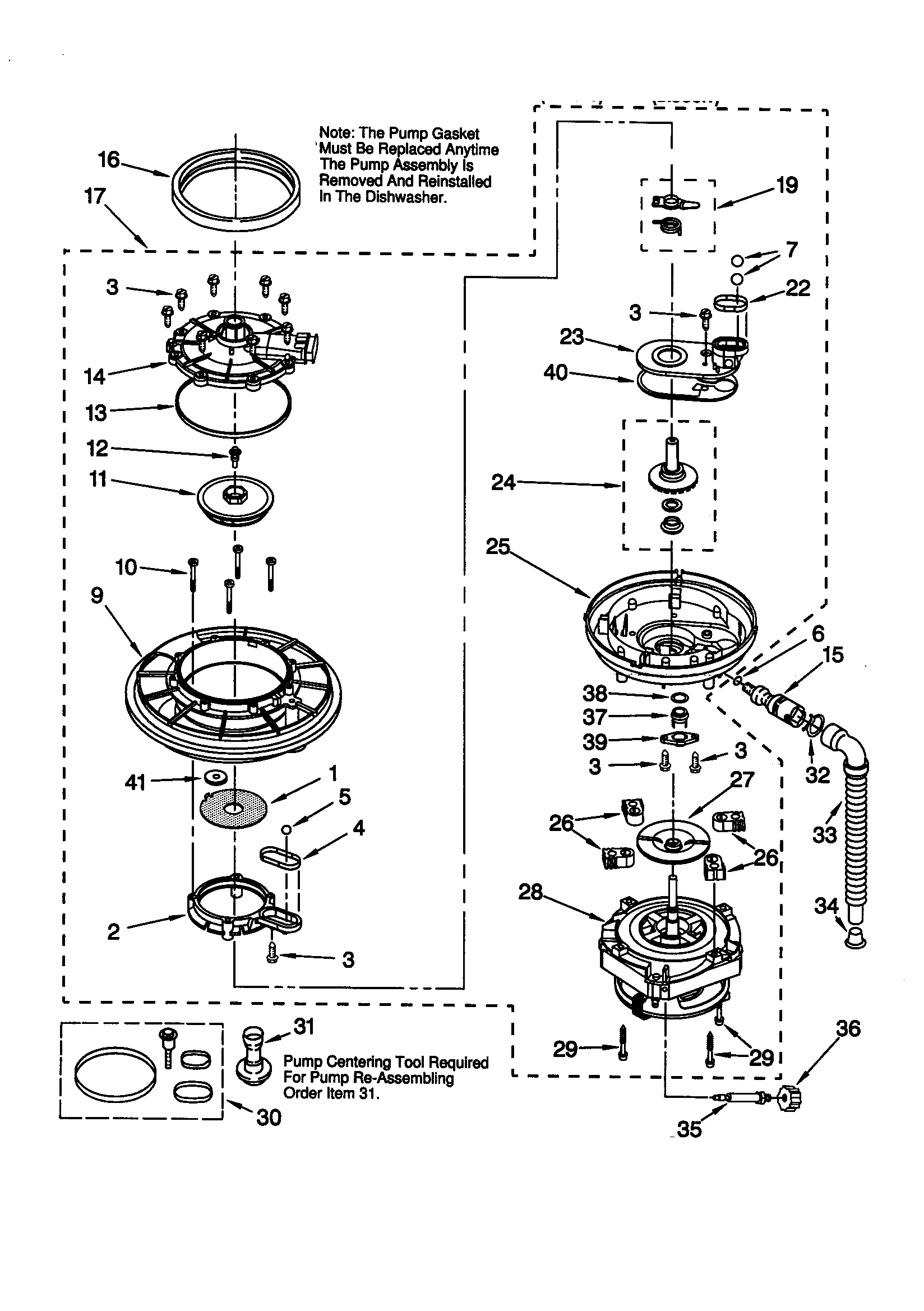

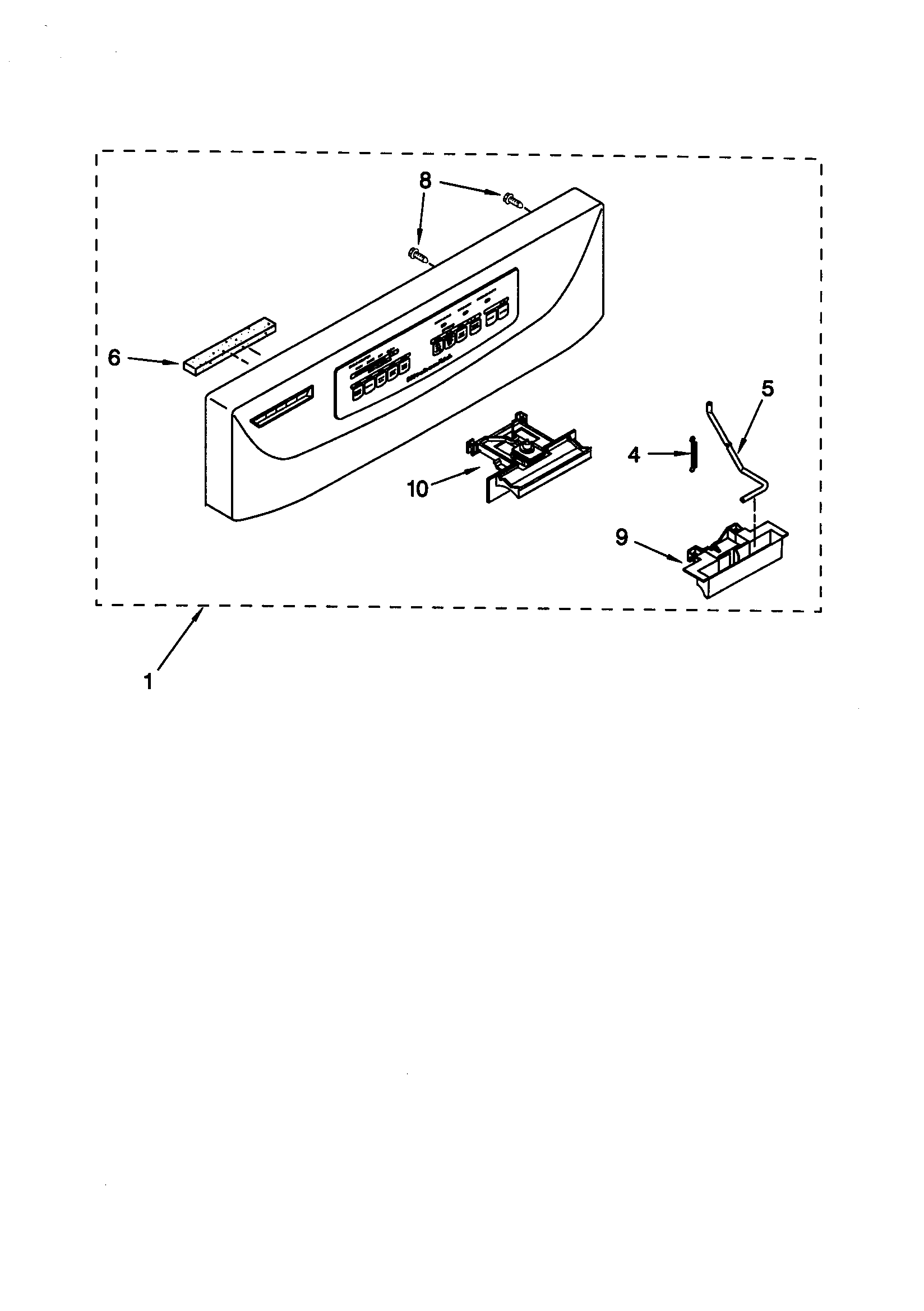

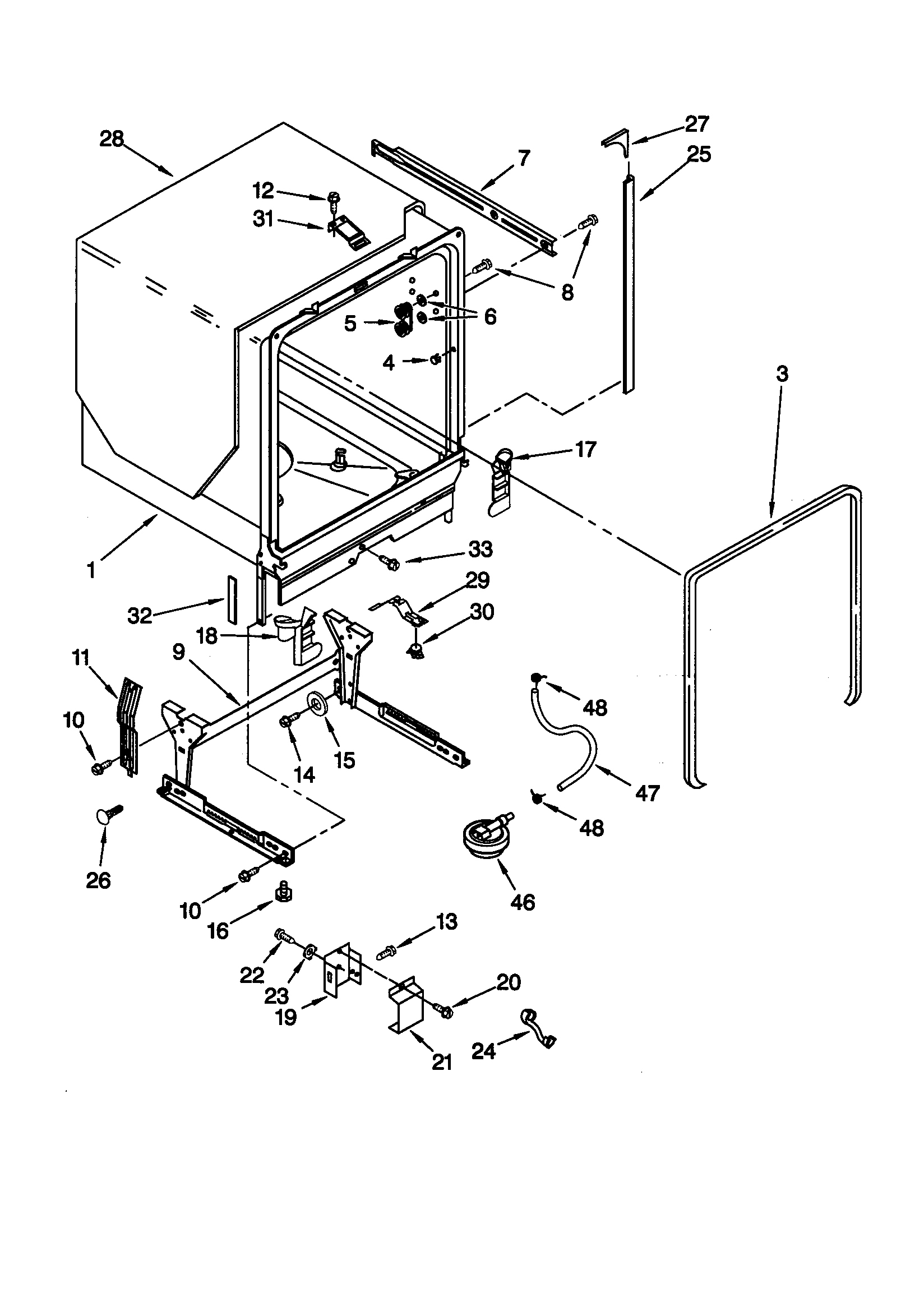

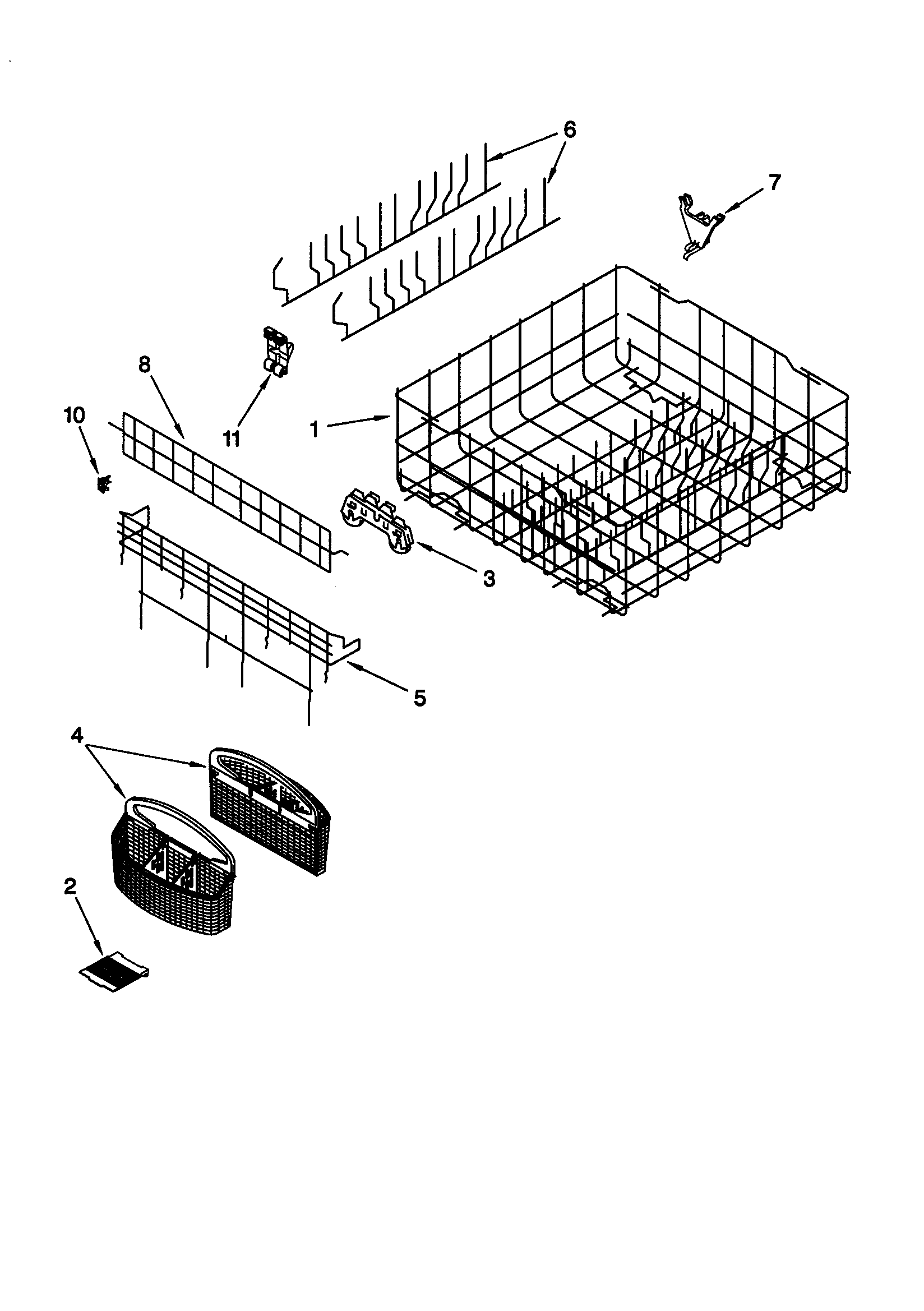

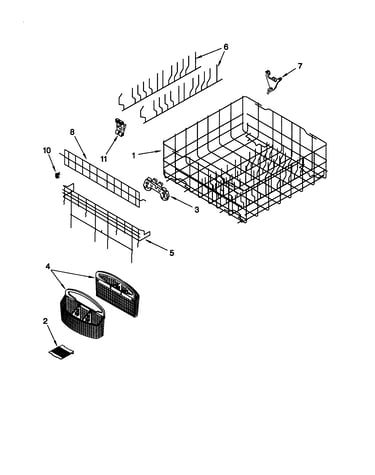

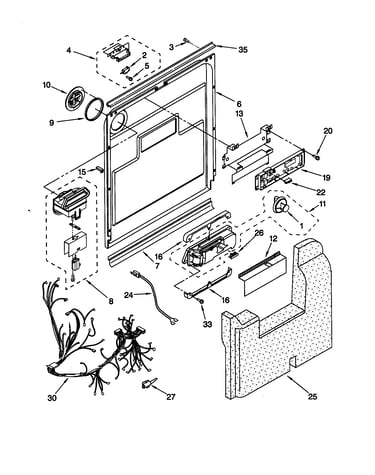

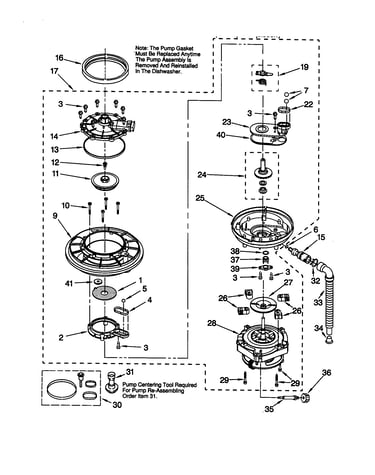

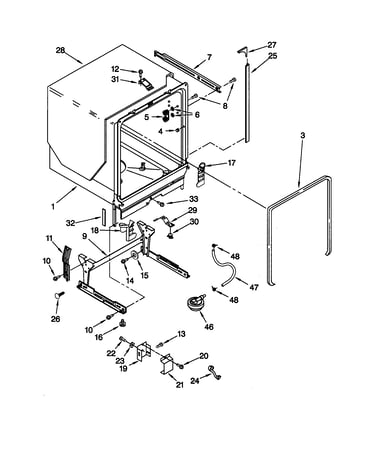

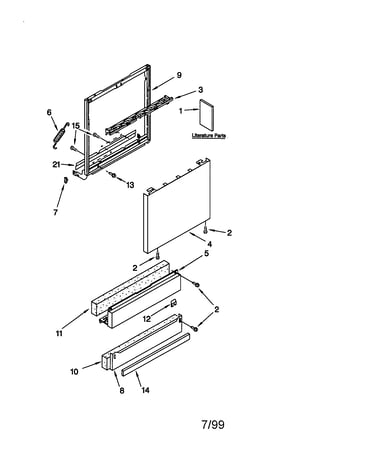

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Dishwasher Spray Arm 3378147
#1

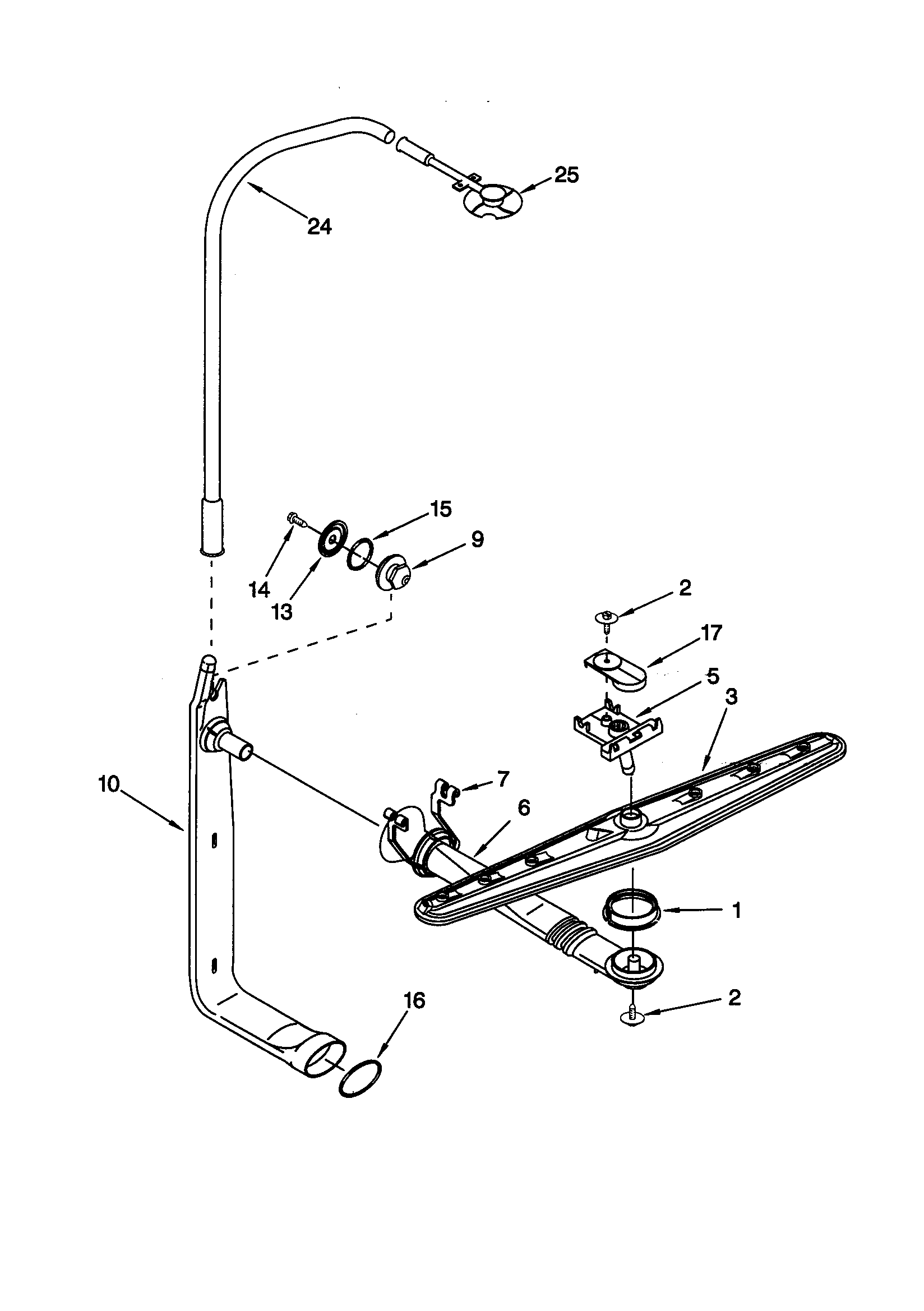

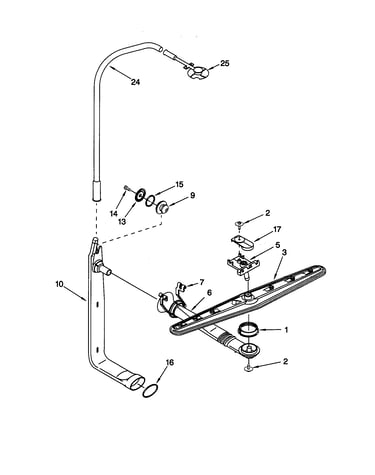

Upper wash and rinse diagram

Dishwasher spray arm

Part #3378147

Replaced by #675808

?
Manufacturer substitution
This part replaces 3378147. Substitute parts can look different from the original.
BEST SELLER
$37.42 |
14% OFF Phone Price : $43.42
In Stock
Spray Arm 9742989
#3

Upper wash and rinse diagram

Spray arm

Part #9742989

Replaced by #675808

?
Manufacturer substitution
This part replaces 9742989. Substitute parts can look different from the original.
BEST SELLER
$37.42 |
14% OFF Phone Price : $43.42
In Stock
Clamp 301958
#6

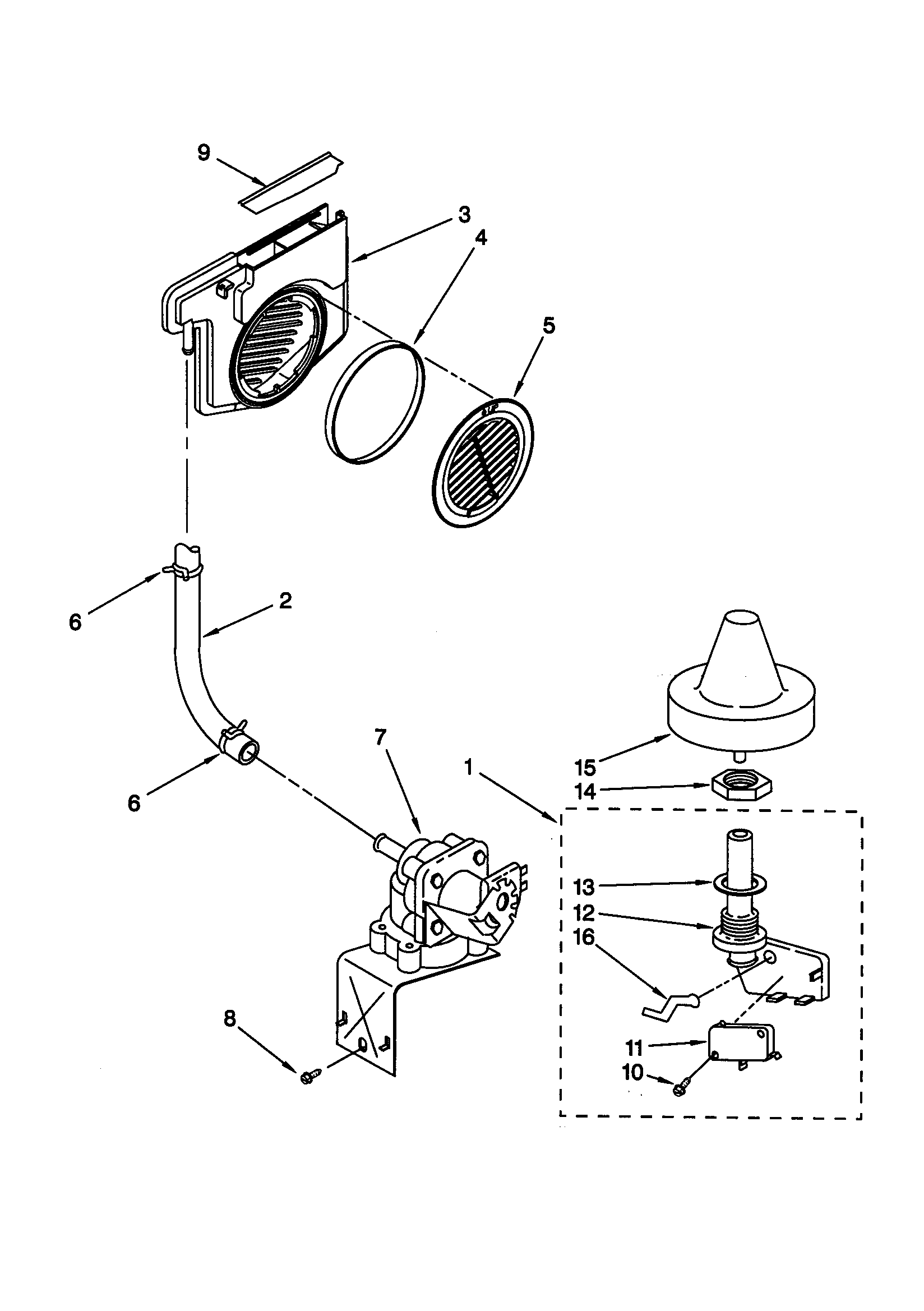

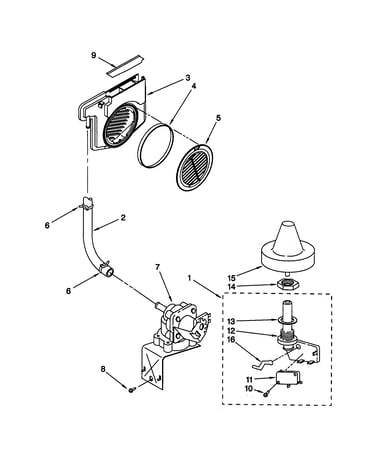

Fill and overfill diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Lower Spray Arm Seal 3376846
#5

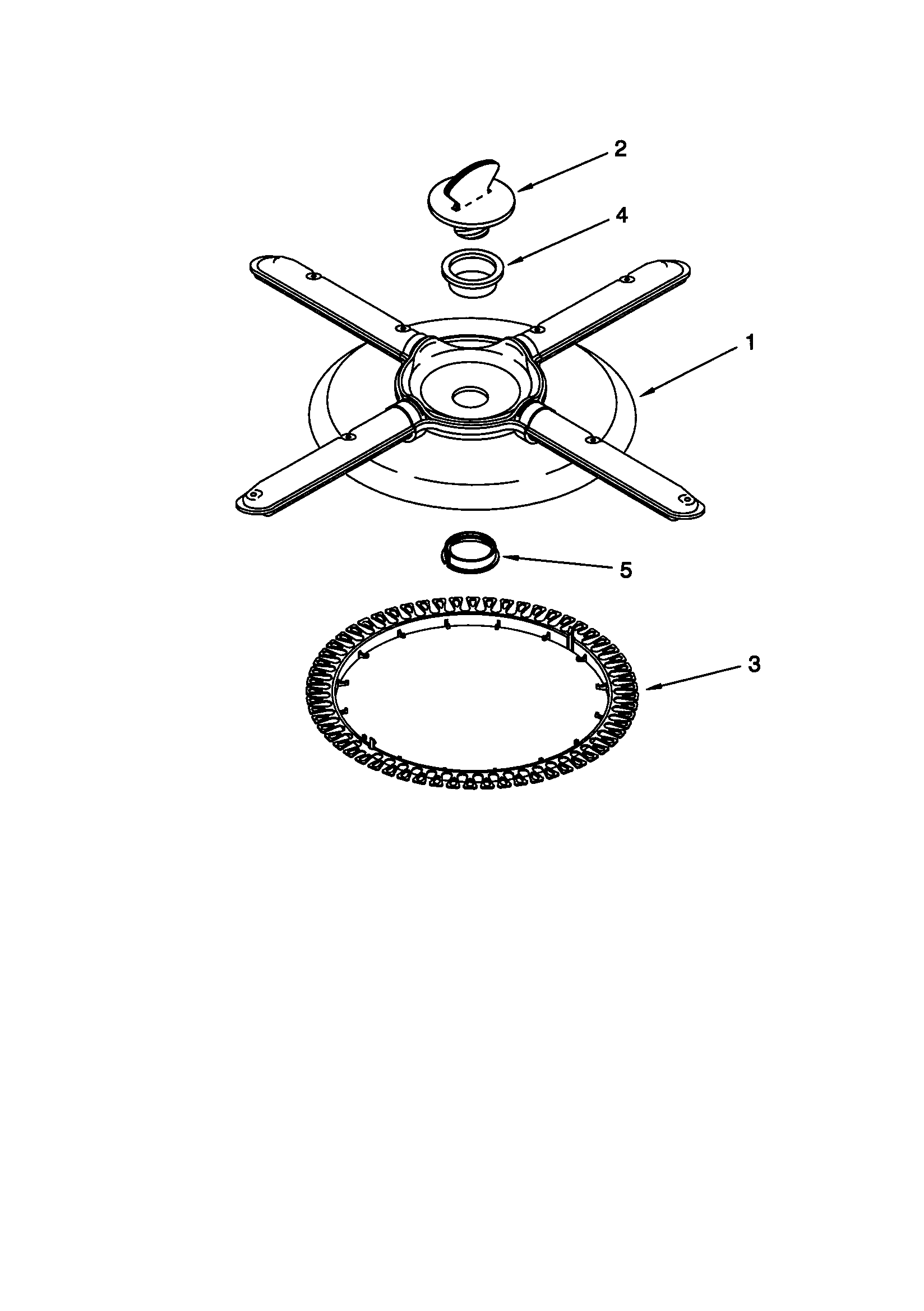

Lower washarm and strainer diagram

Dishwasher lower spray arm seal

Part #3376846

Replaced by #WP3376846

?
Manufacturer substitution
This part replaces 3376846. Substitute parts can look different from the original.
BEST SELLER
$11.61 |
15% OFF Phone Price : $13.61
In Stock
Gasket-fla 4161670
#13

Fill and overfill diagram

Gasket-fla

Part #4161670

Replaced by #WP8531743

?
Manufacturer substitution
This part replaces 4161670. Substitute parts can look different from the original.
BEST SELLER
$28.50 |
17% OFF Phone Price : $34.50
In Stock
Track 9742998
#6

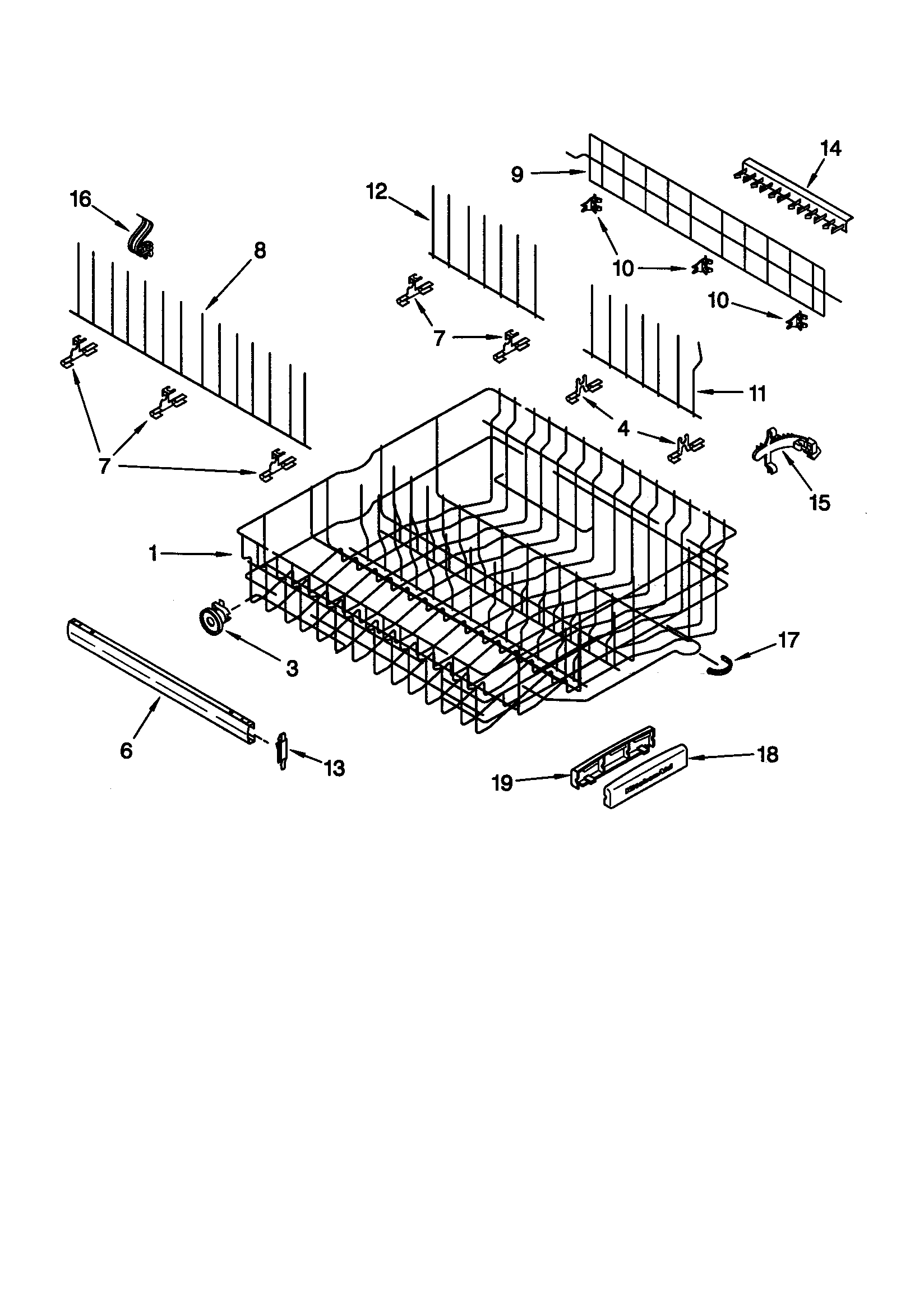

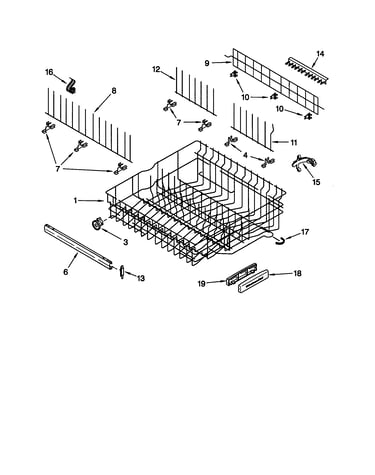

Upper rack and track diagram

Track

Part #9742998

Replaced by #WP3385089

?
Manufacturer substitution
This part replaces 9742998. Substitute parts can look different from the original.
BEST SELLER
$42.97 |
12% OFF Phone Price : $48.97
In Stock
Dishwasher Heating Element Rubber Washer 717273
#2

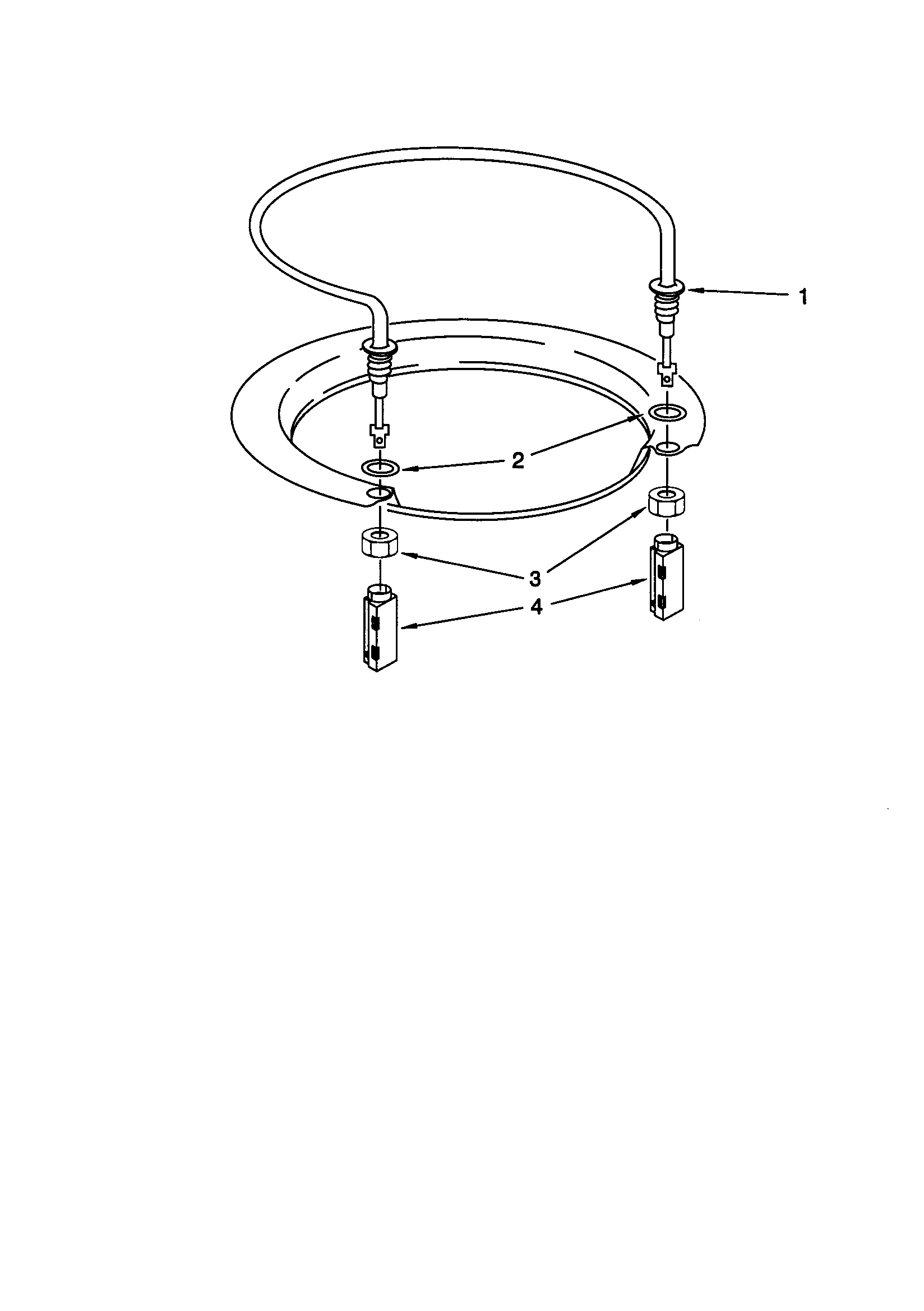

Heater diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Inlet Valve 9744284
#7

Fill and overfill diagram

Inlet valve

Part #9744284

Replaced by #W10844024

?
Manufacturer substitution
This part replaces 9744284. Substitute parts can look different from the original.
BEST SELLER
$54.73 |
10% OFF Phone Price : $60.73
In Stock
Dishwasher Spray Arm Nut 9742945
#2

Lower washarm and strainer diagram

Dishwasher spray arm nut

Part #9742945

Replaced by #WP9742945

?
Manufacturer substitution
This part replaces 9742945. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
