Model # RB525DD2BB Official Hotpoint electric range

Here are the diagrams and repair parts for Official Hotpoint RB525DD2BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Kit Surface Terminal WB17K10003
#961

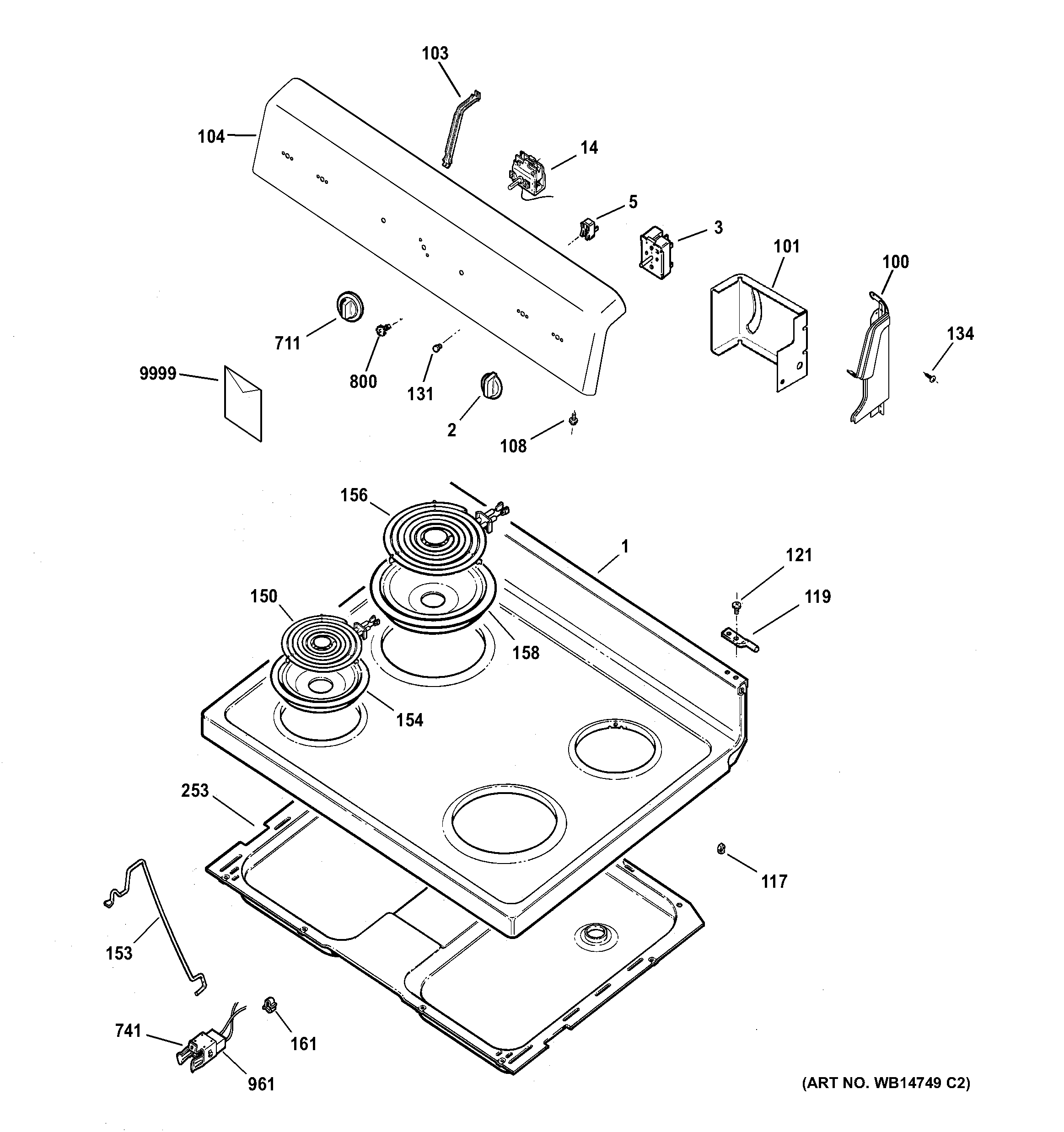

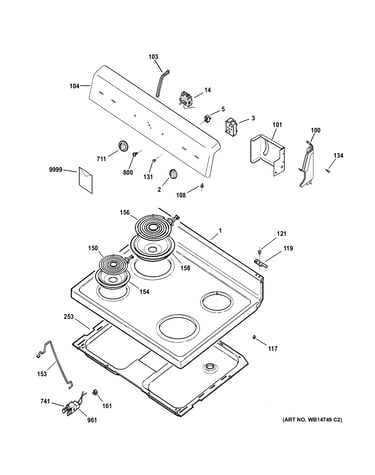

Control panel & cooktop diagram

Kit surface terminal

Part #WB17K10003

Replaced by #WB17T10006

?
Manufacturer substitution
This part replaces WB17K10003. Substitute parts can look different from the original.
BEST SELLER
$25.63 |
19% OFF Phone Price : $31.63
In Stock
Range Surface Element Control Switch, 1,250-watt WB24T10022
#3

Control panel & cooktop diagram

Range surface element control switch, 1,250-watt

Part #WB24T10022

BEST SELLER
$76.69 |
7% OFF Phone Price : $82.69
In Stock
Range Bake Element WB44K10005
#290

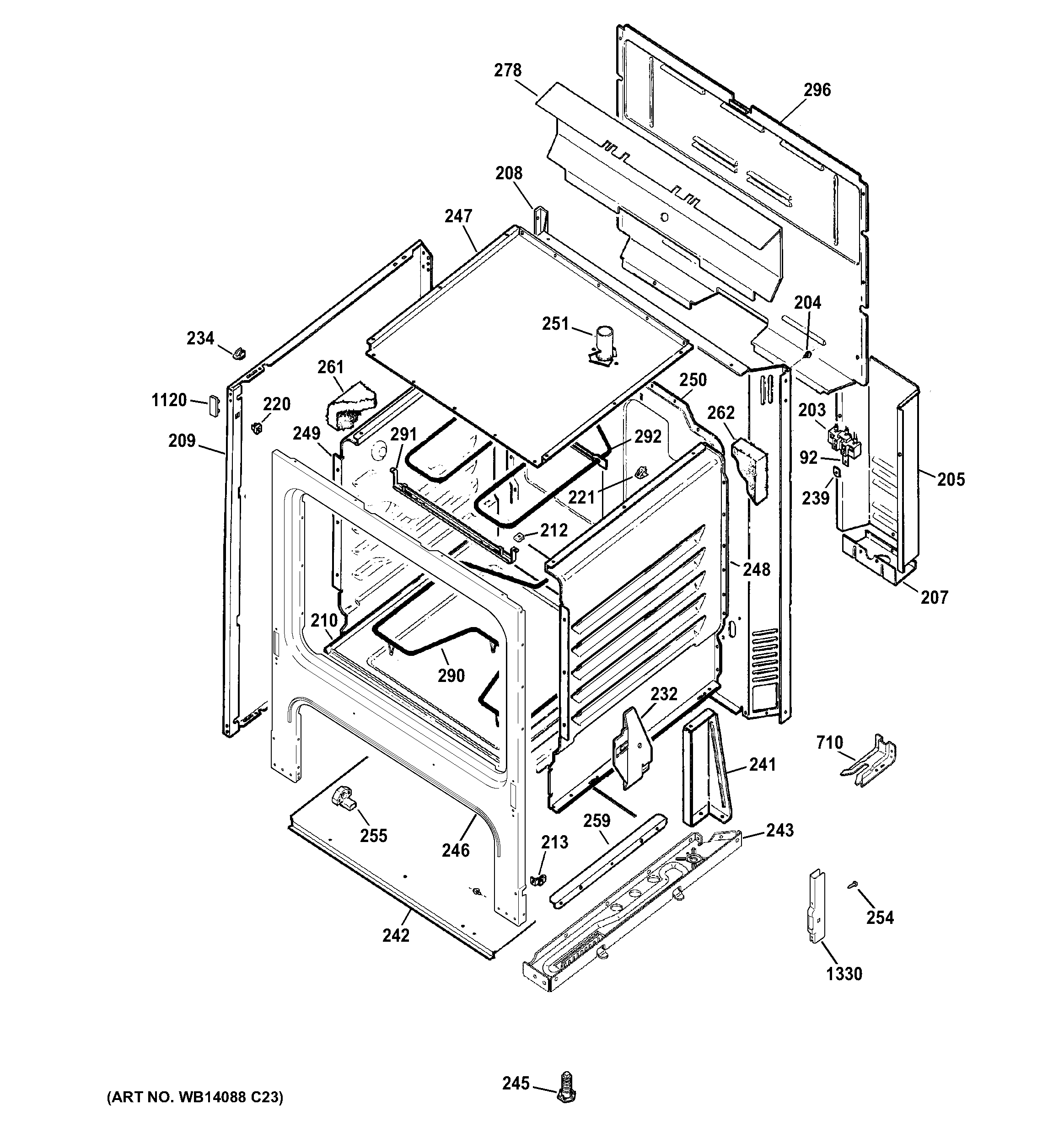

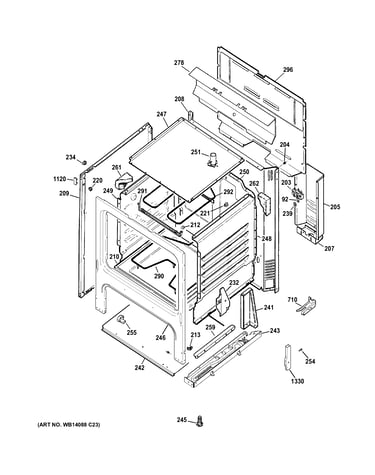

Body parts diagram

Range bake element

Part #WB44K10005

Replaced by #WB30X46987

?
Manufacturer substitution
This part replaces WB44K10005. Substitute parts can look different from the original.
BEST SELLER
$147.20
In Stock
Range Surface Element Control Switch WB24T10027
#3

Control panel & cooktop diagram

Range surface element control switch

Part #WB24T10027

BEST SELLER
$91.11 |
6% OFF Phone Price : $97.11
In Stock
Range Drip Pan, 8-in (chrome) WB31K10266
#158

Control panel & cooktop diagram

Range drip pan, 8-in (chrome)

Part #WB31K10266

BEST SELLER
This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Drip Pan, 6-in (chrome) (replaces Wb31m16) WB31K10265
#154

Control panel & cooktop diagram

Range drip pan, 6-in (chrome) (replaces wb31m16)

Part #WB31K10265

This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Surface Unit WB30K10023
#150

Control panel & cooktop diagram

Surface unit

Part #WB30K10023

Replaced by #WB30K10002

?
Manufacturer substitution
This part replaces WB30K10023. Substitute parts can look different from the original.
$59.23 |
9% OFF Phone Price : $65.23
In Stock
Door Gasket WB32K0003
#318

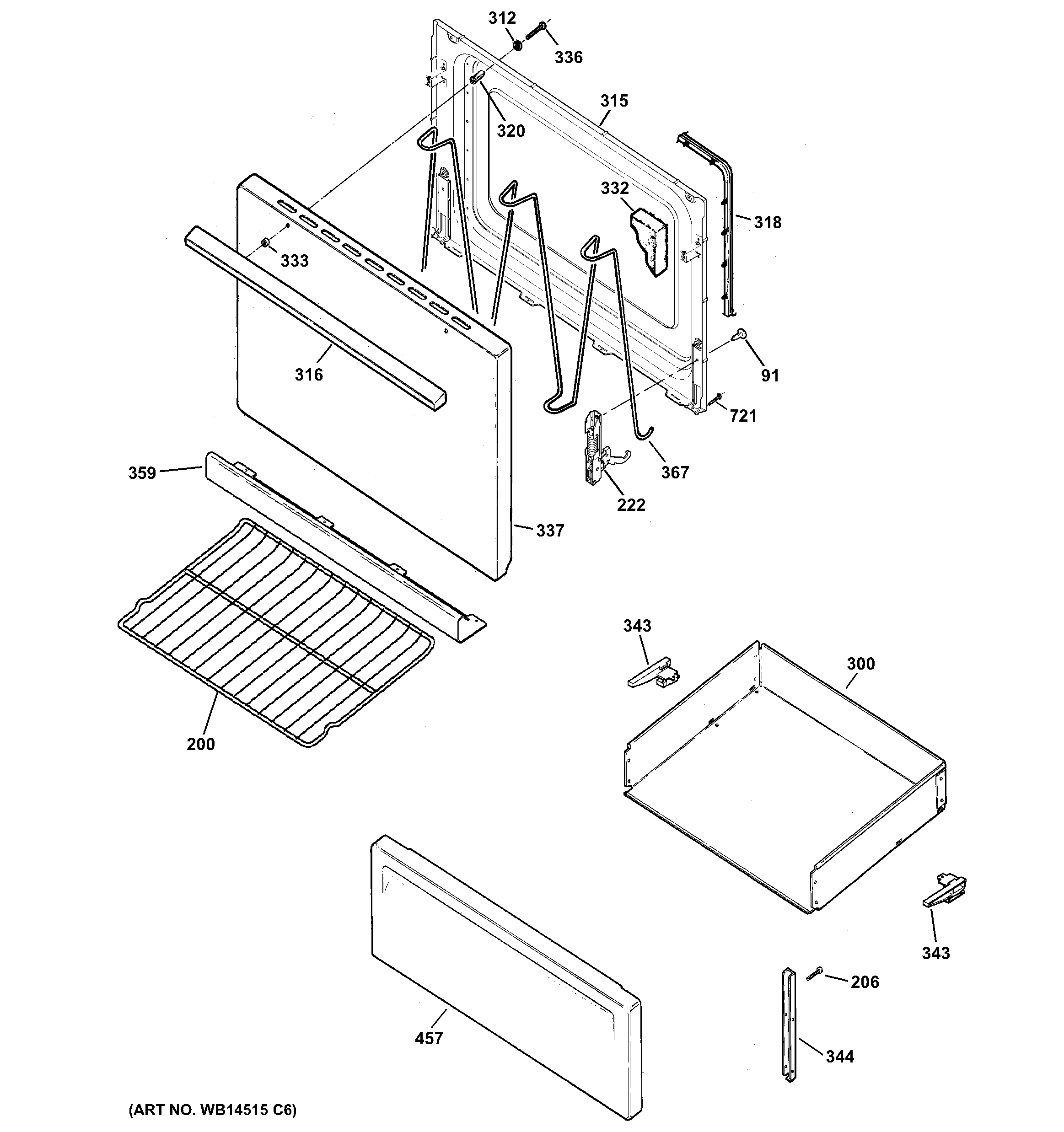

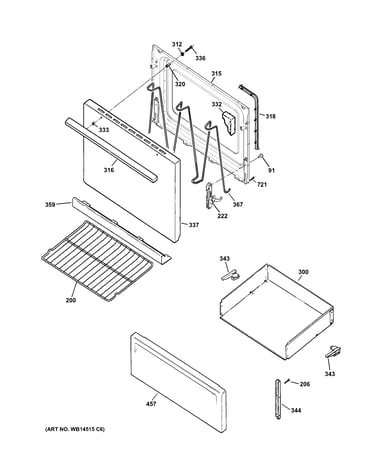

Door & drawer parts diagram

Door gasket

Part #WB32K0003

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Oven Door Hinge Receiver WB10X20220
#1330

Body parts diagram

Range oven door hinge receiver

Part #WB10X20220

This item is not returnable
$7.84 |
11% OFF Phone Price : $8.84
In Stock
Range Oven Rack WB48X20249
#200

Door & drawer parts diagram

Range oven rack

Part #WB48X20249

$61.49 |
9% OFF Phone Price : $67.49
In Stock
