Model # BZ22QL-P1153002WL Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana BZ22QL-P1153002WL bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

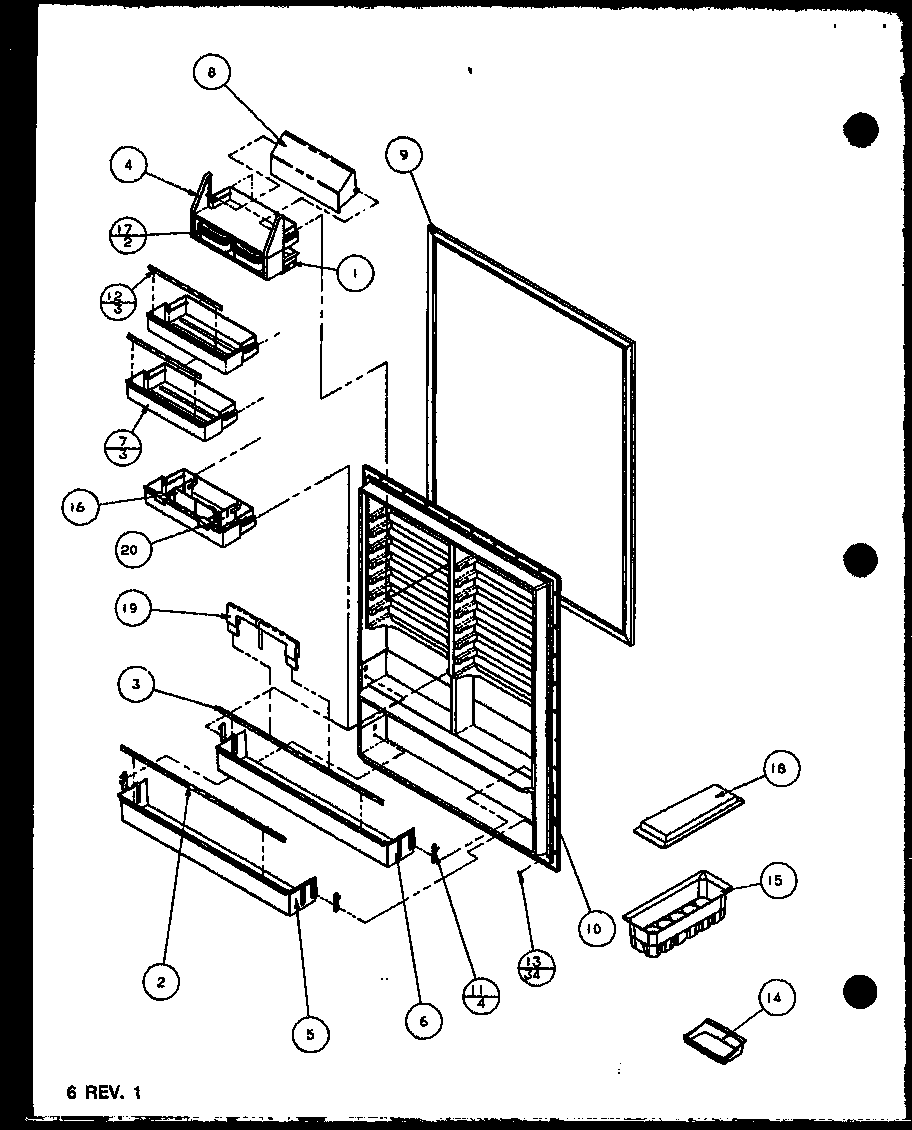

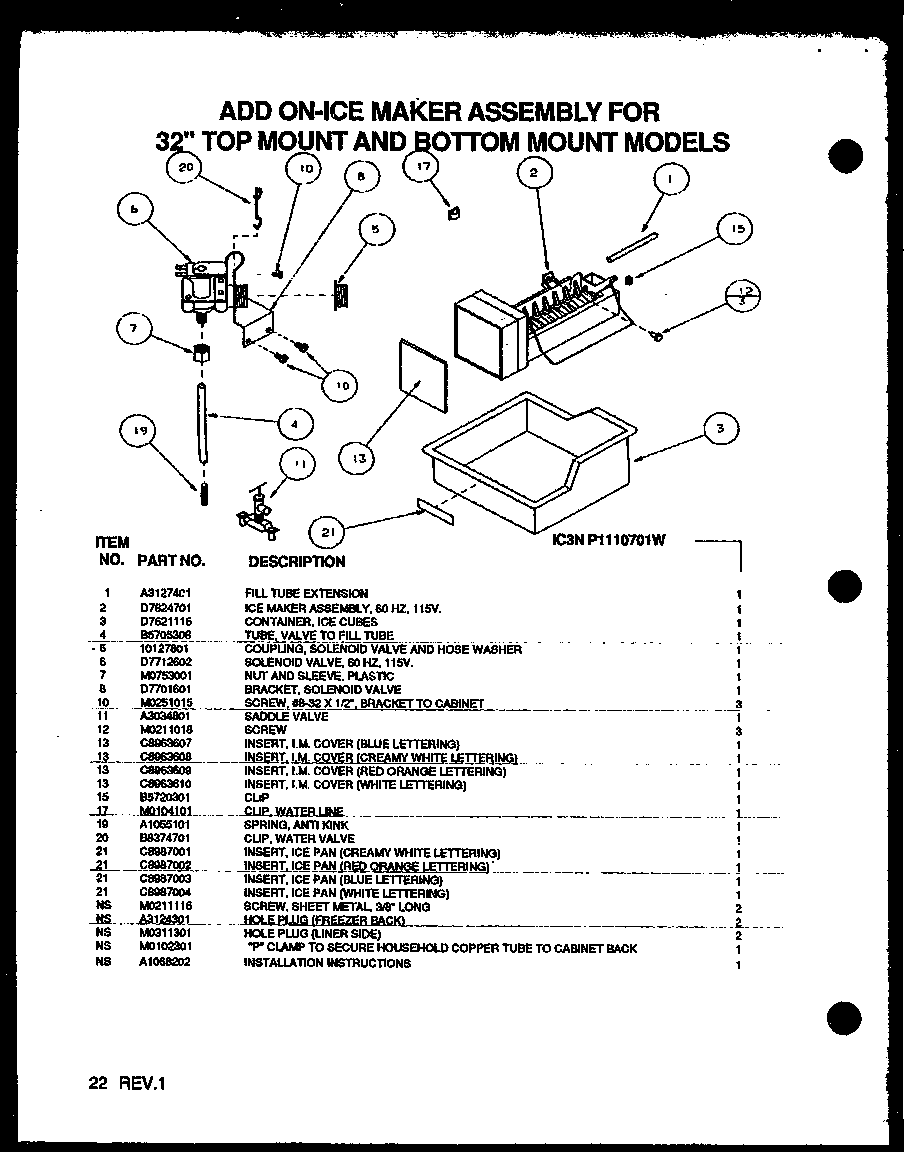

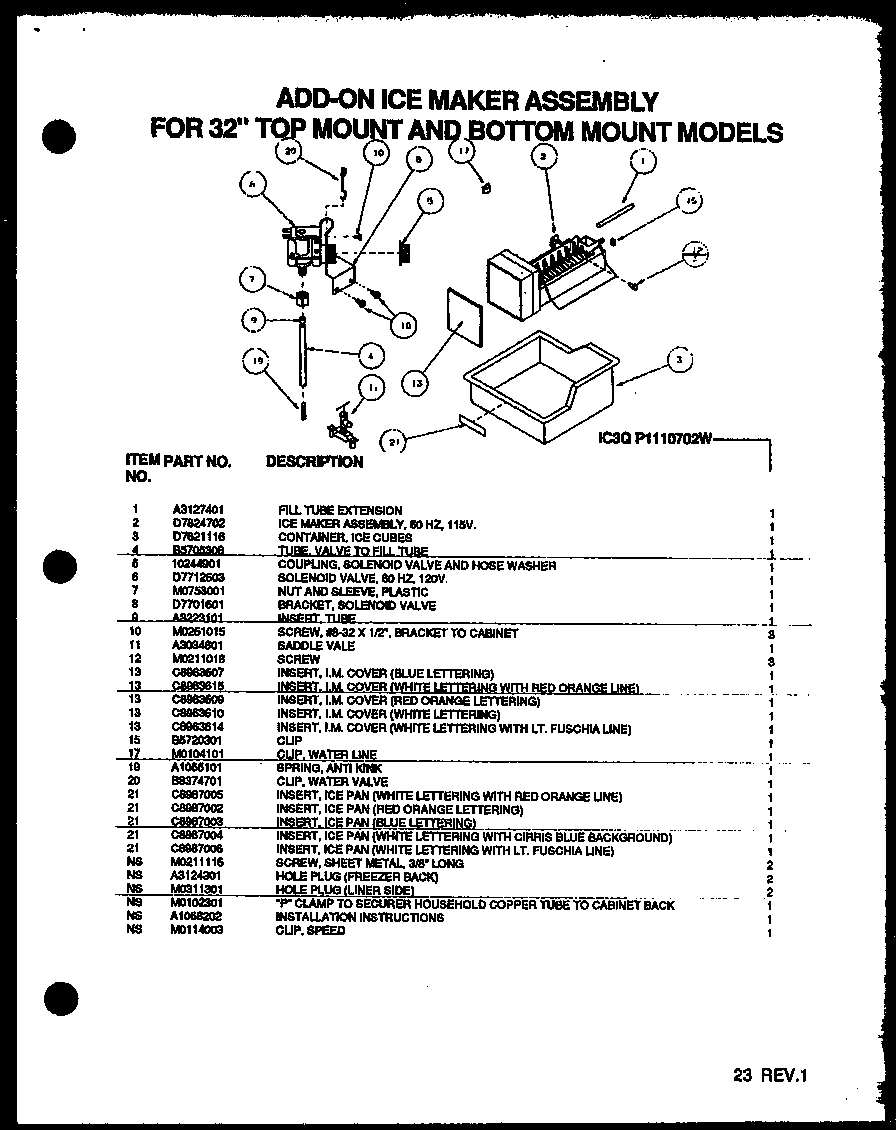

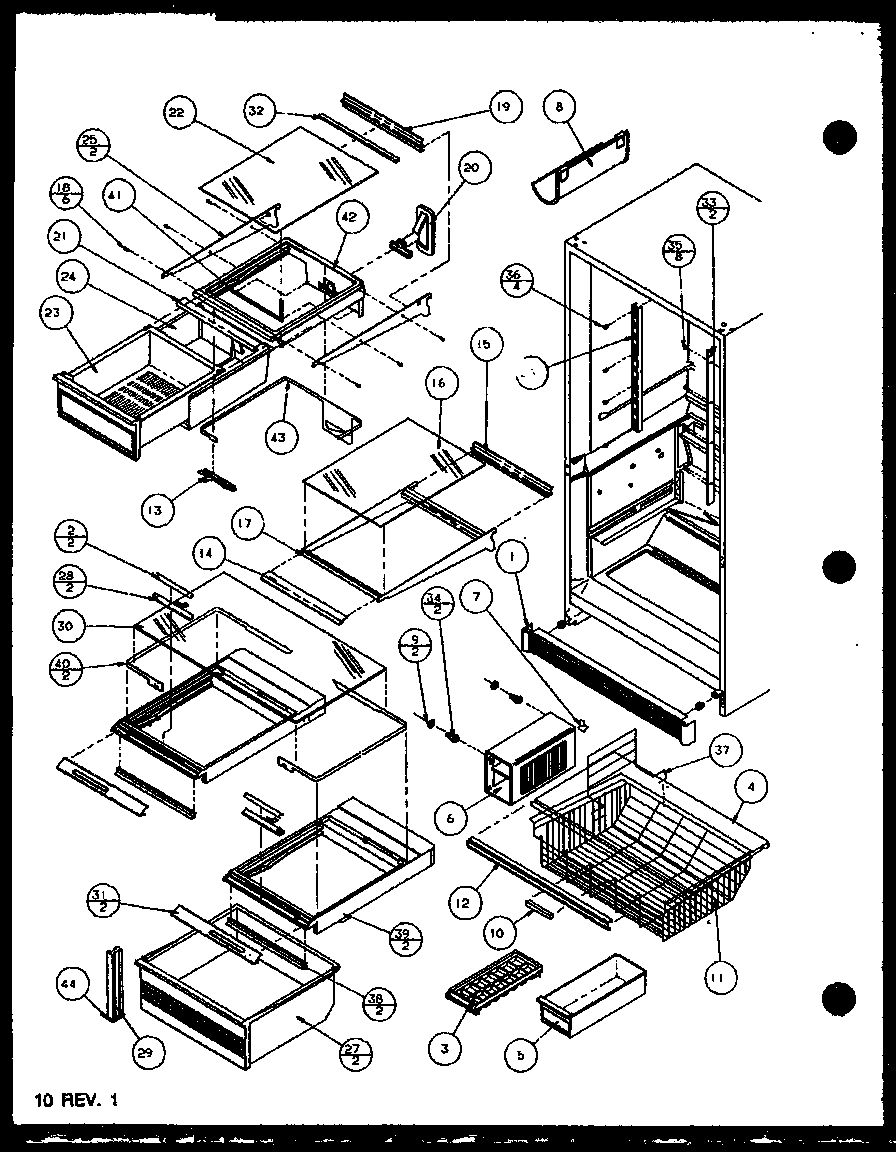

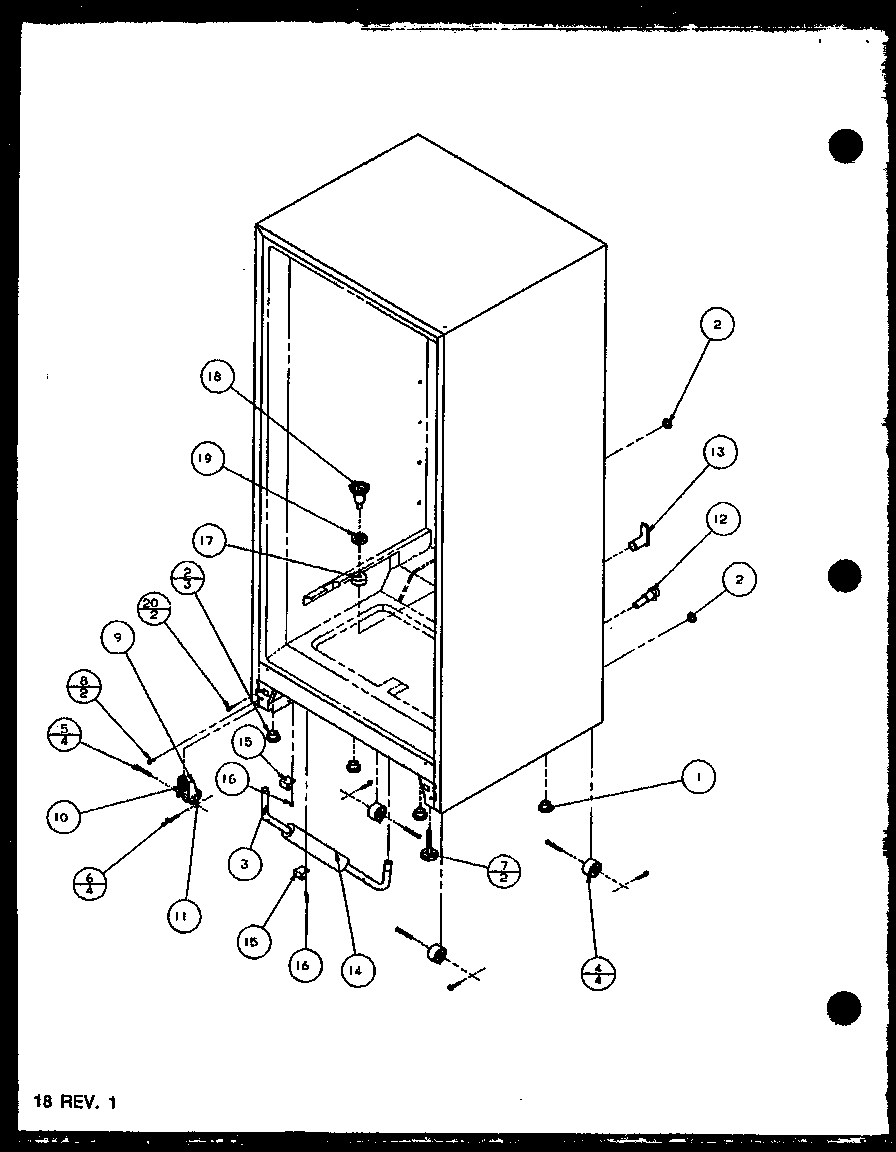

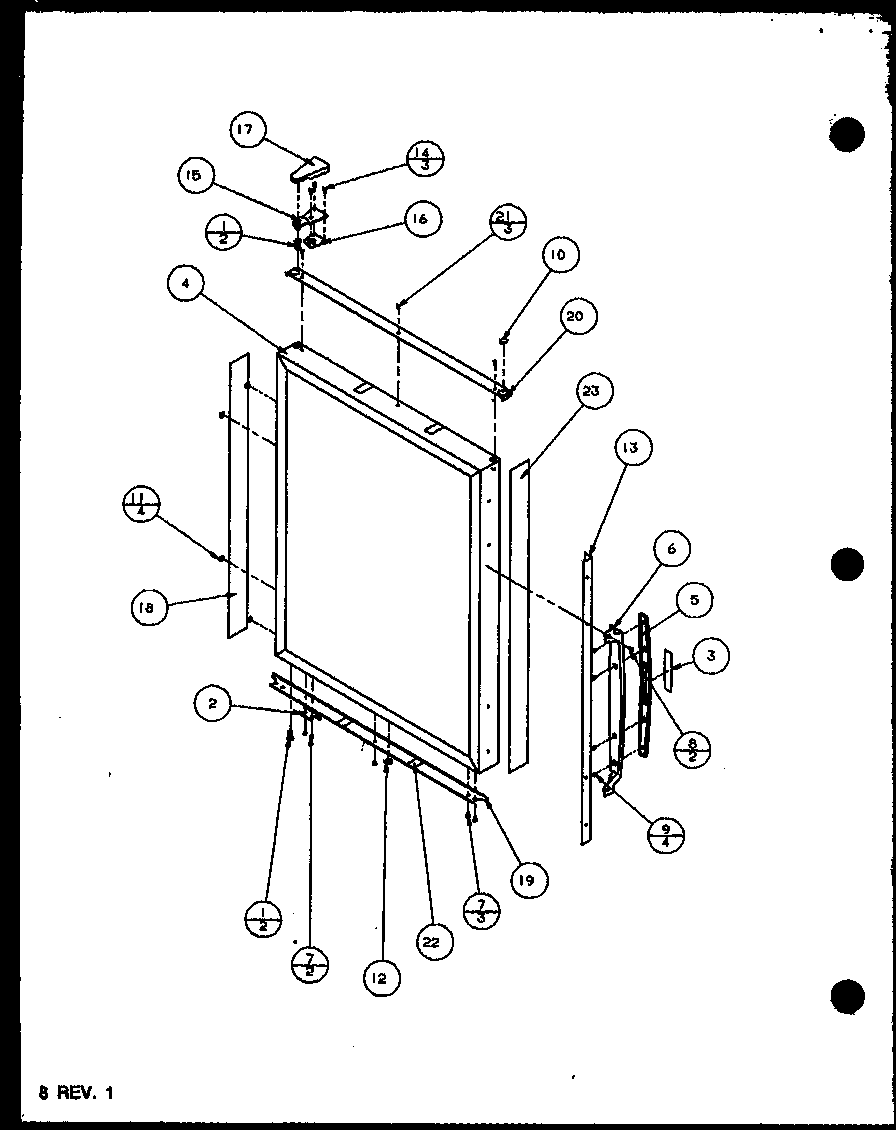

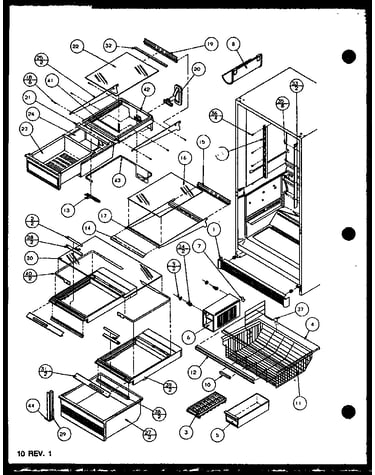

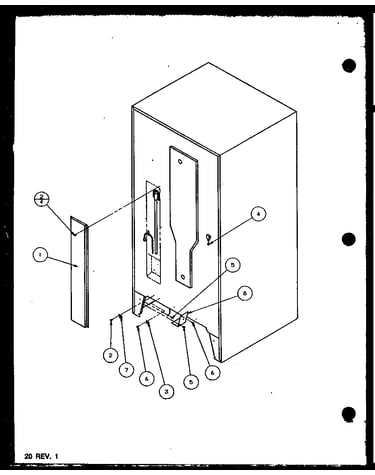

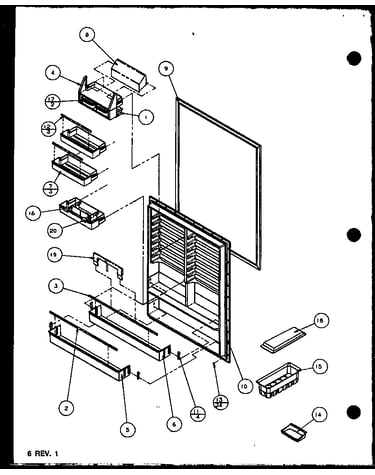

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 302 parts  |
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

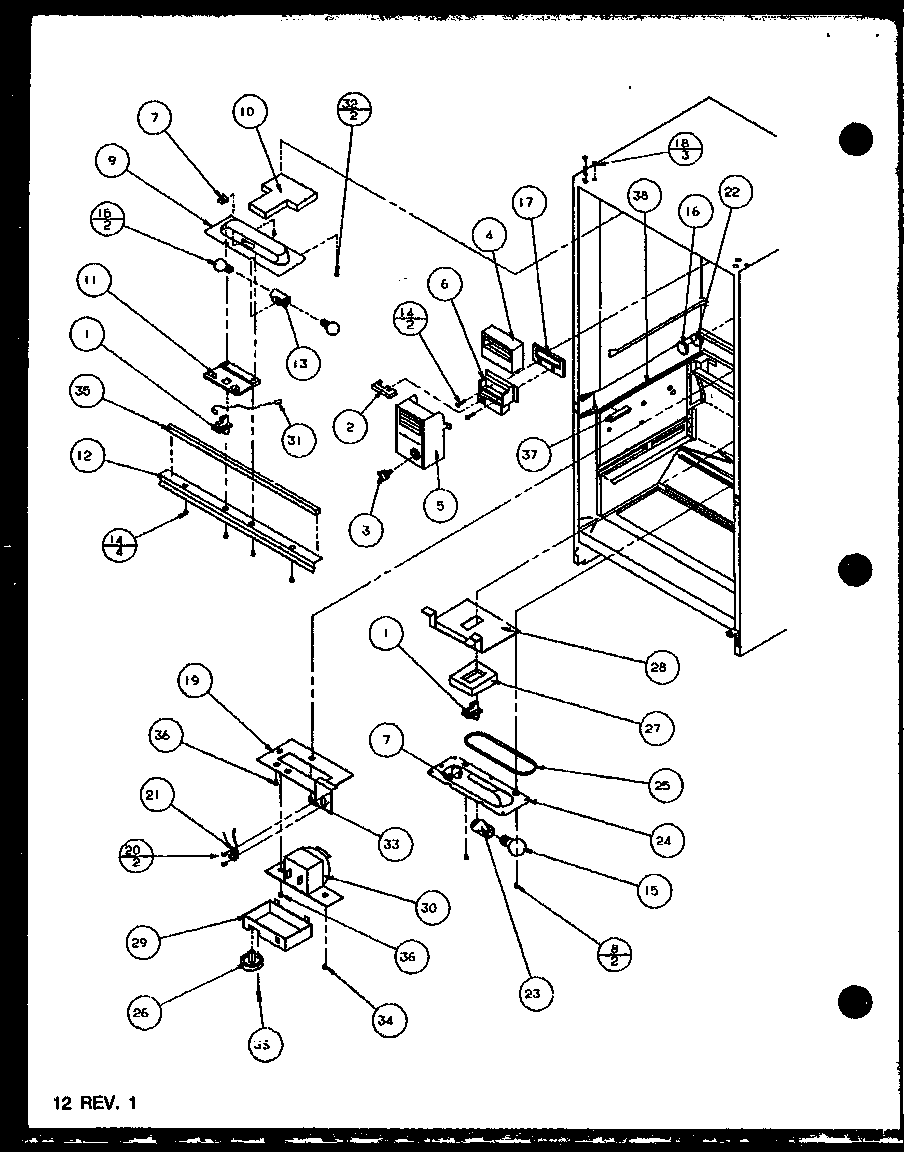

Control and lamps (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680307
#1

Control and lamps (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator light switch

Part #C3680307

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ptc Relay 10097202
#13A

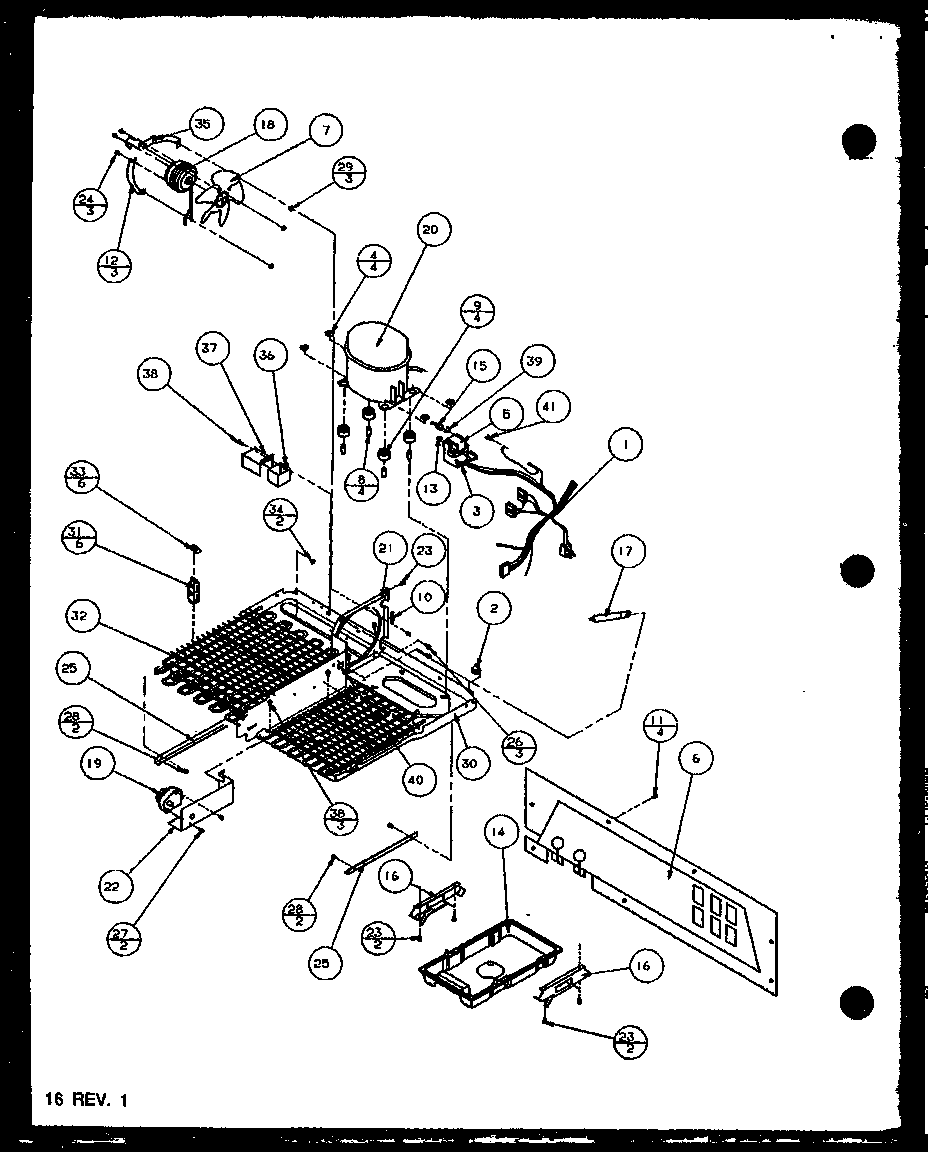

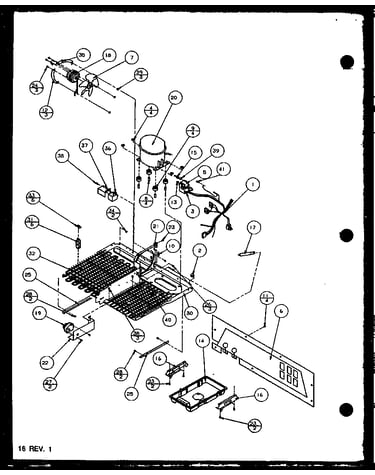

Compressor compartment (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator ptc relay

Part #10097202

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 10097202. Substitute parts can look different from the original.
BEST SELLER
$71.10 |
8% OFF Phone Price : $77.10
In Stock
Drier B2150502
#17

Compressor compartment (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Drier

Part #B2150502

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Fan Motor D7584001
#18

Compressor compartment (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator fan motor

Part #D7584001

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584001. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Screw M0203944
Refrigerator screw

Part #M0203944

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0203944. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0222429
#18

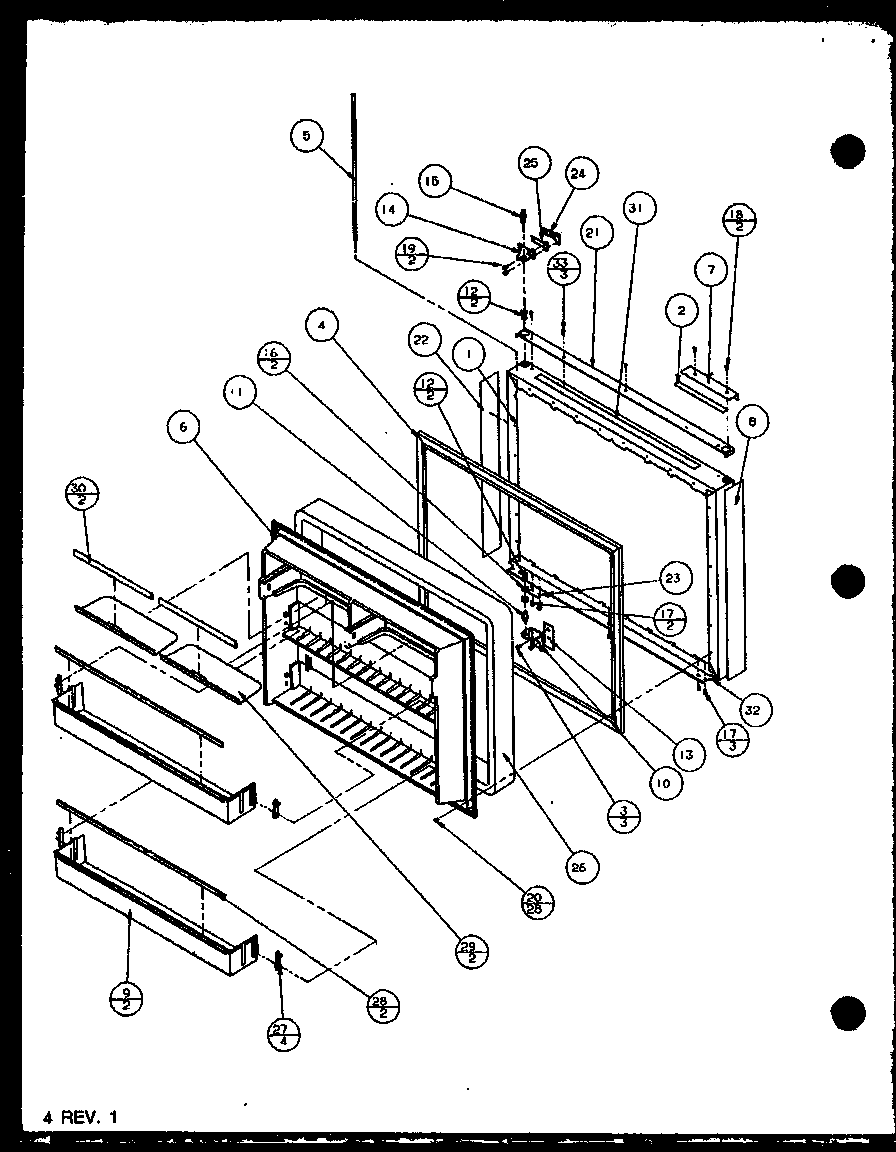

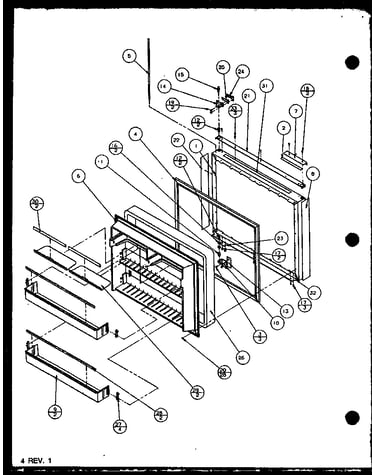

Freezer door (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator screw

Part #M0222429

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0222429. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Capacitor C8931604
#36B

Compressor compartment (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator capacitor

Part #C8931604

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat C8978402
#5

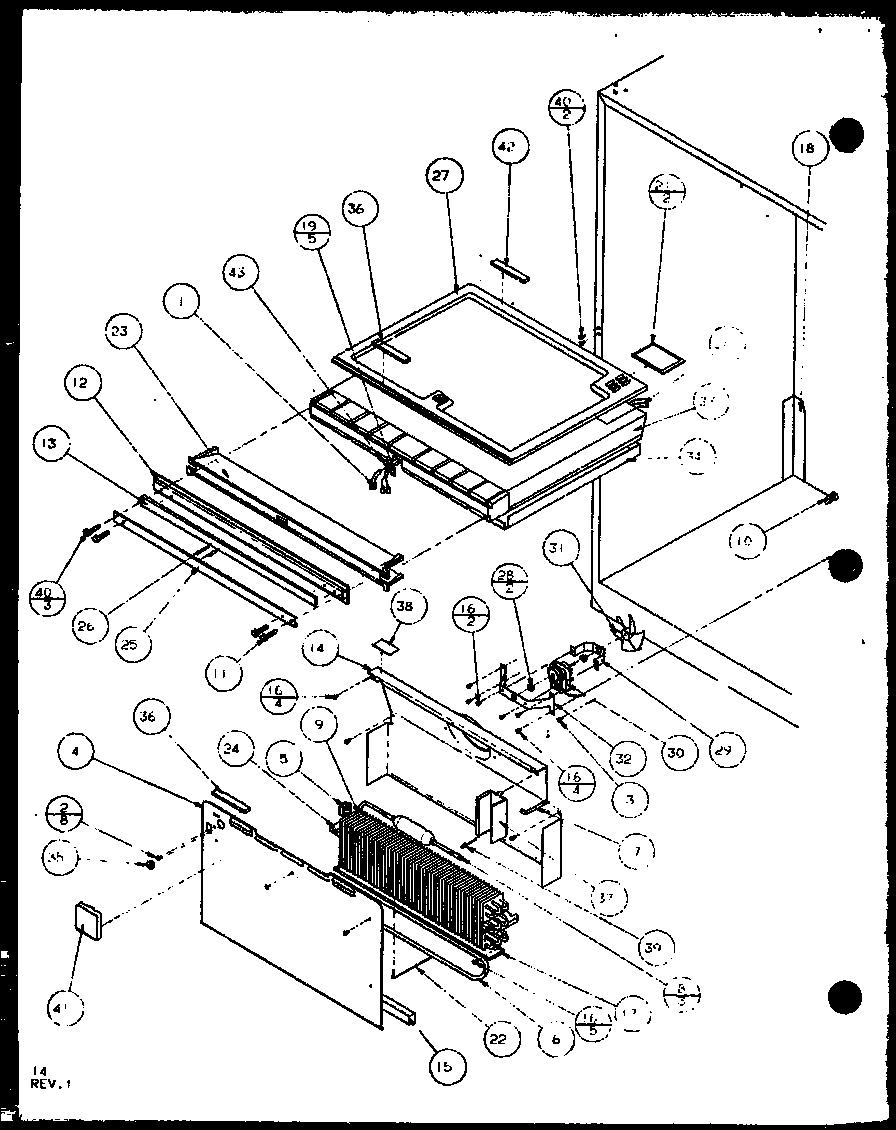

Divider and evaporator (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator thermostat

Part #C8978402

Replaced by #WP10442411

?
Manufacturer substitution
This part replaces C8978402. Substitute parts can look different from the original.
BEST SELLER
$43.51 |
12% OFF Phone Price : $49.51
In Stock
Refrigerator Grommet A1017202
#28

Divider and evaporator (bz22ql/p1153002wl) (bz22ql/p1153001wl) (bz22qw/p1153002ww) (bz22qw/p1153001ww) (bz22qe/p1153001we) diagram

Refrigerator grommet

Part #A1017202

Replaced by #WP2264462

?
Manufacturer substitution
This part replaces A1017202. Substitute parts can look different from the original.
This item is not returnable
$26.89 |
18% OFF Phone Price : $32.89
In Stock
