Model # 867742812 Official Kenmore oil-fired furnace

Here are the diagrams and repair parts for Official Kenmore 867742812 oil-fired furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Blower Wheel 72400
#23B

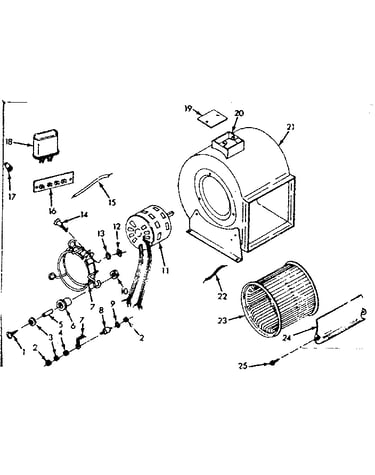

Hq blower assembly diagram

Blower wheel

Part #72400

Replaced by #601210

?
Manufacturer substitution
This part replaces 72400. Substitute parts can look different from the original.
$194.16
In Stock
Pump 91817
#32A

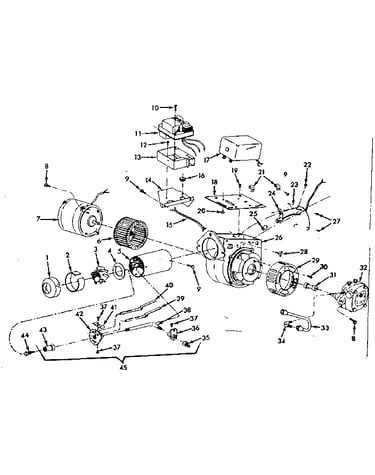

Oil burner assembly diagram

Pump

Part #91817

Replaced by #91817

?
Manufacturer substitution
This part replaces 91817. Substitute parts can look different from the original.
$197.80
In Stock
Washer 9416904
#3A

Hq blower assembly diagram

Washer

Part #9416904

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 9416904. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 448445
#9

Oil burner assembly diagram

Screw

Part #448445

The manufacturer no longer makes this part, and there's no substitute part

Support 86023
#7A

Hq blower assembly diagram

Support

Part #86023

Replaced by #1050254

?
Manufacturer substitution
This part replaces 86023. Substitute parts can look different from the original.
$125.18
In Stock
Coupling 91818
#31

Oil burner assembly diagram

Coupling

Part #91818

The manufacturer no longer makes this part, and there's no substitute part

Motor 1/4 Hp 84744
#11B

Hq blower assembly diagram

Motor 1/4 hp

Part #84744

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 9235

#NI

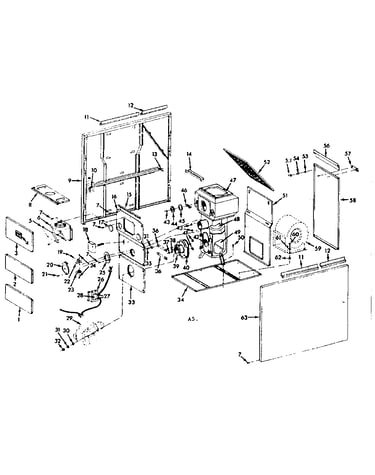

All parts diagram

Thermostat

Part #9235

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 21321
Twist-on wire connector

Part #21321

The manufacturer no longer makes this part, and there's no substitute part

Motor 1/6 Hp 84741
#11A

Hq blower assembly diagram

Motor 1/6 hp

Part #84741

The manufacturer no longer makes this part, and there's no substitute part
