Model # WT7150CW/00 Official LG washer

Here are the diagrams and repair parts for Official LG WT7150CW-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Washer Water-level Pressure Switch 6501EA1001R

#A200

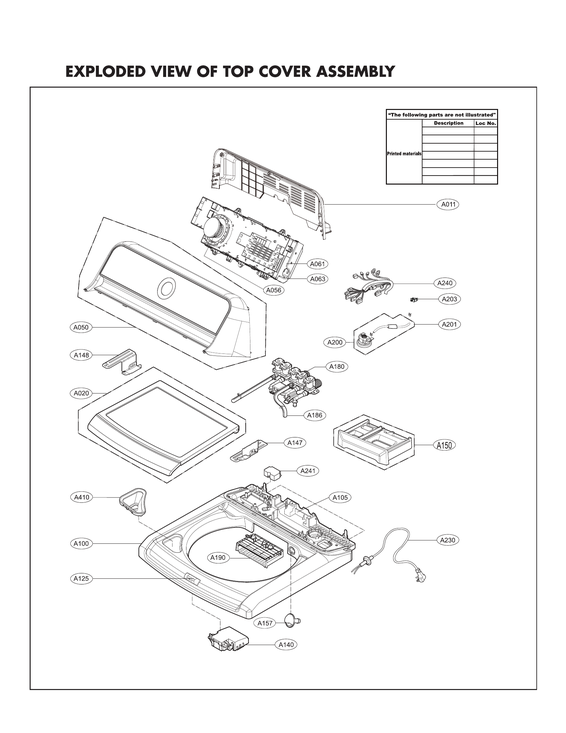

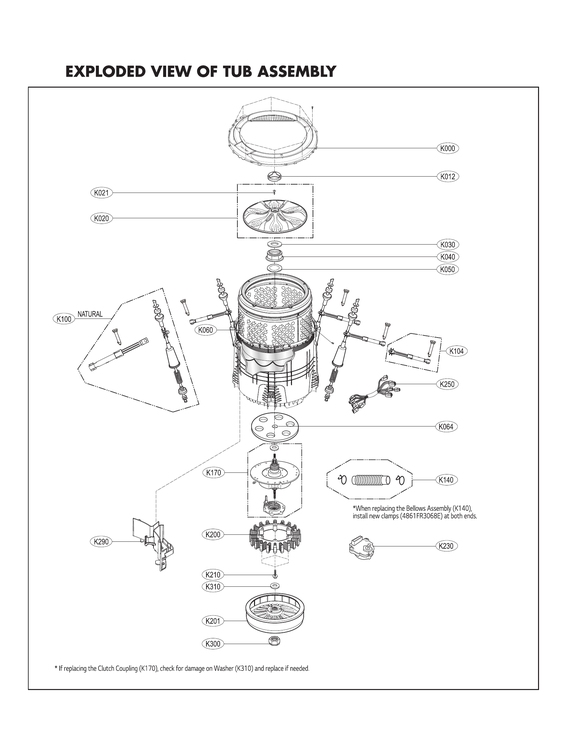

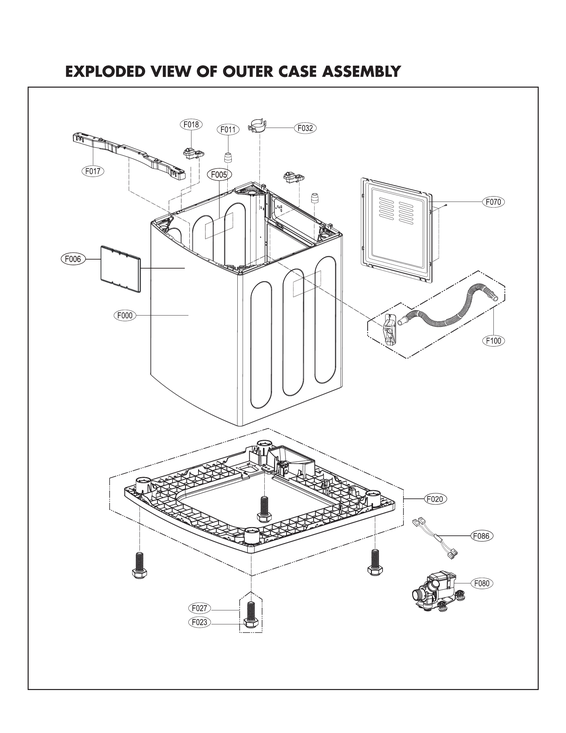

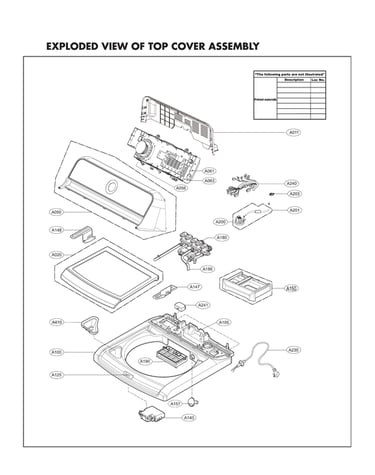

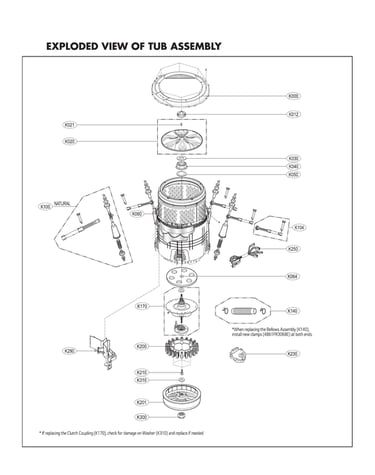

All parts diagram

Washer water-level pressure switch

Part #6501EA1001R

BEST SELLER
$39.36
13% OFF Phone Price : $45.36
In Stock
Washer Water Inlet Valve Assembly (replaces 5221ea1008s) AJU75152602

#A180

All parts diagram

Washer water inlet valve assembly (replaces 5221ea1008s)

Part #AJU75152602

BEST SELLER
$88.11
6% OFF Phone Price : $94.11
In Stock
Washer Hub Nut (replaces 4020fa4208m) 4020FA4208J

#K040

All parts diagram

Washer hub nut (replaces 4020fa4208m)

Part #4020FA4208J

BEST SELLER
$51.17
10% OFF Phone Price : $57.17
In Stock
Washer Washplate Cap (replaces 5006ea3009a, 5006ea3009c, Mbl65219301) 5006EA3009B

#K012

All parts diagram

Washer washplate cap (replaces 5006ea3009a, 5006ea3009c, mbl65219301)

Part #5006EA3009B

BEST SELLER
$27.71
18% OFF Phone Price : $33.71
In Stock
Washer Gear Case (replaces Aen74532606) AEN74532607

#K170

All parts diagram

Washer gear case (replaces aen74532606)

Part #AEN74532607

BEST SELLER
$215.61
5% OFF Phone Price : $227.61
In Stock
Washer Shifter Motor EAU63743301

#K230

All parts diagram

Washer shifter motor

Part #EAU63743301

BEST SELLER
$57.67
9% OFF Phone Price : $63.67
In Stock
Washing Machine Washer FAF30369201

#K030

All parts diagram

Washing machine washer

Part #FAF30369201

BEST SELLER
$13.56
13% OFF Phone Price : $15.56
In Stock
Washer Lid Switch EBF61674804

#A140

All parts diagram

Washer lid switch

Part #EBF61674804

BEST SELLER
$119.47
9% OFF Phone Price : $131.47
In Stock
Washer Shock Absorber AGM74269801

#K104

All parts diagram

Washer shock absorber

Part #AGM74269801

BEST SELLER
$42.14
12% OFF Phone Price : $48.14
In Stock
Washer Suspension Rod AJK73229709

#K100

All parts diagram

Washer suspension rod

Part #AJK73229709

BEST SELLER
In Stock
